1. Introduction
The PLEXTONE GS3 Mark II is a high-fidelity USB virtual 7.1 channel sound card designed to enhance your audio experience, particularly for gaming. It provides immersive surround sound and features convenient controls for volume and microphone management. This device is an ideal solution for computers, laptops, or gaming consoles with malfunctioning or integrated sound cards, offering a plug-and-play experience without the need for additional drivers.
2. Product Overview
The PLEXTONE GS3 Mark II features a compact design with intuitive controls. It includes a large tuning button for volume adjustment, dedicated buttons for sound effects, and mute functions for both microphone and speaker output.
3. Setup
The PLEXTONE GS3 Mark II is designed for easy, driver-free installation, supporting mainstream PC operating systems. Simply plug the device into a compatible USB port.
- Connect to USB Port: Insert the USB-A connector of the GS3 Mark II into an available USB port on your computer, laptop, PS4, or other compatible device.
- Connect Audio Devices: Plug your 3.5mm headphones, headset, or microphone into the corresponding jacks on the GS3 Mark II. The device supports both single-plug (audio+mic combined) and dual-plug (separate audio and mic) 3.5mm connectors.
The operating system will automatically detect the device. You may need to select the PLEXTONE GS3 Mark II as your default audio input and output device in your system's sound settings.
4. Operating Instructions
The GS3 Mark II offers several functions to control your audio experience:

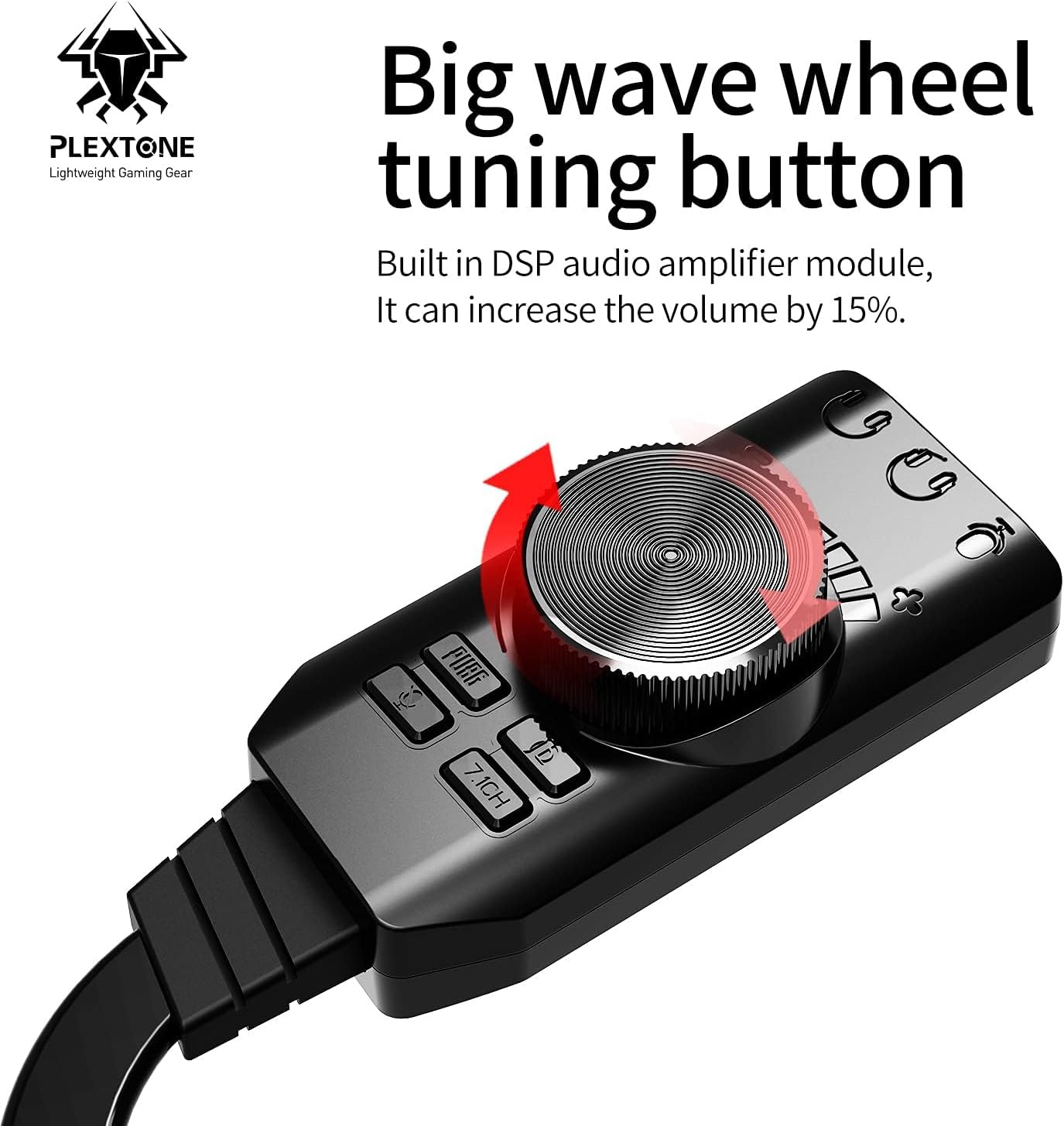

- Volume Control: Use the large tuning wheel to adjust the output volume. Turn it left to decrease volume and right to increase volume. The built-in DSP audio amplifier module can increase the volume by up to 15%.
- Microphone Mute: Press the microphone icon button to mute or unmute your microphone. A red LED indicator will light up when the microphone is muted.
- Speaker Mute: Press the speaker icon button to mute or unmute the speaker/headphone output.
- Virtual 7.1 Channel: Press the "7.1 CH" button to activate or deactivate the virtual 7.1 surround sound effect. A blue LED will indicate when 7.1 channel mode is active. This mode is ideal for immersive gaming.
- Sound Effects: The device includes dedicated buttons for specific gaming sound effects, such as "PUBG" and "League of Legends". Press these buttons to activate the respective sound profiles. A blue LED will indicate when a sound effect is active.
5. Maintenance
To ensure the longevity and optimal performance of your PLEXTONE GS3 Mark II, follow these simple maintenance guidelines:
- Keep the device clean by wiping it with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
- Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
- Avoid exposing the device to water or other liquids.
- Do not attempt to disassemble or repair the device yourself, as this will void the warranty and may cause damage.
6. Troubleshooting
If you encounter issues with your PLEXTONE GS3 Mark II, please refer to the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound output | Device not properly connected; incorrect audio output selected; volume too low; headphones/speakers faulty. | Ensure USB cable is securely connected. Check system sound settings to confirm GS3 Mark II is selected as default output. Increase volume using the tuning wheel. Test with different headphones/speakers. |
| Microphone not working | Microphone muted; incorrect audio input selected; microphone faulty; compatibility issue with mobile devices. | Press the microphone mute button to unmute. Check system sound settings to confirm GS3 Mark II is selected as default input. Test with a different microphone. Note: Some users have reported buzzing sounds on the microphone when used with mobile devices via adapters; this device is primarily optimized for PC use. |
| Sound quality is poor | Low-quality audio source; faulty audio cables/headphones; interference. | Ensure your audio source is high quality. Try different audio cables or headphones. Avoid placing the device near sources of electromagnetic interference. |
| Device not recognized | Faulty USB port; operating system issue. | Try connecting to a different USB port. Restart your computer. Ensure your operating system is up to date. |
7. Specifications
- Model: GS3 Mark II
- Product Type: USB Sound Card Adapter
- Color: Black
- Number of Channels: Virtual 7.1 Channel Sound
- Interface: 3.5mm Jack
- Volume Expansion: 15% (via built-in DSP audio amplifier)
- Sampling Rate: 44.1K/48K/96K
- Mute Function: One-button microphone mute, one-button speaker mute
- Headset Mode: Supports dual-plug microphone and single-plug microphone
- Connections: USB Type A, Stereo Output Jack, Mono Microphone Input Jack
- Compatible with: PS4, PC, Laptop, MacBook, Mobile (functionality may vary)
- Item Weight: 60 grams
- Dimensions: 22 x 10.9 x 3.3 cm (Shipping Dimensions)
8. Warranty Information
Specific warranty details for the PLEXTONE GS3 Mark II are not provided in the product information. Please refer to the retailer or manufacturer's official website for warranty terms and conditions.
9. Support
For technical assistance or further inquiries regarding your PLEXTONE GS3 Mark II, please contact PLEXTONE customer support through their official channels. Contact information can typically be found on the manufacturer's website or product packaging.
