1. Product Overview
The Bosch KGN39VXCT Series 4 Refrigerator-Freezer is designed to provide efficient and reliable food storage with advanced features for freshness and convenience. This appliance combines a spacious refrigerator compartment with a bottom freezer, equipped with NoFrost technology to prevent ice buildup.
Key Features:
- VitaFresh XXL <0°C> System: Provides ideal storage conditions for fresh produce, meat, and fish, with a humidity-controlled drawer for fruits and vegetables.
- NoFrost Technology: Eliminates the need for manual defrosting by ensuring a constant dry air flow to prevent ice formation.
- MultiAirflow System: Ensures even temperature distribution throughout the refrigerator compartment.
- Electronic Temperature Control: Easy and precise temperature management via an intuitive LED display.
- Super Cool & Super Freeze Functions: Quickly chills or freezes newly added items to preserve freshness.
- Quiet Operation: Operates at a low noise level of 35 dB (A).
Bosch KGN39VXCT Refrigerator-Freezer with both doors open, showing the spacious interior of the refrigerator and freezer compartments.
2. Safety Information
Please read all safety instructions carefully before using the appliance to prevent personal injury or damage to the unit. Keep this manual for future reference.
- Ensure the appliance is properly grounded before connecting to power.
- Do not damage the refrigerant circuit. If damaged, avoid open flames and sources of ignition, and ventilate the room thoroughly.
- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
- Keep ventilation openings clear of obstruction.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
- Children should be supervised to ensure that they do not play with the appliance.
3. Setup and Installation
Proper installation is crucial for the optimal performance and longevity of your refrigerator-freezer.
Unpacking:
- Remove all packaging materials, including protective films and tapes.
- Inspect the appliance for any transport damage. Report any damage immediately to your retailer.
Placement:
- Place the appliance on a firm, level surface.
- Ensure adequate ventilation around the unit. Maintain a minimum clearance of 5 cm from walls and other appliances.
- Avoid placing the appliance in direct sunlight or near heat sources (e.g., radiators, ovens).
- The 'PerfectFit' design allows for flexible placement, even flush against side walls or furniture, provided sufficient ventilation is maintained at the rear.
Technical drawing showing the top view dimensions and required clearance for installation of the Bosch KGN39VXCT refrigerator-freezer.
Leveling:
Adjust the adjustable feet at the front of the appliance to ensure it is level and stable. This prevents vibrations and ensures proper door closure.
Electrical Connection:
- Connect the appliance to a properly grounded power outlet (230 Volts).
- Do not use extension cords or multiple socket adapters.
- Allow the appliance to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.
Initial Cleaning:
Before first use, clean the interior of the appliance with a damp cloth and a mild detergent. Dry thoroughly.
4. Operating Instructions
Familiarize yourself with the controls and features of your Bosch refrigerator-freezer.
Control Panel:
The electronic control panel is located at the top of the refrigerator compartment. It allows you to set temperatures and activate special functions.

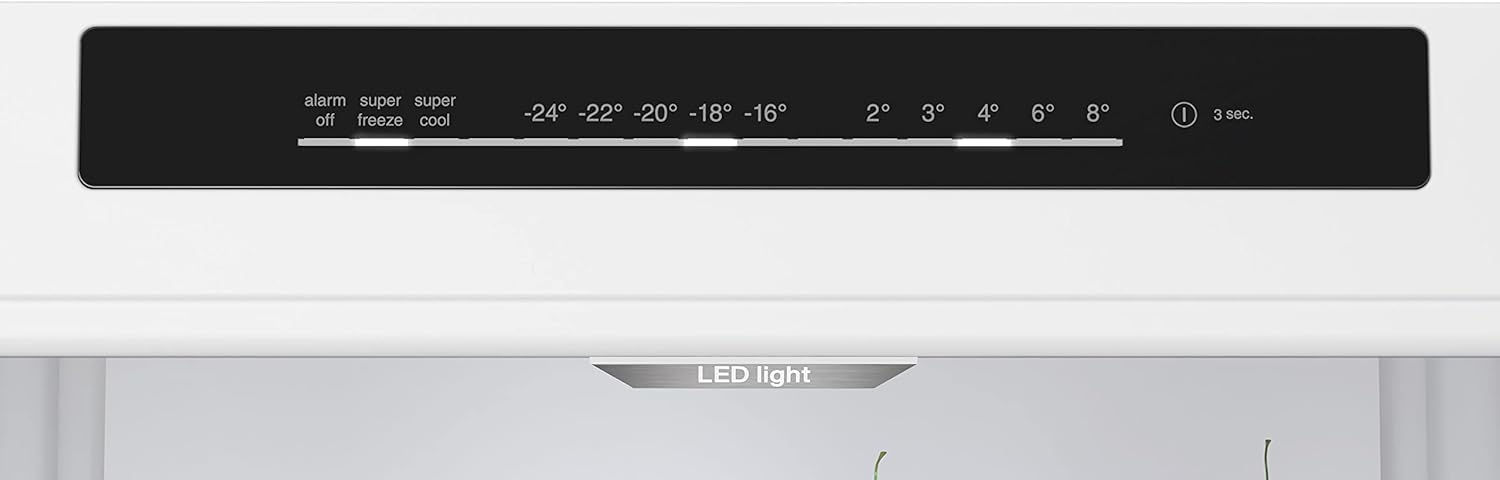

Close-up of the Bosch KGN39VXCT refrigerator's LED control panel, displaying temperature settings and function indicators like 'alarm', 'super freeze', and 'super cool'.
Setting Temperatures:
- Use the temperature buttons on the control panel to adjust the desired temperature for the refrigerator and freezer compartments.
- Recommended refrigerator temperature: +4°C.
- Recommended freezer temperature: -18°C.
VitaFresh XXL System:
The VitaFresh XXL drawers are designed to keep food fresh for longer. The lower drawer has humidity control for fruits and vegetables, while the upper drawer maintains a cooler temperature (around 0°C) ideal for meat and fish.
Close-up of the VitaFresh XXL drawers inside the Bosch KGN39VXCT refrigerator, designed for optimal storage of meat, fish, fruits, and vegetables.
NoFrost Technology:
The NoFrost system automatically removes moisture from the freezer compartment, preventing ice buildup. This means you will never need to manually defrost your freezer.
Image illustrating the NoFrost technology in the Bosch KGN39VXCT freezer, showing one side with ice buildup (before NoFrost) and the other side clear (with NoFrost).
5. Maintenance and Care
Regular cleaning and maintenance will ensure your appliance operates efficiently and extends its lifespan.
Cleaning the Interior:
- Unplug the appliance before cleaning.
- Clean the interior with a soft cloth, lukewarm water, and a mild, neutral detergent.
- Do not use abrasive cleaners, scouring pads, or solvents.
- Remove shelves, drawers, and door bins for thorough cleaning.
- Dry all parts thoroughly before placing them back.
Cleaning the Exterior:
- Wipe the exterior surfaces with a soft, damp cloth. For black stainless steel, use a specialized cleaner if necessary to maintain its anti-fingerprint finish.
- Clean the door seals regularly to ensure a tight seal and prevent energy loss.
Condenser Coils:
Periodically (at least once a year), clean the condenser coils at the back of the appliance with a soft brush or vacuum cleaner. This improves energy efficiency.
Defrosting:
Thanks to NoFrost technology, manual defrosting of the freezer compartment is not required. The refrigerator compartment defrosts automatically.
6. Troubleshooting
Before contacting customer service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not cool. | No power supply; temperature setting too high; door not closed properly. | Check power plug and fuse; adjust temperature setting; ensure door is fully closed. |
| Excessive noise. | Appliance not level; items touching the back wall; compressor noise. | Level the appliance; rearrange items; compressor noise is normal during operation. |
| Water on the bottom of the refrigerator compartment. | Drain hole blocked. | Clear the drain hole with a small tool (e.g., pipe cleaner). |
| Light not working. | Light bulb faulty or LED module issue. | Contact qualified service personnel for LED module replacement. |
| Ice buildup in freezer (despite NoFrost). | Door left open too long; door seal damaged. | Ensure door is closed quickly; check and clean door seal, replace if damaged. |
7. Specifications
Detailed technical specifications for the Bosch KGN39VXCT Refrigerator-Freezer:
| Feature | Value |
|---|---|
| Brand | Bosch |
| Model Number | KGN39VXCT |
| Color | Black Stainless Steel |
| Total Capacity | 363 Liters |
| Refrigerator Capacity | 260 Liters |
| Freezer Capacity | 103 Liters |
| Configuration | Bottom Freezer |
| Energy Efficiency Class | C |
| Annual Energy Consumption | 162 kWh/annum |
| Noise Emission | 35 dB (A) |
| Defrost System | Automatic (NoFrost) |
| Installation Type | Freestanding |
| Number of Doors | 2 |
| Voltage | 230 Volts |
| Dimensions (H x W x D) | 2030 mm x 600 mm x 665 mm |
| Climate Class | SN-T (Extended Temperate to Tropical) |
Official EU Energy Label for the Bosch KGN39VXCT refrigerator-freezer, showing energy efficiency class C, annual energy consumption, volumes, and noise level.
8. Warranty and Support
Your Bosch KGN39VXCT Refrigerator-Freezer comes with a manufacturer's warranty and access to support resources.
Manufacturer's Warranty:
This appliance is covered by a 2-year manufacturer warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.
Product Information and Support:
For detailed product information, energy label data, and further support, please visit the official Bosch website or the EPREL database:
- Official Bosch Home Appliances Website: www.bosch-home.com/energylabel
- EPREL Product Database (QR Code Link): eprel.ec.europa.eu/qr/934862
For service requests or technical assistance, please contact Bosch customer service in your region. Contact details can typically be found on the Bosch website or in your appliance documentation.
