THTEN KST-120X String Trimmer Spool Replacement Manual

1. Product Overview

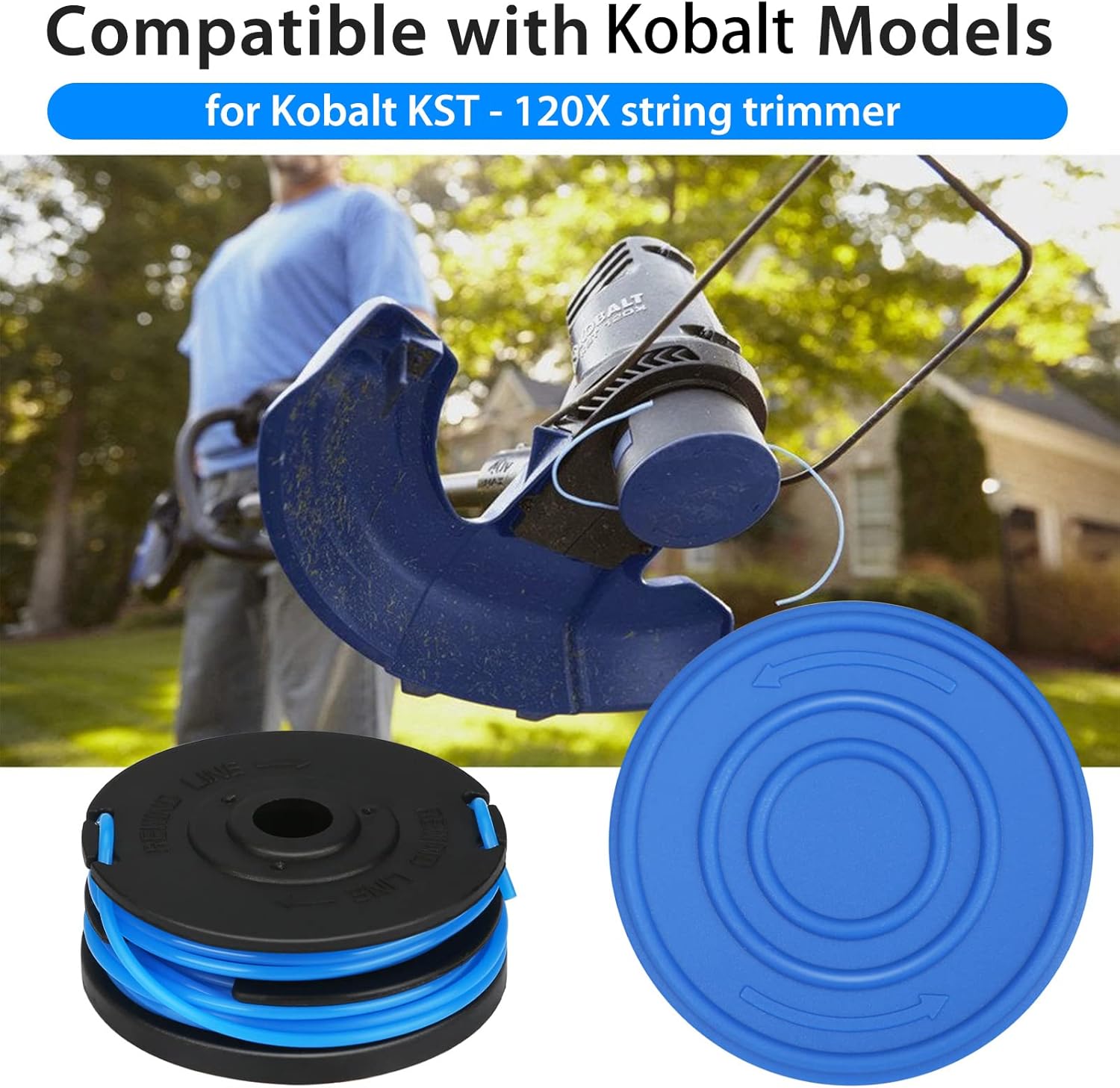

The THTEN KST-120X KST 2040-06 String Trimmer Spool Replacement is designed for use with Kobalt KST 120x-06 40 Volt string trimmers. This product provides a convenient and efficient solution for replacing worn or broken trimmer line spools, ensuring continuous and effective trimming performance.

2. Product Features

• Compatibility: Specifically designed for Kobalt KST-120X KST 2040-06 40V string trimmers.
• Pre-wound Line: Each spool comes pre-wound with .065 inch diameter dual lines, ready for immediate use.
• Durable Construction: Features high-quality ABS spools and durable polyamide nylon thread for extended service life.
• Efficient Cutting: Aerodynamic line shape reduces drag, leading to more efficient and cleaner cuts.

3. Setup and Installation

Follow these steps to properly install the replacement spool on your Kobalt string trimmer:

1. Step 1: Prepare the Trimmer. Ensure the trimmer is turned off and the battery is removed for safety.
2. Step 2: Remove Old Spool. Locate the spool housing on the trimmer head. Press the tabs or twist the cap to remove the old spool and any remaining line.
3. Step 3: Insert New Spool. Take a new THTEN replacement spool. Thread the ends of the trimmer line through the eyelets on the trimmer head. Ensure the line is securely seated in the spool.
4. Step 4: Secure the Cap. Align the replacement cap with the spool housing and press firmly until it clicks into place. Ensure the cap is flush and securely fastened to prevent dislodging during operation.

4. Operating Instructions

Once the replacement spool is installed, your trimmer is ready for operation. Always refer to your Kobalt string trimmer's original manual for specific operating and safety guidelines.

• Ensure the trimmer line is extended to the proper length before starting.
• Maintain a safe distance from objects and other individuals while operating the trimmer.
• Wear appropriate personal protective equipment, including eye protection, long pants, and sturdy footwear.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your trimmer line and spools.

• Line Replacement: Replace the spool when the line is depleted. Always use THTEN KST-120X compatible spools for best results.
• Cleaning: Periodically clean the trimmer head and spool housing to remove grass clippings and debris. This prevents buildup that could impede line feeding.
• Storage: Store unused spools in a cool, dry place away from direct sunlight to maintain line integrity.

6. Troubleshooting

If you encounter issues with your THTEN replacement spool, consider the following common solutions:

• Line Not Feeding:
  • Ensure the spool is correctly installed and the line is not tangled within the housing.
  • Check for debris or grass buildup around the line exit points.
  • Verify that the line is not fused together on the spool due to heat or improper storage.
• Cap Not Fitting Securely:
  • Ensure the cap tabs are properly aligned with the slots on the trimmer head.
  • Apply firm, even pressure when attaching the cap until it clicks into place.
  • Inspect the cap and housing for any damage or wear that might prevent a secure fit.
• Line Breaking Frequently:

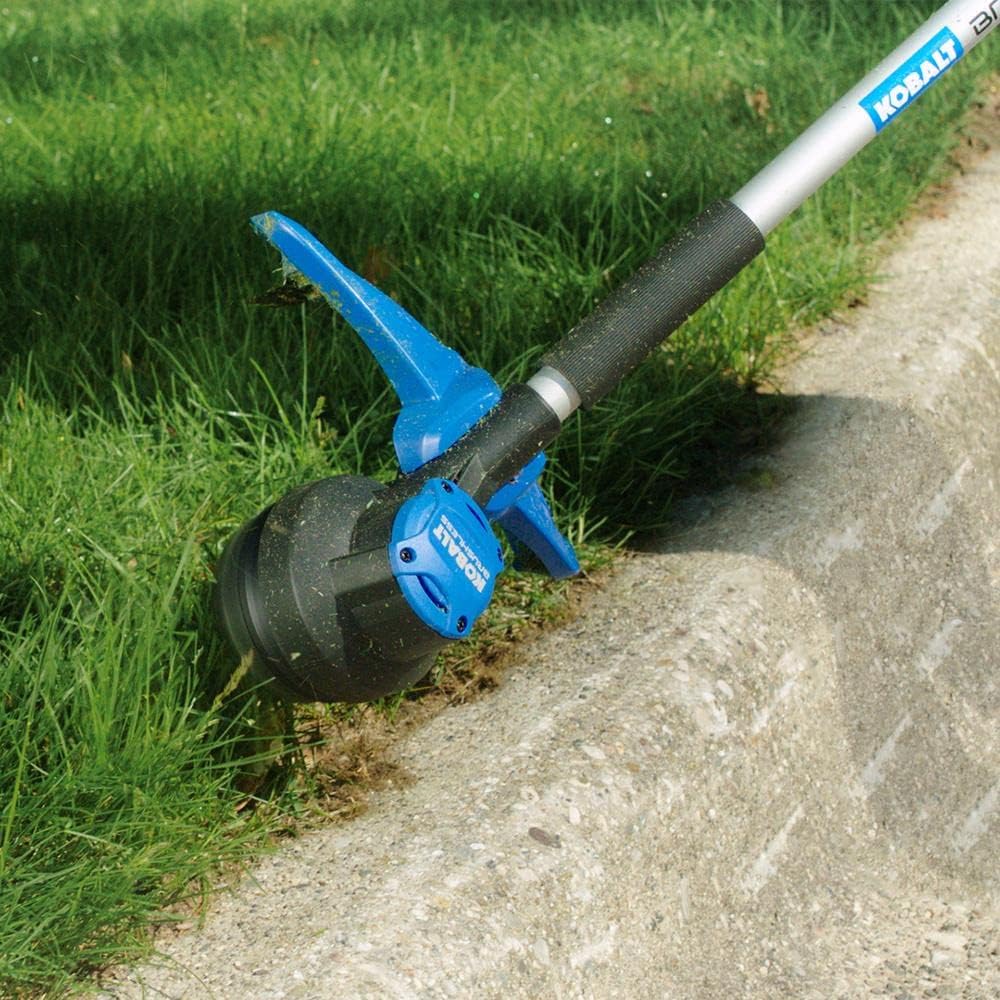

  • This can occur if the line is hitting hard surfaces (e.g., concrete, rocks) too often. Adjust your trimming technique.
  • Ensure the line is not old or brittle. Proper storage helps maintain line flexibility.

7. Specifications

8. Warranty and Support

THTEN products are manufactured to high-quality standards. If you experience any issues or have questions regarding your THTEN KST-120X String Trimmer Spool Replacement, please contact our customer support team.

For assistance, please refer to the contact information provided with your purchase or visit the official THTEN store on Amazon: THTEN Store.

We are committed to providing appropriate solutions within 24 hours for any quality-related concerns.
