Mobile Stairlift EZ LITE Evacuation Stair Chair User Manual

Important Safety Information

Read this manual completely before operating the EZ LITE Evacuation Stair Chair. Failure to follow instructions and warnings may result in serious injury to the patient or operator.

• This device is intended for use by trained personnel only. Ensure all operators are familiar with the chair's functions and safety procedures.
• Always operate the stair chair with at least two trained individuals for optimal safety and control, especially during stair descent.
• Do not exceed the maximum weight capacity of 350 lbs (158 kg).
• Always secure the patient with the safety belts provided before any movement.
• Inspect the chair for any damage or wear before each use. Do not use if any components are damaged.
• Ensure the path is clear of obstacles before transporting a patient.
• The chair is designed for descending stairs. For ascending stairs with an occupant in a non-emergency capacity, use the lower lift handles to lift the patient completely.

Product Overview

The Mobile Stairlift EZ LITE Evacuation Stair Chair is a portable, foldable device designed for safe and efficient transport of individuals down staircases during emergencies or when mobility is limited. Its lightweight aluminum construction and pressure-reliant track system ensure ease of use and patient comfort.

Key Features:

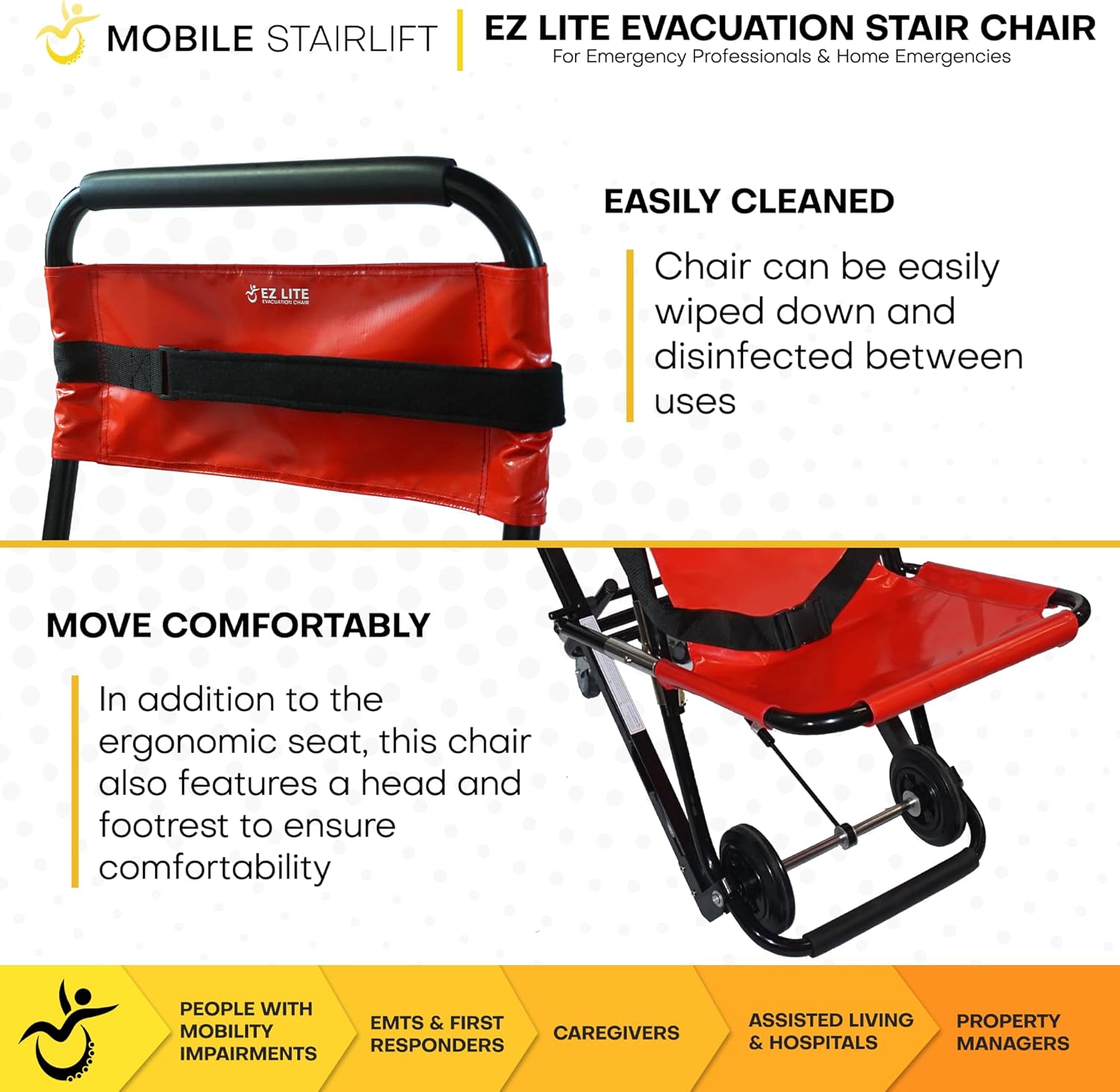

• Ergonomic Design: Features an ergonomic seat, headrest, and footrest for patient comfort.
• Foldable Handles: Equipped with foldable push/lift handles and a padded adjustable upper control handle.
• Safety Belts: Includes rider safety belts for secure patient transport.
• Dual Manual Wheel Locks: Provides stability when stationary.
• Ultra Grip Tracks: Pressure-reliant track system for smooth and controlled stair descent.
• Lightweight & Portable: Constructed from aluminum, weighing approximately 22 lbs, and folds for easy storage.
• Durable Frame: Engineered for reliable usage in various environments.
• High Weight Capacity: Can accommodate patients up to 350 lbs.
• Easy to Clean: Vinyl seating surface and frame can be easily wiped down and disinfected.

Setup and Unfolding

The EZ LITE Evacuation Stair Chair comes pre-assembled and requires no tools for setup. To prepare the chair for use:

1. Place the folded chair on a flat, stable surface.
2. Grasp the upper handle and gently pull upwards to extend the frame.
3. Push down on the seat frame until it locks into place, ensuring the seat is fully open and stable.
4. Extend the lower footrest and ensure it is securely positioned.
5. Adjust the upper control handle to a comfortable height for the operator by pressing the release buttons and sliding the handle into position.

Operation

Patient Seating and Securing:

1. Ensure the chair is stable and the dual manual wheel locks are engaged.
2. Assist the patient to sit comfortably in the chair, ensuring their back is against the backrest.
3. Secure the patient using the provided safety belts across the chest and lap. Adjust straps for a snug fit without causing discomfort.
4. Position the headrest for patient support.

Stair Descent (Downward Movement):

The EZ LITE chair utilizes a pressure-reliant track system for controlled descent. This system grips and glides along the stairs, reducing stress on the operator.

1. Position the chair at the top of the staircase with the tracks aligned with the first step.
2. One operator should hold the upper control handle, maintaining a firm grip. The second operator can assist from the front or side, providing additional stability and patient reassurance.
3. Gently tilt the chair backward until the tracks make contact with the stairs.
4. Control the downward speed by adjusting the amount of applied pressure on the stairs through the tracks. More pressure slows descent, less pressure allows faster movement.
5. Maintain a steady, controlled pace, ensuring the patient remains comfortable and secure.

Stair Ascent (Upward Movement):

For non-emergency ascent with an occupant, the chair must be lifted. This requires significant operator strength.

• Position one operator at the lower lift handles and another at the upper control handle.
• Coordinate lifting to raise the chair and patient over each step.
• This method is physically demanding and should only be performed by adequately strong and trained individuals.

General Transport (Flat Surfaces):

On flat surfaces, the chair can be rolled using its wheels.

• Ensure the chair is upright and the tracks are not engaged.
• Disengage the wheel locks.
• Push or pull the chair using the handles.

Instructional Video:

Maintenance and Cleaning

Regular maintenance and cleaning will ensure the longevity and hygienic operation of your EZ LITE Evacuation Stair Chair.

• Cleaning: After each use, especially after patient transport, wipe down the chair's frame and vinyl seating surface with a mild cleaning agent or disinfectant.
• Disinfection: For thorough disinfection, the stair climbing chair can be power washed. Ensure all components are thoroughly dried before storage.
• Inspection: Periodically check all moving parts, straps, buckles, and the track system for signs of wear, damage, or loose connections. Tighten any loose fasteners.
• Lubrication: Apply a silicone-based lubricant to moving joints and wheel axles as needed to ensure smooth operation.

Storage and Portability

The EZ LITE Evacuation Stair Chair is designed for compact storage and easy portability.

1. Ensure the chair is clean and dry before folding.
2. Release the seat lock mechanism and fold the seat upwards.
3. Collapse the frame by pushing the handles downwards, allowing the chair to fold into its compact form.
4. Secure any loose straps or components.
5. Store the folded chair in the provided lightweight storage cover.
6. Utilize the wall mount bracket for convenient and accessible storage.

Specifications

Troubleshooting

This section addresses common issues you might encounter with your EZ LITE Evacuation Stair Chair.

• Difficulty unfolding/folding: Ensure all locking mechanisms are disengaged. Apply gentle, even pressure. Do not force components.
• Tracks not gripping stairs effectively: Verify the tracks are clean and free of debris. Ensure sufficient downward pressure is applied during descent.
• Wheels not rolling smoothly: Check for debris in the wheel mechanisms. Lubricate axles if necessary. Ensure wheel locks are disengaged.
• Patient discomfort: Re-adjust safety belts for a secure yet comfortable fit. Ensure the headrest and footrest are properly positioned.
• Excessive operator strain: Ensure proper technique is used for stair descent, relying on the track system. For stair ascent, ensure adequate personnel and lifting technique. Practice with a non-occupant or lighter load first.

If you experience persistent issues or damage, contact customer support.

Warranty and Support

For information regarding warranty coverage, product support, or to order replacement parts, please contact Mobile Stairlift.com customer service. Refer to your purchase documentation for specific warranty terms and contact details.

Manufacturer: Climbing Steps, Inc.
