LAZYBOI Cordless Leaf Blower LA808 User Manual

1. Important Safety Instructions

Please read and understand all instructions before operating the LAZYBOI Cordless Leaf Blower. Failure to follow these instructions may result in electric shock, fire, and/or serious personal injury.

• Wear Eye Protection: Always wear safety glasses or goggles when operating the blower.
• Keep Area Clear: Ensure the operating area is clear of bystanders, children, and pets.
• Secure Grip: Maintain a firm grip on the blower handle during operation.
• Battery Safety: The LAZYBOI battery features overheat protection. Do not charge immediately after discharge; allow 5-10 minutes for cooling. Fully charge the battery for extended storage (3+ months).
• Avoid Wet Conditions: Do not operate the blower in wet conditions or rain.
• Inspect Before Use: Check for loose parts, damage, or obstructions before each use.

2. What's in the Box

Your LAZYBOI Cordless Leaf Blower package includes the following components:

• LAZYBOI Blower Unit (Model: LA808)
• 2 Nozzle Attachments (short and long)
• 20V 2.0Ah Lithium-Ion Battery
• 1-Hour Fast Charger
• User Manual

3. Setup

3.1 Assembly

1. Select the desired nozzle attachment (short or long) based on your task.
2. Align the nozzle with the blower's air outlet and push firmly until it clicks into place.

3.2 Battery Charging

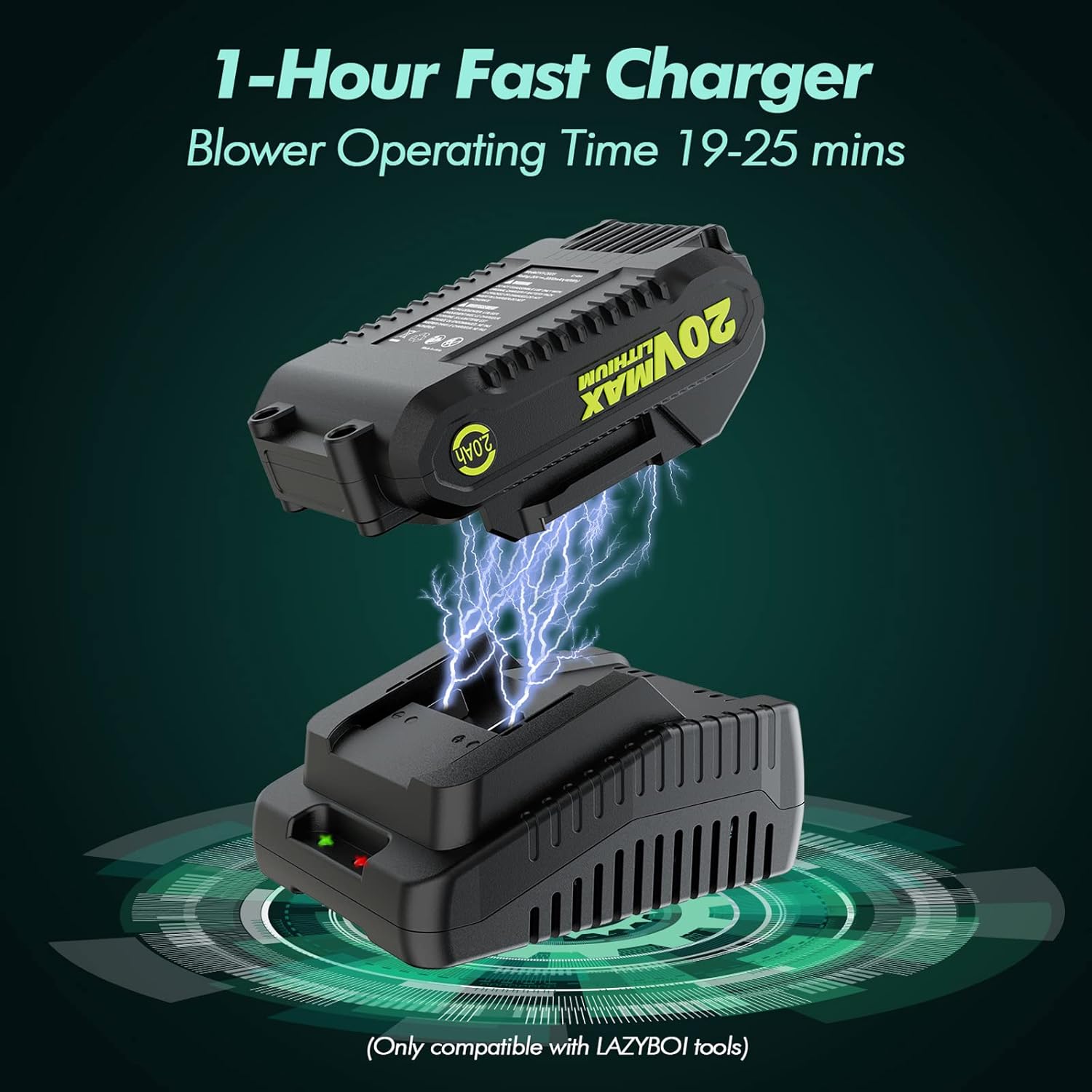

The 20V 2.0Ah Lithium-Ion battery requires charging before first use and as needed.

1. Connect the 1-hour fast charger to a standard power outlet.
2. Slide the battery onto the charger base. The indicator light on the charger will show the charging status.
3. Allow the battery to fully charge. The fast charger typically completes a full charge in approximately 1 hour.
4. After use, allow the battery to cool down for 5-10 minutes before recharging to maximize battery life.
5. For extended storage (3+ months), ensure the battery is fully charged.

3.3 Battery Installation

1. Align the charged battery with the battery slot on the underside of the blower unit.
2. Slide the battery into the slot until it securely clicks into place.

4. Operating Instructions

4.1 Power On/Off and Speed Control

The LAZYBOI leaf blower features a simple control panel for easy operation.

1. To Power On: Press and hold the power button (labeled 'Long Press') for a few seconds until the blower starts.
2. To Adjust Speed: Once powered on, press the speed mode button to toggle between the two available speeds (low and high). The maximum air speed is 150 MPH in turbo mode.
3. To Power Off: Press the power button again.

4.2 Recommended Usage

This cordless leaf blower is designed for lightweight tasks, offering convenience and maneuverability.

• Lawn Care: Efficiently clear grass clippings from driveways, sidewalks, and patios.
• Leaf Blowing: Ideal for blowing leaves from small to medium-sized yards, patios, and balconies.
• Snow Removal: Effective for clearing light snow from pathways and vehicles.
• Roof and Gutter Cleaning: Suitable for light debris removal from accessible roofs and gutters.

4.3 Official Product Videos

Watch these official videos for a visual guide on setup and operation:

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your leaf blower.

• Cleaning: Wipe the exterior of the blower with a damp cloth. Do not use harsh chemicals.
• Clear Vents: Ensure all air intake and exhaust vents are free from debris to prevent overheating.
• Battery Care: Follow the battery maintenance guidelines provided in Section 3.2.
• Storage: Store the blower and battery in a cool, dry place away from direct sunlight and extreme temperatures.

6. Troubleshooting

If you encounter issues with your LAZYBOI leaf blower, refer to the following common problems and solutions:

• Blower does not turn on:
  • Ensure the battery is fully charged.
  • Verify the battery is securely installed in the blower unit.
  • Confirm you are performing a 'Long Press' on the power button to activate the unit.
• Reduced air speed or performance:
  • Check the battery charge level.
  • Inspect the nozzle and air intake for any obstructions (leaves, debris, etc.) and clear them.

If problems persist, please contact customer support.

7. Specifications

8. Warranty and Support

The LAZYBOI Cordless Leaf Blower comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. Many users have reported a 1-year warranty period.

For any questions, technical assistance, or warranty claims, please contact LAZYBOI customer service through the contact information provided in your user manual or on the official LAZYBOI website.
