Queenmew Citronella Bark Collar: User Instruction Manual

1. Product Overview

The Queenmew Citronella Bark Collar is designed to help train dogs to reduce excessive barking using a harmless citronella spray. This device utilizes intelligent microphone detection to identify your dog's barking and automatically releases a gentle spray, distracting the dog and discouraging unwanted barking behavior. It is a safe and humane training tool, free from electric shock.

Important Note: The citronella spray is not included with this collar and must be purchased separately.

2. Package Contents

Upon opening your Queenmew Citronella Bark Collar package, you should find the following items:

1 x Anti Bark Collar Unit
2 x Adjustable Nylon Collar Straps
1 x USB Charging Cable
1 x English User Manual

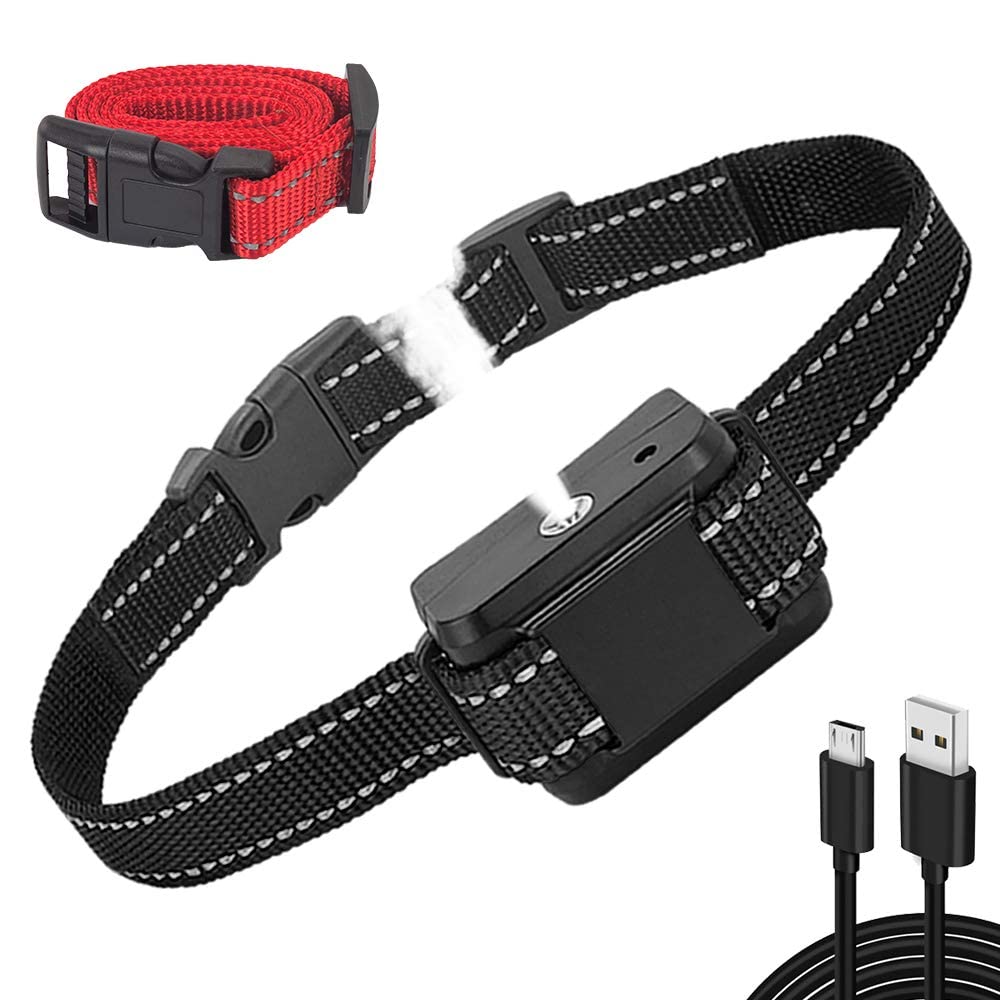

Queenmew Citronella Bark Collar package contents including collar unit, two straps, USB cable, and manual. — Image: Contents of the Queenmew Citronella Bark Collar package. This includes the main collar unit, two adjustable nylon straps, a USB charging cable, and a user manual.

3. Product Features

Humane Bark Control: Utilizes a harmless citronella spray to deter barking, with no electric shock.
Smart Bark Detection: An intelligent microphone detects and discriminates dog barking, preventing false triggers from other sounds.
Adjustable Spray Volume: Allows customization of the spray amount (small or large) to suit your dog's needs.
Adjustable Sensitivity: The barking detection sensitivity can be set to high or low, adapting to different dog barking frequencies.
Universal Fit: Adjustable nylon straps accommodate various dog sizes and breeds (8-27 inches long).
Rechargeable Battery: Built-in lithium battery provides up to 7 days of use on a 2-3 hour charge.
Waterproof Design: Allows for use in splash water or light rain, but is not suitable for submersion.
LED Indicators: Lights display battery status and spray volume settings.

4. Component Identification

Diagram showing components of the Queenmew Citronella Bark Collar: Power Button, Adjust Button, Gas Refill Port, Spray Nozzle, Audio Sensor, Micro Charging Port. — Image: Detailed view of the collar unit, identifying key components: 1. Power Button (Turn on/off), 2. Adjust Button (Adjust spray volume and sensitivity), 3. Gas Refill Port, 4. Spray Nozzle, 5. Audio Sensor, 6. Micro Charging Port.

5. Setup Instructions

5.1 Charging the Collar

Before first use, fully charge the collar. Connect the provided USB cable to the Micro Charging Port (6) on the collar and to a USB power source (e.g., computer, wall adapter). The LED 1 light will illuminate red during charging and turn green when fully charged. A full charge takes approximately 2-3 hours and provides up to 7 days of regular use.

Image showing the Queenmew Citronella Bark Collar connected to a USB charging cable, with LED indicators for charging status. — Image: The collar unit being charged via USB cable. LED 1 indicates charging status: red for charging, green for fully charged. The image also highlights the rapid recharging capability.

5.2 Filling the Citronella Spray

Locate the Gas Refill Port (3) on the collar unit. Insert the nozzle of your citronella spray can (purchased separately) into this port and press firmly to fill. Ensure the collar is off during this process.

5.3 Attaching and Fitting the Collar

Select one of the provided nylon straps and attach it to the collar unit. Place the collar around your dog's neck, ensuring the Spray Nozzle (4) is positioned towards the dog's nose. The collar should fit snugly, allowing one finger to fit comfortably under the strap. This ensures proper contact for bark detection and spray delivery without causing discomfort.

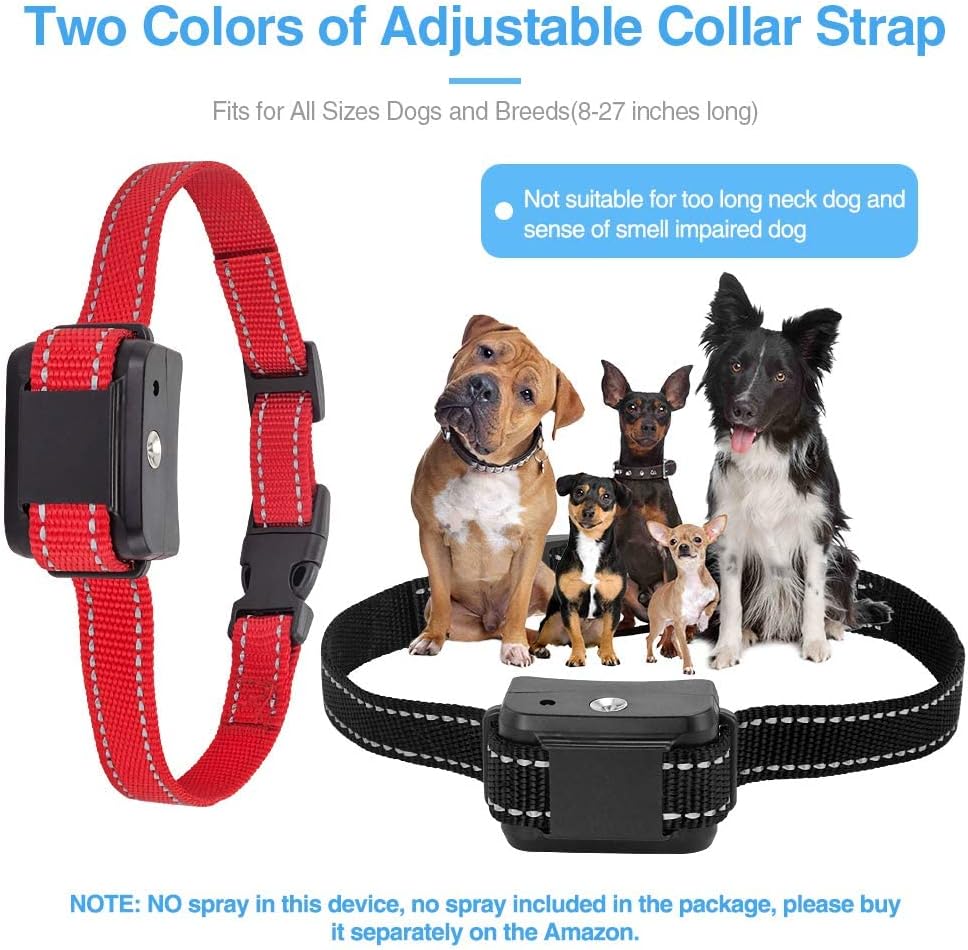

Image showing two adjustable collar straps in red and black, with the collar unit, and a group of dogs of various sizes, indicating the collar fits all sizes. — Image: Two adjustable collar straps (red and black) are shown, along with the main collar unit. The image also features various dog breeds, illustrating that the collar is designed to fit all sizes of dogs (8-27 inches long). A note advises against use for dogs with very long necks or impaired sense of smell.

For long-haired dogs, trim the neck hairs along the path of the spray to ensure effective delivery.
Do not use this collar on aggressive dogs, dogs with long noses, or dogs with impaired sense of smell.

6. Operating Instructions

6.1 Powering On/Off

To turn the collar on, press and hold the Power button (1) for 3 seconds. To turn it off, repeat the same action.

6.2 Adjusting Spray Volume

The collar offers two spray volume settings: Small and Large.

Small Spray Volume: Short press the Adjust button (2) (within 1 second). LED 2 will flash yellow.
Large Spray Volume: Short press the Adjust button (2) (within 1 second). LED 2 will flash blue.

Image demonstrating how to adjust spray volume on the Queenmew Citronella Bark Collar. It shows pressing the adjust button to switch between small (yellow LED) and large (blue LED) spray volumes. — Image: This illustration shows the process of adjusting the spray volume. A short press of the Adjust button (within 1 second) toggles between small spray volume (indicated by LED 2 flashing yellow) and large spray volume (indicated by LED 2 flashing blue).

6.3 Adjusting Sensitivity

The collar has two sensitivity settings for bark detection: Low and High.

Low Sensitivity: Long press the Adjust button (2) for 3 seconds. LED 1 and LED 2 will simultaneously flash once.
High Sensitivity: Long press the Adjust button (2) for 3 seconds. LED 1 and LED 2 will simultaneously flash twice.

Choose the sensitivity level appropriate for your dog's barking habits and environment.

6.4 Testing the Spray Function

Before placing the collar on your dog, you can test the spray function. With the collar powered on, say "Woof" loudly towards the Audio Sensor (5) to simulate a dog's bark. Observe if the collar releases a spray.

7. Maintenance

7.1 Cleaning

Wipe the collar unit with a soft, damp cloth as needed. Avoid using harsh chemicals or abrasive materials.

7.2 Water Resistance

The collar features a waterproof design, allowing it to withstand splashes or light rain. However, it is not designed for submersion. Always remove the collar before your dog bathes or swims to prevent damage.

A dog wearing the Queenmew Citronella Bark Collar playing in the rain, illustrating its waterproof design. — Image: A dog wearing the Queenmew Citronella Bark Collar is shown playing outdoors in rainy weather. This demonstrates the collar's waterproof design, suitable for splashes and light rain.

7.3 Battery Care

Recharge the collar when the LED 1 light indicates low voltage (continuously glitters). Regular charging helps maintain battery health. Avoid prolonged storage with a completely depleted battery.

8. Troubleshooting

Problem	Possible Cause	Solution
Collar not spraying when dog barks.	No citronella spray in the reservoir. Collar is off or battery is low. Sensitivity setting is too low. Collar not positioned correctly. Dog's fur obstructing spray or sensor.	Refill the citronella spray. Turn on the collar and ensure it is charged. Increase the sensitivity setting. Adjust collar position so the nozzle faces the dog's nose. Trim fur around the spray nozzle and audio sensor.
Collar sprays without dog barking.	Sensitivity setting is too high. External loud noises triggering the sensor.	Decrease the sensitivity setting. Ensure the collar is not exposed to other loud noises that mimic barking.
Collar not charging.	USB cable or power source faulty. Charging port dirty or damaged.	Try a different USB cable or power source. Gently clean the charging port. If damaged, contact support.

9. Specifications

Brand	Queenmew
Model	Citronella Bark Collar
ASIN	B09TB9FPK5
UPC	650380592178
Battery	Built-in Lithium Battery
Charging Time	2-3 hours
Usage Time (Full Charge)	Up to 7 days
Collar Strap Length	Adjustable, 8-27 inches
Water Resistance	Splash-proof (not for submersion)
Item Weight	150 grams
Product Dimensions	7.7 x 7.59 x 5.89 cm

10. Warranty and Support

Queenmew offers a refund or replacement within 30 days if you are not satisfied with the product or if it is not suitable for your dog. For any issues or inquiries, please contact Queenmew customer support.

Please refer to the contact information provided with your purchase or on the official Queenmew website for support.
