1. Introduction
Thank you for choosing the WOLFMATE 60x28 Inch LED Bathroom Mirror. This manual provides essential information for the safe installation, operation, and maintenance of your new mirror. Please read these instructions thoroughly before installation and keep them for future reference.
Image 1: WOLFMATE 60x28 Inch LED Bathroom Mirror. This image shows the mirror installed in a bathroom setting, highlighting its illuminated frame and overall design.
2. Safety Information
WARNING: Electrical installation should only be performed by a qualified electrician. Always cut off power at the circuit breaker before connecting wires or performing any maintenance.
- Ensure the mirror is securely mounted to a sturdy wall structure.
- Do not expose the mirror to excessive moisture or direct water spray.
- Handle the mirror with care to prevent damage to the glass or electrical components.
- This mirror is designed for indoor use only.
- Keep packaging materials away from children.
3. Package Contents
Verify that all components are present before beginning installation:
- WOLFMATE 60x28 Inch LED Bathroom Mirror
- Mounting hardware (gypsum expansion screws)
- Instruction Manual
4. Setup and Installation
This LED mirror is designed for horizontal wall mounting and requires hardwiring. Professional installation is recommended.
- Preparation: Ensure the power supply to the installation area is turned off at the main circuit breaker.
- Marking: Determine the desired horizontal mounting location. Use a level to mark the positions for the mounting screws on the wall. Refer to the dimension diagram for precise measurements.

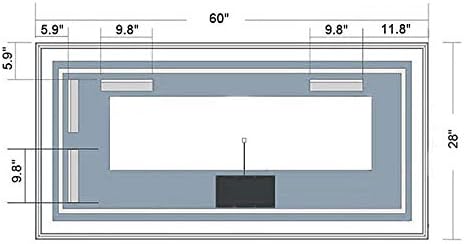

Image 2: Mirror Dimension Diagram. This diagram illustrates the overall dimensions of the mirror (60 inches by 28 inches) and the spacing for mounting points.
- Drilling: Drill pilot holes at the marked locations. Insert the provided gypsum expansion screws or appropriate wall anchors for your wall type.
- Wiring: Connect the mirror's electrical wires to your home's electrical wiring. Ensure correct polarity (Live to Live, Neutral to Neutral, Ground to Ground). All connections must be secure and comply with local electrical codes. Remember to cut off the power before connecting wires.
- Mounting: Carefully lift the mirror and align the mounting brackets on the back of the mirror with the installed screws/anchors. Secure the mirror firmly to the wall.
- Testing: Restore power at the circuit breaker and test the mirror's functions.
5. Operating Instructions
Your WOLFMATE LED Bathroom Mirror features multiple functions controlled by a sensitive touch button and can also be controlled via a wall switch.
Image 3: Mirror Functions Overview. This image highlights the key features of the mirror, including the touch button, dimmable lighting, anti-fog function, and control options.
- Power On/Off: Lightly touch the sensitive touch button on the mirror surface to turn the LED lights on or off.
- Dimmable Function: To adjust brightness, press and hold the touch button for approximately 3 seconds. The brightness will cycle from 10% to 100%. Release the button when the desired brightness level is reached.
- Anti-Fog Function: The mirror includes a quality PET anti-fog film. Activate the anti-fog function by pressing the dedicated anti-fog touch button (if separate) or by a specific touch sequence on the main button (refer to on-mirror icons if present). This feature helps keep the mirror surface clear in steamy conditions.
- Magnifier: The mirror includes a 7-inch (180mm) diameter, 3X magnification mirror. This magnifier has its own separate LED light and can be uninstalled easily.
- Mirror and Wall Control: The mirror can be controlled either by the touch button on its surface or by a connected wall switch.
6. Maintenance
Proper care will ensure the longevity and performance of your LED mirror.
- Cleaning: Clean the sleek surface of the mirror with a soft, damp cloth and a mild, non-abrasive glass cleaner. Avoid harsh chemicals or abrasive materials that could damage the mirror or its finish.
- Electrical Components: Do not attempt to service or repair the electrical components yourself. Refer to qualified personnel for any electrical issues.
- LED Lights: The integrated LED lighting is designed for long life (up to 30 years) and is virtually maintenance-free.
7. Troubleshooting
If you encounter issues with your mirror, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power supply; loose wiring; faulty touch button. | Check circuit breaker. Ensure wiring connections are secure (power off first). Contact customer support if the touch button is unresponsive. |
| Anti-fog function not working. | Anti-fog function not activated; electrical issue. | Ensure the anti-fog function is activated via the touch button. Check power supply. |
| Lights are flickering or dim. | Incorrect dimming setting; unstable power supply. | Adjust brightness using the dimmable function. Consult an electrician to check power supply stability. |
If the problem persists, please contact WOLFMATE customer support.
8. Specifications
- Brand: WOLFMATE
- Model: D204-6028
- Product Dimensions: 60"L x 28"W
- Mounting Type: Wall Mount (Horizontal)
- Material: Copper-free silver mirror
- Light Source: LED
- CRI: >90
- IP Rating: >44
- Features: Touch Button, Dimmable, Anti-Fog, Magnifier (7 inch, 3X magnification, separate LED light), Mirror and Wall Control
- UPC: 623064734683
- ASIN: B09T5PPZ6B
9. Warranty and Support
WOLFMATE products are manufactured to high-quality standards. In the unlikely event of a defect in materials or workmanship, please contact our customer support team. For damaged or defective items received, notify us within 3 days of receipt with a picture for verification. We will provide a replacement or refund upon verification.
For further assistance or inquiries, please visit the WOLFMATE Store on Amazon or contact our customer service.
