Vego Garden 32-inch Extra Tall 10-in-1 Modular Metal Raised Garden Bed Kit - Olive Green

Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Vego Garden 32-inch Extra Tall 10-in-1 Modular Metal Raised Garden Bed Kit. Please read all instructions carefully before beginning assembly or use to ensure safe and efficient operation.

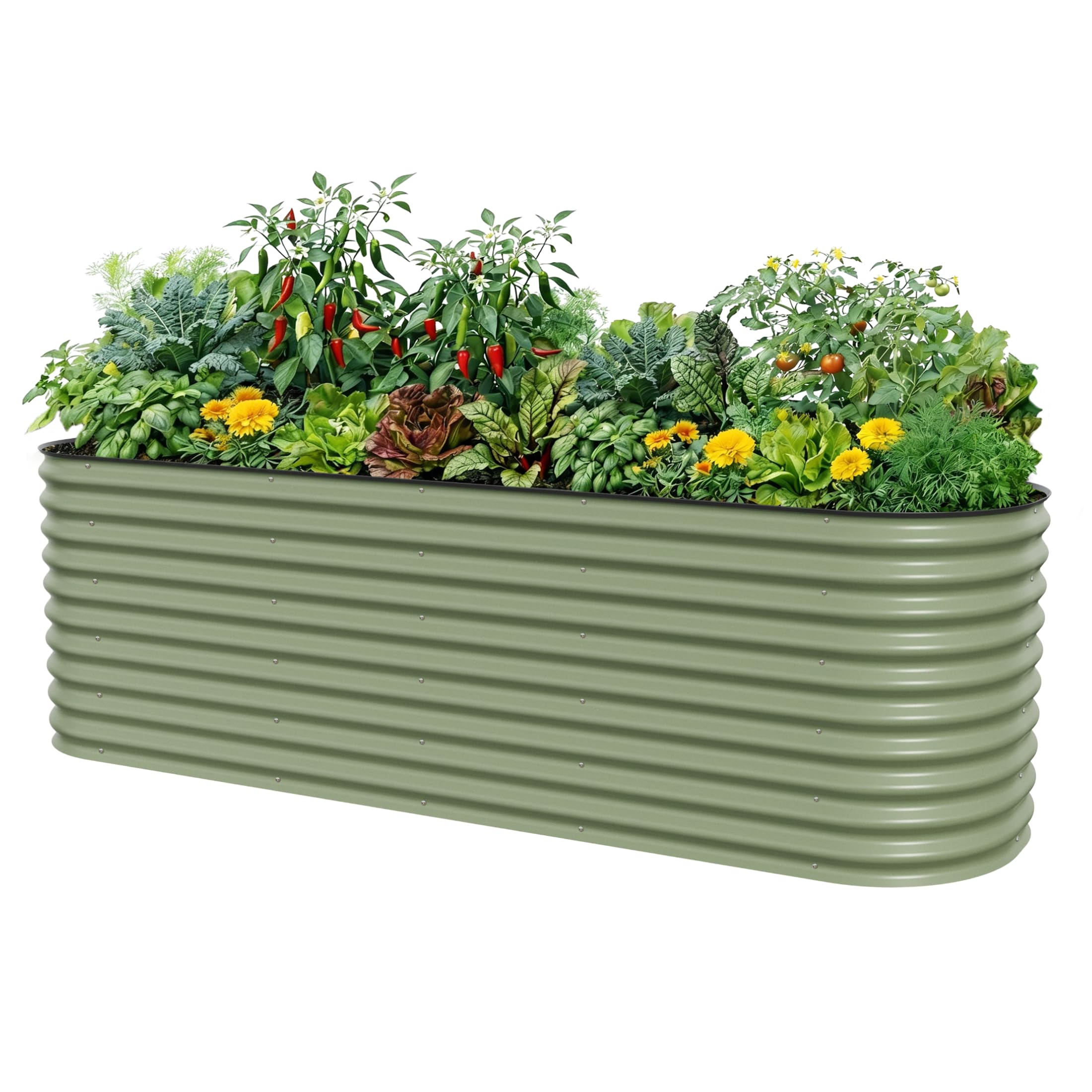

Figure 1: Assembled Vego Garden 32-inch Extra Tall 10-in-1 Modular Metal Raised Garden Bed Kit.

Product Features

• Modular Design: Assemble your kit into various configurations to fit any backyard or garden space. This 10-in-1 kit allows for 10 possible configurations.
• Advanced Material (VZ 2.0): Constructed from Zinc, Magnesium, and Aluminum coated steel with AkzoNobel paint. This material is 100% safe, eco-friendly, and offers a 20+ year lifespan. Verified for exceptional performance by the Texas A&M National Corrosion & Materials Reliability Lab.
• Easier and Safer Installation: No specialized construction knowledge required. Features an oval design with no sharp corners and heavy-duty rubber edging to protect from injury during assembly and use.
• Optimal Root Growth & Ergonomics: At 32 inches tall, this raised bed provides ample depth for root systems to develop, improves water drainage, and enhances soil quality. The height also reduces the need for bending, making gardening more comfortable.
• Complete System Compatibility: Designed to integrate with other Vego Garden products such as cover systems, worm composters, arched trellises, and wall trellises.

Figure 2: Overview of Vego Garden Raised Bed features.

Configuration Options

Your Vego Garden 10-in-1 Modular Metal Raised Garden Bed Kit offers versatility with ten different possible configurations. Refer to the included instruction manual for detailed diagrams and panel arrangements for each configuration. This allows you to customize the bed's shape and size to best suit your gardening needs and available space.

Figure 3: Ten possible configurations for your modular raised garden bed.

Setup & Assembly

Assembly of your Vego Garden raised bed is designed to be straightforward. Follow these general steps, referring to the detailed instruction manual included in your package for specific diagrams and hardware usage.

1. Unpack Components: Carefully unbox all panels, hardware (bolts, washers, nuts), and the rubber edging.
2. Remove Protective Film: If your panels have a protective film, peel it off before assembly.
3. Choose Configuration: Select one of the 10 available configurations from your instruction manual.
4. Assemble Panels: Connect the panels using the provided bolts, washers, and cap nuts. Ensure cap nuts are installed on the top two rows of holes for safety. Tighten all hardware securely using the provided tool or a power drill with a socket attachment.
5. Install Safety Edging: Once the bed is fully assembled, apply the heavy-duty rubber edging along the top rolled steel edge. Start from the middle of a back edge where two panels connect and press the edging down firmly as you go. Trim any excess with a blade or scissors.

For a visual guide, please watch the official assembly video:

Material & Safety

The Vego Garden raised bed is constructed from VZ 2.0 material, a combination of Zinc, Magnesium, and Aluminum coated steel, finished with USDA-certified AkzoNobel paint. This ensures a non-toxic, food-safe environment for your plants and a long product lifespan.

• Non-Toxic & Food-Safe: The VZ 2.0 material and USDA-certified paint prevent soil contamination and are safe for growing edible plants.
• Rust and Corrosion Resistant: The advanced coating provides superior protection against rust and corrosion, ensuring durability for over 20 years.
• Safety Features: Rounded corners and heavy-duty rubber edging are included to prevent accidental cuts or scrapes during gardening activities. Cap nuts are used on exposed bolts for a smooth finish.

Figure 4: Material composition and safety benefits of VZ 2.0.

Figure 5: Safety features including rubber edging, rounded corners, and cap nuts.

Usage & Benefits

The 32-inch height of this raised garden bed offers significant advantages for gardeners:

• Deep Root Systems: The extra depth provides ample space for plants with deep root systems to thrive, promoting healthier growth.
• Improved Drainage: Taller beds naturally offer better drainage, preventing waterlogging and root rot.
• Enhanced Soil Quality: You have full control over the soil composition, allowing for optimal nutrient levels and aeration.
• Reduced Bending: The waist-high design minimizes strain on your back and knees, making planting, weeding, and harvesting more comfortable and accessible.

Figure 6: Benefits of the 32-inch depth for plant growth and gardener comfort.

Explore how Vego Garden products can create a complete gardening system:

Figure 7: Examples of integrated Vego Garden systems.

Maintenance

To ensure the longevity and optimal performance of your Vego Garden raised bed, follow these maintenance guidelines:

• Regular Cleaning: Periodically wipe down the exterior panels with a soft cloth and mild soap and water to remove dirt and debris. Avoid abrasive cleaners that could damage the coating.
• Inspect Hardware: Annually check all bolts and nuts for tightness. Re-tighten if necessary to maintain structural integrity.
• Edging Inspection: Ensure the rubber safety edging remains securely in place around the top rim. Replace if it becomes loose or damaged.
• Soil Management: Maintain healthy soil levels and consider adding organic matter annually to replenish nutrients.

Troubleshooting

If you encounter any issues during assembly or use, refer to the following common troubleshooting tips:

• Panels Not Aligning: Double-check that you are following the correct configuration diagram from your instruction manual. Ensure all panels are oriented correctly (e.g., corner panels on the outside of straight panels).
• Loose Connections: Verify that all bolts, washers, and nuts are properly installed and tightened. Over-tightening is not necessary, but connections should be snug.
• Edging Not Fitting: The rubber edging has some stretch. If it seems too short, gently stretch it into place. If too long, carefully trim the excess with a sharp blade.

For further assistance, please contact Vego Garden customer support.

Specifications

Warranty & Support

Vego Garden products are designed for durability and longevity. For specific warranty information and to access customer support, please refer to the warranty card included with your product or visit the official Vego Garden website. Our customer service team is available to assist with any questions or concerns you may have regarding your raised garden bed.
