Maxkon Air Fryer Oven Instruction Manual

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

Product Overview

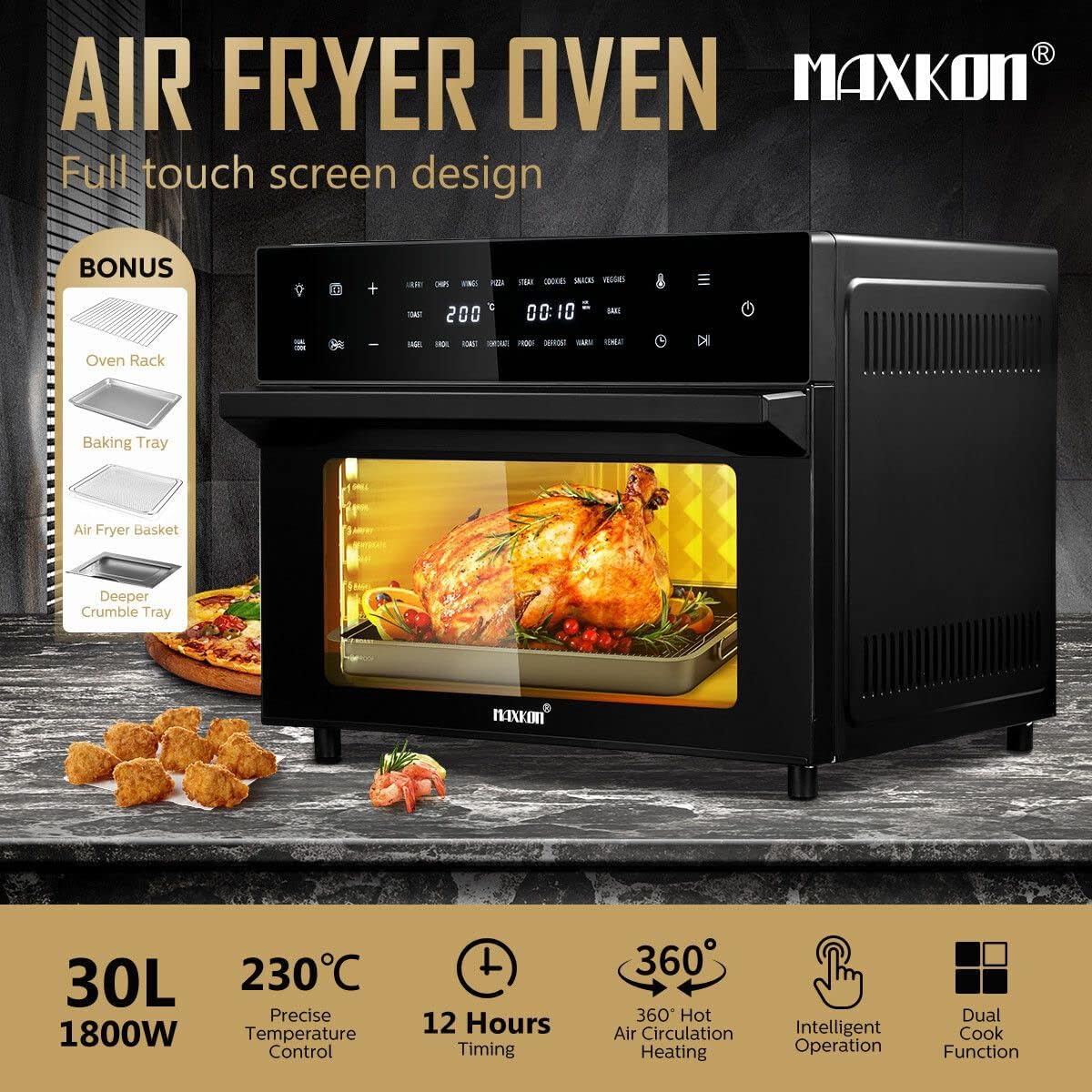

The Maxkon Air Fryer Oven is a versatile kitchen appliance designed for various cooking methods including air frying, baking, roasting, and dehydrating. It features a full touch screen for easy operation and a large 30L capacity.

Components and Accessories:

• Main Unit: The air fryer oven with touch screen control panel.
• Air Fry Basket: For air frying foods like fries and chicken wings.
• Baking Pan: Suitable for baking and roasting.
• Oven Rack: For general baking and supporting other accessories.
• Crumb Tray: Collects crumbs and drips for easy cleaning.

Setup and First Use

1. Unpacking: Carefully remove all packaging materials and accessories from the box. Ensure all components listed in the "Product Overview" section are present.
2. Cleaning: Before first use, wipe the exterior of the appliance with a damp cloth. Wash all removable accessories (air fry basket, baking pan, oven rack, crumb tray) with warm, soapy water. Rinse thoroughly and dry completely.
3. Placement: Place the air fryer oven on a stable, heat-resistant, and level surface. Ensure there is adequate clearance (at least 15 cm) on all sides and above the appliance for proper ventilation. Do not place it directly against a wall or under cabinets.
4. Initial Burn-Off: It is recommended to run the appliance empty for about 10-15 minutes at 200°C (390°F) before first use. This helps to burn off any manufacturing residues and odors. A slight odor or smoke may be present during this process; this is normal and will dissipate. Ensure the area is well-ventilated.
5. Power Connection: Plug the power cord into a grounded electrical outlet (220V, 50Hz).

Operating Instructions

The Maxkon Air Fryer Oven features a full touch screen for intuitive control. It offers 18 preset functions and a unique Dual Cook function.

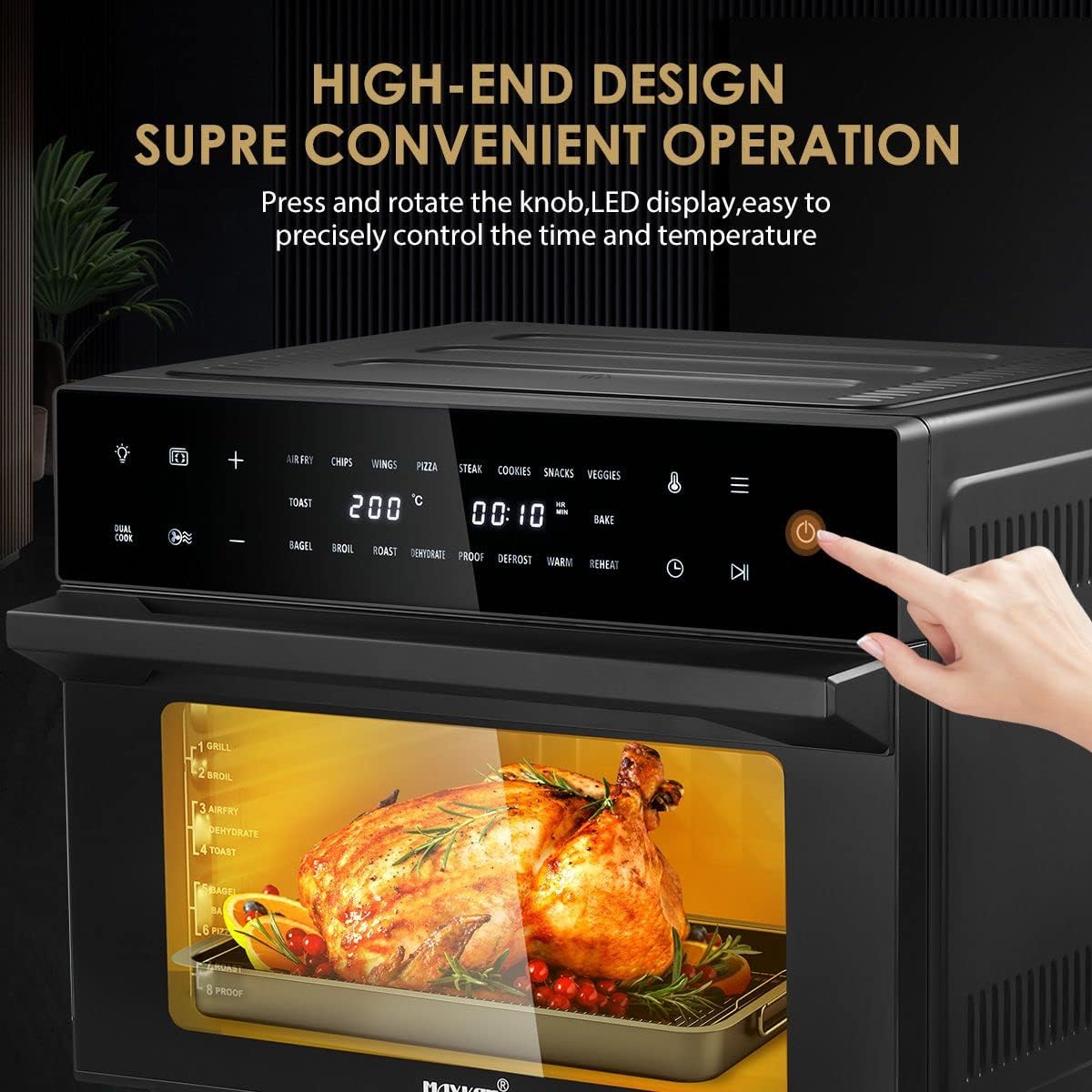

Control Panel Overview:

• Power Button: Turns the appliance on/off.
• Temperature Control: Adjusts cooking temperature (30°C-230°C).
• Time Control: Adjusts cooking time (0-60 minutes, up to 12 hours for dehydrate).
• Preset Icons: Select from 18 pre-programmed cooking functions.
• Dual Cook Function Button: Activates the dual cook mode.

Basic Operation:

1. Place food inside the air fryer oven on the appropriate accessory (e.g., air fry basket for air frying, baking pan for roasting).
2. Close the oven door securely.
3. Press the Power button to turn on the display.
4. Manual Mode: Use the temperature and time controls to set your desired cooking parameters.
5. Preset Mode: Select one of the 18 preset icons (e.g., French fries, chicken wings, steak, pizza, vegetables, toast, broil, bake, roast, dehydrate). The appliance will automatically set the recommended temperature and time, which can be adjusted manually if needed.
6. Press the Start/Pause button to begin cooking.
7. The oven will beep when cooking is complete. Carefully remove food using oven mitts.

Dual Cook Function:

The Dual Cook function allows you to program two consecutive cooking stages with different settings, ideal for recipes that require varying temperatures or cooking methods.

1. Select your first cooking preset or manually set temperature and time for the first stage.
2. Press the "Dual Cook" button.
3. Select your second cooking preset or manually set temperature and time for the second stage.
4. Press the Start/Pause button. The oven will automatically transition from the first stage to the second stage once the first is complete.

360° Hot Air Circulation Heating:

This air fryer oven utilizes 360° hot air circulation combined with up-and-down balanced heating (four heating tubes on top, two on bottom) to ensure even cooking and crispy results without excessive oil.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your Maxkon Air Fryer Oven.

1. Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
2. Exterior: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the finish.
3. Interior: Wipe the interior walls with a damp cloth and mild detergent. For stubborn food residue, a non-abrasive sponge can be used. Ensure the interior is completely dry before next use.
4. Accessories: The air fry basket, baking pan, oven rack, and crumb tray are dishwasher-safe for convenient cleaning. For hand washing, use warm, soapy water and a non-abrasive sponge. Rinse and dry thoroughly.
5. Crumb Tray: The pull-out crumb tray should be emptied and cleaned after each use to prevent grease buildup and potential fire hazards.
6. Do not immerse the main unit in water or any other liquid.

Troubleshooting

If you encounter issues with your Maxkon Air Fryer Oven, please refer to the following common problems and solutions:

For any operational problems not listed here, please feel free to contact Maxkon customer support.

Specifications

Warranty and Support

Maxkon products are designed for durability and performance. For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official Maxkon website.

For direct assistance, you may contact the seller "AUSWAY" via the Amazon platform or refer to the contact details provided in your product packaging.

Online Support: Visit the Maxkon Store on Amazon
