Barbecook Spring 3212 Gas Grill Instruction Manual

1. Introduction

Thank you for choosing the Barbecook Spring 3212 Gas Grill. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new gas grill. Please read it thoroughly before first use and keep it for future reference.

The Spring 3212 offers a perfect gas grilling experience, combining Barbecook comfort with user-friendly functions. It is designed for efficient grilling with durable cast-iron grates and features three main burners and one side burner, suitable for cooking for up to 10 people.

Image: The Barbecook Spring 3212 Gas Grill, showcasing its sleek black design with silver accents, three control knobs, and side tables.

2. Safety Information

Your safety is paramount. Always follow these guidelines to prevent injury or damage.

• Outdoor Use Only: This grill is designed for outdoor use only. Do not operate indoors or in enclosed spaces.
• Gas Leaks: Before each use, check for gas leaks using a soapy water solution. Never use an open flame to check for leaks.
• Ventilation: Ensure adequate ventilation around the grill. Do not obstruct airflow.
• Clearance: Maintain a safe distance from combustible materials (e.g., walls, fences, trees).
• Children and Pets: Keep children and pets away from the hot grill.
• Hot Surfaces: Grill surfaces become extremely hot during operation. Use heat-resistant gloves and tools.
• Gas Cylinder: Always connect and disconnect the gas cylinder outdoors. Ensure the cylinder is upright and stable.
• Grease Fires: Clean the grease tray regularly to prevent grease fires. In case of a grease fire, turn off the gas supply and close the lid. Do not use water.
• Storage: Store the grill in a dry, protected area when not in use. Disconnect the gas cylinder before storage.

3. Package Contents

Upon unpacking, ensure all components are present and undamaged. The package typically includes:

• Barbecook Spring 3212 Gas Grill main body
• Enameled lid with integrated thermometer
• Three cast-iron cooking grates (21x43cm each)
• One warming rack
• Side burner with grate
• Fixed side tables
• Grease collection tray (dishwasher safe)
• Gas regulator and hose (country-specific)
• Assembly hardware and tools
• Instruction manual

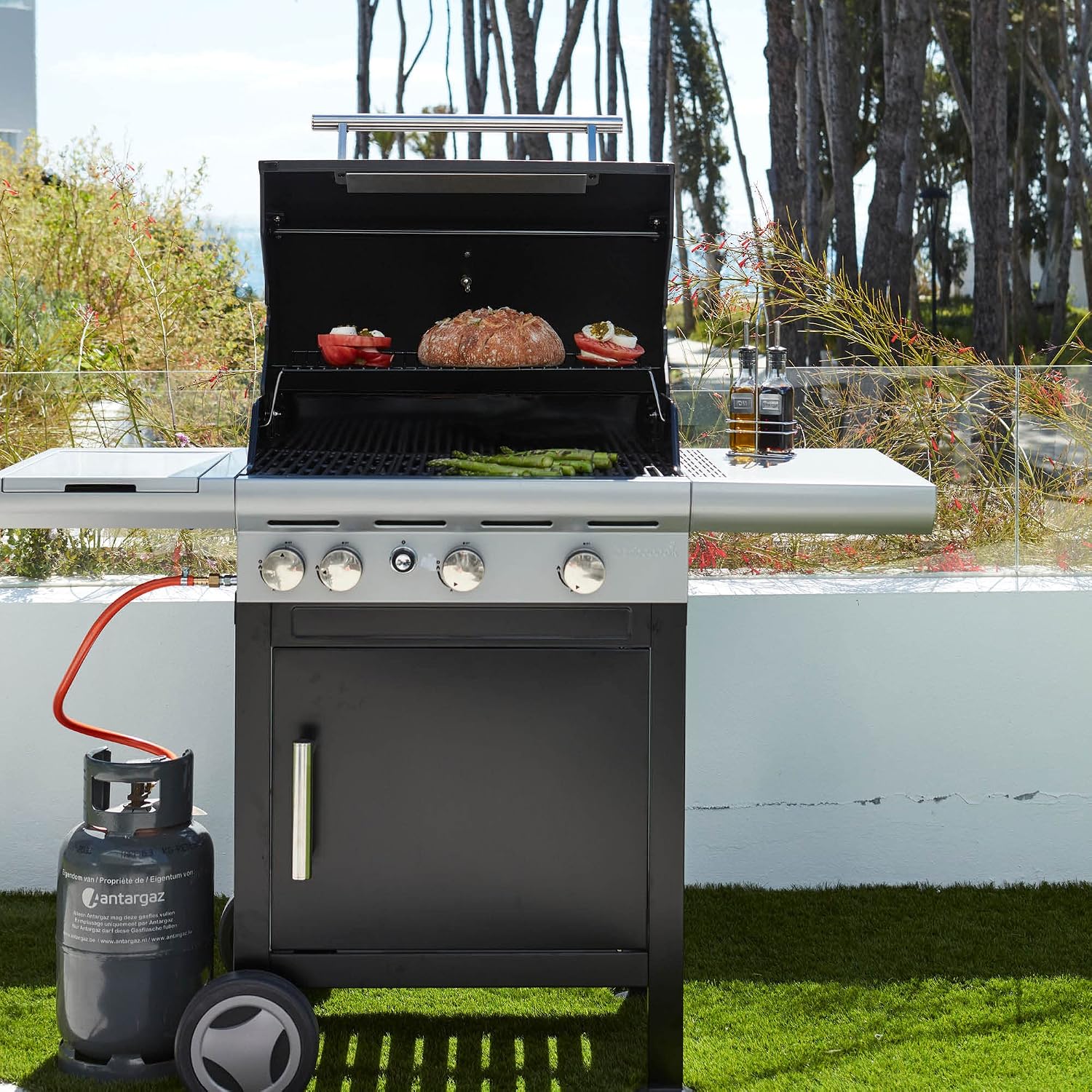

Image: The Barbecook Spring 3212 Gas Grill set up outdoors, showing the gas cylinder connected to the grill, ready for use.

4. Assembly and Setup

Assembly of the Barbecook Spring 3212 Gas Grill is required. Please follow the detailed assembly instructions provided in the separate assembly guide included with your grill. Ensure all connections are secure before proceeding.

1. Unpack Components: Carefully remove all parts from the packaging.
2. Assemble Frame: Follow the step-by-step instructions to assemble the grill cart and main body. The grill features two large wheels for easy movement and a cabinet with doors for storage.
3. Install Burners and Grates: Place the main burners, side burner, and cast-iron cooking grates into their designated positions.
4. Connect Gas Cylinder:
   • Ensure the gas cylinder valve is closed.
   • Connect the gas regulator to the cylinder valve. Tighten securely.
   • Connect the other end of the hose to the grill's gas inlet.
   • Perform a leak test: Apply a soapy water solution to all gas connections. Bubbles indicate a leak. If a leak is detected, tighten connections or replace faulty parts. Do not use the grill until the leak is resolved.
5. Initial Burn-off: Before first use, operate the grill on high heat for 15-20 minutes with the lid closed to burn off any manufacturing residues.

Image: A diagram illustrating the dimensions of the Barbecook Spring 3212 Gas Grill: 133cm length, 57cm width, and 115cm height.

5. Operating Instructions

5.1 Lighting the Main Burners

1. Ensure the grill lid is open.
2. Open the gas supply valve on the cylinder.
3. Push in and turn one of the main burner control knobs to the HIGH position. You should hear a clicking sound as the igniter sparks.
4. If the burner does not light within 5 seconds, turn the knob to OFF, wait 5 minutes for gas to dissipate, then repeat the lighting procedure.
5. Once lit, you can adjust the flame intensity by turning the control knob between HIGH and LOW.
6. Repeat for other main burners as needed.

5.2 Lighting the Side Burner

1. Open the side burner lid.
2. Push in and turn the side burner control knob to the HIGH position.
3. If the burner does not light, turn to OFF, wait 5 minutes, then repeat.
4. Adjust flame as desired. Close the lid when not in use.

Image: A close-up view of the integrated side burner on the Barbecook Spring 3212 Gas Grill, featuring a sturdy grate over the burner.

5.3 Grilling Tips

• Preheating: Always preheat your grill for 10-15 minutes with the lid closed to reach desired cooking temperature. The integrated thermometer on the lid helps monitor the internal temperature.
• Cast-Iron Grates: The durable cast-iron grates retain heat effectively, ensuring excellent searing marks on your food.
• Warming Rack: Use the warming rack for keeping cooked food warm or for indirect cooking of delicate items.
• Side Tables: Utilize the fixed side tables for food preparation and holding utensils.

Image: A close-up of food, including bread and asparagus, cooking on the robust cast-iron grates of the Barbecook Spring 3212 Gas Grill.

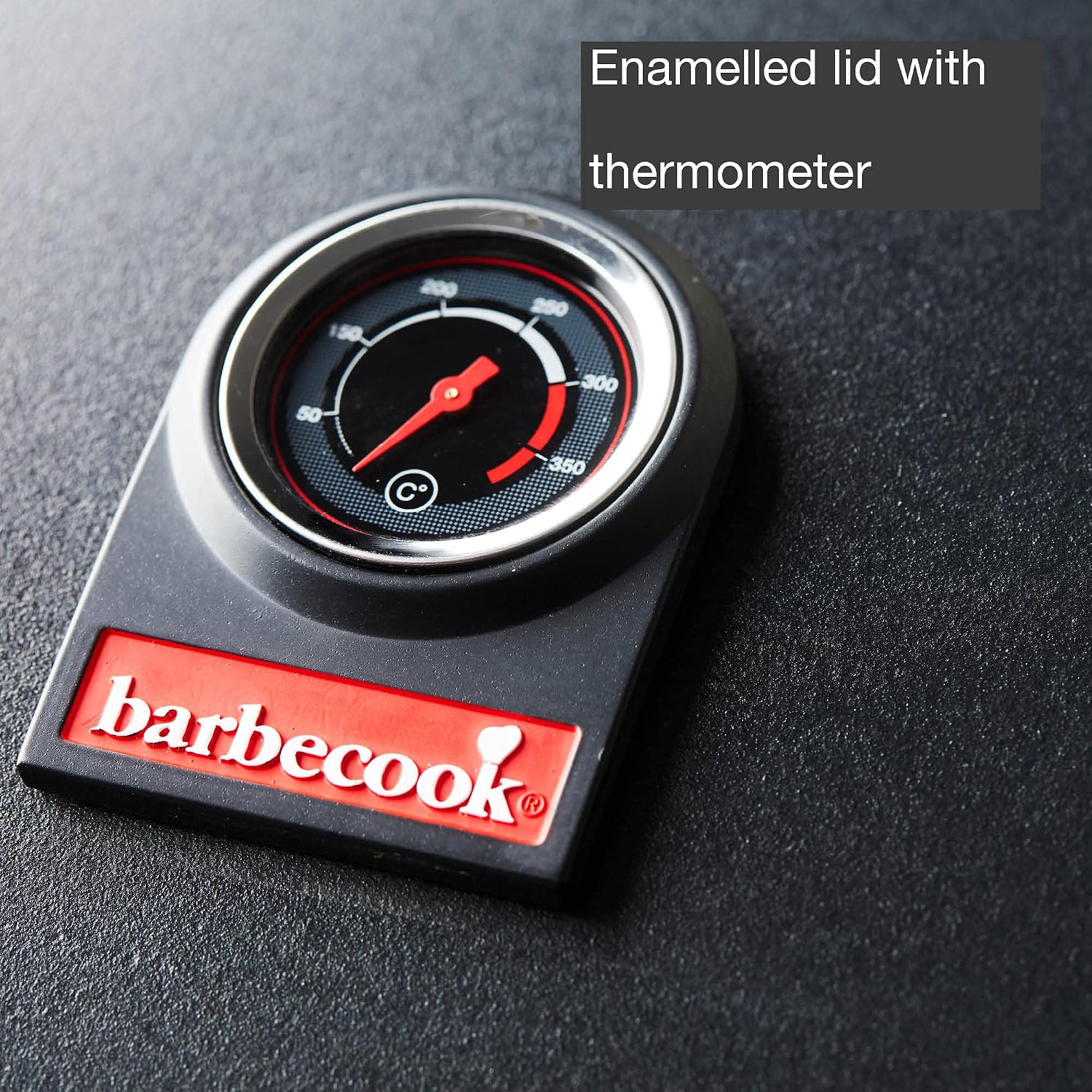

Image: A detailed view of the thermometer integrated into the enamelled lid of the Barbecook Spring 3212 Gas Grill, displaying temperature readings.

6. Maintenance and Cleaning

Regular cleaning and maintenance will extend the life of your grill and ensure optimal performance.

• After Each Use:
  • Turn off all burners and the gas supply.
  • Once cooled, brush the cooking grates with a grill brush to remove food residue.
• Grease Tray: The grease collection tray is dishwasher safe. Clean it regularly to prevent grease buildup and potential fires.
• Exterior Cleaning: Wipe down exterior surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners.
• Burner Maintenance: Periodically check burner ports for blockages (e.g., from insects). Clean with a wire brush if necessary.
• Storage: When not in use for extended periods, disconnect the gas cylinder and store the grill in a dry, covered area.

7. Troubleshooting

Here are some common issues and their solutions:

8. Specifications

Key technical specifications for the Barbecook Spring 3212 Gas Grill:

• Model: Spring 3212
• Model Number: BC-GAS-2066
• Dimensions (L x W x H): 133 x 57 x 115 cm
• Weight: 49 Kilograms
• Material: Cast Iron (grates), Enameled steel (lid), other metal components
• Fuel Type: Gas (Propane/LPG)
• Burners: 3 Main Burners + 1 Side Burner
• Special Features: Side burner, enamelled lid with thermometer, fixed side tables, cabinet with doors, dishwasher-safe grease tray.

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or contact Barbecook customer service directly. Keep your proof of purchase for any warranty claims.

For further assistance, spare parts, or technical support, please visit the official Barbecook website or contact their customer service department. You can also visit the Barbecook Store on Amazon for more information.
