ROEXUN 168W UV LED Nail Lamp User Manual

1. Introduction

Thank you for choosing the ROEXUN 168W UV LED Nail Lamp. This professional nail dryer is designed for efficient and safe curing of various gel polishes, suitable for both manicure and pedicure applications. Featuring advanced Dual-Light technology, smart sensors, and multiple timer settings, it provides a convenient and effective nail curing experience. Please read this manual thoroughly before use to ensure proper operation and maintenance.

Figure 1.1: ROEXUN 168W UV LED Nail Lamp with included accessories.

2. Safety Information

To ensure safe operation and prevent damage, please observe the following safety precautions:

• Do not expose the lamp to water or other liquids.
• Do not look directly into the UV/LED light during operation.
• Keep out of reach of children.
• Unplug the device when not in use or before cleaning.
• Do not use if the power cord or plug is damaged.
• Avoid using the lamp in excessively humid or hot environments.
• This appliance is intended for household use only.

For information on recycling light bulbs and cleaning up broken lamps, please refer to local regulations and guidelines.

3. What's in the Box

The package includes the following items:

• ROEXUN 168W UV LED Nail Lamp (with integrated LED bulbs)
• Power Adapter (European plug)
• User Manual (this document)

Figure 3.1: Contents of the package, showing the lamp, power adapter, and key dimensions.

4. Product Overview

The ROEXUN 168W UV LED Nail Lamp features a user-friendly design with essential components for effective nail curing.

• LED Display: Shows the remaining curing time.
• Timer Buttons: 10s, 30s, 60s, and 99s (Low Heat Mode).
• Infrared Smart Sensor: Automatically turns the lamp on/off when hands are inserted/removed.
• 36 Dual-Light LED Beads: Strategically placed for uniform curing of all gel types.
• Removable Bottom Plate: Facilitates easy cleaning and is suitable for pedicures.
• Power Input Port: For connecting the power adapter.

Figure 4.1: Key features of the ROEXUN 168W UV LED Nail Lamp.

Figure 4.2: Internal components and design features, including the removable base and sensor.

5. Setup

Follow these steps to set up your nail lamp:

1. Unpack all components from the box.
2. Place the nail lamp on a stable, flat surface.
3. Connect the power adapter to the power input port on the back of the lamp.
4. Plug the power adapter into a suitable electrical outlet (2.3E+2 Volt AC).
5. The lamp is now ready for use.

6. Operating Instructions

The ROEXUN nail lamp offers various modes for optimal gel curing.

6.1. Automatic Sensor Mode

The lamp features an intelligent infrared sensor for automatic operation:

• Simply place your hand or foot into the lamp. The sensor will detect the movement, and the lamp will automatically turn on.
• The LED display will show the elapsed curing time.
• When you remove your hand or foot, the lamp will automatically turn off.

Figure 6.1: Automatic sensor operation for hands-free convenience.

6.2. Timer Settings

For specific curing times, use the timer buttons:

• 10s: Ideal for thin gel polish layers, providing quick drying.
• 30s: Suitable for regular color gel polish or slightly thicker layers.
• 60s: Recommended for dark color gel polish or thick gel polish layers.
• 99s (Low Heat Mode): This mode provides a gradual increase in power to prevent discomfort from heat spikes, suitable for all users, especially those with sensitive nails.

Press the desired timer button before placing your hand/foot inside. The lamp will operate for the selected duration and turn off automatically.

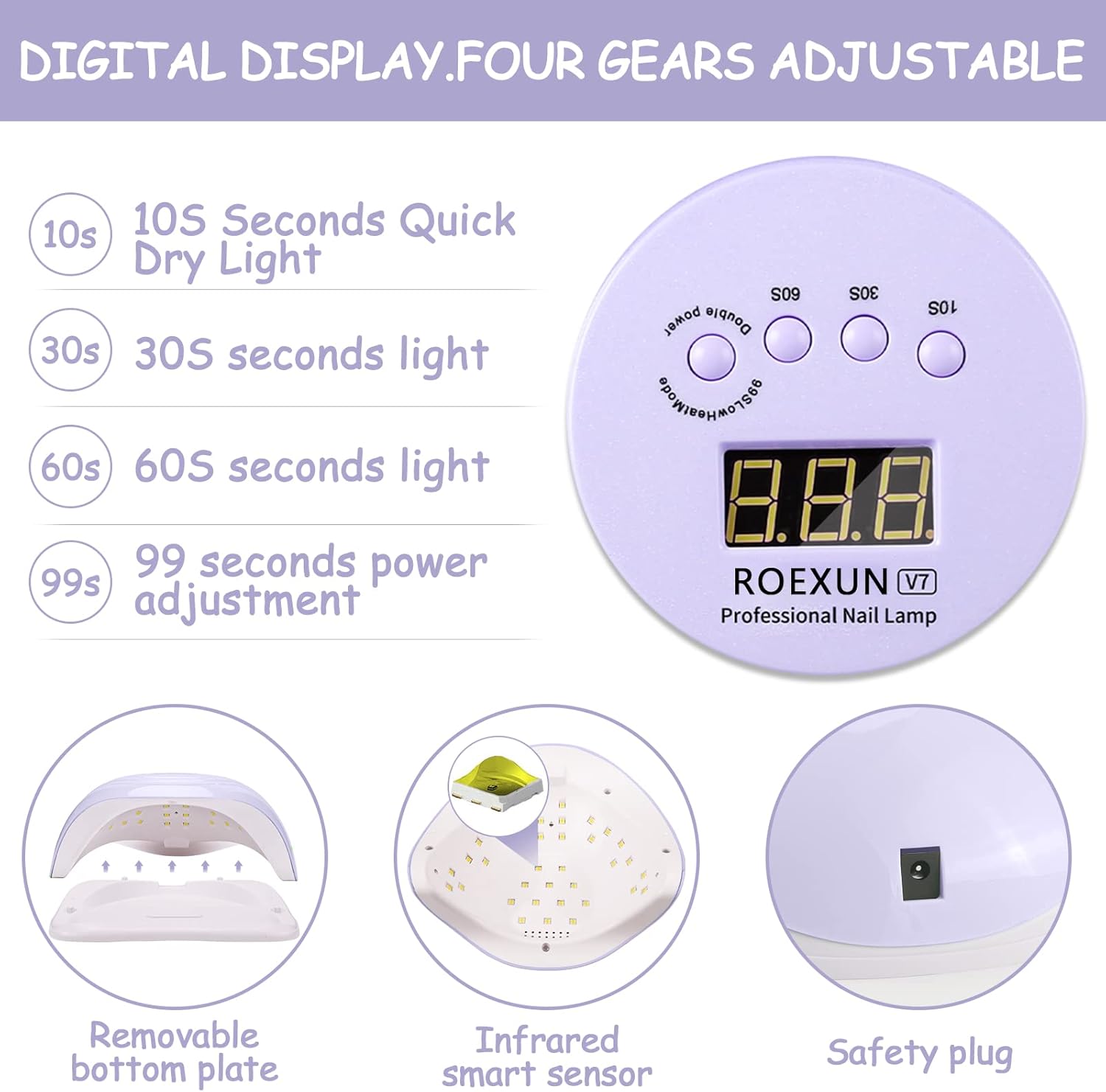

Figure 6.2: Timer settings and their recommended uses.

Figure 6.3: Digital display and timer button layout.

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your nail lamp.

• Cleaning: Unplug the lamp before cleaning. Use a soft, dry cloth to wipe the exterior. For stubborn stains, a slightly damp cloth with mild soap can be used, then wipe dry immediately. Do not use abrasive cleaners or solvents.
• Removable Bottom Plate: The bottom plate can be easily removed for cleaning, especially after pedicure use. Simply slide it out, clean, and reinsert.
• Storage: Store the lamp in a cool, dry place away from direct sunlight and moisture when not in use.
• Bulb Replacement: The 36 LED beads are designed for a long lifespan (up to 50,000 hours) and are not user-replaceable.

8. Troubleshooting

If you encounter any issues with your ROEXUN nail lamp, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

9. Specifications

10. Warranty and Support

For any questions during use, please contact us via email. We are committed to providing the best quality service.

Please refer to your purchase receipt or the product packaging for specific warranty details and contact information for ROEXUN customer support.
