Important Safety Information
Read all instructions thoroughly before installing and operating this appliance. Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury to persons.
- Ensure the power supply matches the rating label on the unit.
- Do not operate the air conditioner in a wet room such as a bathroom or laundry room.
- Always disconnect the power supply before cleaning or servicing.
- Do not block air inlets or outlets.
- Keep children away from the appliance.
- For detailed safety warnings, refer to the full user manual PDF provided by the manufacturer.
Product Overview
The Emerson Quiet Kool EATC8RE1T is an 8,000 BTU through-the-wall air conditioner designed to cool rooms up to 350 square feet. This unit offers 3-in-1 functionality: cooling, dehumidification, and fan-only operation. It is Energy Star rated for efficient performance.
Figure 1: Front view of the Emerson Quiet Kool EATC8RE1T Wall Air Conditioner.
Key features include:
- 3-in-1 Functionality: Cool, Dry (dehumidifier), and Fan modes.
- Quiet Operation: Operates at 51.8dB on low setting.
- Energy Star Rated: Designed for energy efficiency.
- Washable Filter: Easy-access filter with a check filter indicator for convenient maintenance.
- Remote Control: Full-function remote for convenient operation.
- 24-Hour Timer: Programmable on/off timer.
- Sleep Mode: Automatically adjusts temperature for overnight comfort.
- Auto Restart: Resumes previous settings after a power outage.
Figure 2: Diagram highlighting key features such as cooling area up to 350 sq. ft., washable filter, rust-free design, fast cooling, and high-efficiency inner-grooved copper tube.
Installation
This air conditioner is designed for through-the-wall installation and is not suitable for standard window installation. It is compatible with most existing wall sleeves, including those from other manufacturers. A decorative interior trim kit is included to provide a finished appearance.
Figure 3: The air conditioner unit seamlessly installed into a wall opening.
Important: For detailed installation instructions, including wall sleeve requirements, electrical connections, and securing the unit, please refer to the comprehensive user manual PDF available from the manufacturer. Professional installation is recommended to ensure proper fit and operation.
Figure 4: Visual representation of the air conditioner's dimensions and how it fits into a standard wall sleeve, indicating compatibility.
Operating Instructions
The unit can be operated using the electronic controls on the front panel or the included full-function remote control. Ensure the unit is properly plugged into a 115V/60Hz 15A outlet.
Figure 5: The air conditioner unit displaying its power plug type and the accompanying full-function remote control.
Control Panel and Remote Functions:
Figure 6: Close-up of the control panel, illustrating the 8-way air directional louvers, easy-touch controls, quick access filter, Sleep Mode, and Eco mode for energy saving.
- Power Button: Turns the unit on or off.
- Mode Button: Cycles through Cool, Dry, Fan, and Auto modes.
- Cool Mode: Provides cooling and dehumidification. Adjust temperature using up/down arrows.
- Dry Mode: Primarily for dehumidification, removes excess moisture from the air.
- Fan Mode: Circulates air without cooling. Choose from 3 fan speeds (Low, Med, High).
- Auto Mode: Automatically selects cooling or fan-only operation based on room temperature.
- Fan Speed Button: Selects fan speed (Low, Medium, High) in Cool or Fan modes.
- Temperature Adjustment: Use the Up/Down arrows to set the desired temperature.
- Timer Button: Sets the 24-hour on/off timer.
- Sleep Mode: Activates a quiet operation mode that gradually adjusts the temperature for comfortable sleep.
- Eco Mode: Energy Saver mode that cycles the compressor on and off to maintain the set temperature, saving energy.
- Filter Light Reminder: Illuminates when the filter needs cleaning.
For optimal performance, ensure the air directional louvers are adjusted to distribute air evenly throughout the room.
Maintenance
Regular maintenance ensures efficient operation and extends the lifespan of your air conditioner. Always disconnect power before performing any maintenance.
Air Filter Cleaning:
The unit is equipped with a washable and reusable air filter. The "Check Filter" indicator light will illuminate when it's time to clean the filter, typically every two weeks depending on usage and air quality.
- Open the front panel of the unit.
- Grasp the tab on the filter and pull it out.
- Wash the filter with warm, soapy water. Rinse thoroughly.
- Allow the filter to dry completely before reinserting.
- Once the filter is reinserted, press the "Filter" button on the control panel to reset the indicator light.
General Cleaning:
- Clean the cabinet with a soft, damp cloth. Do not use harsh chemicals or abrasives.
- Ensure the drainage area is clear of debris to prevent water buildup.
- Periodically check the outdoor coils for any obstructions and gently clean if necessary.
Troubleshooting
Before contacting customer support, review the following common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start. | No power, tripped circuit breaker, loose plug. | Check power cord, reset circuit breaker, ensure plug is secure. |
| Unit does not cool sufficiently. | Dirty air filter, blocked air intake/outlet, room too large, open doors/windows. | Clean air filter, clear obstructions, close doors/windows, ensure room size is within unit capacity. |
| Water dripping inside. | Unit not level, clogged drain hose. | Ensure unit is level, check and clear drain hose. |
| Noisy operation. | Loose parts, unit not securely installed, fan obstruction. | Check for loose components, ensure secure installation, inspect fan for obstructions. |
If the issue persists after attempting these solutions, please refer to the detailed troubleshooting section in the full user manual or contact Emerson Quiet Kool customer support.
Specifications
| Attribute | Detail |
|---|---|
| Model Number | EATC8RE1T |
| Cooling Power | 8,000 BTUs |
| Voltage | 115 Volts |
| Floor Area Coverage | Up to 350 Square Feet |
| Dehumidification Capacity | 1.75 Pints per hour |
| Noise Level (Low) | 51.8 dB |
| Product Dimensions (D x W x H) | 20.3" x 24.2" x 14.5" |
| Item Weight | 64.9 pounds |
| Energy Efficiency Ratio (EER) | 10.6 |
| Included Components | Air conditioner, trim kit, remote, battery, manual, warranty |

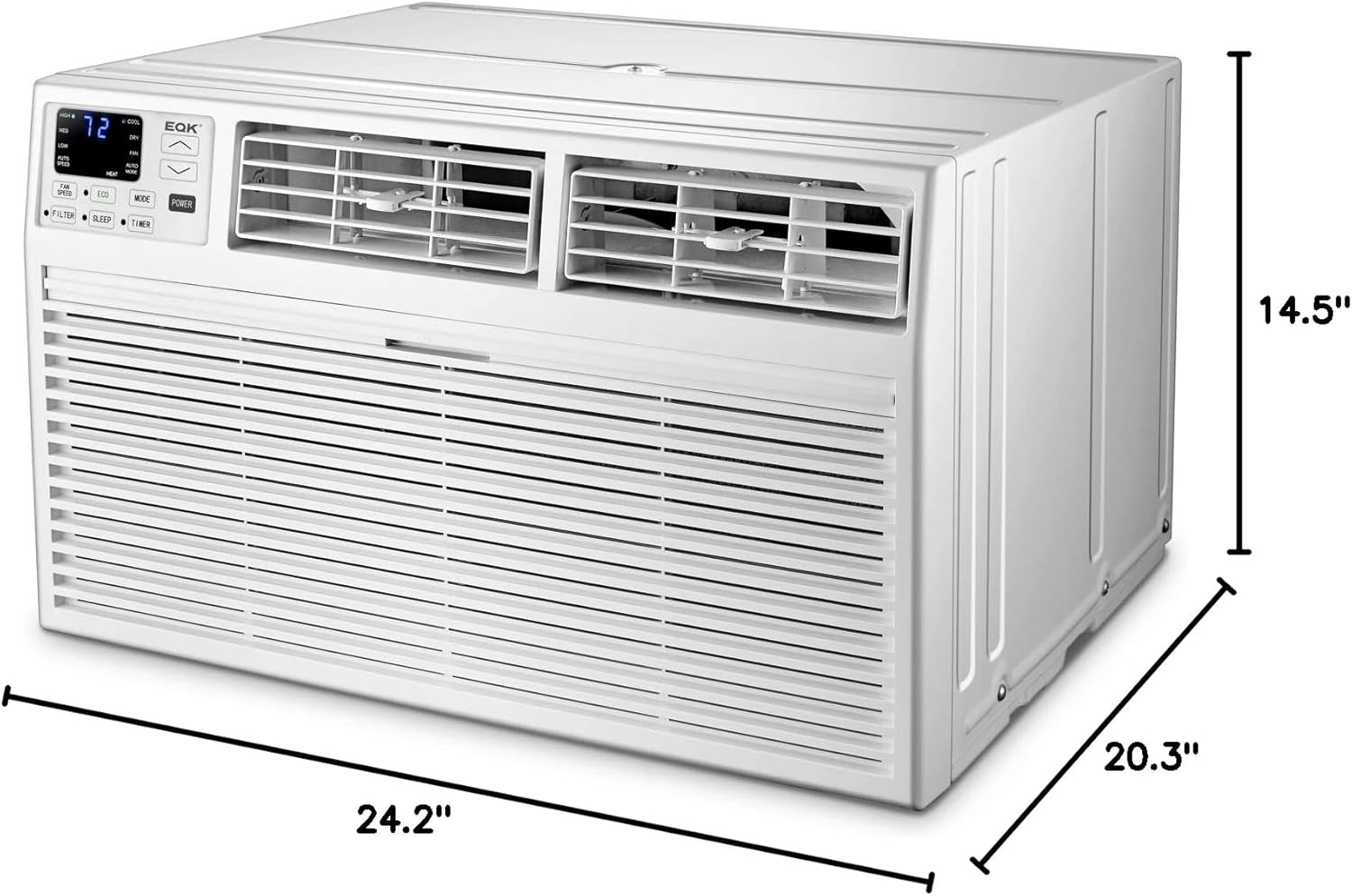

Figure 7: Detailed dimensions of the air conditioner unit.
Warranty and Support
The Emerson Quiet Kool EATC8RE1T comes with an industry-exclusive 1-2-5 warranty:
- 1 Year: Labor coverage
- 2 Years: Parts coverage
- 5 Years: Compressor coverage
For warranty claims, technical support, or further assistance, please refer to the contact information provided in your full user manual or visit the official Emerson Quiet Kool website. You can also access the full User Manual PDF here.
