Introduction
Thank you for choosing the Alpina HP-12AR Portable Electric Heater. This compact and versatile device provides both heating and cooling functions, making it suitable for various environments. Please read this manual carefully before use to ensure safe and optimal operation. Keep this manual for future reference.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before using this heater.
- This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
- Always use the handle when moving this heater.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 meters) from the front of the heater and keep them away from the sides and rear.
- Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
- Always unplug heater when not in use.
- Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
- Do not use outdoors.
- This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
- To disconnect heater, turn controls to OFF, then remove plug from outlet.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
- A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
- Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
- Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
- This heater includes an Overheat Safety Protection feature that automatically shuts off the unit if it overheats.
- The heater is equipped with a Tip-Over Safety Switch which automatically turns off the unit if it is accidentally knocked over.

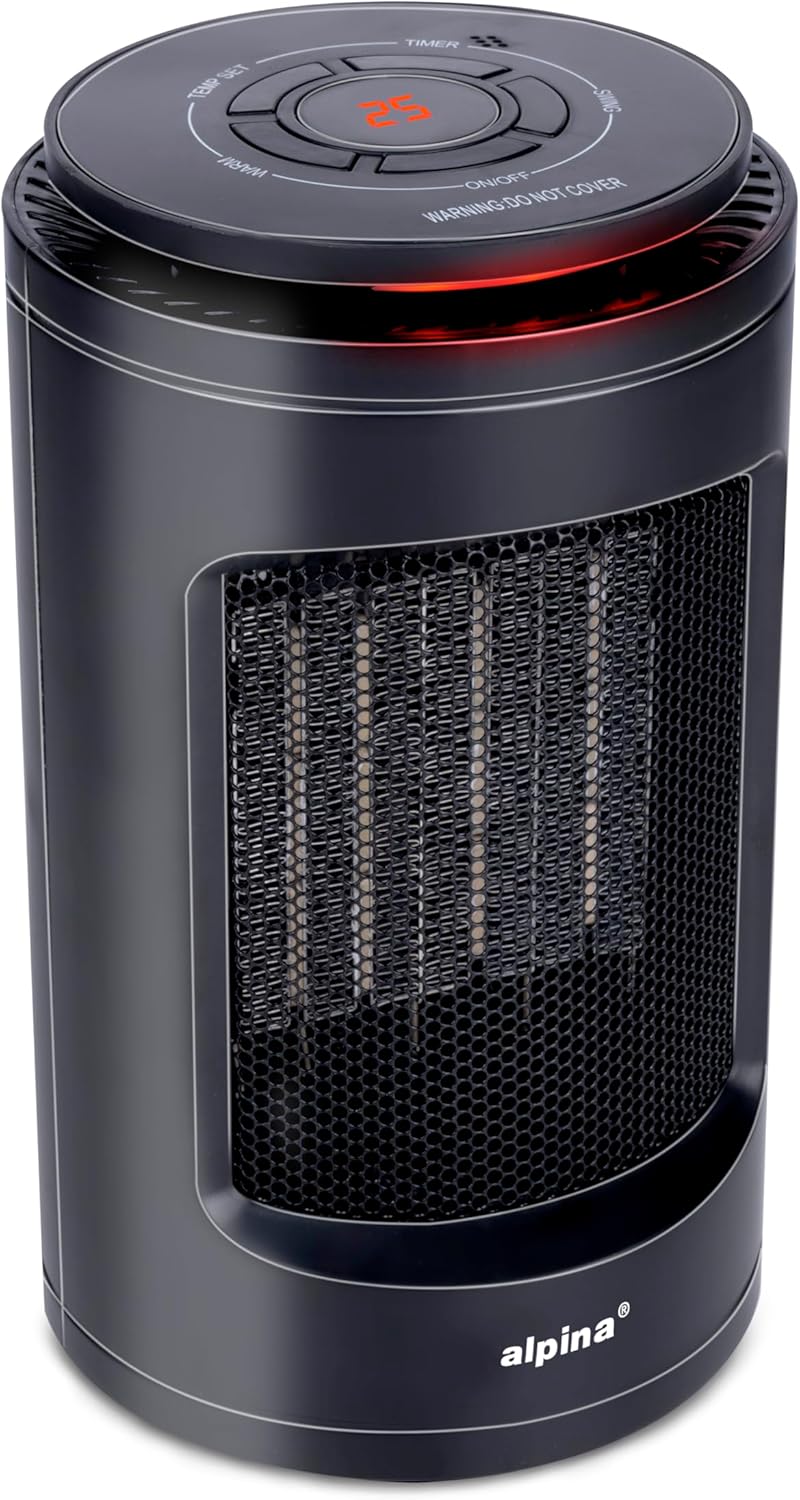

Product Overview
Familiarize yourself with the components of your Alpina HP-12AR heater.
- Control Panel: Located on top, with buttons for temperature, timer, and oscillation.
- LED Display: Shows current temperature settings.
- Air Outlet: Front grille for air distribution.
- Air Inlet: Rear grille for air intake.
- Power Cord: For electrical connection.
Setup
- Unpacking: Carefully remove the heater from its packaging. Retain packaging for storage if desired.

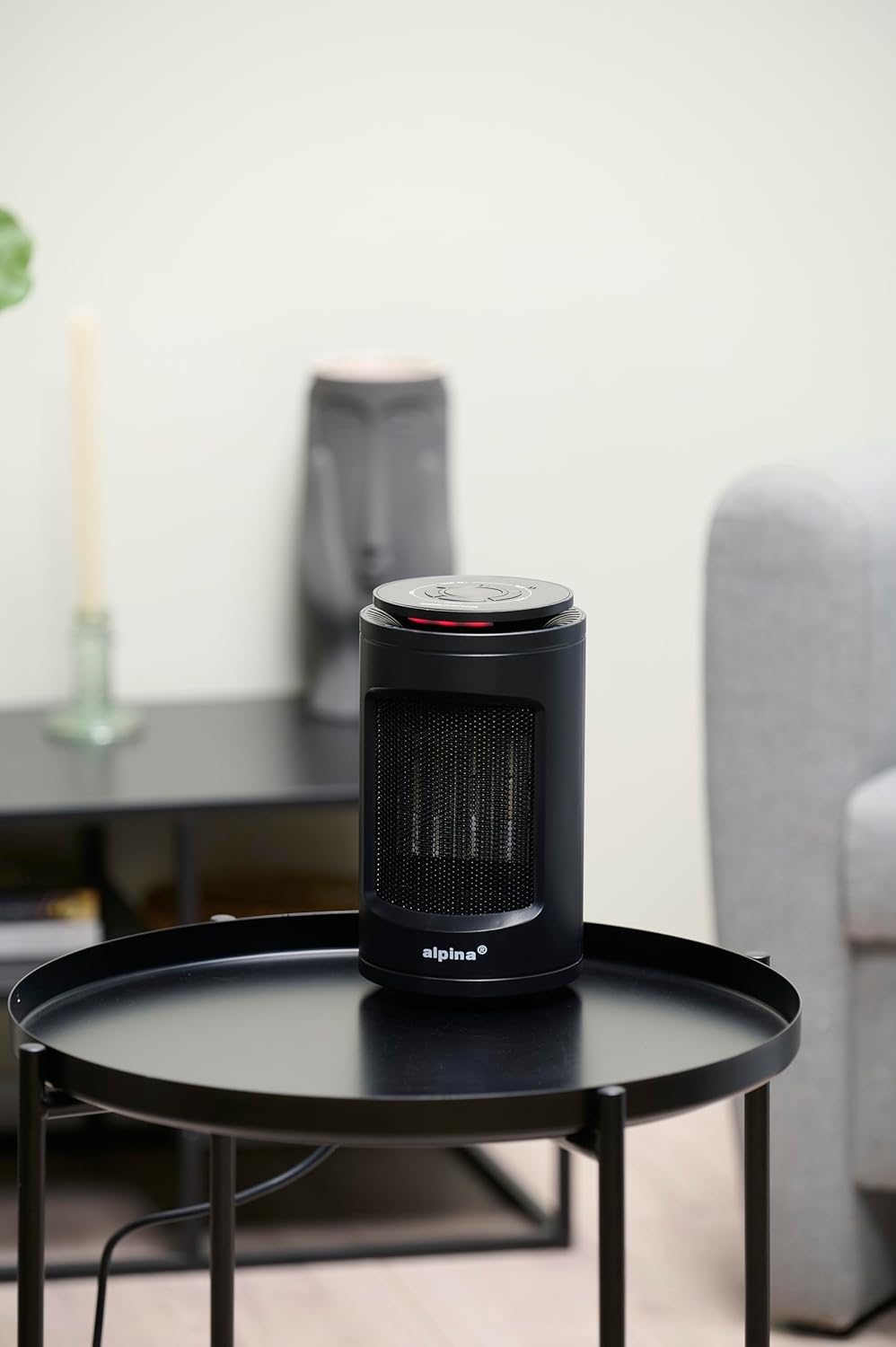

- Placement: Place the heater on a firm, level surface. Ensure there is at least 3 feet (0.9 meters) of clear space around the heater to allow for proper airflow and to prevent fire hazards. Do not place it on soft surfaces like carpets or rugs that might block the air intake.
- Power Connection: Plug the power cord directly into a standard 220-240V, 50Hz electrical wall outlet. Do not use extension cords or power strips.
Operating Instructions
The Alpina HP-12AR features a user-friendly control panel on the top of the unit.
1. Power On/Off
- Press the ON/OFF button on the control panel to turn the heater on or off. The LED display will illuminate when the unit is on.
2. Temperature Adjustment
The heater allows you to set your desired temperature between 15°C and 35°C.
- Press the TEMP SET button.
- Use the + and - buttons to increase or decrease the target temperature. The LED display will show the selected temperature.
- The heater will automatically adjust its operation to maintain the set temperature.
3. Mode Selection (Heat/Cool)
The Alpina HP-12AR offers both heating and cooling functions with two power levels for heating.
- Press the MODE button to cycle through the available modes:
- Cool Air: Provides a refreshing breeze.
- Heat (600W): Low heat setting for gentle warmth.
- Heat (1200W): High heat setting for faster warming.
4. Timer Function
Set the heater to operate for a specific duration from 1 to 9 hours.
- With the heater on, press the TIMER button.
- Each press will increase the timer setting by 1 hour, up to a maximum of 9 hours.
- The LED display will show the remaining time. The heater will automatically turn off once the timer expires.
- To cancel the timer, cycle through the hours until "00" is displayed, or turn the unit off.
5. Oscillation Function
Activate the oscillation feature to distribute air more widely across the room.
- Press the SWING button to activate or deactivate the oscillation function.
- The heater will rotate from side to side, covering a wider area.
Maintenance
Regular maintenance ensures the longevity and efficient operation of your heater.
Cleaning
- Always unplug the heater and allow it to cool completely before cleaning.
- Use a soft, damp cloth to wipe the exterior surfaces of the heater. Do not use abrasive cleaners or solvents.
- Use a vacuum cleaner with a brush attachment to gently remove dust from the air intake and outlet grilles.
- Never immerse the heater in water or allow water to drip into the interior.
Storage
- When not in use, store the heater in a cool, dry place.
- It is recommended to store the heater in its original packaging to protect it from dust and damage.
Troubleshooting
If you encounter issues with your Alpina HP-12AR heater, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. | No power supply. Tip-over switch activated. Overheat protection activated. | Ensure the power cord is securely plugged into a working outlet. Place the heater on a flat, stable surface. Unplug the heater, let it cool for 10-15 minutes, then plug it back in. Clear any obstructions around the air inlets/outlets. |
| Heater produces cold air only. | Set to Cool Air mode. Temperature setting is too low. | Press the MODE button to select a heat setting (600W or 1200W). Increase the target temperature using the TEMP SET and + buttons. |
| Oscillation function not working. | Oscillation function is off. | Press the SWING button to activate oscillation. |
| Heater makes unusual noises. | Internal component issue. | Turn off and unplug the heater immediately. Contact customer support for assistance. Do not attempt to repair yourself. |
Specifications
| Feature | Specification |
|---|---|
| Brand | Alpina |
| Model Number | HP-12AR |
| Voltage | 220-240 Volts (AC) |
| Frequency | 50 Hz |
| Power Output | 600W / 1200W |
| Temperature Range | 15°C - 35°C |
| Heating Element | PTC Ceramic |
| Dimensions (L x W x H) | 13 x 13 x 23 cm |
| Weight | 1.03 Kilograms |
| Special Features | Digital Display, Fast Heating, Portable, Adjustable Temperature, Electronic Thermostat, Oscillation, Timer, Overheat Protection, Tip-Over Protection |
| Indoor/Outdoor Use | Indoor |
Warranty and Support
This Alpina product is covered by a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included with your purchase or contact your retailer. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Alpina customer service through their official website or the contact information provided with your product documentation.
