1. Introduction
Welcome to the Dynacraft Realtree 24V UTV instruction manual. This document provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new ride-on vehicle. Please read this manual thoroughly before initial use and retain it for future reference. Proper understanding and adherence to these instructions will ensure a safe and enjoyable experience for the user.
Figure 1: Dynacraft Realtree 24V UTV, showcasing its camouflage design and robust structure.
2. Important Safety Information
The safety of the rider is paramount. Always supervise children operating this vehicle. Failure to follow safety instructions can result in serious injury or death.
- Recommended Age: This vehicle is designed for children aged 36 months to 8 years.
- Weight Capacity: Do not exceed the maximum weight capacity specified in the specifications section.
- Supervision: Adult supervision is required at all times.
- Protective Gear: Always ensure the rider wears appropriate safety gear, including a helmet.
- Operating Environment: Operate the UTV on level, dry surfaces away from traffic, swimming pools, or other hazards. Avoid steep inclines.
- Battery Safety: Handle the battery and charger according to instructions to prevent electric shock or fire.
3. Package Contents
Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact Dynacraft customer support.
- Dynacraft Realtree 24V UTV main body
- 24 Volt battery
- Battery charger
- Assembly hardware and tools (if applicable)
- Instruction Manual
4. Assembly
Assembly of the Dynacraft Realtree 24V UTV requires adult supervision and may require basic tools. Follow the step-by-step instructions and diagrams provided in the separate assembly guide included with your product. Ensure all connections are secure and all screws are tightened before first use.

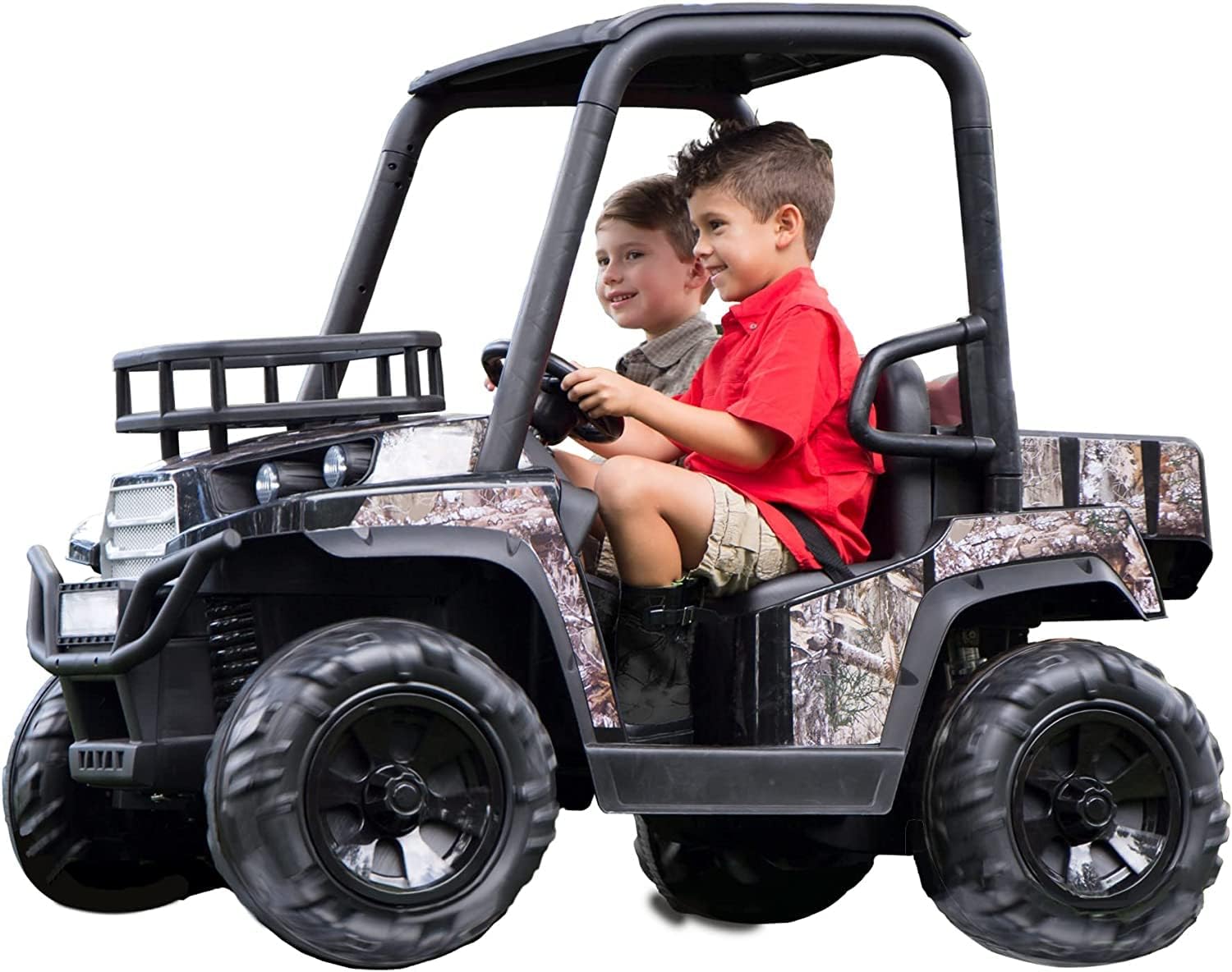

Figure 2: The assembled Dynacraft Realtree 24V UTV, ready for use by two young riders.
5. Charging the Battery
The 24 Volt battery must be fully charged before the first use. Subsequent charging should occur after each use or when the vehicle's performance diminishes.
- Locate the charging port on the vehicle.
- Connect the charger to the charging port.
- Plug the charger into a standard wall outlet.
- Allow the battery to charge for the recommended time (refer to the charger's instructions for specific duration, typically 8-12 hours for a full charge). Do not overcharge.
- Disconnect the charger once charging is complete.
Important: Only use the charger supplied with your Dynacraft Realtree 24V UTV. Using an unauthorized charger may damage the battery and void the warranty.
6. Operating Instructions
Familiarize yourself with the controls before operating the UTV.
6.1 Power On/Off
To power on the UTV, locate the red ON/OFF switch, typically found near the driver's seat or dashboard. Flip the switch to the 'ON' position. The headlights will illuminate, indicating the vehicle is ready for operation. To power off, flip the switch to the 'OFF' position.
Figure 3: Interior of the UTV, highlighting the seating area and steering wheel.
6.2 Driving Controls
The UTV features a gear shifter for different driving modes:
- '1' (Low Speed): For younger riders or navigating tight spaces.
- '2' (High Speed): For experienced riders on open, safe terrain.
- 'R' (Reverse): To move the vehicle backward.
Press the foot pedal to accelerate. Release the pedal to brake.
6.3 Features
- Working Headlights: Enhance visibility and realism.
- Front Rack: A convenient storage area at the front of the vehicle for light items.
- Rear Cargo Storage: An additional compartment at the rear for carrying small loads.
- Suspension Spring: Provides a smoother ride over varied terrain.
- MP3 Input: Allows connection of an external audio device for music playback.
- Realistic UTV Sounds: Enhances the driving experience.
Figure 4: The functional front rack, ideal for carrying small items.
Figure 5: Rear view of the UTV, illustrating the cargo storage compartment.
6.4 Product Video
Video 1: An overview of the Dynacraft 24V Realtree UTV, demonstrating its features and operation.
7. Maintenance
Regular maintenance ensures the longevity and safe operation of your UTV.
- Cleaning: Wipe the vehicle with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Avoid spraying water directly onto electrical components.
- Battery Care: Store the battery in a cool, dry place. Recharge the battery at least once a month during periods of non-use to maintain its life.
- Tire Inspection: Regularly check the tires for wear and tear. Ensure they are free from debris that could affect traction.
- General Inspection: Periodically check all nuts, bolts, and fasteners to ensure they are tight. Inspect electrical connections for any signs of damage.
Figure 6: Detail of the UTV's rugged tire, designed for various terrains.
8. Troubleshooting
If you encounter issues with your UTV, refer to the table below for common problems and solutions. If the problem persists, contact Dynacraft customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Battery is low or not connected; Power switch is off; Loose wiring | Charge battery; Turn power switch ON; Check all connections |
| Vehicle runs slowly | Low battery; Overloaded vehicle; Operating on unsuitable terrain | Recharge battery; Reduce load; Move to a smoother, flatter surface |
| No sound or lights | Power switch is off; Loose wiring; Blown fuse | Turn power switch ON; Check connections; Replace fuse (if applicable, consult manual) |
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | 8805-34 |
| Brand | Dynacraft |
| Product Dimensions | 58.17 x 35.92 x 48.67 inches |
| Item Weight | 19 pounds |
| Recommended Age | 36 months - 8 years |
| Battery | 24 Volt (included) |
| Manufacturer | Dynacraft |
10. Warranty and Support
For warranty information, parts, or technical assistance, please contact Dynacraft customer support. Keep your purchase receipt and model number (8805-34) handy when contacting support.
You can visit the official Dynacraft store for more information: Dynacraft Store
