vidaXL Foldable Walk-in Shower Wall
User Manual for Model: Mat (47.2" x 74.8" Frosted Glass)
Introduction
Thank you for choosing the vidaXL Foldable Walk-in Shower Wall. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower wall. Please read this manual thoroughly before beginning installation and keep it for future reference.
This shower wall features a space-saving design with frosted tempered glass, supported by a sturdy aluminum frame. Its foldable nature makes it ideal for modern, minimalist spaces, allowing it to be conveniently folded when not in use.
Safety Information
Always observe the following safety precautions to prevent injury or damage to the product:
- Handle tempered glass with extreme care. Although designed to be strong, impacts on edges or corners can cause it to shatter into small, relatively harmless pieces.
- Ensure all mounting surfaces are structurally sound and capable of supporting the weight of the shower wall.
- Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, during installation.
- Keep children and pets away from the installation area.
- Do not modify the product in any way. Use only original parts and fittings.
- If you are unsure about any part of the installation process, consult a qualified professional.
Package Contents
Before beginning installation, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact customer support.
- Foldable Shower Wall Panels (4 panels)
- Aluminum Frame Components
- Installation Fittings (screws, anchors, seals, etc.)
- Assembly Instructions Manual
Setup and Installation
The vidaXL Foldable Walk-in Shower Wall is designed for straightforward installation. Refer to the included step-by-step assembly instructions for detailed guidance. Below are general steps and considerations:
- Preparation: Clear the installation area. Ensure the floor and wall surfaces are clean, level, and dry. Gather necessary tools (e.g., drill, level, measuring tape, screwdriver).
- Wall Mounting: Secure the main wall profile to the bathroom wall using the provided screws and anchors. Ensure it is perfectly vertical using a spirit level.
- Frame Assembly: Assemble the aluminum frame components according to the diagrams in the separate assembly instructions.
- Glass Panel Installation: Carefully insert the frosted tempered glass panels into the assembled frame. Ensure all seals are correctly positioned to prevent water leakage.
- Hinge and Folding Mechanism: Attach the hinges and folding mechanism, ensuring smooth operation of the panels.
- Final Adjustments: Make any necessary adjustments to ensure the shower wall is plumb and level, and that the folding mechanism operates freely. Apply silicone sealant as instructed to ensure a watertight seal.
For visual reference, observe the product's design and how it integrates into a bathroom space.
Image: The vidaXL Foldable Shower Wall in an open position within a bathroom setting, showcasing its full extension.
Image: The vidaXL Foldable Shower Wall in a folded position, demonstrating its space-saving capability when not in use.
Operating the Shower Wall
The vidaXL Foldable Walk-in Shower Wall is designed for ease of use and space efficiency. It features multiple panels that fold inward or outward.
- To Open: Gently pull the panels outward from their folded position until they are fully extended, creating the walk-in shower enclosure. Ensure all panels are securely in place before using the shower.
- To Fold: After use, gently push the panels inward towards the wall. The design allows them to stack neatly, minimizing the footprint of the shower area and maximizing bathroom space.
Always operate the panels smoothly and avoid forcing them to prevent damage to the hinges or glass.
Maintenance and Care
Regular cleaning and maintenance will ensure the longevity and appearance of your vidaXL shower wall.
- Glass Cleaning: For the frosted tempered glass, use a soft cloth and a non-abrasive glass cleaner. Avoid harsh chemicals, abrasive pads, or scouring powders, as these can scratch the glass or damage the frosted finish. Wipe dry after cleaning to prevent water spots.
- Frame Cleaning: Clean the aluminum frame with a soft cloth and mild soap and water. Rinse thoroughly and dry. Do not use abrasive cleaners or solvents.
- Hinges and Seals: Periodically check the hinges and seals for wear or damage. Ensure the folding mechanism operates smoothly. If hinges become stiff, a small amount of silicone-based lubricant can be applied, avoiding contact with glass.
- Leak Prevention: Regularly inspect the silicone seals around the frame and where the shower wall meets the bathroom surfaces. Reapply sealant if any signs of cracking or deterioration are observed to maintain a watertight enclosure.
Troubleshooting
This section addresses common issues you might encounter. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leakage from seals | Damaged or improperly installed seals; insufficient sealant. | Inspect seals and re-seat them. Reapply silicone sealant where necessary, ensuring a continuous bead. |
| Panels are stiff or difficult to fold/unfold | Dirt or debris in hinges; misaligned panels; lack of lubrication. | Clean hinges thoroughly. Check panel alignment and adjust if possible. Apply a small amount of silicone-based lubricant to hinges. |
| Shower wall feels unstable | Loose mounting screws; inadequate wall support. | Tighten all mounting screws. If the wall support is insufficient, consider reinforcing the wall or consulting a professional. |
| Glass appears cloudy or stained | Hard water deposits; improper cleaning agents. | Use a specialized glass cleaner for hard water stains. Avoid abrasive cleaners. Regular drying after use helps prevent buildup. |
Product Specifications
| Feature | Detail |
|---|---|
| Model | Mat |
| Dimensions (L x W x H) | 47.24 x 47.24 x 74.8 inches (120 x 120 x 190 cm) |
| Size (Nominal) | 47.2" x 74.8" |
| Color | Frosted Glass |
| Material | Tempered Glass, Aluminum Frame |
| Finish Type | Matte |
| Number of Panels | 4 |
| Installation Type | Freestanding (Wall-mounted) |
| Item Weight | 61.5 pounds (27.97 Kilograms) |
| Assembly Required | Yes |
Visual representations of the product dimensions and structure:

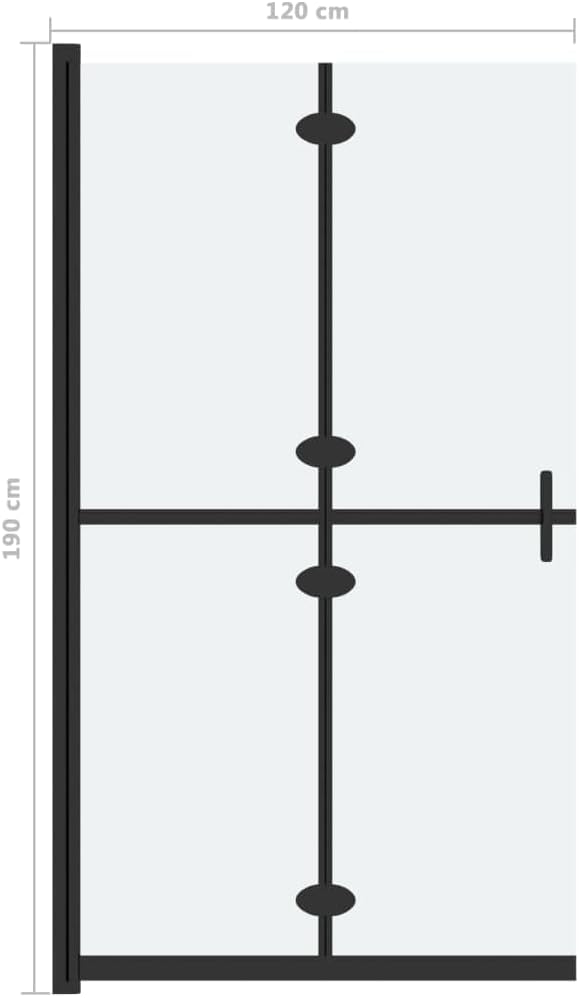

Image: Front view diagram of the shower wall, illustrating its overall dimensions.
Image: Side view diagram of the shower wall, providing a perspective on its depth and panel configuration.
Image: Top view diagram of the shower wall, detailing the layout of the panels and overall footprint.
Image: Diagram illustrating the shower wall in a partially folded state, highlighting its space-saving design.
Warranty and Returns
vidaXL offers a 30-day easy returns policy for this product. Please refer to your purchase documentation or the retailer's website for specific warranty terms and conditions. Keep your proof of purchase for any warranty claims.
Customer Support
For technical assistance, missing parts, or any questions regarding your vidaXL Foldable Walk-in Shower Wall, please contact vidaXL customer support through the retailer where you purchased the product. Have your model number (Mat) and purchase details ready when contacting support.
You can often find contact information on the retailer's website or within your order details.
