ALEKO HTIO2BRWH Inflatable Oval Hot Tub Spa User Manual

1. Important Safety Information

Read and understand all instructions before installing and using this product. Failure to follow these instructions may result in electric shock, fire, serious injury, or death.

• Always supervise children.
• Do not use the spa if the water temperature exceeds 104°F (40°C).
• Pregnant women and persons with heart disease, high blood pressure, diabetes, or other medical conditions should consult a physician before using the spa.
• Avoid using the spa immediately after a heavy meal or under the influence of alcohol, narcotics, or anticoagulants.
• Do not leave the spa out at temperatures lower than 40°F (4°C) for optimal heating and performance.
• Switch the control box off every 48 hours to allow temperatures to cool and reset.
• Use a 12/3 extension cord if one is required. It is recommended to connect the hot tub directly to an outlet if possible.
• Connect the hot tub to a designated 20 AMP plug when in use. The heater requires 1200 Watts and the bubbles require 600 Watts.

2. Package Contents

Verify that all components are present and undamaged before beginning assembly.

• Inflatable Hot Tub Spa
• Control Unit with 1200-Watt Heater, 600-Watt Bubbler, 120 Volt AC Filter Pump
• Insulated Top Cover with Safety Locking Clips
• Filter Cartridge
• Inflation Hose
• Drainage Hose
• Repair Kit
• User Manual

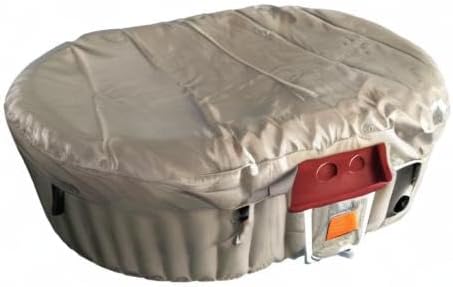

Image: ALEKO Inflatable Hot Tub Spa with various accessories, including the control unit, cover, and filter.

3. Setup Instructions

Follow these steps to properly set up your ALEKO Inflatable Hot Tub Spa.

3.1 Unpacking and Placement

1. Carefully remove the hot tub from its packaging.
2. Place the hot tub on a flat, stable surface, free from sharp objects. Ensure adequate space around the tub for access and maintenance.

3.2 Inflation

1. Locate the air valve on the hot tub and the inflation hose.
2. Connect the inflation hose to the air valve and to the control unit's inflation port.
3. Plug the control unit into a suitable electrical outlet.
4. Press the 'Bubble' button on the control panel to begin inflation.
5. Monitor the inflation process to prevent over-inflation. The hot tub should be firm but not rigid.
6. Once inflated, remove the inflation hose and securely close the air valve.

Image: The ALEKO Inflatable Hot Tub Spa after successful inflation, showing its oval shape and sturdy structure.

3.3 Filter Installation

1. Locate the water inlet inside the hot tub.
2. Screw the filter cartridge onto the water inlet. Ensure it is securely fastened.

Image: A detailed view of the filter cartridge, which is essential for maintaining water quality.

3.4 Water Filling

1. Using a garden hose, fill the hot tub with water.
2. Fill the tub to the recommended water level, indicated by the 'Min' and 'Max' lines inside the spa.

3.5 Setup Video Guide

Video: Official ALEKO guide demonstrating the complete setup process for the inflatable hot tub, including unpacking, inflation, and initial water filling.

4. Operating Instructions

Familiarize yourself with the control panel to operate your hot tub effectively.

4.1 Control Panel Overview

Image: The easy-touch control panel, featuring buttons for temperature adjustment, filter activation, and bubble jet control.

• Temperature Buttons: Use the up and down arrows to adjust the desired water temperature.
• Filter Button: Activates or deactivates the water filtration system.
• Bubble Button: Turns the high-powered bubble jets on or off.
• Heater Button: Activates or deactivates the heating function. A red light indicates the heater is active.

4.2 Setting Water Temperature

1. Press the 'Temperature' button. The display will flash.
2. Use the up or down arrow buttons to select your desired temperature (recommended 100°F for safest use, maximum 104°F).
3. Press the 'Temperature' button again to confirm the setting.
4. Press the 'Heater' button to start the heating process. A red light will illuminate.

Heating time varies depending on the outside temperature and the initial temperature of the water. Using the included top cover will significantly improve heating efficiency and reduce heating time (1-3 degrees F/h).

Image: A person relaxing in the hot tub, demonstrating the active bubble jets.

5. Maintenance

Regular maintenance ensures the longevity and hygienic operation of your hot tub.

5.1 Water Treatment

Maintain proper water chemistry using appropriate spa chemicals. Consult a local spa supply store for guidance on water testing and chemical balancing.

5.2 Cleaning and Draining

1. Turn off and unplug the hot tub from the power source.
2. Unscrew the drainage cap on the exterior of the hot tub and attach the drainage hose.
3. Remove the drain plug from the bottom interior of the tub to allow water to drain out.
4. Once fully drained, remove the hose and securely replace the drainage cap and interior drain plug.
5. Towel dry the inside of the hot tub.

5.3 Filter Cleaning and Replacement

The filter cartridge should be cleaned regularly (e.g., weekly) and replaced every few months, depending on usage, to ensure efficient filtration.

5.4 Draining and Deflating Video Guide

Video: Official ALEKO guide demonstrating the process of draining and deflating the hot tub for cleaning or storage.

6. Troubleshooting

This section addresses common issues you might encounter with your hot tub.

• No Power: Ensure the power cord is securely plugged into a working 20 AMP outlet. Check the GFCI plug for a tripped circuit.
• Water Not Heating: Verify the heater button is activated (red light on). Ensure the top cover is in place for optimal heating. Check if the ambient temperature is too low (below 40°F).
• Bubbles Not Working: Ensure the bubble button is activated. Check for any blockages in the air jets.
• Water Leakage: Inspect the hot tub for visible punctures or loose connections. Use the provided repair kit for small punctures.
• Filter Not Working: Check if the filter button is activated. Clean or replace the filter cartridge if it is clogged.

If problems persist, contact ALEKO customer support for further assistance.

7. Product Specifications

Image: A technical diagram illustrating the length, width, and height dimensions of the hot tub.

8. Warranty and Customer Support

For warranty information, product support, or to purchase replacement parts, please contact ALEKO customer service. Refer to your purchase documentation for specific warranty terms and contact details.

Note: This product is from a small business brand. Support small businesses.
