1. Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your WICKEY JoyFlyer Wooden Playground. Please read these instructions carefully before beginning assembly and retain them for future reference. The JoyFlyer is a wooden play tower designed for children, featuring a slide, a large sandbox, a ladder, and various play accessories.

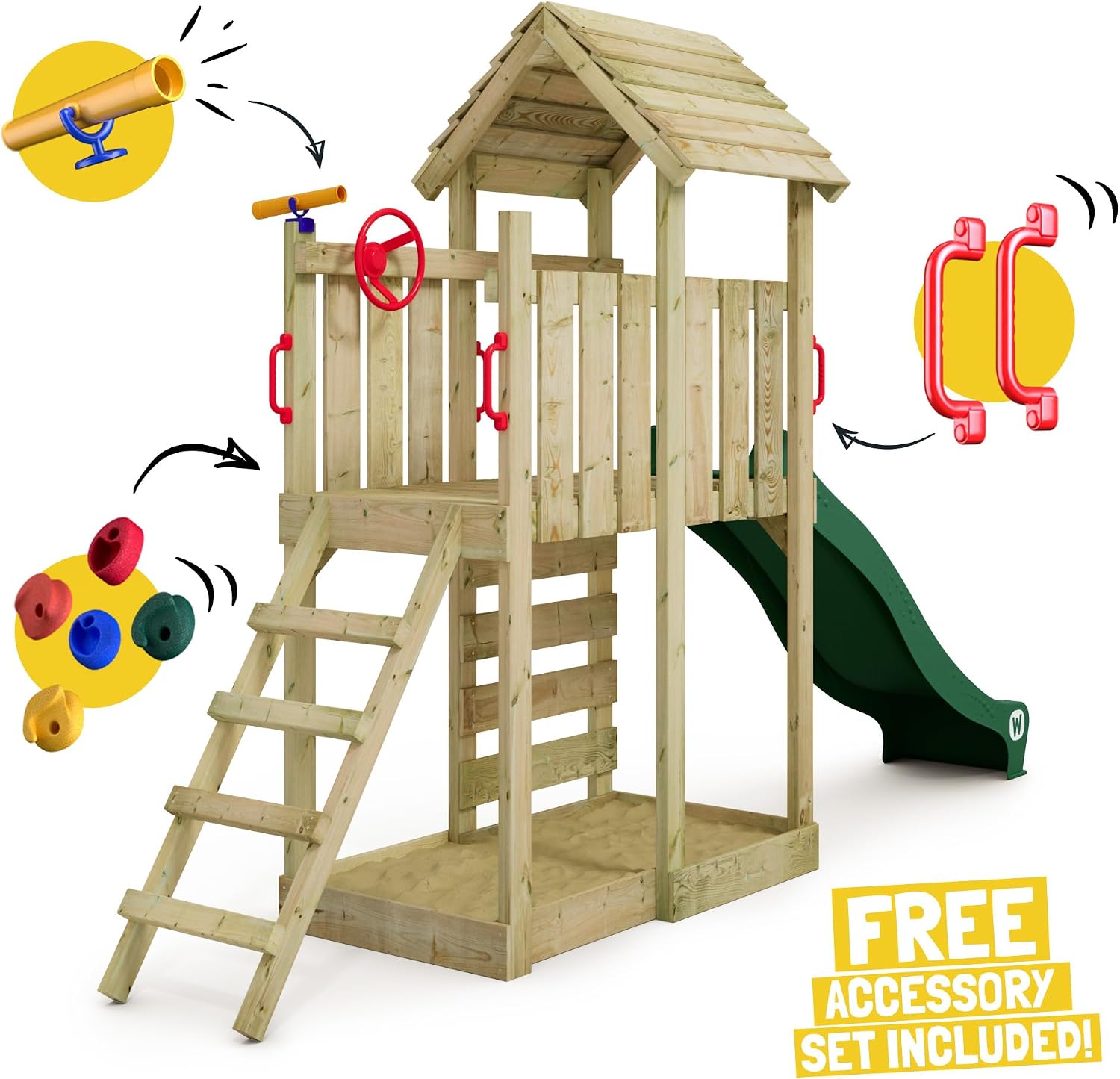

Image 1.1: The WICKEY JoyFlyer Wooden Playground, showcasing its main components including the slide, sandbox, and climbing elements.
2. Safety Information
The safety of children is paramount. This playground is designed with robust construction to ensure a secure play environment.
- Adult Supervision: Always ensure children are supervised by an adult while using the playground.
- Stable Installation: Proper installation with ground anchors is crucial for maximum stability and safety. The posts are 9 x 4.5 cm for enhanced structural integrity.
- Clear Play Area: Ensure the area around the playground is free from obstacles, hard surfaces, or other hazards.
- Regular Inspection: Periodically check all components for wear, damage, or loose fastenings. Tighten screws and bolts as needed.
- Age Appropriateness: This playground is suitable for children within the recommended age range (up to 12 years).
Image 2.1: Ground anchors are essential for securing the playground structure, providing maximum safety and stability.
3. Package Contents
Your WICKEY JoyFlyer playground package includes 18 items. Please verify all components are present and undamaged before starting assembly.
- Wooden posts and beams for the main structure.
- Wooden planks for the platform, roof, and sandbox.
- Slide (green, with water connection provision).
- Ladder rungs and side supports.
- Play accessories (e.g., steering wheel, telescope, climbing rocks/handles).
- Fasteners (screws, bolts, nuts, washers).
- Assembly instructions (this manual).
Note: Ground anchors are sold separately and are highly recommended for enhanced stability and warranty coverage.
4. Setup and Assembly
Assembly of the WICKEY JoyFlyer playground requires careful attention and appropriate tools. It is recommended that at least two adults perform the assembly.
4.1 Required Tools (Not Included):
- Drill with various drill bits (wood and possibly metal for fasteners).
- Screwdriver (manual or electric).
- Socket wrench set.
- Sander or sandpaper (for smoothing rough edges).
- Measuring tape, pencil, level.
- Hammer.
4.2 Important Assembly Notes:
- No Pre-drilled Holes: The wooden components do not come with pre-drilled holes. You will need to measure and drill all holes yourself according to the provided diagrams.
- Wood Preparation: Some wood edges may be rough from sawing and not sanded. It is highly recommended to sand all edges to prevent splinters, especially in areas children will frequently touch.
- Dimensional Tolerances: Be aware that minor variations (1-2 cm) in board dimensions may occur. Adjustments may be necessary during assembly to ensure proper fit.
- Slide Water Connection: The slide is provided with a provision for a water connection. Additional parts for connecting a hose are not included and must be sourced separately.
4.3 Assembly Steps:
- Unpack and Sort: Carefully unpack all components and sort them according to the parts list. Check for any damage.
- Prepare Wood: Sand any rough edges on wooden components, particularly those that will be handled by children.
- Assemble Base Structure: Follow the diagrams to assemble the main base frame of the play tower. Ensure all connections are secure and level.
- Install Posts: Attach the vertical posts, ensuring they are plumb and securely fastened.
- Build Platform and Roof: Construct the play platform and roof structure as per the instructions.
- Attach Ladder and Slide: Securely mount the ladder and slide. For the slide, ensure the water connection provision is accessible if you plan to use it.
- Install Sandbox: Assemble the sandbox frame at the base of the tower.
- Add Accessories: Attach the steering wheel, telescope, climbing rocks, and any other included play accessories.
- Ground Anchoring: If using ground anchors (highly recommended), install them according to their specific instructions to firmly secure the playground to the ground.
- Final Check: Before allowing children to play, perform a thorough check of all connections, ensuring all screws and bolts are tight and there are no sharp edges or protruding parts.
Image 4.1: Dimensional diagram of the JoyFlyer playground, useful for planning placement and assembly.
5. Operating Instructions
The WICKEY JoyFlyer playground offers multiple play activities.
- Climbing Tower: Children can climb the ladder to reach the play platform.
- Slide: Use the slide for descent. If equipped with a water connection, a hose can be attached for a wet slide experience (additional parts required).
- Sandbox: The integrated sandbox provides an area for sand play. Ensure sand is clean and regularly raked.
- Play Accessories: Engage with the steering wheel and telescope for imaginative play.
Image 5.1: Children enjoying the various features of a WICKEY playground, including the sandbox and observation accessories.
6. Maintenance
Regular maintenance ensures the longevity and safety of your WICKEY JoyFlyer playground.
- Wood Treatment: The European spruce and pine wood used is pressure-impregnated, making it durable and weather-resistant. No additional painting or treatment is necessary. This impregnation is biologically harmless.
- Cleaning: Clean the wooden surfaces and plastic components with mild soap and water. Avoid harsh chemicals.
- Fastener Check: Annually, or more frequently with heavy use, check all screws, bolts, and connections. Tighten any loose fasteners.
- Wood Inspection: Inspect the wood for splinters, cracks, or signs of rot. Sand down splinters and replace severely damaged parts.
- Sandbox Maintenance: Regularly rake the sand to remove debris and ensure it remains clean. Cover the sandbox when not in use to prevent contamination.
Image 6.1: Key benefits of the impregnated wood used in the playground, highlighting its durability and low maintenance.
7. Troubleshooting
This section addresses common issues you might encounter during assembly or use.
| Problem | Possible Cause | Solution |
|---|---|---|
| Parts do not align correctly (1-2 cm gap). | Minor dimensional tolerances in wood components. | Adjust alignment during assembly. Use clamps to hold pieces in place while fastening. Ensure measurements are precise before drilling. |
| Rough edges or splinters on wood. | Wood is sawn but not pre-sanded. | Sand all edges thoroughly with sandpaper or a sander before and during assembly, especially in areas children will touch. |
| Slide does not have a water connection. | The slide has a provision for water connection, but additional parts (e.g., hose adapter) are not included. | Purchase a suitable hose adapter and connector separately to utilize the water feature. |
| Playground feels unstable after assembly. | Insufficient anchoring or loose fasteners. | Ensure all fasteners are tightened. Install WICKEY ground anchors (sold separately) for maximum stability. Verify the ground surface is level. |
8. Specifications
- Model: JoyFlyer
- Brand: Wickey
- Dimensions (L x W x H): 429 cm x 84 cm x 263 cm
- Material: Impregnated European Spruce and Pine Wood
- Color: Green (slide) / Natural wood
- Assembly Required: Yes
- Age Recommendation: Child (up to 12 years / 144 months)
- Number of Packages: 1
- Number of Items: 18
9. Warranty
Wickey offers a 10-year warranty on its high-quality wooden play equipment. This warranty is valid when WICKEY ground anchors are purchased and used for installation, ensuring the structural integrity and stability of the playground. Please retain your proof of purchase for warranty claims.
10. Support
For any questions regarding assembly, missing parts, or other product-related inquiries, please contact Wickey customer service.
Wickey Customer Service: Refer to the contact information provided with your purchase documentation or visit the official Wickey website.
