Premium Plus 4+1 Gas Burner BBQ Grill User Manual

1. Introduction

The TOV Premium Plus 4+1 Gas Burner BBQ Grill is designed to enhance your outdoor cooking experience, transforming your garden into a versatile culinary space. This elegant and functional gas grill is perfect for preparing delicious meals for family and friends.

Key features include a large cooking surface, a solid lid with an integrated thermometer for precise temperature monitoring, and a convenient side table for food preparation. The integrated base cabinet provides ample storage for your grilling essentials. Equipped with two swivel wheels, the grill is also easy to maneuver and position as needed.

Figure 1.1: The TOV Premium Plus 4+1 Gas Burner BBQ Grill, showcasing its main structure with four main burners and one side burner, control knobs, and storage cabinet.

2. Safety Information

Please read all safety warnings and instructions carefully before assembling and operating your gas grill. Failure to follow these instructions could result in fire, explosion, or serious injury.

• Outdoor Use Only: This grill is designed for outdoor use only. Do not operate indoors or in enclosed spaces.
• Ventilation: Ensure adequate ventilation around the grill. Do not block ventilation openings.
• Clearance: Maintain a safe distance from combustible materials. Refer to the installation manual for specific clearance requirements.
• Gas Leaks: Always check for gas leaks before each use. Use a soapy water solution to detect leaks; never use an open flame.
• Cylinder Connection: Connect the gas cylinder properly and securely. Ensure the hose and regulator are in good condition.
• Children and Pets: Keep children and pets away from the hot grill.
• Hot Surfaces: Grill surfaces become extremely hot during operation. Use heat-resistant gloves and tools.
• Storage: Store the gas cylinder outdoors in a well-ventilated area, away from direct sunlight and heat sources.
• Maintenance: Regularly inspect and clean the grill components, especially the burners and gas lines.

3. Package Contents

Upon unpacking, please verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• 4+1 Burner Gas Grill Unit
• Operating Manual
• Installation Manual
• Gas Regulator
• Gas Hose
• Protective Grill Cover

Figure 3.1: Included gas hose and regulator, essential for connecting the grill to a propane tank.

Figure 3.2: The included protective grill cover, designed to shield the grill from outdoor elements.

4. Setup and Assembly

The TOV Premium Plus 4+1 Gas Burner BBQ Grill requires assembly. Please refer to the dedicated Installation Manual provided in the package for detailed, step-by-step instructions. Ensure you have all necessary tools before beginning assembly.

Key Assembly Steps (Refer to Installation Manual for full details):

1. Unpack all components and lay them out.
2. Assemble the main frame and cabinet structure.
3. Attach the wheels for mobility.
4. Install the main burner assembly and cooking grates.
5. Mount the side burner and side tables.
6. Connect the gas hose and regulator to the grill's gas inlet and the propane cylinder. Perform a leak test before first use.

5. Operating Instructions

5.1. Connecting the Gas Cylinder

1. Ensure all burner control knobs are in the "OFF" position.
2. Connect the regulator to the gas cylinder valve. Tighten securely by hand.
3. Perform a leak test: Apply a soapy water solution to all gas connections. Bubbles indicate a leak. If a leak is detected, turn off the gas, tighten connections, and re-test. Do not operate the grill if a leak persists.

5.2. Lighting the Main Burners

1. Open the gas supply valve on the cylinder.
2. Push in and turn one of the main burner control knobs to the "HIGH" position.
3. Press the igniter button (if applicable) or use a long match/lighter to ignite the burner.
4. Once lit, release the knob. If the burner does not light within 5 seconds, turn the knob to "OFF", wait 5 minutes for gas to dissipate, and repeat the process.
5. Repeat for other main burners as needed.

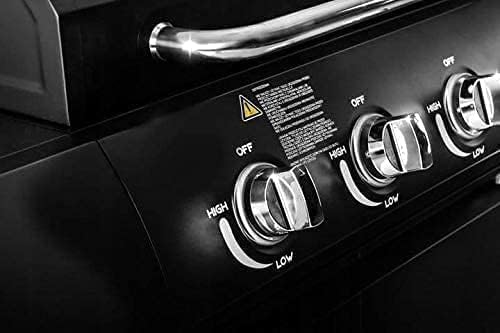

Figure 5.1: Close-up view of the grill's control knobs, showing "OFF", "HIGH", and "LOW" settings for precise temperature control.

5.3. Lighting the Side Burner

1. Ensure the main grill lid is closed.
2. Open the side burner lid.
3. Push in and turn the side burner control knob to the "HIGH" position.
4. Press the igniter button or use a long match/lighter to ignite the side burner.
5. Once lit, release the knob.

Figure 5.2: Detail of the integrated side burner, useful for preparing sauces or side dishes while grilling.

5.4. Temperature Control

Adjust the burner control knobs between "HIGH" and "LOW" to achieve the desired cooking temperature. The integrated thermometer in the lid provides an accurate reading of the internal grill temperature.

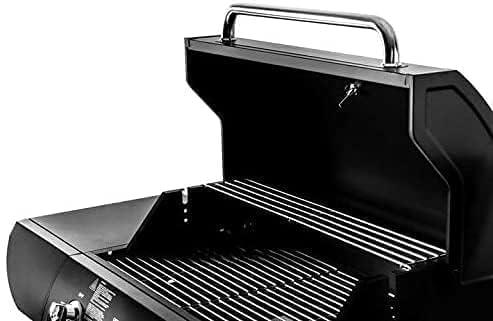

Figure 5.3: The grill with its lid open, revealing the spacious cooking grates and the integrated thermometer on the lid.

5.5. Shutting Down the Grill

1. Turn all burner control knobs to the "OFF" position.
2. Close the gas supply valve on the cylinder.
3. Allow the grill to cool completely before cleaning or covering.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your TOV gas grill.

• Cleaning Grill Grates: After each use, once the grill has cooled, clean the cooking grates with a grill brush to remove food residue.
• Burner Maintenance: Periodically inspect burner ports for blockages (e.g., spider webs, food debris). Clean with a wire brush or a stiff wire if necessary.
• Exterior Cleaning: Clean exterior surfaces with a mild soap and water solution. Wipe dry with a soft cloth. Avoid abrasive cleaners.
• Grease Tray: Regularly empty and clean the grease tray to prevent flare-ups and maintain hygiene.
• Hose and Regulator Inspection: Before each use, check the gas hose and regulator for cuts, cracks, or excessive wear. Replace immediately if damaged.
• Storage: When not in use, especially for extended periods, cover the grill with the provided protective cover and store it in a dry, sheltered area.

7. Troubleshooting

8. Specifications

Figure 8.1: Diagram illustrating the key dimensions of the TOV Premium Plus 4+1 Gas Burner BBQ Grill.

9. Warranty and Support

For information regarding warranty coverage, claims, or technical support, please refer to the warranty card included with your product or contact the seller/manufacturer directly. Keep your proof of purchase for warranty purposes.
