LIVINGbasics Baby Bottle Sterilizer, Warmer, and Dryer User Manual

1. Introduction

This manual provides comprehensive instructions for the safe and efficient use of your LIVINGbasics Multifunctional Baby Bottle Sterilizer, Warmer, and Dryer. This appliance is designed to sterilize baby bottles, pacifiers, and breast pump parts using high-temperature steam, dry items with hot air, warm milk, and heat baby food. Please read this manual thoroughly before first use and retain it for future reference.

Figure 1: LIVINGbasics Baby Bottle Sterilizer, Warmer, and Dryer in operation. The unit is made from 100% food-grade, BPA-free material, designed for safety and to keep items dry for up to 24 hours.

2. Product Overview

Familiarize yourself with the components of your sterilizer, warmer, and dryer unit.

Figure 2: Exploded view of the product parts. From top to bottom: Lid, Accessory Rack, Bottle Tray, Sterilizer Container, Heating Plate, Machine Base, and Panel Setting.

Components:

• Lid: Covers the sterilizer container, retaining steam and heat.
• Accessory Rack: Holds smaller items like pacifiers, bottle caps, and breast pump parts.
• Bottle Tray: Supports baby bottles during sterilization and drying.
• Sterilizer Container: The main chamber where items are sterilized and dried.
• Heating Plate: Located in the machine base, it heats water to produce steam.
• Machine Base: Contains the heating element and control panel.
• Panel Setting: The control interface for selecting functions and adjusting settings.

3. Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for storage or future transport.
2. Initial Cleaning: Before first use, wash all removable parts (lid, accessory rack, bottle tray, sterilizer container) with warm soapy water and rinse thoroughly. Wipe the machine base and heating plate with a damp cloth.
3. First Use Preparation: It is recommended to boil water several times in the unit without any items inside to clean the heating plate and remove any manufacturing residues.
4. Assembly: Place the sterilizer container onto the machine base. Insert the bottle tray, followed by the accessory rack. Place the lid on top.
5. Placement: Position the unit on a stable, flat, heat-resistant surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
6. Power Connection: Plug the power cable into a suitable electrical outlet.

4. Operating Instructions

The unit features a touch control panel for various functions. Ensure the unit is properly assembled and plugged in before operation.

Figure 3: Control Panel. Use the 'MODE' button to cycle through functions, and '+' / '-' buttons to adjust time or temperature. 'START/CANCEL' initiates or stops the operation.

4.1. Sterilize & Dry Function

This function sterilizes items with high-temperature steam and then dries them with hot air.

1. Prepare Items: Wash all bottles, pacifiers, and breast pump parts thoroughly before placing them in the sterilizer.
2. Add Water: Pour 140ml of distilled water onto the heating plate in the machine base.
3. Load Items: Place the sterilizer container on the machine base. Arrange washed bottles upside down on the bottle tray (maximum 6 wide-neck bottles or 12 standard bottles). Place smaller items like pacifiers and bottle caps on the accessory rack.
4. Select Function: Plug in the power cable. Press the "MODE" button once to select "Sterilize & Dry". The indicator light for "Sterilize & Dry" will illuminate.
5. Adjust Drying Time (Optional): The default drying time is 30 minutes. To adjust, press the "+" or "-" buttons. The drying time can be set from 1 to 120 minutes.
6. Start Operation: Press the "START" button to begin. The display will show a rotating line, indicating the machine is in operation.
7. Process: The sterilization process runs for 14 minutes, followed by the drying process.
8. Completion: When the drying cycle is complete, the machine will beep once, and the display will show "END".

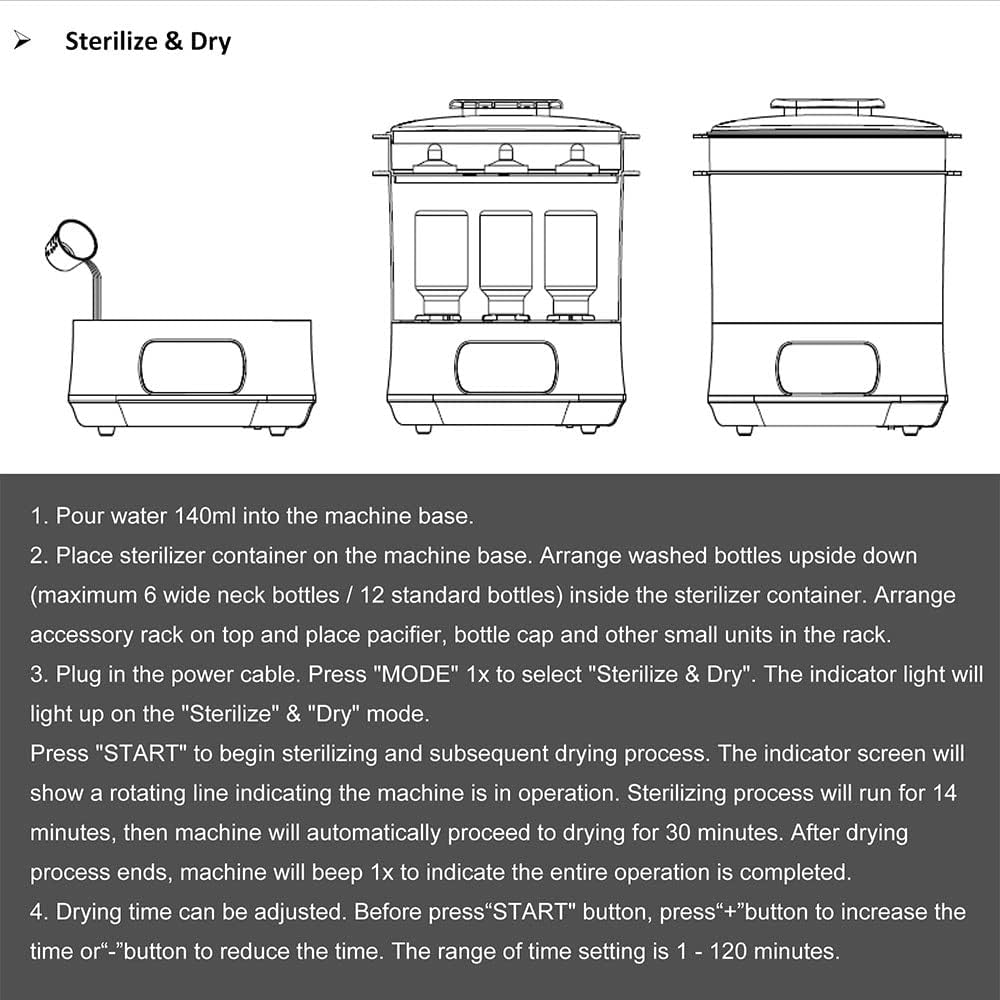

Figure 4: Step-by-step guide for the Sterilize & Dry function, illustrating water addition, item placement, and control panel interaction.

4.2. Sterilize/Egg Boil Function

This function provides steam sterilization or can be used for boiling eggs.

1. Prepare Items: For sterilization, wash items as described above. For egg boiling, place eggs in the accessory rack.
2. Add Water: Pour 140ml of distilled water onto the heating plate.
3. Load Items: Place items in the sterilizer container.
4. Select Function: Press the "MODE" button twice to select "Sterilize/Egg Boil".
5. Start Operation: Press "START".
6. Completion: The machine will beep upon completion.

4.3. Dry Function

This function provides hot air drying for items that have already been sterilized or washed.

1. Load Items: Place clean, wet items into the sterilizer container.
2. Select Function: Press the "MODE" button three times to select "Dry".
3. Adjust Drying Time: Use the "+" or "-" buttons to set the desired drying time (1-120 minutes).
4. Start Operation: Press "START".
5. Completion: The machine will beep upon completion.

4.4. Warm Milk Function

This function gently warms milk to a suitable temperature.

1. Add Water: Pour a small amount of water (e.g., 50-100ml) into the machine base, ensuring it covers the heating plate.
2. Place Bottle: Place the bottle containing milk into the sterilizer container.
3. Select Function: Press the "MODE" button four times to select "Warm Milk".
4. Adjust Temperature/Time: Use the "+" or "-" buttons to set the desired warming temperature or time.
5. Start Operation: Press "START".
6. Completion: The machine will beep upon completion. Always check milk temperature before feeding.

4.5. Warm Food Function

This function warms baby food.

1. Add Water: Pour a small amount of water (e.g., 50-100ml) into the machine base.
2. Place Food Container: Place the container with baby food into the sterilizer container.
3. Select Function: Press the "MODE" button five times to select "Warm Food".
4. Adjust Temperature/Time: Use the "+" or "-" buttons to set the desired warming temperature or time.
5. Start Operation: Press "START".
6. Completion: The machine will beep upon completion. Always check food temperature before feeding.

4.6. General Operation Notes

• To cancel any operation, press the "CANCEL" button.
• Always use distilled water to prevent mineral buildup on the heating plate.
• Ensure the lid is properly seated during operation.

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your appliance.

1. Unplug Before Cleaning: Always unplug the unit from the power outlet and allow it to cool completely before cleaning.
2. Wash Removable Parts: The lid, accessory rack, bottle tray, and sterilizer container are dishwasher safe or can be washed by hand with warm soapy water. Rinse thoroughly and allow to air dry.
3. Clean Heating Plate: Over time, mineral deposits (limescale) may build up on the heating plate.
   • To remove limescale, mix 50ml of white vinegar with 100ml of water.
   • Pour the solution onto the heating plate and let it soak for 30 minutes to an hour, or until the deposits loosen.
   • Scrub gently with a soft brush or sponge. Do not use abrasive cleaners or metal scouring pads.
   • Rinse the heating plate by wiping it with a damp cloth several times.
4. Clean Machine Base: Wipe the exterior of the machine base with a damp cloth. Do not immerse the machine base in water.
5. Storage: Store the clean and dry unit in a cool, dry place away from direct sunlight.

6. Troubleshooting

If you encounter issues with your appliance, refer to the following common problems and solutions:

7. Specifications

Key technical specifications for the LIVINGbasics Baby Bottle Sterilizer, Warmer, and Dryer.

Figure 5: Product dimensions in various configurations (sterilizer, dryer, bottle warmer).

8. Warranty and Support

LIVINGbasics is committed to providing high-quality products. For warranty information, technical support, or any questions regarding your product, please contact LIVINGbasics customer service through the retailer where the product was purchased or visit the official LIVINGbasics website.

Please have your model number (ASIN: B09R9VP8L5) and purchase date available when contacting support.

9. Product Demonstration Video

Watch this video for a visual guide on the features and operation of the LIVINGbasics Baby Bottle Sterilizer, Warmer, and Dryer.
