Sprwinautummer Can Bus Gateway Control Unit 7N0907530BB User Manual

1. Overview

This manual provides essential information for the installation, operation, and maintenance of the Sprwinautummer Can Bus Gateway Control Unit, model 7N0907530BB. This unit is designed as a replacement part for specific Volkswagen and Skoda vehicles, primarily to address issues such as battery drain when upgrading to certain head units like RCD510, RNS510, or RNS315.

The Can Bus Gateway Control Unit acts as a central communication interface for various electronic control units (ECUs) within a vehicle. It manages data exchange between different systems, ensuring proper functionality and preventing compatibility issues.

2. Product Features

• Material: Durable Polypropylene (PP) construction.
• Voltage: Operates at 12V.
• Plug Pins: Features a 20-pin connector for secure integration.
• Installation Type: Designed for decode match replacement.
• Function: High version gateway designed to resolve RCD510, RNS510, and RNS315 battery drain issues.

3. Compatibility

This Can Bus Gateway Control Unit is compatible with a range of Volkswagen and Skoda vehicles. It is specifically recommended for use with RCD510, RNS510, and RNS315 head units to prevent battery discharge.

3.1 Compatible Vehicle Models:

• VW TOURAN (2006-2011)
• VW TIGUAN (2008-2012)
• VW CADDY (2004-2011)
• VW EOS (2006-2011)
• VW GOLF MK6 (2010-2014)
• VW JETTA MK6 NCS (2006-2014)
• VW SCIROCCO (2009-2011)
• SKODA OCTAVIA (2004-2011)
• SKODA SUPERB (2008-2011)
• SKODA YETI (2008-2012)

3.2 Compatible Part Numbers:

The following part numbers are compatible with or replaced by this gateway unit. Please verify your vehicle's existing part number before purchase.

• 7N0907530AM, 7N0 907 530 AM
• 7N0907530BB, 7N0 907 530 BB
• 7N0907530T, 7N0 907 530T
• 7N0907530S, 7N0 907 530S
• 7N0907530QZ00, 7N0 907 530 Q Z00
• 7N0907530Q, 7N0 907 530Q
• 7N0907530P, 7N0 907 530P
• 7N0907530N, 7N0 907 530N
• 7N0907530LZ00, 7N0 907 530L Z00
• 7N0907530L000, 7N0 907 530 L 000
• 7N0907530L, 7N0 907 530L
• 7N0907530K, 7N0 907 530K
• 7N0907530J, 7N0 907 530J
• 7N0907530AR, 7N0 907 530AR
• 7N0907530AQ, 7N0 907 530 AQ
• 7N0907530ANZ0B, 7N0 907 530 AN Z0B
• 7N0907530ANZ00, 7N0 907 530 AN Z00
• 7N0907530AL, 7N0 907 530AL
• 7N0907530AJZ00, 7N0 907 530 AJZ00
• 7N0907530AG, 7N0 907 530 AG
• 7N0907530AEZ00, 7N0 907 530 AEZ00
• 7N0907530AC, 7N0 907 530 AC
• 7N0907530AAZ00, 7N0 907 530 AA Z00
• 7N0907530AA, 7N0 907 530AA
• 7N0907530A, 7N0 907 530A
• 8P0907530C, 8P0 907 530C
• 8P0907530A, 8P0 907 530A
• 1K0907530T, 1K0 907 530T
• 1K0907530R, 1K0 907 530R
• 1K0907530N, 1K0 907 530N
• 1K0907530M, 1K0 907 530M
• 1K0907530AF, 1K0 907 530AF
• 1K0907530AE, 1K0 907 530 AE
• 1K0907530AC, 1K0 907 530 AC
• 1K0907530AB, 1K0 907 530 AB
• 7N0907530AH, 7N0 907 530AH

4. Installation Guide

The installation of the Can Bus Gateway Control Unit requires technical knowledge and should ideally be performed by a qualified professional. Incorrect installation can lead to vehicle malfunctions or damage.

4.1 Pre-Installation Checks:

1. Ensure the vehicle's ignition is off and the battery is disconnected to prevent electrical shorts.
2. Verify that the new gateway unit's part number matches one of the compatible numbers for your vehicle.
3. Locate the existing Can Bus Gateway Control Unit in your vehicle. The typical installation location is behind the instrument panel.

4.2 Installation Steps:

1. Carefully remove any trim panels or components necessary to access the existing gateway unit.
2. Disconnect the electrical connectors from the old gateway unit. Note the orientation and connection points.
3. Remove the old gateway unit from its mounting bracket.
4. Install the new Sprwinautummer Can Bus Gateway Control Unit (7N0907530BB) into the mounting bracket.
5. Connect the 20-pin electrical connector(s) to the new unit, ensuring a firm and secure connection.
6. Reconnect the vehicle battery.
7. Reassemble any removed trim panels or components.

4.3 Post-Installation:

After physical installation, the new gateway unit may require coding or adaptation using diagnostic software (e.g., VCDS, ODIS) to properly integrate with the vehicle's systems and prevent error codes or malfunctions. This step is crucial for optimal performance and to resolve issues like battery drain, especially when upgrading infotainment systems.

Image 1: Top view of the Can Bus Gateway Control Unit, showing the part number 7N0907530AM and manufacturing details.

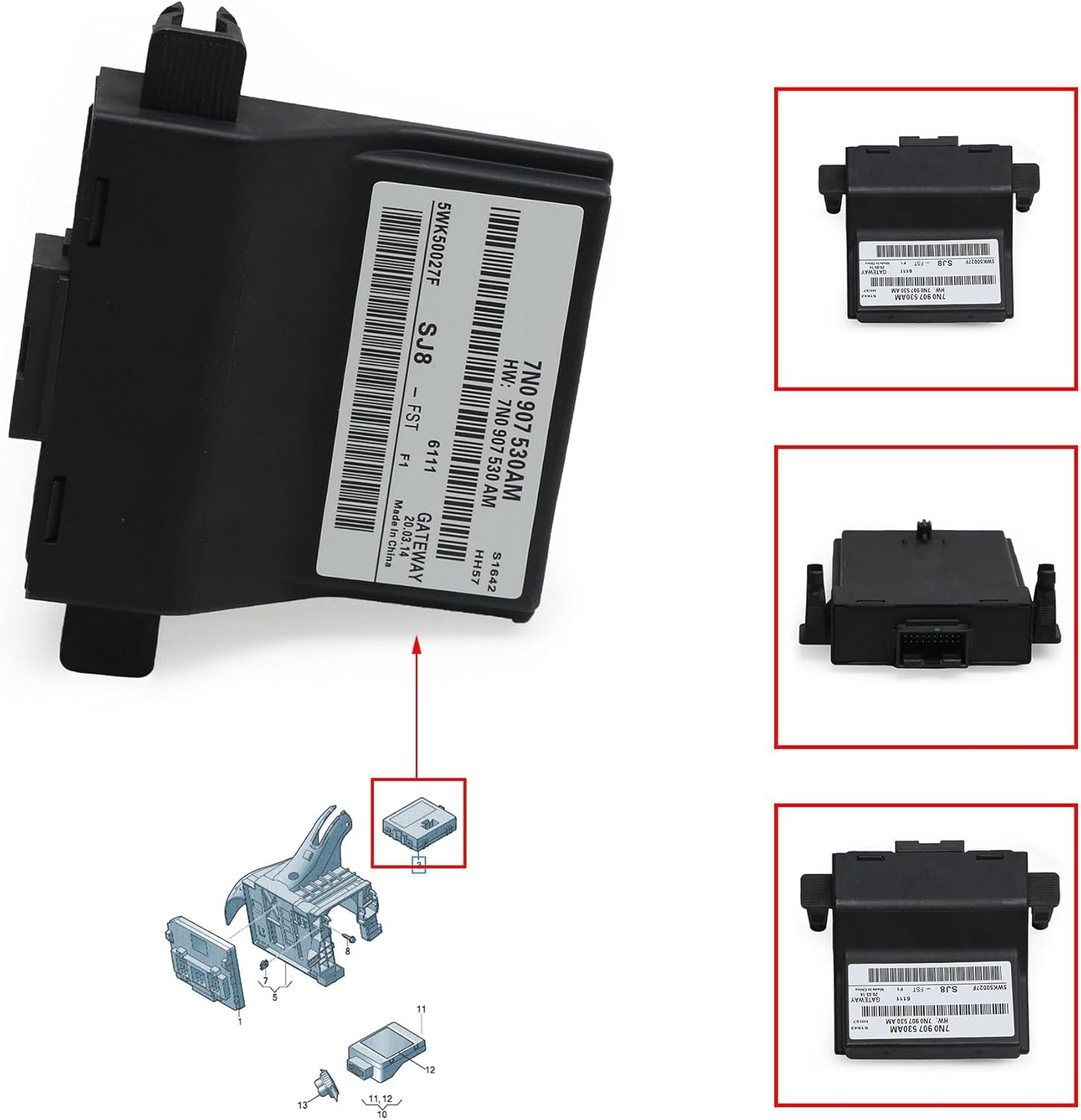

Image 2: Various perspectives of the control unit, including an illustration of its integration into the vehicle's wiring harness.

Image 3: Side view of the unit, clearly showing the multi-pin connector for electrical hookup.

5. Operating Instructions

The Can Bus Gateway Control Unit operates automatically once correctly installed and coded. Its primary function is to facilitate communication between various vehicle modules and prevent issues such as battery drain, particularly after installing aftermarket or upgraded infotainment systems (e.g., RCD510, RNS510, RNS315).

No direct user interaction is typically required with the gateway unit itself after installation. Its operation is integrated into the vehicle's electrical system.

6. Maintenance

The Sprwinautummer Can Bus Gateway Control Unit is a sealed electronic component and does not require routine user maintenance. To ensure its longevity and proper function:

• Avoid exposing the unit to extreme temperatures, moisture, or corrosive substances.
• Ensure all electrical connections remain secure and free from corrosion.
• If any vehicle electrical work is performed, ensure the battery is disconnected to prevent damage to electronic components.

7. Troubleshooting

If you experience issues after installing the Can Bus Gateway Control Unit, consider the following troubleshooting steps:

7.1 Common Issues and Solutions:

• Battery Drain: If battery drain persists after installation, ensure the unit was correctly coded to your vehicle. This is a common requirement for new gateway modules. Consult a professional for diagnostic coding.
• Error Codes: If new error codes appear on your vehicle's dashboard or via diagnostic scan, it may indicate incorrect installation, improper coding, or a compatibility issue. Re-check connections and coding.
• Infotainment System Malfunctions: If your RCD510, RNS510, or RNS315 unit is not functioning correctly, or if features are missing, verify the gateway unit's compatibility and ensure it has been properly coded to support the head unit's features.
• No Communication: If the vehicle's diagnostic tools cannot communicate with the gateway or other modules, check all electrical connections to the gateway unit for looseness or damage.

For complex issues, it is highly recommended to seek assistance from a certified automotive technician or a specialist in vehicle electronics.

8. Specifications

9. Product Videos

The following videos provide additional visual information regarding the Can Bus Gateway Control Unit. Please note that some videos may feature different part numbers or variants, but illustrate the general product type and features.

10. Warranty and Support

For warranty information, technical support, or any inquiries regarding the Sprwinautummer Can Bus Gateway Control Unit, please refer to the manufacturer's official website or contact their customer service directly. It is recommended to have your product model number (7N0907530BB) and purchase details available when seeking support.
