M MASSIMO MOTOR MB100

Massimo MB100 Mini Bike User Manual

Model: MB100 | Brand: M MASSIMO MOTOR

Introduction

This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your Massimo MB100 Mini Bike. Please read all instructions carefully before operating the vehicle.

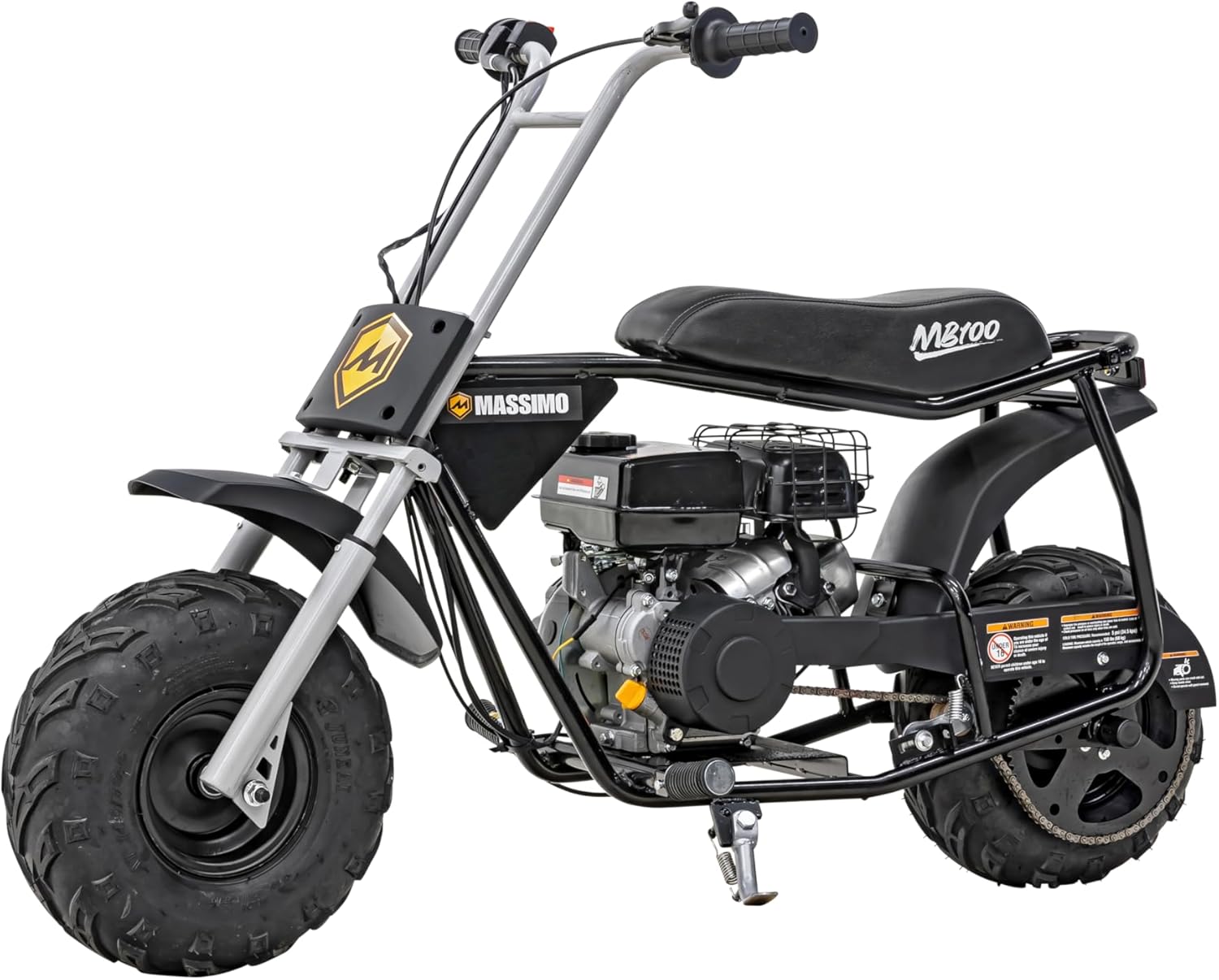

Figure 1: Massimo MB100 Mini Bike

Safety Information

Always wear appropriate safety gear, including a helmet, eye protection, and protective clothing, when operating the mini bike. Ensure all riders meet the manufacturer's recommended age of 16 months and up, and adhere to the maximum weight capacity of 150 lbs. This unit is not for sale in California due to EPA regulations.

Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Key Features

Engine Type: 79cc, four-stroke, air-cooled engine.
Horsepower: 2.5 HP.
Top Speed: Up to 15 MPH.
Ignition: Recoil pull start for easy starting.
Fuel Type: Gasoline.
Fuel Capacity: 0.36 Gallons.
Drive System: Automatic chain drive.
Tires: 14.5-inch all-terrain tires for varied surfaces.
Suspension: Hydraulic front suspension for a smoother ride.
Brakes: Disc brakes for reliable stopping power.
Safety: Easy access kill switch, side and rear reflectors.
Frame: Durable steel frame with protective fenders.
Seat Height: 23.6 inches.
Weight Capacity: Supports riders up to 150 lbs.

Massimo MB100 Mini Bike labeled diagram showing components

Figure 2: Key Components of the MB100 Mini Bike

Figure 3: MB100 Mini Bike Dimensions

Setup and Initial Checks

The Massimo MB100 Mini Bike arrives largely pre-assembled. Before first use, perform the following checks:

Unpacking: Carefully remove the mini bike from its packaging. Inspect for any visible damage from shipping.
Handlebar Installation: Attach the handlebars securely according to the included quick start guide.
Fluid Levels: Check engine oil and fuel levels. Fill with appropriate gasoline as specified in the engine manual.
Tire Pressure: Verify tire pressure is within the recommended range.
Brake Functionality: Test both front and rear brakes to ensure they engage properly.
Chain Guard: Ensure the chain guard is intact and securely fastened to prevent clothing from getting caught in the chain.
Wiring: Confirm all visible wiring connections are secure and undamaged.

Figure 4: Pre-ride inspection of the MB100

Operating Instructions

Starting the Engine

Ensure the fuel valve is open.
Set the choke lever to the "ON" or "START" position (if the engine is cold).
Turn the engine switch to the "ON" position.
Pull the recoil starter handle firmly until the engine starts.
Once the engine is running, gradually move the choke lever to the "OFF" or "RUN" position.

Video 1: Demonstration of how to start the Massimo MB100 Mini Bike ignition.

Video 2: Quick guide on starting the mini bike.

Riding the Mini Bike

The MB100 features an automatic chain drive, meaning there are no gears to shift. Simply apply throttle to accelerate.

Sit comfortably on the seat with both feet on the foot pegs.
Gently twist the throttle to begin moving. Increase throttle for more speed.
Maintain a safe speed, especially on uneven terrain.
Use the handlebars to steer.

Child riding Massimo MB100 Mini Bike on a dirt trail

Figure 5: Rider on the MB100 Mini Bike on a trail.

Stopping the Engine

To slow down, release the throttle and apply the brakes smoothly.
To stop the engine, press the easy access kill switch located on the handlebar.

Video 3: Instructions on how to adjust the choke for optimal engine performance.

Maintenance

Regular maintenance ensures the longevity and safe operation of your MB100 Mini Bike. Refer to the engine manufacturer's manual for detailed service schedules.

Engine Oil: Check oil level before each ride and change as recommended.
Air Filter: Clean or replace the air filter regularly, especially when riding in dusty conditions.
Spark Plug: Inspect and clean the spark plug periodically. Replace if worn.
Chain: Keep the drive chain clean, lubricated, and properly tensioned. Inspect for wear or damage.
Brakes: Check brake pads for wear and ensure brake levers operate smoothly. Adjust as needed.
Tires: Monitor tire pressure and inspect for cuts or punctures.
Fasteners: Periodically check all nuts, bolts, and fasteners for tightness.

Troubleshooting

Problem	Possible Cause	Solution
Engine does not start	No fuel or stale fuel Choke not set correctly Engine switch off Faulty spark plug Carburetor issues	Fill with fresh gasoline Adjust choke lever Turn engine switch to ON Inspect/replace spark plug Consult a qualified mechanic for carburetor inspection
Loss of power during operation	Low fuel level Clogged air filter Spark plug issues Engine overheating	Refuel Clean or replace air filter Inspect/replace spark plug Allow engine to cool; check oil level
Chain falls off or is loose	Improper chain tension Worn chain or sprockets	Adjust chain tension according to manual Inspect and replace worn components

Specifications

Feature	Detail
Engine Type	79cc, Four-Stroke, Air-Cooled
Horsepower	2.5 HP
Top Speed	15 MPH
Weight Capacity	150 lbs
Ignition	Recoil Pull Start
Product Dimensions (L x W x H)	50 in x 24.2 in x 34.6 in
Wheelbase	36 in
Fuel Capacity	0.36 Gallons
Item Weight	77 pounds
Manufacturer Recommended Age	16 months and up

Warranty Information

For detailed warranty terms and conditions, please refer to the official warranty document included with your Massimo MB100 Mini Bike or contact M MASSIMO MOTOR customer support directly. Warranty coverage typically addresses manufacturing defects and material flaws under normal use.

Customer Support

If you require assistance with assembly, operation, maintenance, or troubleshooting, please contact M MASSIMO MOTOR customer support. Contact details can typically be found on the product packaging or the official brand website.
