JUTTAUTO 12V LED Dome Light (Model Jutta-G0249) Instruction Manual

1. Introduction

Thank you for choosing the JUTTAUTO 12V LED Dome Light. This product is designed to provide efficient and bright interior lighting for various 12V DC vehicles, including RVs, campers, vans, trucks, trailers, and boats. Its minimalist design and integrated ON/OFF switch offer convenience and style. Please read this manual carefully before installation and use to ensure proper function and safety.

Figure 1: Front view of the JUTTAUTO 12V LED Dome Light, showcasing its chrome finish and integrated ON/OFF switch.

2. Product Features

• Energy Saving and Brightness: Features 42 long-lasting LEDs, consuming only 5W to conserve vehicle battery power. Emits excellent brightness up to 300 lumens with a soft 6000K cool white light.
• Wide Range of Applications: Suitable for RV roof lights, car interior lights, and other automotive interior lighting needs. These are ultra-thin LED spotlights.
• CE Certified: Our products are CE certified, ensuring compliance with European safety standards.
• Easy Installation: This interior LED light is easy and flexible to install, allowing placement wherever desired. It also includes an ON/OFF switch for convenient operation.
• Minimalist Style: Featuring a European minimalist design, this light not only provides bright illumination but also enhances the interior of your vehicle or home. Ideal for installation in vans, trucks, RVs, campers, trailers, boats, and other 12V DC automotive vehicles.

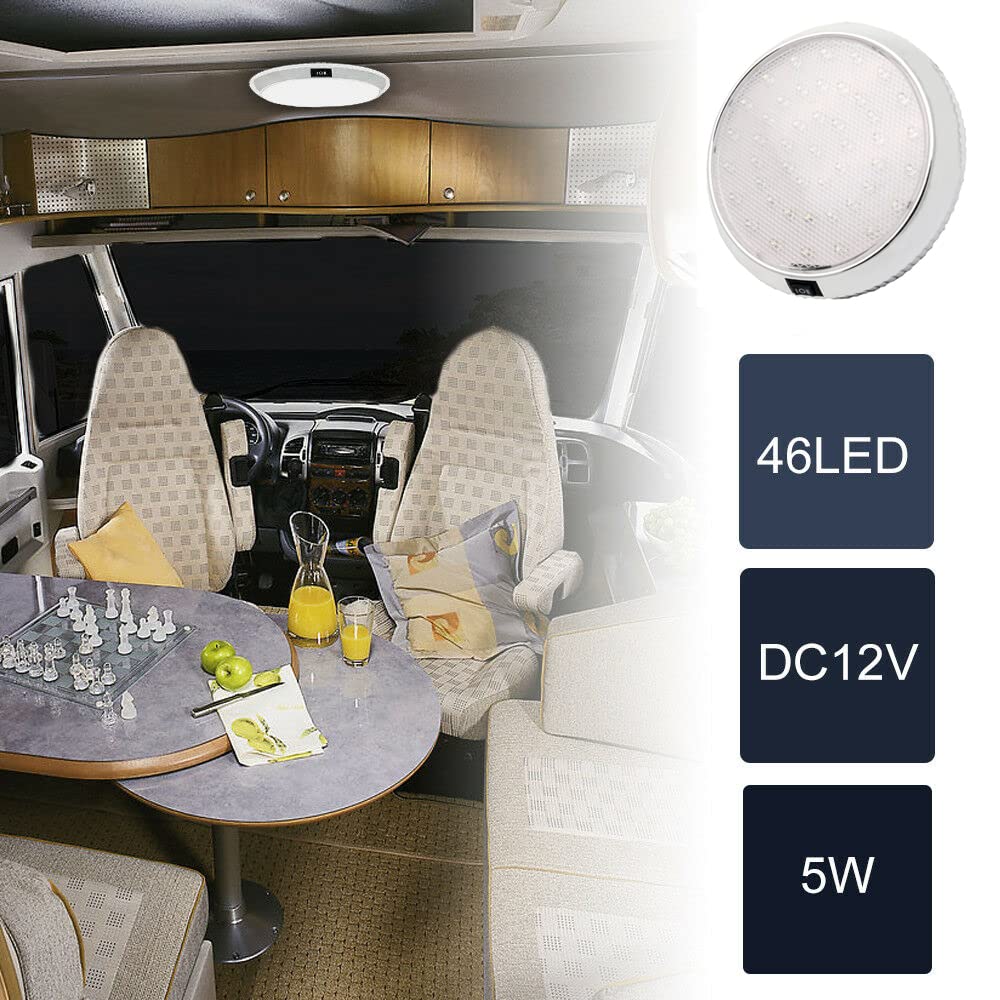

Figure 2: The JUTTAUTO LED Dome Light providing illumination within an RV interior, demonstrating its application.

3. Specifications

Figure 3: Product dimensions for the JUTTAUTO 12V LED Dome Light.

4. Safety Information

• Ensure the power supply is disconnected before installation or maintenance to prevent electric shock.
• This product is designed for 12V DC systems only. Do not connect to higher voltage systems (e.g., 24V DC or 120V AC).
• Verify correct polarity during wiring (red/yellow for positive, black for negative) to avoid damage to the light.
• Do not disassemble or modify the light. Unauthorized modifications may void the warranty and pose safety risks.
• Keep the light away from flammable materials.

5. Package Contents

The package typically includes:

• 1 x JUTTAUTO 12V LED Dome Light
• Mounting Screws (quantity may vary)

6. Installation Guide

Follow these steps for proper installation:

1. Prepare the Installation Area: Choose a flat, stable surface inside your vehicle. Ensure there is sufficient space for the light and access to 12V DC power wiring.
2. Disconnect Power: Turn off the main power supply to your vehicle's electrical system to prevent accidental short circuits or electric shock.
3. Mark Mounting Points: Place the light in the desired position and mark the locations for the mounting screws.
4. Drill Pilot Holes: Carefully drill small pilot holes at the marked points. Ensure the holes are appropriate for the provided mounting screws.
5. Wire Connection:
   • Identify the positive (+) and negative (-) wires from your vehicle's 12V DC power supply.
   • Connect the red or yellow wire from the LED dome light to the positive (+) terminal of your vehicle's power supply.
   • Connect the black wire from the LED dome light to the negative (-) terminal (ground) of your vehicle's power supply.
   • Ensure all connections are secure and insulated with electrical tape or heat shrink tubing.
6. Mount the Light: Secure the LED dome light to the surface using the mounting screws. Do not overtighten.
7. Restore Power: Once installation is complete and all connections are secure, restore power to your vehicle's electrical system.
8. Test Functionality: Use the integrated ON/OFF switch to test the light.

Figure 4: Rear view of the light, illustrating the wiring connections (red/yellow for positive, black for negative) and mounting plate.

7. Operation Guide

The JUTTAUTO 12V LED Dome Light features an integrated ON/OFF switch for simple operation.

1. To turn the light ON, press the switch to the 'I' position.
2. To turn the light OFF, press the switch to the 'O' position.

Figure 5: Close-up of the integrated ON/OFF switch on the side of the dome light.

8. Maintenance

The JUTTAUTO 12V LED Dome Light requires minimal maintenance.

• Cleaning: To clean the light, gently wipe the surface with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the chrome finish or LED diffuser.
• Inspection: Periodically check the wiring connections to ensure they remain secure and free from corrosion.
• LED Lifespan: The LEDs are designed for long-lasting performance and typically do not require replacement.

9. Troubleshooting

If you encounter issues with your JUTTAUTO 12V LED Dome Light, refer to the following troubleshooting steps:

• Light Does Not Turn On:
  • Check the vehicle's power supply to ensure it is active (12V DC).
  • Verify that the wiring connections (positive and negative) are correct and secure.
  • Ensure the integrated ON/OFF switch is in the 'ON' position.
  • Check for any blown fuses in your vehicle's electrical circuit.
• Light is Dim or Flickering:
  • Ensure the vehicle's battery voltage is stable and sufficient (around 12V). Low voltage can cause dimming.
  • Check for loose or corroded wiring connections, which can impede current flow.
• Physical Damage: If the light is physically damaged, discontinue use and contact customer support.

10. Warranty and Support

The JUTTAUTO 12V LED Dome Light is CE certified, indicating compliance with relevant European health, safety, and environmental protection standards.

If you experience any issues with the product, such as damage or malfunction, please contact JUTTAUTO customer support for assistance. Provide your purchase details and a description of the problem to facilitate a quick resolution.
