ZJWZJH 30mm Momentary Push Button Switch User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the ZJWZJH 30mm Momentary Push Button Switch. This switch is designed for various applications requiring a momentary contact, featuring a durable stainless steel construction and a 12V LED indicator.

The ZJWZJH Momentary Push Button Switch is a robust and reliable component suitable for industrial, automotive, and custom electronic projects. It offers a momentary action, meaning the circuit is closed only while the button is pressed and opens upon release.

2. Package Contents

• 1 x 30mm Push Button Switch
• 1 x Wire Connector Socket
• 1 x Spare Contact (1NO1NC)

3. Key Features

• High-Quality Construction: Head material is 316 Stainless Steel, shell material is 304 Stainless Steel, ensuring durability and corrosion resistance.
• Waterproof Design: IP67 rated for splash resistance, suitable for wet or dusty environments. (Note: Not designed for submersion).
• Momentary Action: Push and hold for ON, release for OFF.
• Integrated LED: 12V AC/DC LED indicator with a life expectancy of 40,000 hours.
• Long Lifespan: Mechanical life of 1,000,000 cycles.
• Flexible Contact Configuration: Default 1NO1NC (SPDT), expandable to 2NO2NC (DPDT) with the included spare contact.
• Easy Installation: Includes a wire connector socket to simplify wiring without soldering.
• CE Certified: Product meets CE certification standards.

4. Specifications

Product dimensions: 1.6 x 1.33 x 1.6 inches; 2.4 ounces.

5. Installation

5.1 Mounting the Switch

The switch requires a mounting hole of 1.18 inches (30mm) in diameter. Ensure the mounting surface is clean and free of obstructions. Secure the switch using the provided nut.

Figure 1: Technical drawing with dimensions. The mounting hole size is 30mm (1.18 inches) and the head diameter is 33.8mm (1.33 inches).

Figure 2: Visual comparison of the switch's pressing surface (25mm / 0.98 inches) against a US dollar coin (26.5mm / 1.04 inches).

5.2 Wiring the Switch

The switch comes with a wire connector socket to facilitate easy wiring. This eliminates the need for soldering directly to the terminals, preventing potential damage from heat and allowing for quick replacement if needed.

Refer to the wiring diagram below for proper connection. The default configuration is 1NO1NC (SPDT).

Figure 3: Wiring diagram. Terminals 1 and 2 are for the switch contacts (NO/NC), and terminals 3 and 4 are for the LED power (LEDIN).

Important: Ensure the current does not exceed 5 Amps to prevent overheating and damage to the switch.

5.3 Expanding to 2NO2NC (DPDT) Configuration

The switch is supplied with a default 1NO1NC configuration. To achieve a 2NO2NC (DPDT) configuration, you can manually add the provided spare contact. Follow these steps:

1. Carefully remove the empty shell from the switch mechanism.
2. Install the spare 1NO1NC contact into the designated slot.
3. Ensure the contacts are securely seated.

Figure 4: Conversion from 1NO1NC (SPDT) to 2NO2NC (DPDT) by adding the spare contact block.

6. Operation

The ZJWZJH Push Button Switch operates as a momentary switch. This means:

• When the button is pressed and held, the switch is ON, and the LED indicator will illuminate (if wired).
• When the button is released, the switch automatically resets to OFF, and the LED indicator will turn off.

Figure 5: The ZJWZJH Momentary Push Button Switch with its blue LED illuminated, indicating activation.

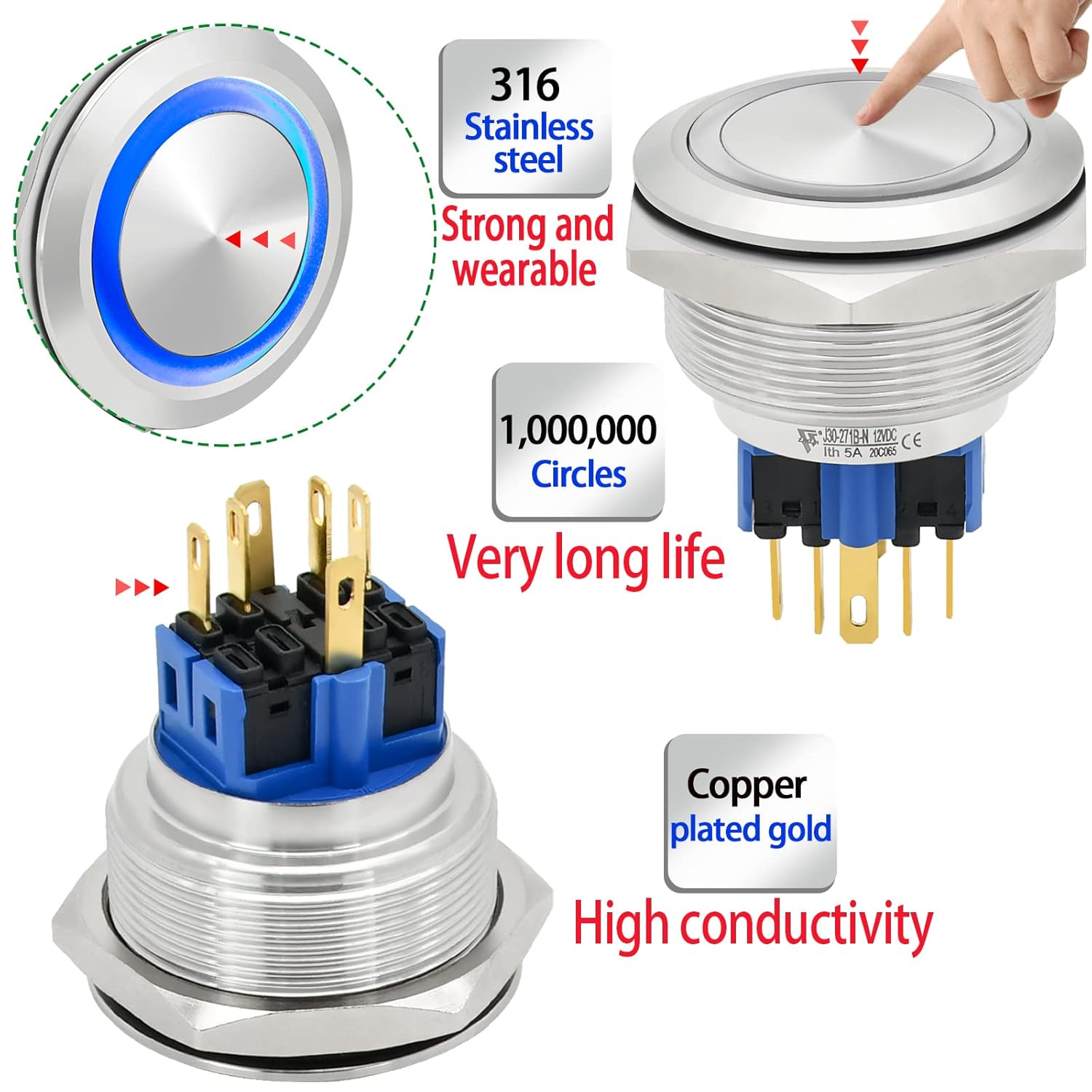

Figure 6: Key features of the switch, including its durable stainless steel material, long mechanical life, and high-conductivity contacts.

7. Maintenance and Care

• Cleaning: Wipe the stainless steel surface with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or seals.
• Environmental Protection: While the switch is IP67 rated for splash resistance, it is not designed for prolonged submersion in water. Ensure proper sealing during installation in wet environments.
• Current Limits: Adhere strictly to the maximum current rating of 5 Amps. Exceeding this limit can cause the switch to overheat and fail.

8. Troubleshooting

• Switch Not Activating:
  • Verify all wiring connections are secure and correct according to the diagram.
  • Check the power source for adequate voltage and current.
  • Ensure the load connected to the switch is functioning correctly.
• LED Indicator Not Illuminating:
  • Confirm the LED is receiving the correct 12V AC/DC power.
  • Check the polarity of the LED connections if applicable (though many LEDs are tolerant of AC/DC).
  • Inspect the LED for any visible damage.
• Switch Overheating:
  • Immediately disconnect power.
  • Check if the current flowing through the switch exceeds the 5 Amp rating. Reduce the load if necessary.
  • Ensure proper ventilation around the switch if it's in an enclosed space.
• Difficulty Converting to 2NO2NC:
  • Ensure the empty shell is fully removed before attempting to insert the spare contact.
  • Align the spare contact correctly with the switch mechanism. Do not force it.

9. Applications

This momentary push button switch is suitable for a variety of applications, including but not limited to:

• Electromagnetic starters
• Relay controls
• Doorbell systems
• Horn button switches
• PC power switches
• Automotive and marine applications
• General circuit controls

Figure 7: Examples of common applications for the ZJWZJH push button switch.

10. Support

For any questions or technical assistance, please contact ZJWZJH customer service via email. Our professional customer service staff and technicians are available to assist you.

For more information about ZJWZJH products, visit our store: ZJWZJH Official Store
