ROCKBROS Bike Chain Lock Model 715072647700 Instruction Manual

Introduction

This manual provides comprehensive instructions for the safe and effective use of your ROCKBROS Bike Chain Lock, Model 715072647700. Please read this manual thoroughly before using the product to ensure proper operation and to maximize its lifespan. Keep this manual for future reference.

Product Features

The ROCKBROS Bike Chain Lock is engineered for robust security and durability. Key features include:

• Heavy-Duty Construction: The chain is 3.18 feet (97 cm) long and features 8mm thick links, providing significant resistance against cutting and tampering.
• Anti-Theft Design: Constructed from durable materials, including zinc alloy and ABS plastic, to offer reliable protection for your valuables.
• Protective Nylon Cover: An outer layer of high-quality nylon cloth wraps the chain, preventing scratches to your bike frame and offering anti-slip properties.
• Convenient Key System: Includes two keys for secure access. The lock mechanism features eight all-brass blades, designed for a low inter-opening rate, enhancing security.
• Dust-proof and Waterproof Cover: A protective cover shields the lock cylinder from dust, dirt, and moisture, extending the lock's operational life.
• Versatile Application: Suitable for securing a wide range of items, including mountain bikes, road bikes, electric bikes, motorcycles, scooters, doors, and gates.

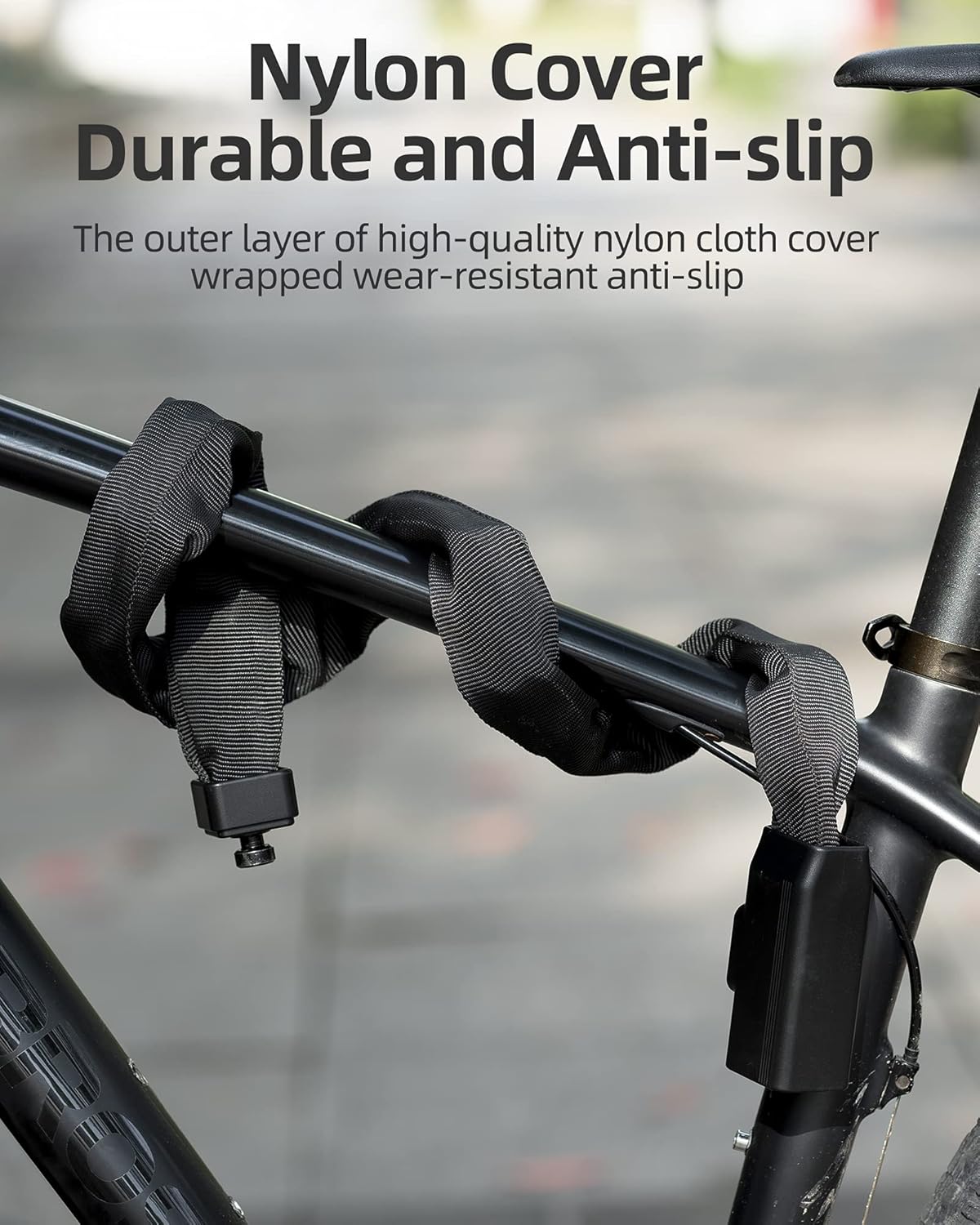

Figure 1: Nylon Protective Cover. The durable nylon sleeve protects your bike's finish and provides an anti-slip grip.

Setup

Your ROCKBROS Bike Chain Lock comes pre-assembled and ready for immediate use. No complex setup is required.

1. Unpack the Lock: Carefully remove the chain lock and keys from its packaging.
2. Inspect Components: Verify that the chain, lock head, and both keys are present and undamaged.
3. Test Keys: Insert one key into the lock cylinder and turn it to ensure smooth operation. Remove the key and repeat with the second key. Keep one key in a safe, separate location as a spare.

Operating Instructions

Locking the Device

The ROCKBROS Bike Chain Lock features a convenient keyless locking mechanism.

1. Position the Chain: Wrap the chain around the item you wish to secure (e.g., bicycle frame, wheel) and an immovable object (e.g., bike rack, pole).
2. Engage the Lock: Insert the free end of the chain's locking bolt directly into the lock head. Push firmly until you hear a click, indicating it is securely locked. No key is required for this step.
3. Verify Lock: Gently pull on the chain to ensure it is fully engaged and cannot be pulled apart.

Figure 2: Keyless Locking Mechanism. Simply insert the locking bolt into the lock head until it clicks to secure your item.

Unlocking the Device

1. Access Keyhole: Slide open the dust-proof cover located on the lock head to reveal the keyhole.
2. Insert Key: Insert one of the provided keys into the keyhole.
3. Turn Key: Turn the key clockwise to disengage the locking mechanism.
4. Remove Chain: Pull the locking bolt out of the lock head and remove the chain from your secured item.
5. Remove Key: Turn the key counter-clockwise and remove it from the lock. Close the dust-proof cover to protect the cylinder.

Figure 3: Unlocking the Chain Lock. Insert the key and turn to release the locking mechanism.

Figure 4: Dust-proof and Waterproof Cover. This cover protects the lock cylinder from environmental elements.

Versatile Applications

The ROCKBROS Bike Chain Lock is designed for securing various items in different scenarios:

• Securing bicycles (mountain, road, electric) to fixed objects.
• Locking motorcycles and scooters.
• Providing additional security for doors and gates.

Figure 5: Multiple Purpose Applications. The lock can be used for various items requiring security.

Maintenance

Proper maintenance ensures the longevity and reliable operation of your ROCKBROS Bike Chain Lock.

• Cleaning: Periodically wipe down the chain and lock head with a damp cloth to remove dirt and grime. Avoid harsh chemicals that may damage the nylon cover or lock finish.
• Lubrication: Apply a small amount of graphite lubricant or a specialized lock lubricant into the keyhole and locking mechanism every few months, or if the key starts to feel stiff. Do not use oil-based lubricants as they can attract dirt.
• Inspect for Wear: Regularly check the chain links, lock head, and nylon cover for any signs of wear, damage, or corrosion. If significant damage is observed, consider replacing the lock for optimal security.
• Key Care: Keep keys clean and dry. Avoid bending or forcing keys into the lock.

Troubleshooting

Specifications

Detailed specifications for the ROCKBROS Bike Chain Lock Model 715072647700.

Figure 6: Product Dimensions and Information. The image displays the lock's length and head dimensions.

Figure 7: 8mm Thick Chain. This image emphasizes the robust construction of the chain links.

Warranty and Support

ROCKBROS stands behind the quality of its products. For specific warranty information, please refer to the warranty card included with your purchase or visit the official ROCKBROS website. For technical support, product inquiries, or assistance with any issues not covered in this manual, please contact ROCKBROS customer service through their official channels.
