Garden Winds Replacement Canopy Top Cover for At Home Crosby St Retractable 10' x 10' Pergola

1. Introduction

This manual provides instructions for the installation, operation, and maintenance of your Garden Winds Replacement Canopy Top Cover. This canopy is specifically designed for the At Home Store's Retractable 10' x 10' Pergola, featuring RipLock 350 fabric in Slate Gray. It is important to note that this product includes the replacement canopy only; the metal structure and frame are not included.

The RipLock 350 fabric is a 350 Denier Polyester with double RipLock Technology, incorporating double-walled high tensile strength gridlines to prevent rips from spreading. It also features Ultra Stitch for superior seam strength, UPF 50+ for ultraviolet protection, water resistance, and CPAI-84 fire retardant properties.

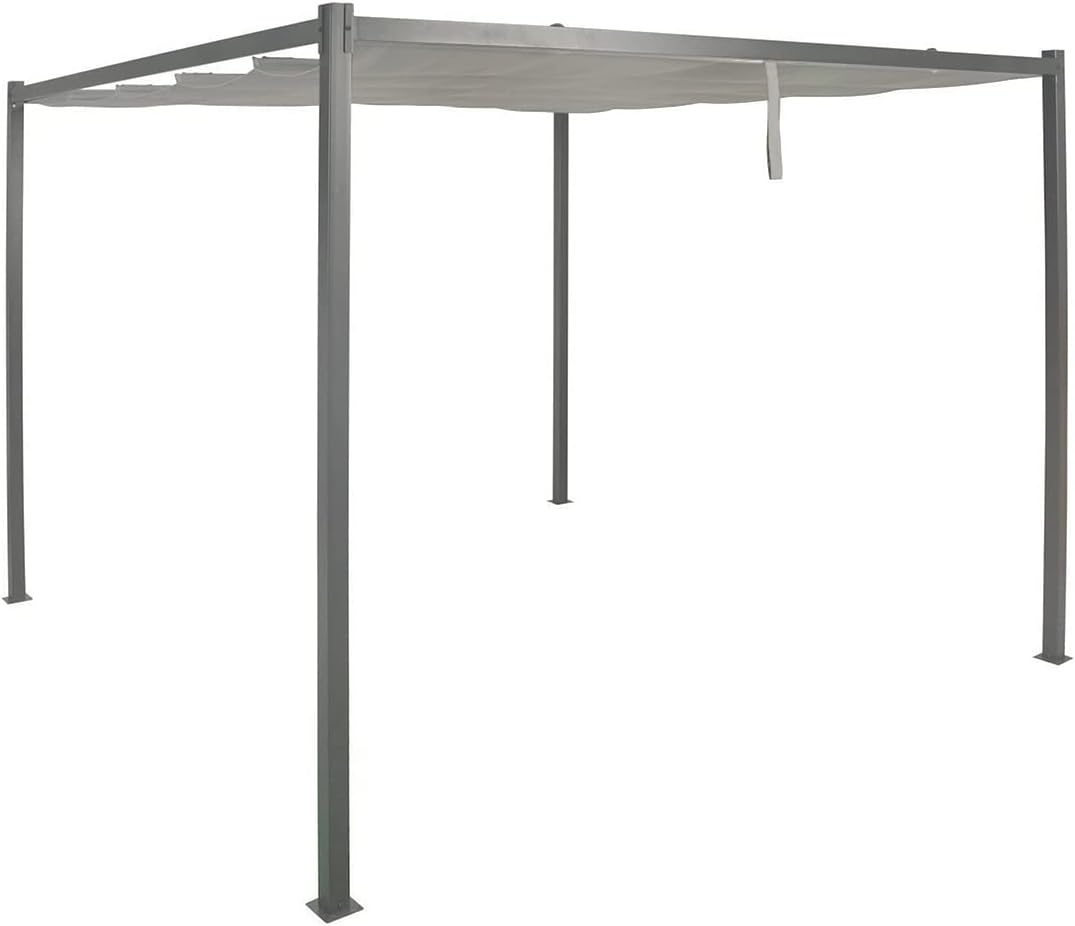

Image 1: The Garden Winds replacement canopy installed on a compatible pergola frame.

2. Important Safety Information

• Always follow the manufacturer's instructions for assembly, disassembly, and installation of the pergola frame and canopy.
• Keep the canopy clean and free of debris to prevent fire hazards and maintain its integrity.
• Do not operate the retractable canopy in windy conditions or during thunderstorms. High winds can cause damage to the canopy and frame, and pose a safety risk.
• Regularly inspect the canopy for any signs of wear, tears, or damage. Replace the canopy if significant damage is observed to ensure continued protection and safety.
• Ensure the pergola frame is always secured to a stable foundation to prevent it from tipping over, especially when the canopy is installed.

3. Setup and Installation

This replacement canopy is designed for specific compatibility with the At Home Store's Retractable 10' x 10' Pergola (Manufacturer's Model Number: IT18259, 191607729675). Ensure your existing pergola frame matches this model before proceeding with installation. The canopy measures approximately 119''L x 110''W.

3.1 Unpacking

Carefully remove the replacement canopy from its packaging. Inspect the fabric for any signs of damage or manufacturing defects. If any issues are found, contact customer support before proceeding with installation.

Image 2: The replacement canopy folded in its packaging.

3.2 Preparing the Pergola Frame

Before installing the new canopy, ensure your existing pergola frame is clean, stable, and free of any damage. If an old canopy is present, carefully remove it according to your pergola's original instructions. Verify that all retractable rods and attachment points (such as rings or fasteners) are in good working order.

Image 3: Example of a pergola frame corner joint, illustrating the structure.

3.3 Canopy Installation

1. Identify the front and back of the canopy. The canopy is designed to fit the retractable mechanism of your specific pergola model.
2. Carefully thread the canopy fabric onto the retractable rods of your pergola. The canopy features integrated loops or pockets designed to slide onto these rods.
3. Secure the canopy to the frame's attachment points. This typically involves using rings or clips that connect the canopy to the support rods, allowing it to slide smoothly.


Image 4: Rings used for attaching the canopy to the retractable rods.

4. Ensure the canopy is evenly distributed and taut across the frame when fully extended. Adjust as necessary to prevent sagging or uneven tension.


Image 5: Canopy fabric secured to a retractable rod.

5. Check all fasteners and connections to ensure they are secure before using the retractable feature.

4. Operating the Retractable Canopy

The Garden Winds replacement canopy functions with your pergola's existing retractable mechanism. Operate the canopy gently to extend or retract it.

• Extending the Canopy: Gently pull the designated handle or rod to slide the canopy fabric along its tracks until it is fully extended. Ensure it is evenly spread and secured.
• Retracting the Canopy: Gently push the designated handle or rod to slide the canopy fabric back along its tracks, folding it neatly.

Image 6: The canopy in a retracted position.

Always operate the canopy smoothly to prevent undue stress on the fabric or the retractable mechanism. Avoid forcing the canopy if it encounters resistance.

5. Care and Maintenance

5.1 Cleaning

To clean the canopy, use a mild soap solution and a soft brush or cloth. Rinse thoroughly with clean water. Do not use harsh chemicals, bleach, or abrasive cleaners, as these can damage the fabric's protective coatings and color. Allow the canopy to air dry completely before retracting or storing.

5.2 Inspection

Regularly inspect the canopy for any signs of wear, tears, fraying, or damage, especially after severe weather conditions. Check the stitching and attachment points for integrity. Early detection of damage can prevent further deterioration.

Image 7: Close-up of the RipLock 350 fabric, highlighting its texture and durability.

5.3 Storage

During periods of non-use, especially in harsh weather conditions (heavy snow, strong winds, prolonged rain), it is recommended to retract the canopy or remove it entirely and store it in a dry, protected area. Ensure the canopy is clean and completely dry before storage to prevent mold and mildew growth.

6. Troubleshooting

• Canopy not retracting/extending smoothly: Check the tracks and rods for obstructions (debris, dirt). Ensure the canopy is properly aligned and not snagged. Lubricate moving parts of the pergola frame's mechanism if recommended by the pergola manufacturer.
• Water pooling on canopy: Ensure the canopy is installed tautly and evenly. Slight pooling can occur during heavy rain; however, excessive pooling may indicate improper installation or a need to adjust the frame's slope if possible.
• Small tears or holes: For minor damage, repair kits for outdoor fabrics may be available. For significant damage, replacement of the canopy is recommended to maintain its protective properties.
• Fading or discoloration: While the canopy offers UPF 50+ protection, prolonged exposure to intense sunlight can eventually lead to some fading over time. Regular cleaning and proper storage during off-season can help prolong its appearance.

7. Product Specifications

Image 8: Key features of the RipLock 350 fabric, including double RipLock Technology, Ultra Stitch, UPF 50+ protection, and fire resistance.

8. Warranty Information

Specific warranty details for the Garden Winds Replacement Canopy Top Cover are not provided in this manual. For information regarding warranty coverage, terms, and conditions, please contact Garden Winds directly or refer to the original purchase documentation.

9. Customer Support

For technical assistance, replacement parts, or any questions regarding your Garden Winds Replacement Canopy, please contact the manufacturer, Garden Winds. Contact information can typically be found on their official website or through your original retailer.

Manufacturer: Garden Winds
