1. Product Overview
The CHARMELEON 10x10 Gazebo is designed to provide a spacious and comfortable outdoor living area. With its robust steel frame, waterproof canopy, and integrated netting screen walls, it offers protection from sun, rain, and insects, making it ideal for various outdoor activities such as barbecues, parties, and family gatherings in your garden, backyard, deck, or lawn.
Figure 1: The CHARMELEON 10x10 Gazebo, showcasing its overall structure and included sandbags for stability.

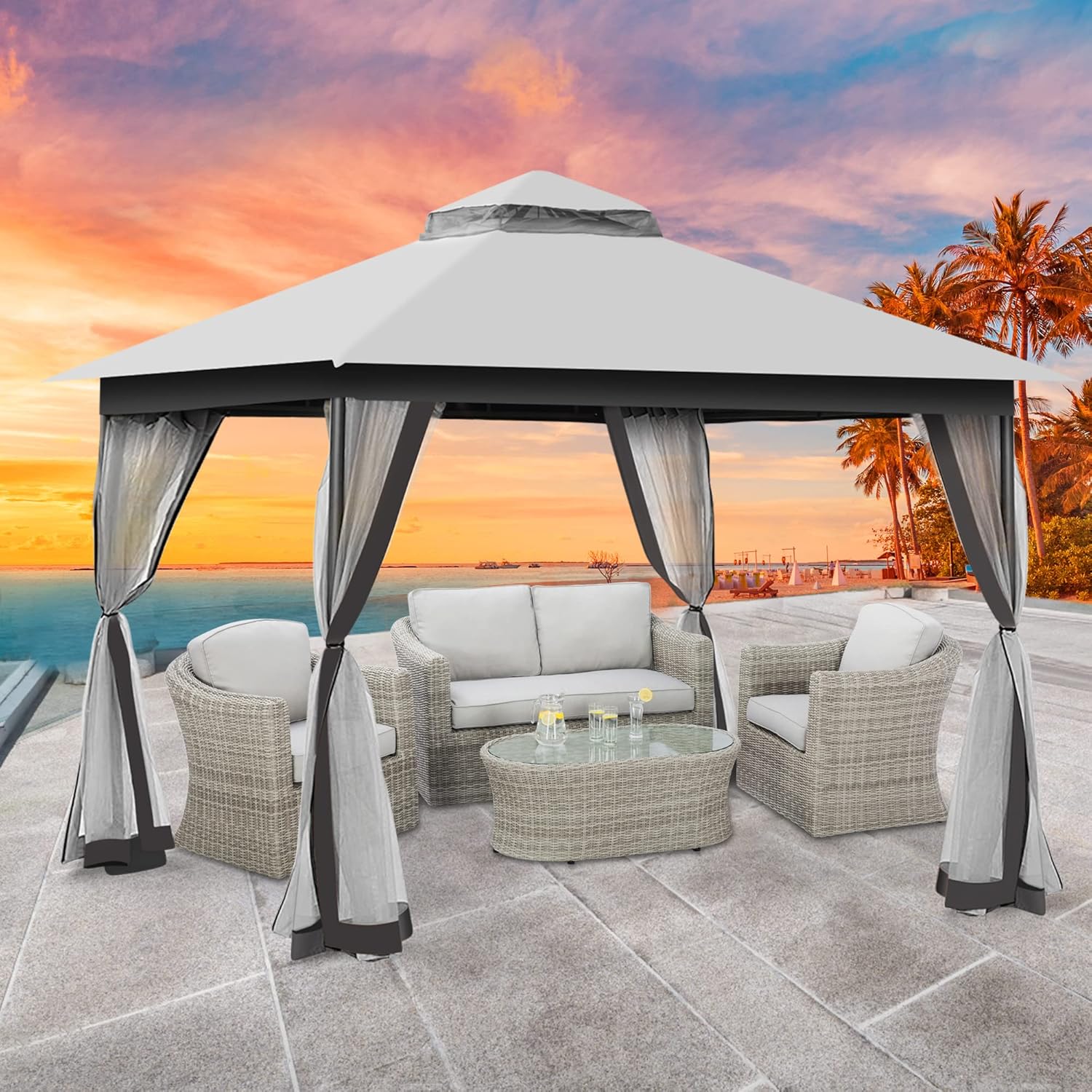

Figure 2: The gazebo providing shade and a comfortable space for outdoor furniture on a patio.
2. Safety Information
- Secure Anchoring: Securely anchor the gazebo to the ground using the provided sandbags or stakes to ensure stability and prevent tipping, especially in windy conditions.
- Weather Precautions: For the longer use of the product, please remove the canopy in snowstorms and gale days to avoid unnecessary damage to the gazebo structure and fabric.
- Assembly Safety: Assembly should ideally be performed by two people to ensure safety and ease of installation. No ladder or specialized tools are required.
- Clearance: Ensure adequate clearance around the gazebo from heat sources, open flames, and sharp objects.
3. Package Contents
Please verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Steel Frame Components (various poles and connectors)
- Canopy Fabric (Waterproof and UV protective)
- Netting Screen Walls (4 panels with zippers and Velcro straps)
- Sandbags (4 pieces for stability)
- Ground Stakes
- Assembly Hardware (12 screws)
- Instruction Manual
Figure 3: Included 4-pack of sandbags, which can be filled with sand, gravel, pebbles, or bottled water for added stability.
4. Setup Instructions
The CHARMELEON Gazebo is designed for easy and quick assembly. It can be fully assembled by two people within 1 to 1.5 hours. No ladder or additional tools are needed beyond what is provided.
- Unpack Components: Lay out all frame components, canopy fabric, netting, sandbags, and hardware in an open area.
- Assemble Frame: Connect the steel frame components. The entire structure is connected by only 12 screws, simplifying the process. Ensure all connections are secure.
- Attach Canopy: Carefully place the canopy fabric over the assembled frame. Ensure the double-tier roof is properly aligned for adequate airflow and ventilation. The canopy features drain holes to prevent water accumulation.
- Install Netting: Attach the four zippered netting screen walls to the frame using the integrated Velcro straps. These can be adjusted to fit your needs, providing protection from insects and privacy.
- Secure Gazebo: Fill the four sandbags with your preferred weighting material (sand, gravel, pebbles, or bottled water) and attach them to the gazebo legs for enhanced stability. Additionally, use the provided ground stakes to anchor the gazebo firmly to the ground.
Figure 4: Key features for easy setup, including simple pipe installation, gauze hanging loops for netting, a top S-hook for hanging lights, and canopy drain holes.
Figure 5: Visual representation of the gazebo's 10ft x 10ft dimensions, highlighting its spacious design and certifications for fire resistance (CPAI-84), water resistance, and UPF 50+ 99% UV block.
5. Operating Instructions
Your CHARMELEON Gazebo is designed for versatile outdoor use, providing a comfortable and protected space.
- Shade and Protection: The 10x10 ft canopy provides 100 square feet of shade, protecting against sun and light rain. The canopy fabric is sun protective and water-resistant.
- Ventilation: The double-tier roof design ensures adequate airflow, reducing heat buildup under the canopy and enhancing comfort.
- Insect Protection & Privacy: Utilize the four zippered netting screen walls to enclose the gazebo, keeping insects out while allowing air circulation. The Velcro straps allow you to secure the netting as needed, offering privacy.
- Capacity: The gazebo is roomy enough to comfortably accommodate 5-6 people, making it suitable for various gatherings.
Figure 6: The gazebo's versatility, demonstrating its open design for ventilation and its enclosed configuration as a screen house with netting.
6. Maintenance
Proper maintenance will extend the life of your gazebo.
- Canopy Cleaning: Clean the canopy fabric periodically with mild soap and water. Rinse thoroughly and allow to air dry completely before storage or continued use. Do not use harsh chemicals or abrasive cleaners.
- Frame Cleaning: Wipe down the steel frame with a damp cloth to remove dirt and debris. Inspect for any signs of rust and treat as necessary to prevent corrosion.
- Seasonal Storage: For prolonged product life, especially in areas with harsh winters or extreme weather, it is recommended to disassemble and store the canopy and netting indoors during off-seasons. The frame can remain outdoors if properly anchored and maintained.
- Drain Holes: Ensure the drain holes in the canopy remain clear of debris to prevent water accumulation.
7. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo instability / wobbling | Insufficient anchoring; strong winds. | Ensure sandbags are filled and properly attached. Use all ground stakes. In very strong winds, disassemble the canopy. |
| Water pooling on canopy | Blocked drain holes; improper canopy tension. | Clear any debris from drain holes. Adjust canopy tension to ensure proper water runoff. |
| Netting not closing properly | Misalignment; debris in zipper. | Check that netting panels are correctly aligned and attached. Clear any obstructions from zippers. |
| Difficulty during assembly | Attempting assembly alone; incorrect part orientation. | Ensure two people are assisting with assembly. Refer to the instruction manual for correct part orientation and screw placement. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | CHARMELEON |
| Model | 10x10 Gazebo |
| Material | Alloy Steel (Frame), Fabric (Canopy) |
| Product Dimensions | 10'L x 10'W x 9'H (Approximate, based on image) |
| Item Weight | 51.4 Pounds |
| Water Resistance Level | Waterproof |
| UV Protection | UPF 50+ (99% UV Block) |
| Assembly Required | Yes |
| Occupancy | 5-6 People |
| Color | Gray |
9. Warranty & Support
CHARMELEON is committed to customer satisfaction. While specific warranty details are not provided in this manual, CHARMELEON has a professional after-sale team that stands by all our customers' side.
For any questions, concerns, or assistance with your product, please contact CHARMELEON customer support through the retailer where you purchased the product or visit the official CHARMELEON store page on Amazon: CHARMELEON Store.
