Fuel D804 Flame Wheel Rim Instruction Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Fuel D804 Flame 20x10 Blackout Wheel Rim. Adhering to these guidelines will ensure optimal performance, safety, and longevity of your wheel. Please read this manual thoroughly before installation and use.

Safety Information

• Professional Installation Recommended: Wheel installation should always be performed by a qualified professional using proper tools and techniques. Incorrect installation can lead to serious injury or damage.
• Torque Specifications: Always adhere to the vehicle manufacturer's recommended lug nut torque specifications. Re-torque lug nuts after the first 50-100 miles of driving and periodically thereafter.
• Tire Compatibility: Ensure that the tires mounted on these rims are compatible with the wheel size and your vehicle's specifications.
• Regular Inspection: Periodically inspect wheels for any signs of damage, cracks, bends, or corrosion. Do not use damaged wheels.
• Proper Inflation: Maintain correct tire pressure as specified by your vehicle manufacturer.

Setup and Installation

Proper installation is critical for the safety and performance of your vehicle. It is highly recommended that installation be performed by a certified automotive technician.

1. Preparation: Ensure the vehicle is safely lifted and supported on jack stands. Remove existing wheels. Clean the wheel hub mounting surface thoroughly to remove any rust, dirt, or debris.
2. Tire Mounting: Mount the appropriate tire onto the Fuel D804 Flame rim. This process requires specialized equipment and should be done by a professional to avoid damage to the wheel or tire.
3. Balancing: After tire mounting, the wheel and tire assembly must be dynamically balanced to prevent vibrations during driving.
4. Installation on Vehicle: Carefully place the wheel onto the vehicle's hub, ensuring it sits flush. Install lug nuts by hand to prevent cross-threading.
5. Torquing Lug Nuts: Using a torque wrench, tighten lug nuts to the vehicle manufacturer's specified torque in a star pattern. Do not use an impact wrench for final tightening.
6. Final Check: Lower the vehicle. After driving 50-100 miles, re-check the lug nut torque to ensure they remain properly tightened.

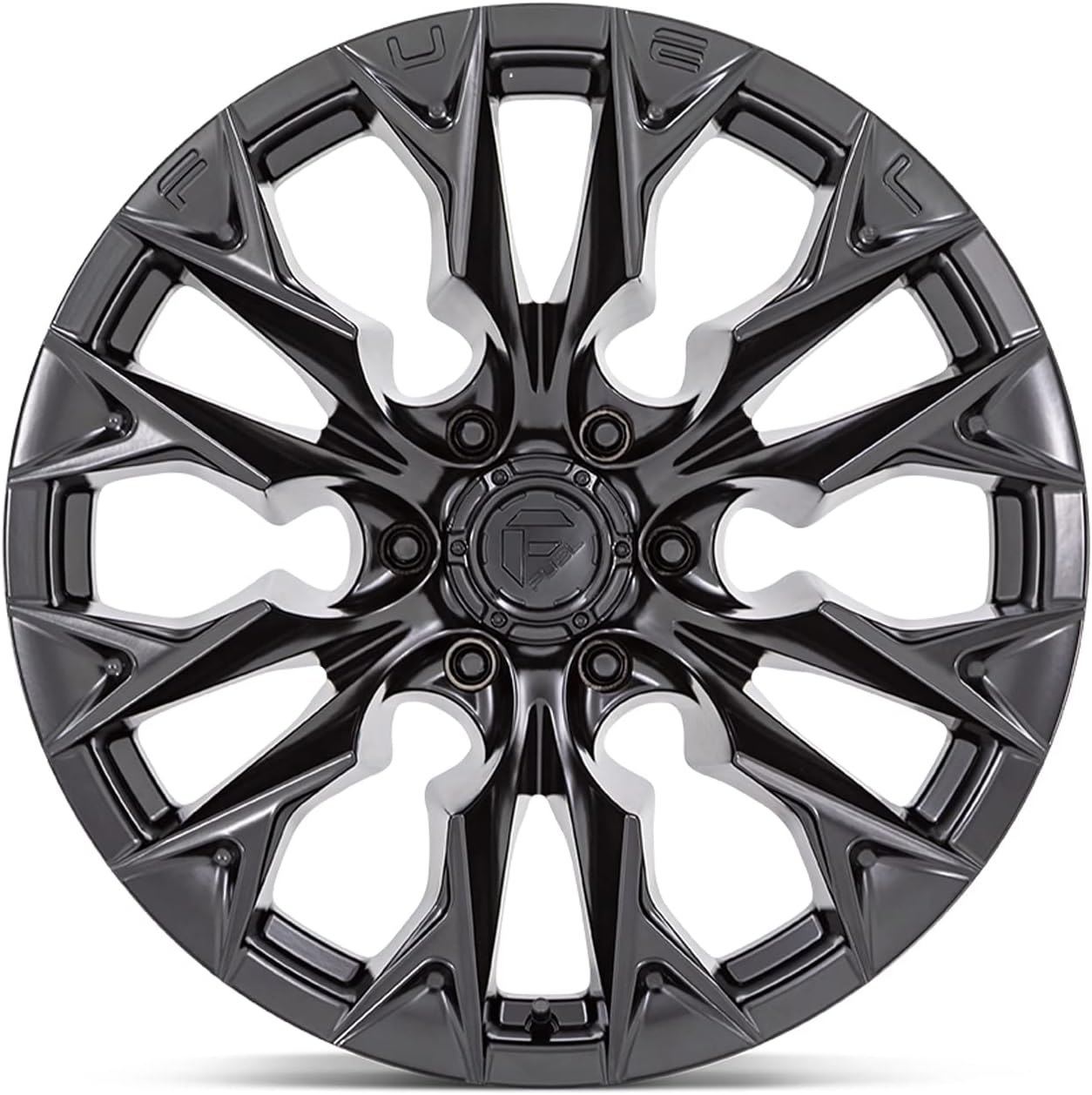

Image: Front view of the Fuel D804 Flame 20x10 Blackout Wheel Rim, showcasing its intricate spoke design and blackout finish.

Operating Considerations

Once installed, proper driving habits and regular checks contribute to the longevity and safety of your wheels.

• Driving Conditions: While Fuel wheels are designed for durability, avoid severe impacts with potholes, curbs, or road debris that could damage the wheel.
• Tire Pressure: Regularly check and maintain the recommended tire pressure for your vehicle. Incorrect pressure can affect handling, tire wear, and wheel integrity.
• Vibration Monitoring: If you experience unusual vibrations after wheel installation or during driving, have the wheels and tires inspected immediately by a professional. This could indicate an imbalance or damage.

Image: An angled view of the Fuel D804 Flame wheel, highlighting the depth and aggressive styling of its spokes.

Maintenance

Regular maintenance will help preserve the appearance and structural integrity of your Fuel D804 Flame wheels.

• Cleaning: Clean wheels regularly with mild soap and water. Avoid harsh chemicals, abrasive cleaners, or stiff brushes that can damage the finish. Rinse thoroughly and dry with a soft cloth to prevent water spots.
• Inspection: Periodically inspect wheels for any signs of damage, such as cracks, bends, chips, or corrosion. Pay close attention to the bead seat area and spoke junctions.
• Lug Nut Torque: Re-check lug nut torque periodically, especially after significant temperature changes or off-road use.
• Storage: If storing wheels, clean them thoroughly and store them in a cool, dry place away from direct sunlight and extreme temperatures.

Image: A direct front view of the Fuel D804 Flame wheel, emphasizing its bold design and central hub cap.

Troubleshooting

Common issues and their potential solutions:

• Vibration:
  • Cause: Unbalanced wheel/tire assembly, bent rim, loose lug nuts, worn suspension components.
  • Solution: Have wheels re-balanced, inspect for damage, check lug nut torque, or consult a mechanic for suspension inspection.
• Air Loss:
  • Cause: Improper tire bead seal, damaged valve stem, bent rim, puncture.
  • Solution: Inspect tire and wheel for damage, check valve stem, or have a professional re-seat the tire.
• Unusual Noise:
  • Cause: Loose lug nuts, wheel bearing issues, brake component interference.
  • Solution: Check lug nut torque, or have a professional inspect wheel bearings and brake system.

Specifications

Warranty Information

Fuel Off-Road wheels typically come with a limited warranty covering manufacturing defects. Specific warranty terms and conditions, including duration and coverage details, are provided by the manufacturer. Please refer to the official Fuel Off-Road website or contact their customer service for detailed warranty information. Keep your proof of purchase for any warranty claims.

Support and Contact

For technical assistance, installation questions, or warranty inquiries, please contact Fuel Off-Road customer support directly. You can typically find contact information on the official Fuel Off-Road website or through your authorized dealer.

Note: Always provide your wheel model (D804 FLAME) and any relevant purchase details when seeking support.
