Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Bad Boy OEM 2017 MZ/ZT Deck Idler Assembly, model 039-6945-17. This component is a genuine OEM replacement part designed specifically for 2017 Bad Boy MZ/ZT series mowers. Adhering to the instructions in this manual will ensure optimal performance and longevity of the idler assembly and your mower's deck system.
Product Overview
The deck idler assembly plays a crucial role in maintaining proper tension on the mower deck's drive belt, ensuring efficient power transfer from the engine to the cutting blades. This assembly typically consists of a pulley, a mounting arm, and a pivot point, designed to guide and tension the belt.

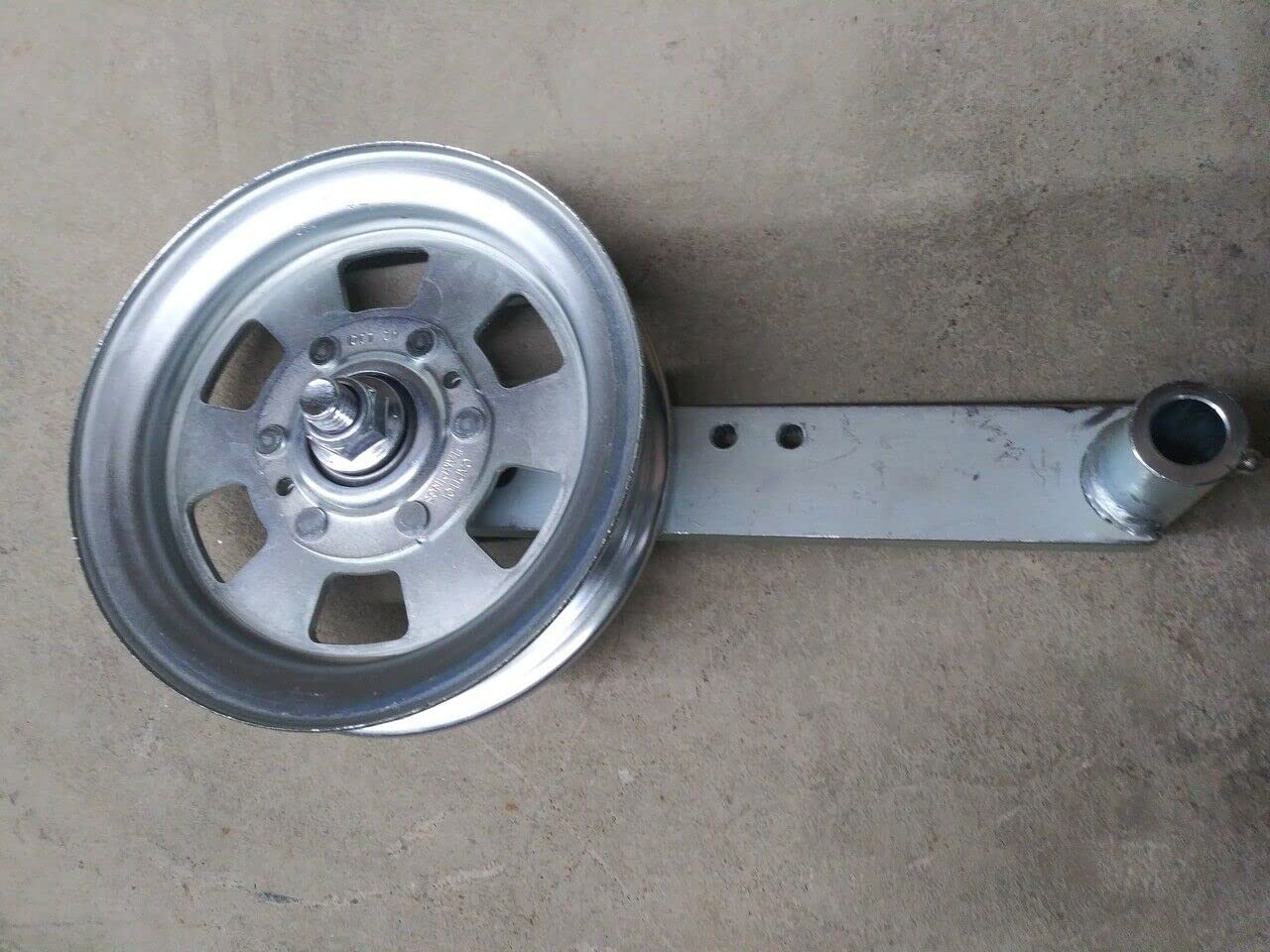

Image: The Bad Boy OEM 2017 MZ/ZT Deck Idler Assembly, model 039-6945-17. This image shows the complete assembly, including the silver-colored pulley with its central bolt and the grey mounting arm with two bolt holes and a cylindrical pivot point at its end.
Setup and Installation
Installation of the deck idler assembly requires basic mechanical knowledge and tools. Always ensure the mower is turned off, the engine is cool, and the spark plug wire is disconnected before beginning any work on the deck.
- Safety First: Disconnect the spark plug wire and engage the parking brake. Ensure the mower deck is lowered to a flat, stable surface.
- Access the Deck: Depending on your mower model, you may need to remove the mower deck from the tractor or lift the mower to gain access to the underside of the deck.
- Remove Old Assembly: Carefully observe how the existing idler assembly is mounted and how the belt is routed. Use appropriate wrenches to unbolt and remove the old idler assembly. Note the position of any washers or spacers.
- Install New Assembly: Position the new Bad Boy OEM 039-6945-17 idler assembly in the correct mounting location. Align the bolt holes on the mounting arm with the corresponding holes on the mower deck frame.
- Secure Fasteners: Insert the mounting bolts and tighten them securely. Ensure all components are properly seated and that the idler pulley can rotate freely without binding. Do not overtighten, as this can damage the assembly or frame.
- Route the Belt: Route the mower deck drive belt around the new idler pulley according to your mower's belt routing diagram. Ensure the belt is properly seated in all pulley grooves.
- Verify Tension: Once installed, check the belt tension. The idler assembly should apply appropriate tension to the belt. Refer to your mower's specific service manual for correct tension specifications.
- Final Checks: Reconnect the spark plug wire. Start the mower briefly (with blades disengaged, if possible) to confirm the belt and idler assembly operate smoothly and quietly.
Operating Principles
The Bad Boy OEM 2017 MZ/ZT Deck Idler Assembly functions as a tensioner and guide for the mower deck's drive belt. As the engine operates, the belt transmits power to the mower blades. The idler pulley, mounted on its arm, pivots to maintain consistent tension on this belt, preventing slippage and ensuring efficient power transfer. This constant tension is critical for the proper engagement and disengagement of the blades and for consistent cutting performance. The assembly also helps to guide the belt along its correct path, preventing it from coming off the pulleys during operation.
Maintenance
Regular maintenance of your deck idler assembly will extend its lifespan and ensure reliable mower performance.
- Visual Inspection: Periodically inspect the idler assembly for signs of wear, such as cracks in the pulley, excessive play in the bearings, or bending of the mounting arm. Check for rust or corrosion.
- Bearing Check: Spin the pulley by hand. It should rotate smoothly and quietly. If you hear grinding noises or feel resistance, the bearing may be failing and the assembly may need replacement.
- Cleanliness: Keep the idler assembly free from grass clippings, dirt, and debris. Accumulated material can interfere with its operation and accelerate wear.
- Fastener Tightness: Check that all mounting bolts are securely tightened. Loose fasteners can lead to vibration and premature wear.
- Lubrication: This idler assembly typically features sealed bearings that do not require lubrication. Do not attempt to lubricate sealed bearings unless specifically instructed by the mower's service manual.
Troubleshooting
If you experience issues related to the mower deck belt or cutting performance, the idler assembly may be a contributing factor. Here are some common issues and potential solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Belt slipping or coming off | Worn idler pulley bearing; Bent idler arm; Incorrect belt routing; Loose mounting bolts | Inspect idler for free rotation and damage; Check belt routing; Tighten mounting bolts; Replace idler assembly if damaged. |
| Squealing or grinding noise from deck | Failing idler pulley bearing; Debris caught in pulley | Inspect and clean pulley; Replace idler assembly if bearing is faulty. |
| Uneven cut or loss of power to blades | Insufficient belt tension due to faulty idler; Worn belt | Check idler assembly for proper function; Replace idler assembly or belt as needed. |
Specifications
- Part Number: 039-6945-17
- Compatibility: Bad Boy MZ/ZT Mowers (2017 models)
- Type: OEM Replacement Deck Idler Assembly
- Manufacturer: Bad Boy
- Dimensions (Approximate Package): 8 x 8 x 8 inches
Warranty and Support
As an OEM part, this Bad Boy Deck Idler Assembly is typically covered by the manufacturer's standard warranty for genuine replacement parts. Please refer to your original Bad Boy mower's warranty documentation or contact Bad Boy customer support directly for specific warranty terms and conditions related to replacement parts.
For technical assistance, installation queries, or warranty claims, please contact Bad Boy Mowers customer service or an authorized Bad Boy dealer. Always provide the part number (039-6945-17) and your mower's model and serial number when seeking support.
