Generic Carburetor Instruction Manual for Predator 4000 Watt Portable Gas Generator

1. Introduction

This manual provides essential instructions for the installation, operation, and maintenance of your new Generic replacement carburetor, designed for compatibility with the Predator 4000 watt portable gas generator. Proper installation and regular maintenance are crucial for optimal performance and longevity of your generator.

2. Safety Information

Always prioritize safety when working with fuel systems and power equipment. Failure to follow these safety guidelines can result in serious injury or property damage.

• Disconnect Power: Before beginning any work, ensure the generator is turned off, cooled down, and the spark plug wire is disconnected to prevent accidental starting.
• Fuel Handling: Gasoline is highly flammable. Work in a well-ventilated area, away from open flames, sparks, or heat sources. Use an approved fuel container.
• Eye Protection: Always wear safety glasses to protect your eyes from fuel splashes or debris.
• Gloves: Wear appropriate gloves to protect your hands from fuel and other chemicals.
• Ventilation: Ensure adequate ventilation when working with fuel or cleaning agents.
• Disposal: Dispose of old fuel and parts according to local regulations.

3. Installation

This section outlines the general steps for replacing the carburetor on a Predator 4000 watt portable gas generator. Specific procedures may vary slightly depending on the exact generator model. If you are unsure, consult a qualified technician.

3.1 Pre-Installation Checks

• Ensure the generator is off, cool, and the fuel valve is closed.
• Gather necessary tools: screwdrivers, wrenches, pliers, fuel line clamps, and a clean rag.
• Have a suitable container ready to catch any spilled fuel.

3.2 Carburetor Replacement Steps

1. Access the Carburetor: Remove any air filter housing, shrouds, or other components that obstruct access to the existing carburetor.
2. Drain Fuel: Place a container under the carburetor and open the drain screw (if present) to drain any remaining fuel. Close the fuel valve.
3. Disconnect Fuel Line: Carefully disconnect the fuel line from the carburetor. Be prepared for residual fuel leakage.
4. Disconnect Linkages: Detach the throttle and choke linkages from the old carburetor. Note their positions for reassembly.
5. Remove Mounting Bolts: Unscrew the bolts or nuts securing the carburetor to the engine manifold.
6. Remove Old Carburetor: Carefully remove the old carburetor, ensuring not to damage any gaskets or seals that may be reused (though new gaskets are recommended).
7. Install New Carburetor: Position the new carburetor with new gaskets between the carburetor and the engine manifold. Ensure all mounting surfaces are clean.
8. Secure Mounting Bolts: Hand-tighten the mounting bolts, then tighten them evenly with a wrench to the manufacturer's specifications (if available) to prevent air leaks.
9. Reconnect Linkages: Reattach the throttle and choke linkages to their correct positions on the new carburetor. Verify smooth operation.
10. Reconnect Fuel Line: Securely reattach the fuel line to the new carburetor. Use new clamps if the old ones are worn.
11. Reassemble Components: Reinstall the air filter housing, shrouds, and any other components removed earlier.
12. Refill Fuel & Test: Open the fuel valve, allow the carburetor bowl to fill, and check for any fuel leaks. Reconnect the spark plug wire and attempt to start the generator.

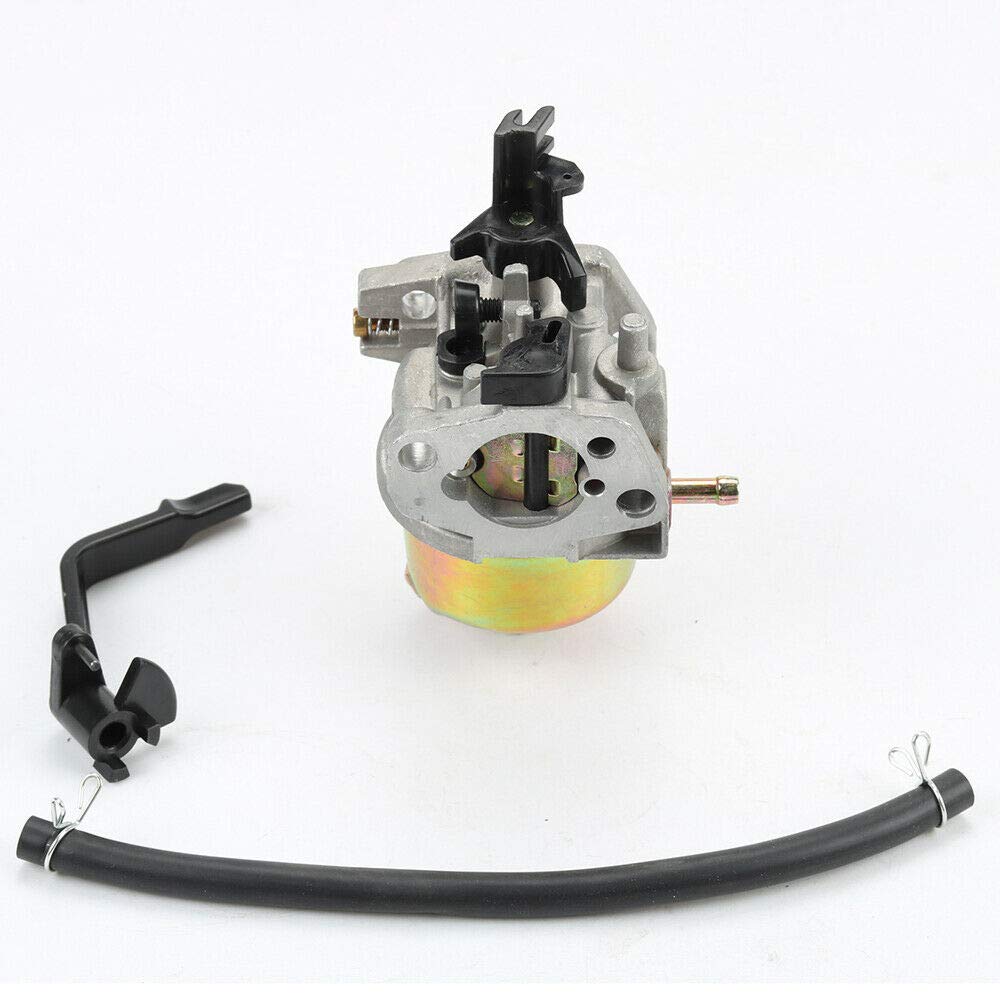

Image 3.2.1: The Generic replacement carburetor. This component is crucial for mixing air and fuel in the correct proportions for engine combustion.

4. Operation Principles

The carburetor's primary function is to mix air and fuel in the correct ratio for combustion within the generator's engine. Once installed, the carburetor operates automatically based on engine demand, regulated by the throttle and choke mechanisms. Ensure the air filter is clean to allow proper airflow, which is vital for the carburetor's efficient operation.

5. Maintenance

Regular maintenance of the carburetor ensures reliable performance and extends the life of your generator. Fuel quality is a significant factor in carburetor health.

5.1 Cleaning the Carburetor

• Frequency: Clean the carburetor annually or more frequently if the generator is used in dusty conditions or with old/stale fuel.
• Procedure:
  1. Remove the carburetor as described in the installation section.
  2. Disassemble the carburetor carefully, noting the position of all components.
  3. Use a carburetor cleaner spray to clean all passages, jets, and the float bowl. Ensure all small holes are clear.
  4. Inspect gaskets and O-rings; replace if damaged or brittle.
  5. Reassemble the carburetor, ensuring all components are correctly seated.

5.2 Fuel System Care

• Fresh Fuel: Always use fresh, clean gasoline. Stale fuel can leave deposits that clog carburetor passages.
• Fuel Stabilizer: If storing the generator for more than 30 days, add a fuel stabilizer to the gasoline.
• Drain Fuel: For long-term storage, it is recommended to drain the fuel tank and run the engine until it runs out of fuel to ensure the carburetor is empty.

6. Troubleshooting Common Issues

This section addresses common problems related to carburetor function. Always perform basic checks before attempting complex repairs.

7. Specifications

This carburetor is a high-quality aftermarket replacement part designed for specific compatibility.

• Product Type: Replacement Carburetor
• Brand: Generic
• Compatibility: Predator 4000 watt portable gas generator
• Part Interchange Info: Replacement
• GTIN/UPC: 753512930074
