1. Introduction
Thank you for choosing the Generic DEZIRE 75 Kitchen Chimney. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and retain it for future reference.
The DEZIRE 75 is a 75cm wall-mount kitchen chimney designed for efficient smoke and odor extraction. It features a 1200 suction capacity, an auto-clean function, touch controls, and LED illumination.
2. Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Ensure the power supply voltage matches the rating label on the chimney.
- Installation must be performed by a qualified technician in accordance with local regulations.
- Do not operate the chimney if the power cord or plug is damaged.
- Maintain adequate ventilation in the room when the chimney is in use, especially if other fuel-burning appliances are present.
- Do not flambé under the chimney.
- Clean the filters regularly to prevent grease buildup, which can be a fire hazard.
- Keep children away from the appliance during operation and cleaning.
- Do not touch the LED lights immediately after use as they may be hot.
- Disconnect the power supply before any cleaning or maintenance.
3. What's in the Box
Carefully unpack the box and ensure all components are present and undamaged. If any items are missing or damaged, contact your supplier immediately.
- DEZIRE 75 Kitchen Chimney Unit
- Installation Kit (mounting brackets, screws, wall plugs)
- Duct Pipe (may be sold separately or included depending on package)
- User Manual
4. Setup and Installation
The DEZIRE 75 is a wall-mounted chimney. Professional installation is highly recommended to ensure proper functioning and safety. Refer to the diagram below for typical installation steps.
4.1 Pre-Installation Checks
- Ensure the wall is strong enough to support the chimney's weight.
- Verify the availability of a suitable power outlet within reach of the power cord.
- Plan the ducting route for optimal air extraction.
4.2 Mounting the Chimney
- Mark the drilling points on the wall according to the provided template or measurements.
- Drill holes and insert wall plugs.
- Secure the mounting bracket(s) to the wall.
- Carefully lift and hang the chimney unit onto the brackets.
- Connect the duct pipe to the chimney's exhaust outlet and route it to the exterior vent. Ensure a tight seal.
- Connect the chimney to the power supply.

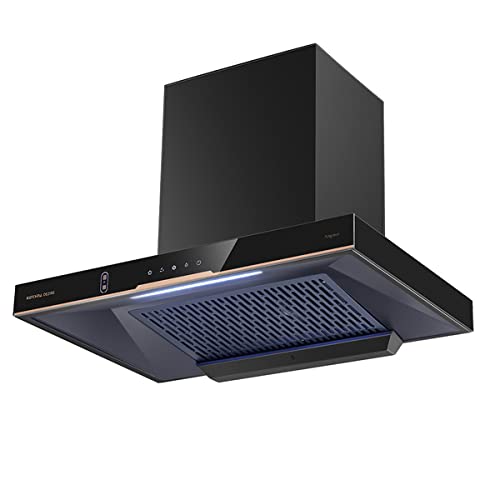

Figure 1: Side view of the DEZIRE 75 chimney, illustrating its wall-mount design.
Figure 2: Front view of the DEZIRE 75 chimney, showing the control panel and LED light.
5. Operating Instructions
The DEZIRE 75 chimney features a user-friendly touch control panel and a wave sensor for convenient operation.
5.1 Control Panel Overview

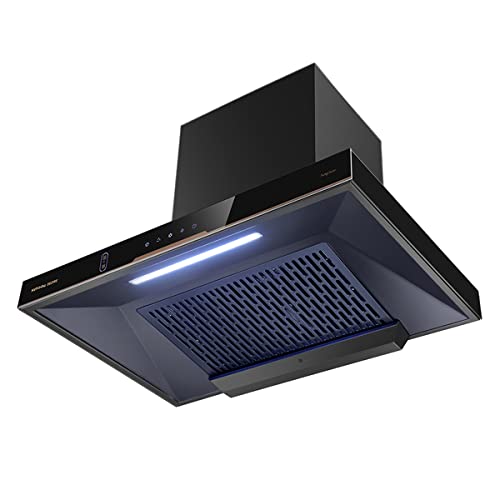

Figure 3: Detail of the touch control panel.
- Power Button: Touch to turn the chimney ON/OFF.
- Speed Control: Touch '+' or '-' to adjust suction speed (typically 3-5 levels).
- Light Button: Touch to turn the LED illumination ON/OFF.
- Auto-Clean Button: Touch to activate the auto-clean cycle.
- Wave Sensor: Wave your hand in front of the sensor (usually located on the front panel) to turn the chimney ON/OFF or adjust speed without touching the panel. Refer to specific model instructions for exact gestures.
5.2 Basic Operation
- Ensure the chimney is properly installed and connected to power.
- Press the Power button or use the wave sensor to turn on the chimney.
- Adjust the suction speed using the '+' or '-' buttons based on your cooking needs.
- Press the Light button to illuminate your cooking area.
- After cooking, turn off the chimney by pressing the Power button or using the wave sensor.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your chimney. Always disconnect the power supply before cleaning or maintenance.
6.1 Auto-Clean Function
The DEZIRE 75 features a 3rd Generation Dry Auto-Clean function. This function heats the internal components to melt accumulated grease, which then collects in an oil collector tray.
- Ensure the chimney is off and cool.
- Press the 'Auto-Clean' button on the control panel. The chimney will run a cleaning cycle.
- After the cycle completes, carefully remove the oil collector tray (usually located at the bottom or rear of the chimney).
- Empty the collected oil and clean the tray with warm, soapy water.
- Reinsert the clean oil collector tray securely.
Perform the auto-clean function regularly, depending on your cooking frequency (e.g., once every 2-4 weeks).
6.2 Mesh Filter Cleaning
The chimney uses mesh filters to trap grease. These should be cleaned manually periodically.
- Disconnect the chimney from the power supply.
- Locate and unlatch the mesh filters (refer to your installation diagram for exact location).
- Remove the filters.
- Clean the filters thoroughly with warm water and a degreasing detergent. A soft brush can be used for stubborn grease.
- Rinse the filters and allow them to dry completely before reinserting.
- Reinstall the dry filters and ensure they are securely latched.
6.3 Exterior Cleaning
Wipe the exterior surfaces of the chimney with a soft cloth dampened with mild soap and water. Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage the stainless steel finish.
7. Troubleshooting
If you encounter any issues with your chimney, refer to the following table for common problems and solutions. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chimney does not turn on. | No power supply. | Check if the power cord is securely plugged in and the circuit breaker is not tripped. |
| Low suction power. | Clogged filters or ducting. | Clean the mesh filters and oil collector. Check the duct pipe for obstructions. |
| Excessive noise during operation. | Loose components or motor issue. | Ensure all parts are securely fastened. If noise persists, contact service. |
| LED lights not working. | Faulty LED or wiring. | Check connections. If lights are still off, professional service may be required. |
| Auto-clean function not starting. | Chimney not at correct temperature or internal fault. | Ensure the chimney has been used recently to allow some grease accumulation. If still not working, contact service. |
8. Specifications
Technical specifications for the Generic DEZIRE 75 Kitchen Chimney.
| Feature | Detail |
|---|---|
| Model Number | DESIRE_75 |
| Brand | Generic |
| Colour | Black |
| Finish Type | Black |
| Material | Stainless Steel |
| Special Features | Touch Control, Auto Clean (Dry, 3rd Generation), Wave Sensor |
| Noise Level | 56 Decibels |
| Mounting Type | Wall Mount |
| Controls Type | Touch |
| Voltage | 220 Volts (AC) |
| Light Source | LED |
| Filter Type | Mesh |
| Ventilation Type | Ducted/Vented |
| Vent Hood Design | Wall Mounted Canopy Hood |
9. Warranty and Support
The Generic DEZIRE 75 Kitchen Chimney comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions.
For warranty claims, technical support, or service requests, please contact your retailer or the manufacturer's customer service. Keep your purchase receipt as proof of purchase.
Please note that the warranty may not cover damages resulting from improper installation, misuse, lack of maintenance, or unauthorized repairs.
