Philips PerfectCare 6000 Series Steam Generator Iron User Manual

Introduction

The Philips PerfectCare 6000 Series Compact Steam Generator Iron is designed to provide powerful and effortless ironing. This appliance features OptimalTEMP technology, eliminating the need for temperature adjustments and ensuring no ironable fabric is burned. It delivers continuous steam and a strong steam boost to tackle stubborn creases. Its compact and lightweight design facilitates easy handling and storage. The removable water tank allows for extended ironing sessions without interruption. The integrated Smart Calc Clean system prompts for descaling, maintaining optimal performance over time. The SteamGlide Advanced soleplate ensures smooth gliding on all fabric types for comfortable and efficient ironing.

Important Safety Information

Please read this user manual carefully before using the appliance and save it for future reference. Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Do not immerse the appliance in water or any other liquid.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Do not use the appliance if the plug, the mains cord, or the appliance itself shows visible damage, or if it has been dropped.
• Keep the appliance and its cord out of reach of children.
• Never leave the appliance unattended when it is connected to the mains.
• Always place the iron on a stable, heat-resistant surface.
• Do not touch the hot soleplate.
• Only use the appliance for its intended household use as described in this manual.

Product Overview

Familiarize yourself with the components of your Philips PerfectCare 6000 Series Steam Generator Iron.

Image: The Philips PerfectCare 6000 Series Steam Generator Iron, showing the iron unit docked on its base station with the water tank visible.

Image: The iron unit separated from its base, highlighting the large, transparent 1.8L removable water tank.

• Iron Unit: The handheld part with the soleplate.
• Steam Generator Base: Houses the water tank and steam generation system.
• Water Tank: 1.8L capacity, removable for easy refilling.
• SteamGlide Advanced Soleplate: Durable and scratch-resistant for smooth gliding.
• Steam Trigger: Located on the iron handle to activate steam.
• Transport Lock: Secures the iron to the base for safe carrying.

Setup

1. Unpack: Carefully remove all packaging materials from the appliance.
2. Position: Place the steam generator base on a stable, flat, and heat-resistant surface, such as an ironing board designed for steam generators.
3. Fill Water Tank:
   • Remove the 1.8L water tank from the base.
   • Fill the tank with tap water up to the 'MAX' indication. For optimal performance and longevity, Philips recommends using demineralized or distilled water, especially in areas with hard water.
   • Replace the water tank securely into the base.


   Image: A hand demonstrating the removal and refilling of the 1.8L water tank, which allows for up to 1 hour and 30 minutes of continuous ironing.

4. Connect Power: Plug the mains cord into a grounded wall socket.

Operating Instructions

First Use

When using the appliance for the first time, it may produce a slight odor or some steam with small particles. This is normal and will disappear after a short time.

Ironing Process

1. Power On: Press the on/off button. The iron will heat up, and the 'iron ready' light will illuminate when it's ready for use. This typically takes a few minutes.
2. OptimalTEMP Technology: Thanks to OptimalTEMP technology, you do not need to adjust the temperature. The iron is safe for all ironable fabrics, from denim to silk, without risk of burning.
3. Steam Ironing:
   • Press and hold the steam trigger under the handle to release continuous steam.
   • For stubborn creases, use the powerful steam boost by pressing the steam trigger twice quickly. The iron delivers up to 600g steam boost.


   Image: A close-up of the iron's soleplate emitting powerful steam, demonstrating its crease-removing capability with a 600g steam boost.

4. Dry Ironing: If you prefer to iron without steam, simply do not press the steam trigger.
5. Vertical Steaming: The iron can also be used for vertical steaming of hanging garments or curtains. Hold the iron vertically and press the steam trigger.
6. Automatic Shut-off: For safety and energy saving, the iron features an automatic shut-off function. If left unattended for a period, it will automatically turn off.

SteamGlide Advanced Soleplate

The SteamGlide Advanced soleplate features a 6-layer coating that ensures excellent gliding performance and scratch resistance, making ironing smooth and efficient on all fabrics.

Image: A detailed view of the SteamGlide Advanced soleplate, highlighting its design for optimal glide and durability.

Maintenance

Cleaning the Iron

• Always unplug the appliance and let it cool down completely before cleaning.
• Wipe the soleplate with a damp cloth and a non-abrasive cleaner if necessary.
• Clean the base unit with a damp cloth. Do not use abrasive cleaning agents or solvents.

Smart Calc Clean System (Descaling)

The Smart Calc Clean system is designed to protect your appliance from limescale build-up and prolong its lifespan. The 'Calc-Clean' light will flash and the appliance will beep when descaling is required.

1. Ensure the water tank is empty.
2. Place the iron on the Calc-Clean container (provided with the appliance).
3. Press and hold the Calc-Clean button for 2 seconds until you hear short beeps.
4. The descaling process will start automatically and take approximately 2 minutes. You will hear beeping sounds and see steam and hot water coming out of the soleplate.
5. When the process is complete, the iron will stop beeping and the 'Calc-Clean' light will turn off.
6. Wipe the soleplate with a cloth.

Image: The iron placed on its descaling tray, illustrating the Smart Calc Clean system which alerts the user when descaling is needed to maintain performance.

Storage

After use, unplug the appliance and allow it to cool down. Empty the water tank. Use the transport lock to secure the iron to the base for easy and safe carrying and storage.

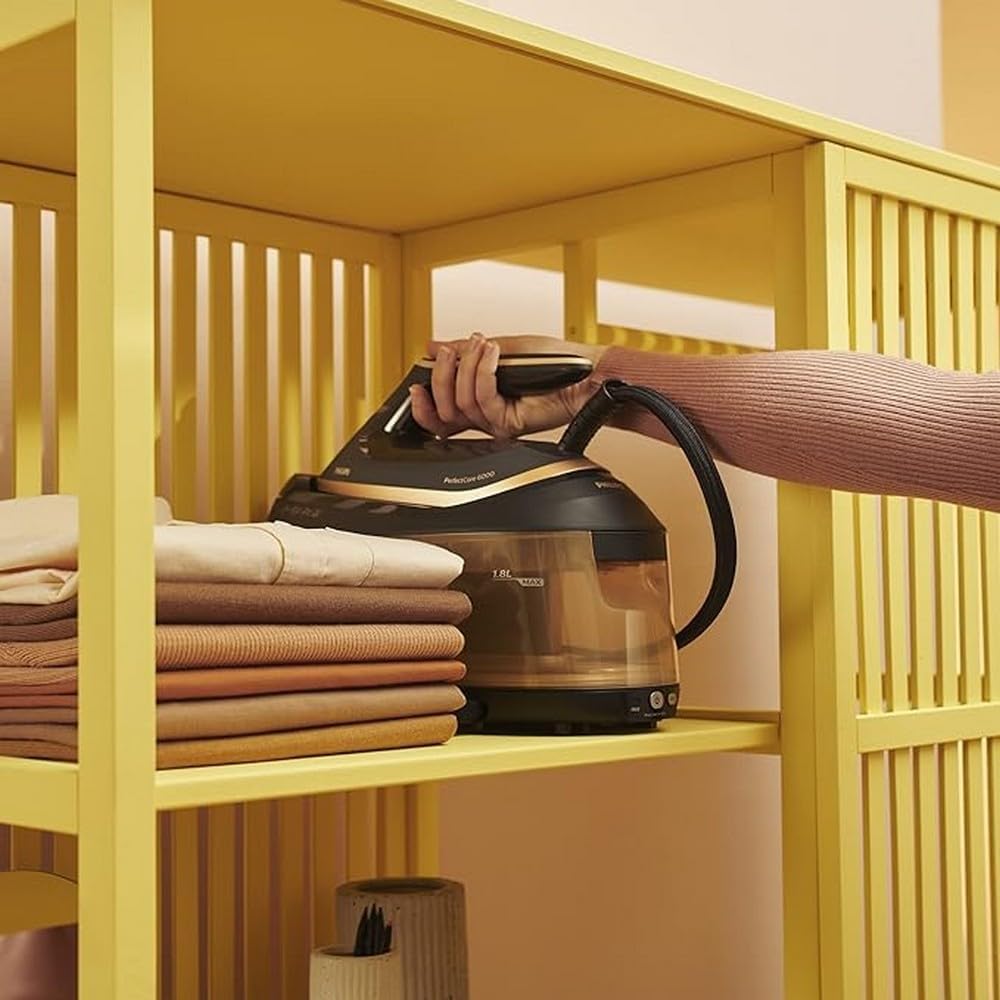

Image: The compact Philips PerfectCare 6000 Series iron being placed on a shelf, demonstrating its ease of storage.

Troubleshooting

Specifications

• Model Number: PSG6064/80
• Brand: Philips
• Color: Black/Gold
• Power: 2400 Watts
• Voltage: 240 Volts
• Water Tank Capacity: 1.8 Liters
• Continuous Steam Output: 130 g/min
• Steam Boost: 600 g
• Soleplate: SteamGlide Advanced
• Product Dimensions (L x W x H): 36.8 x 16.8 x 0.1 cm (Note: 0.1cm height seems incorrect for a 3D product, likely a data entry error, but using provided data)
• Item Weight: 1.2 Kilograms
• Material: Plastic
• Special Feature: Lightweight
• Recommended Use: Ironing
• Model Year: 2023
• Style: 8 Bars
• Country of Origin: Indonesia

Image: Diagram showing the dimensions of the Philips PerfectCare 6000 Series Steam Generator Iron, indicating its compact size.

Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Philips website. Specific warranty terms may vary by region and purchase date.

You can also visit the Philips Brand Store on Amazon for additional product information and support resources.
