GESHENG 750W Folding Electric Bike User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your GESHENG S5 750W Folding Electric Bike. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your e-bike.

Image: The GESHENG S5 Folding Electric Bike in its full form, showcasing its robust design and fat tires.

The GESHENG S5 is designed for versatility, offering a powerful 750W motor, a long-range 48V/30Ah battery, and a foldable step-thru frame, making it suitable for various terrains and rider needs.

2. Safety Guidelines

WARNING: Always wear a helmet and appropriate safety gear when riding. Familiarize yourself with local e-bike regulations.

• Pre-Ride Check: Before each ride, inspect tires for proper inflation and damage, check brake functionality, ensure all quick releases and bolts are tightened, and verify battery is securely seated.
• Riding Conditions: Adjust your speed and riding style to suit road conditions, weather, and traffic. Be extra cautious in wet or slippery conditions.
• Visibility: Use the bike's lights during low light conditions and consider wearing reflective clothing to enhance visibility.
• Battery Safety: Do not expose the battery to extreme temperatures, puncture it, or attempt to disassemble it. Use only the provided charger.
• Weight Limit: Do not exceed the maximum load capacity of 330 lbs (149.7 kg) for the bike.

3. Product Overview & Components

Your GESHENG S5 electric bike is equipped with advanced features for a comfortable and powerful riding experience.

3.1. Motor

The S5 features a high-speed 750 Watt motor with a peak output of 1125 Watts, providing strong driving power and up to 70Nm of torque. This allows for easy hill climbing and a top speed of 32 MPH (52 km/h).

Image: Close-up view of the powerful 750W rear hub motor, illustrating its integration with the wheel.

3.2. Battery

Equipped with a compact yet high-capacity 48V/30Ah UL certified battery. It offers an estimated range of up to 90 miles in pedal-assist mode and 75 miles in pure electric mode. The battery is removable for convenient charging and has a charging time of approximately 6-7 hours with the included 3A fast charger.

Image: The 48V 20AH battery pack, highlighting its compact design and larger capacity compared to previous versions.

3.3. Display

The large smart LCD provides real-time information including instantaneous speed, selectable assist levels, riding mode indications, and accurate odometer readings. It also features a USB port for charging your mobile devices.

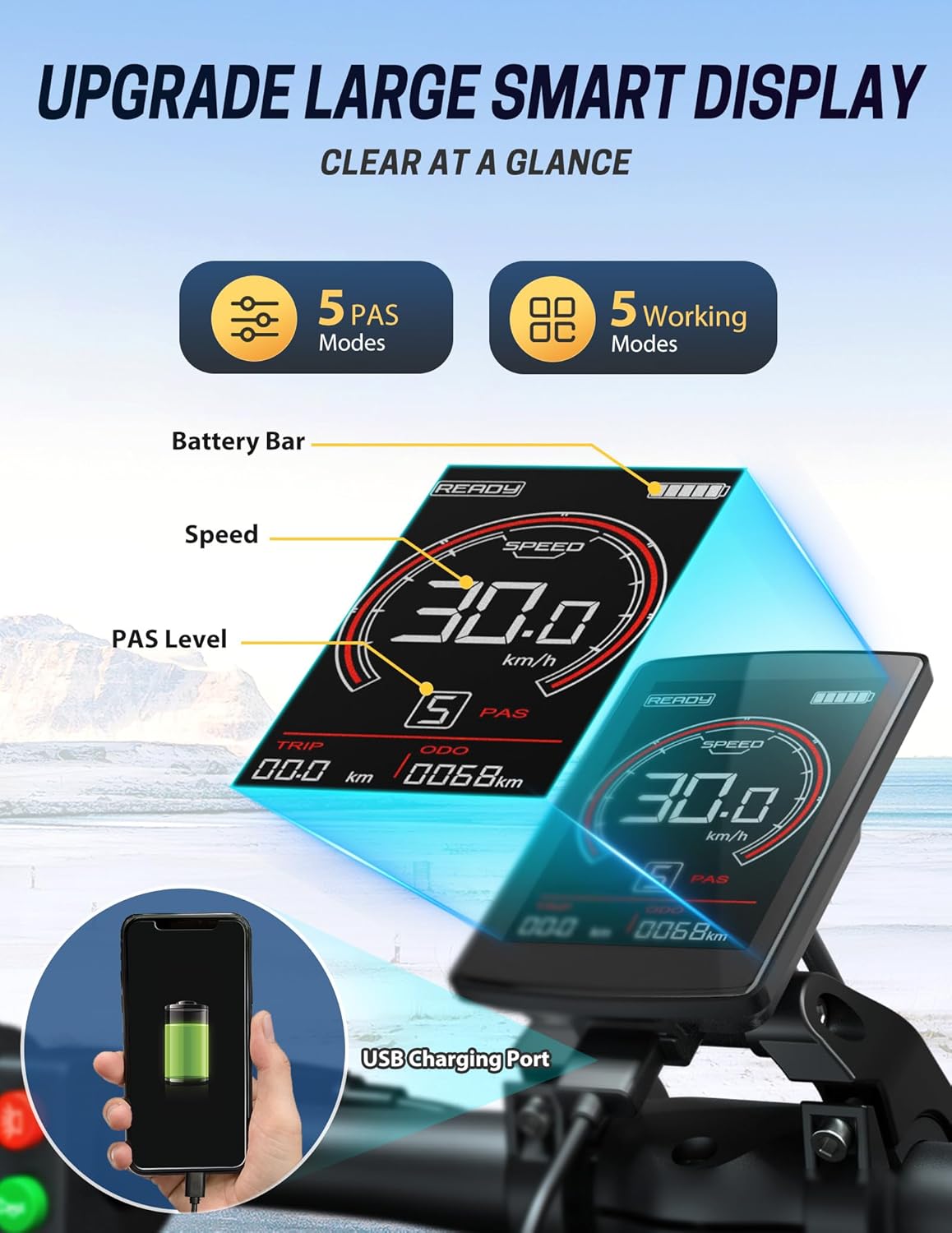

Image: The smart LCD display showing speed, battery level, and PAS level, with a phone charging via the USB port.

3.4. Wheels & Tires

The S5 is equipped with 20" x 4.0" puncture-resistant fat tires and newly upgraded integrated alloy wheels. These provide enhanced stability, traction, and durability across various terrains, including snow, mountain roads, urban environments, and beaches.

Image: A close-up of the integrated alloy wheel and 4.0-inch fat tire, designed for all-terrain performance.

3.5. Suspension & Brakes

The hydraulic front fork provides exceptional shock absorption for a smooth ride. It includes a lockable switch to maximize efficiency on smooth surfaces. The bike is equipped with reliable disc brakes for effective stopping power.

3.6. Frame & Design

The step-thru and foldable frame is crafted from high-quality heavy-duty aluminum alloy, optimized for comfort and ease of use for riders between 5'2" and 6'3". The folding mechanism allows for easy storage and transport.

Image: The GESHENG S5 electric bike shown in both its unfolded and folded configurations, demonstrating its compact storage capability.

4. Assembly & Setup

Your GESHENG S5 electric bike comes 95% pre-assembled. The remaining assembly typically takes about 5 minutes.

1. Unfolding the Bike: Carefully unfold the frame and handlebar stem. Ensure all locking mechanisms are securely engaged.
2. Attaching Pedals: Identify the left (L) and right (R) pedals. Screw them into the crank arms by hand first, then tighten securely with a wrench. Note that the left pedal tightens counter-clockwise.
3. Installing Front Carrier (Optional): If desired, attach the front carrier using the provided hardware.
4. Initial Battery Charge: Before your first ride, fully charge the battery. You can charge it while it's installed on the bike or remove it for charging.
5. Tire Inflation: Check and adjust tire pressure to the recommended PSI (typically indicated on the tire sidewall).

Note: While the product description mentions an assembly video, no specific video URL was provided in the product data. Please refer to the manufacturer's official website or support channels for any available assembly videos.

5. Operating Instructions

5.1. Powering On/Off

To power on the bike, press and hold the power button on the LCD display. To power off, press and hold the same button until the display turns off.

5.2. Riding Modes

The GESHENG S5 offers 5 distinct riding modes and 5 levels of pedal assistance:

• Pure Electric Mode: Engage the throttle for motor-only propulsion without pedaling.
• Pedal Assist Mode (PAS): The motor provides assistance as you pedal. Adjust the assist level (1-5) using the display controls. Higher levels provide more motor power.
• Walk Mode: Provides low-speed assistance for walking the bike.
• Cruise Mode: Maintains a set speed without continuous throttle input (refer to display manual for activation).
• Bike Mode: Ride as a traditional bicycle with no electric assistance.

5.3. Gear Shifting

The bike features a 7-speed gear system. Use the shifter on the handlebar to change gears according to terrain and desired pedaling effort. Shift to lower gears for climbing hills and higher gears for flat terrain or downhill riding.

5.4. Folding and Unfolding

To fold the bike, follow the specific steps outlined in the quick start guide or manufacturer's instructions, typically involving releasing frame and handlebar latches. Ensure all latches are securely fastened when unfolding the bike before riding.

6. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your e-bike.

• Cleaning: Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
• Tires: Check tire pressure before each ride. Maintain pressure within the recommended range (usually 20-30 PSI for fat tires). Inspect for wear and punctures.
• Brakes: Regularly check brake pads for wear and ensure brake levers provide firm and responsive stopping power. Adjust as needed.
• Chain: Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
• Battery Care: Store the battery in a cool, dry place. If storing for extended periods, charge it to 50-70% every few months. Avoid fully discharging the battery.
• Fasteners: Periodically check all bolts, nuts, and quick releases to ensure they are tight and secure.

7. Troubleshooting

Here are some common issues and basic troubleshooting steps:

For issues not listed or if troubleshooting steps do not resolve the problem, please contact GESHENG customer support.

8. Specifications

Image: Diagram illustrating the key dimensions of the GESHENG S5 electric bike and recommended rider height range.

9. Warranty & Support

GESHENG provides a one-year warranty covering the battery, motor, controller, dashboard, and charger. This warranty ensures peace of mind regarding the core components of your e-bike.

For any questions, concerns, or warranty claims, please contact GESHENG customer support through Amazon message or the after-sale email provided with your purchase. Please have your model number (S5) and purchase details ready to expedite assistance.
