Generic TD-1244 Braylen Adjustable Height Work Table User Manual

1. Introduction

Thank you for purchasing the Generic TD-1244 Braylen Adjustable Height Work Table. This versatile table features an amply sized wooden surface and an adjustable height mechanism, making it suitable for various uses, including a desk, dining table, counter-level table, or bar table. This manual provides essential information for safe assembly, operation, and maintenance of your new table.

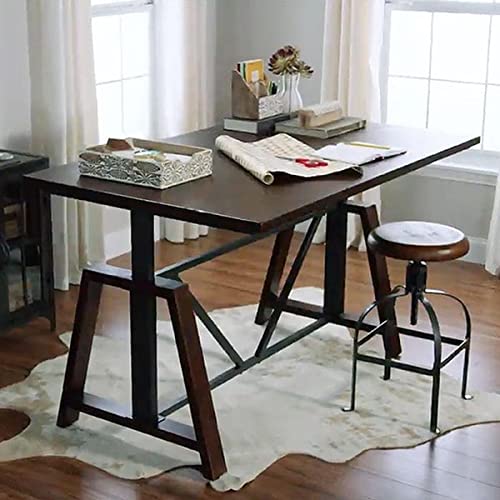

Figure 1: Overview of the Braylen Adjustable Height Work Table, showing its overall dimensions and adjustable height range.

2. Safety Information

Please read all instructions carefully before assembly and use. Keep this manual for future reference.

• Ensure all parts are present and undamaged before beginning assembly.
• Assemble the table on a soft, clean surface to prevent scratches.
• Do not overtighten screws during assembly to avoid damaging the wood.
• Always adjust the table height with caution, ensuring no objects or body parts are in the path of moving components.
• Do not exceed the maximum weight capacity of the table (specific capacity not provided, use common sense for heavy items).
• Keep children and pets away from the table during assembly and height adjustment.
• Regularly check all fasteners to ensure they remain tight.

3. Package Contents

Verify that all components listed below are included in your package:

• Tabletop (Acacia Wood, Engineered Wood, Walnut Wood)
• Legs/Frame (Engineered Wood, Metal)
• Assembly Hardware (screws, bolts, metal levelers)
• Assembly Instructions (this manual)

Note: The product is shipped as a single table unit, requiring assembly of its components.

4. Setup & Assembly

Assembly is required for this product. It is recommended to have two people for assembly to ensure safety and ease of handling. Please follow these general steps:

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent damage.
2. Assemble Base Frame: Connect the metal and wood frame components according to the included hardware. Ensure all connections are secure but do not fully tighten screws until the entire frame is assembled.
3. Attach Legs: Secure the wooden legs to the main frame using the provided hardware. The design includes metal levelers for stability.
4. Attach Tabletop: Carefully place the tabletop onto the assembled base frame. Align the pre-drilled holes and secure the tabletop using the appropriate screws.
5. Final Tightening: Once all components are in place and aligned, fully tighten all screws and bolts. Do not overtighten.
6. Positioning: Move the assembled table to its desired location. Use the metal levelers on the feet to ensure the table is stable and does not wobble on uneven surfaces.

Figure 2: Detail of the leg and frame connection, illustrating the assembly points and height adjustment mechanism.

5. Operating Instructions

The Braylen Work Table features an adjustable height mechanism, allowing you to customize its height from 30 inches to 40 inches. This adjustment is typically achieved by loosening and tightening bolts on the vertical support structures.

1. Prepare for Adjustment: Clear the tabletop of any heavy items. It is advisable to have assistance when adjusting the height, especially if the table is already in use.
2. Loosen Locking Mechanisms: Locate the locking bolts or knobs on the vertical metal supports of the table legs (refer to Figure 2 for typical location). Loosen these mechanisms on both sides of the table.
3. Adjust Height: Carefully lift or lower the tabletop to the desired height. Ensure both sides are adjusted evenly to maintain stability. The table has pre-set holes or markings for common heights.
4. Secure Locking Mechanisms: Once the desired height is reached, firmly tighten all locking bolts or knobs on both sides. Ensure they are fully secured before placing items back on the table or applying weight.

Figure 3: Side profile of the table, illustrating the adjustable height feature.

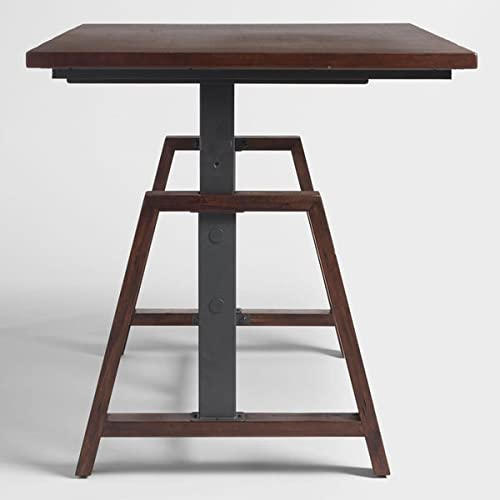

Figure 4: Additional side view emphasizing the table's structure and height flexibility.

6. Maintenance

Proper care and maintenance will extend the life and appearance of your Braylen Work Table.

• Cleaning:
  • For the wood surfaces, wipe clean with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
  • For metal parts, use a dry or slightly damp cloth.
  • Immediately wipe up spills to prevent staining or water damage to the wood.
• Wood Care: Periodically apply a wood conditioner or polish suitable for walnut finishes to maintain the wood's luster and protect it from drying out.
• Fastener Check: Every few months, inspect all screws and bolts to ensure they are tight. Retighten as necessary to maintain stability.
• Avoid Extreme Conditions: Do not place the table in direct sunlight or near heat sources, as this can cause wood warping or fading. Avoid excessive humidity.

7. Troubleshooting

If you encounter issues with your table, refer to the following common problems and solutions:

8. Specifications

Key specifications for the Generic TD-1244 Braylen Adjustable Height Work Table:

9. Support & Warranty

For any questions, missing parts, or issues not covered in this manual, please contact the manufacturer or your retailer for assistance. Specific warranty information may be provided with your purchase documentation.
