SATMW Strong Magnetic U2.6 Shape Screwdriver Hand Tool User Manual

1. Introduction

The SATMW Strong Magnetic U2.6 Shape Screwdriver is a high-quality hand tool designed for precision tasks. Its unique U2.6 shape head and strong magnetic tip make it ideal for working with small screws in electronics, watches, toys, and other delicate appliances. Crafted from chrome vanadium steel, this screwdriver offers durability and reliable performance for various applications.

Figure 1: The SATMW Strong Magnetic U2.6 Shape Screwdriver.

2. Product Features

• High Quality Construction: Made from durable Chrome Vanadium Steel for long-lasting use.
• Strong Magnetic Tip: The black head features a strong magnetic property, allowing for easy handling and placement of small screws in narrow spaces.
• U2.6 Shape Head: Specifically designed for U-shaped screws, ensuring a secure fit and preventing stripping.
• Comfortable Handle: Ergonomically designed handle grips provide comfort and control during use.
• Versatile Application: Suitable for disassembling and assembling small appliances, watches, toys, and various electronic items.

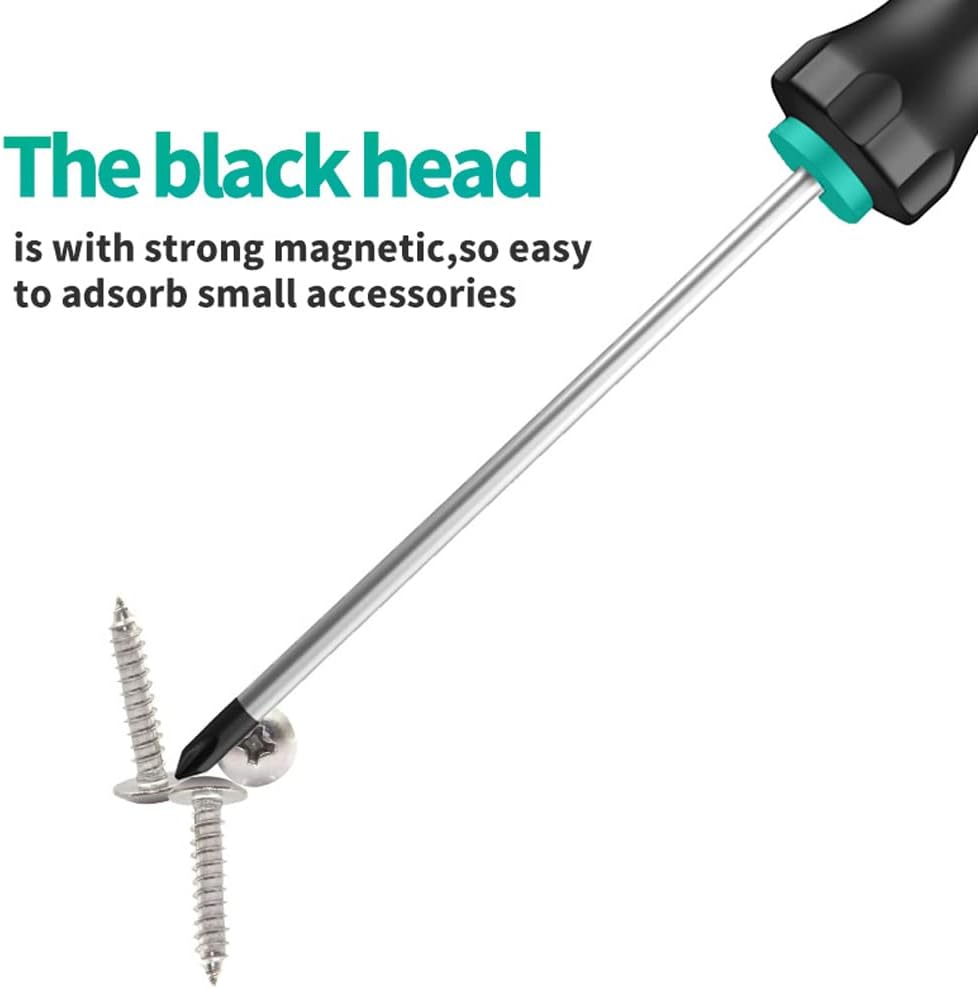

Figure 2: Demonstration of the strong magnetic tip holding screws.

3. Setup and Usage

3.1 Unboxing

The SATMW U2.6 Shape Screwdriver comes ready to use. Simply remove it from its packaging. No assembly is required.

3.2 Operating Instructions

1. Identify Screw Type: Ensure the screw you intend to work with is a U-shaped screw. This screwdriver is specifically designed for U-type fasteners.
2. Position the Tip: Place the U2.6 tip of the screwdriver into the corresponding U-shaped slot of the screw. The magnetic tip will help hold the screw in place, especially in tight or awkward angles.
3. Apply Pressure and Turn: Apply firm, steady pressure to the handle while turning the screwdriver clockwise to tighten or counter-clockwise to loosen the screw. Ensure the tip remains fully engaged with the screw head to prevent stripping.
4. Remove/Insert Screws: The magnetic property of the tip allows for easy removal of loosened screws and precise placement of new screws, particularly in confined spaces.

Figure 3: Different screw head types, highlighting the U-type for this screwdriver.

Figure 4: Different screwdriver tip types, showing the U-type.

4. Maintenance

• Cleaning: Wipe the screwdriver clean with a dry cloth after each use to remove any dirt, grease, or debris. Avoid using harsh chemicals or abrasive cleaners.
• Storage: Store the screwdriver in a dry place, away from moisture and extreme temperatures, to prevent rust and preserve its magnetic properties.
• Inspection: Periodically inspect the tip for any signs of wear or damage. While durable, excessive force or improper use can cause wear over time.

5. Troubleshooting

As a simple hand tool, the SATMW U2.6 Shape Screwdriver requires minimal troubleshooting. However, consider the following:

• Screw Stripping: If the screw head is stripping, ensure you are using the correct U-type screwdriver for the screw. Apply adequate downward pressure while turning to maintain full engagement.
• Weak Magnetism: While the tip is strongly magnetic, prolonged exposure to strong magnetic fields or high temperatures can potentially reduce its magnetic strength over time. Store it properly.
• Difficulty Turning: If a screw is stuck, do not force it. Ensure the screw is not cross-threaded or corroded. Consider using a penetrating oil if appropriate for the material.

6. Specifications

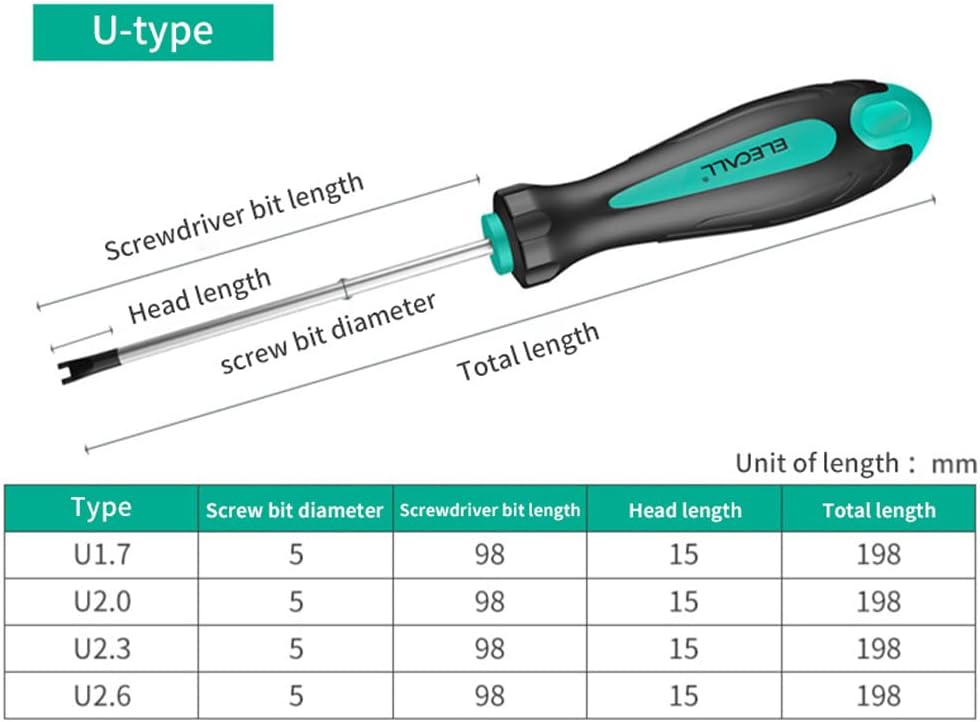

Figure 5: Dimensional diagram for U-type screwdrivers, including U2.6.

Figure 6: Specific dimensions for the U-type 2.6 screwdriver.

7. Warranty and Support

For warranty information or technical support regarding your SATMW Strong Magnetic U2.6 Shape Screwdriver, please refer to the original purchase documentation or contact the seller directly. As a hand tool, specific warranty terms may vary.
