1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your URQS Alternator. This unit is designed to be compatible with Caterpillar 914G and Perkins 3054 engines, providing reliable electrical power to your vehicle's systems and charging the battery. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. Safety Information
Always prioritize safety when working with automotive electrical components. Failure to follow these safety guidelines may result in serious injury or damage to the vehicle.
- Always disconnect the vehicle's battery terminals (negative first) before beginning any work on the electrical system.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the vehicle is turned off and the ignition key is removed before starting work.
- Avoid contact with hot engine components.
- Do not attempt to repair a damaged alternator. Replace it with a new unit.
- Consult a qualified mechanic if you are unsure about any installation or repair procedures.
3. Setup and Installation
Proper installation is crucial for the performance and longevity of your alternator. It is recommended that installation be performed by a certified technician.
- Preparation: Ensure the vehicle's engine is cool. Disconnect the negative battery cable, then the positive battery cable.
- Access: Locate the existing alternator. Depending on the vehicle model, this may require removing other components for access.
- Disconnect Wiring: Carefully disconnect all electrical connections from the old alternator. Note their positions for reinstallation.
- Remove Belt: Loosen the tensioner and remove the serpentine belt from the alternator pulley.
- Remove Old Alternator: Unbolt the old alternator from its mounting brackets and carefully remove it from the engine bay.
- Install New Alternator: Position the new URQS alternator into the mounting brackets. Secure it with the appropriate bolts, ensuring it is firmly seated.
- Install Belt: Route the serpentine belt correctly around all pulleys, including the alternator pulley. Adjust the tensioner to achieve the correct belt tension as specified by the vehicle manufacturer.
- Connect Wiring: Reconnect all electrical wires to the new alternator. Ensure all connections are clean, tight, and correctly polarized.
- Reconnect Battery: Reconnect the positive battery cable, then the negative battery cable.
- Test: Start the engine and check for proper charging system operation. Observe the battery warning light and use a voltmeter to confirm charging voltage (typically 13.5V to 14.8V).

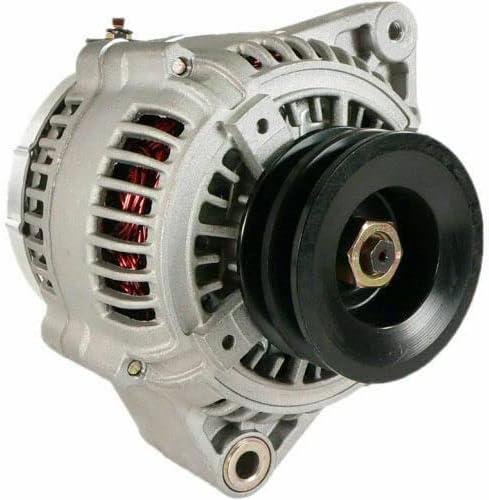

Figure 3.1: Front view of the URQS Alternator, showing the pulley and main housing. This image illustrates the general appearance of the unit before installation.
Figure 3.2: Rear view of the URQS Alternator, highlighting the electrical connection points. Ensure all wiring is securely attached as per vehicle specifications.
4. Operating Principles
The alternator is a key component of your vehicle's charging system. Once the engine starts, the alternator converts mechanical energy from the engine's crankshaft (via the serpentine belt) into electrical energy. This electrical energy is used to power the vehicle's electrical systems (lights, radio, ignition, etc.) and to recharge the vehicle's battery. A properly functioning alternator maintains a stable voltage output, typically between 13.5 and 14.8 volts, ensuring all electrical components receive adequate power.
5. Maintenance
While alternators are generally low-maintenance components, periodic checks can help ensure their longevity and prevent unexpected failures.
- Belt Inspection: Regularly inspect the serpentine belt for cracks, fraying, or excessive wear. Ensure it has the correct tension; a loose belt can cause the alternator to slip and undercharge, while an overly tight belt can damage bearings.
- Wiring Connections: Periodically check all electrical connections to the alternator for corrosion or looseness. Clean any corrosion and tighten loose connections.
- Battery Health: A weak or failing battery can put undue strain on the alternator. Ensure your battery is in good condition and holds a charge properly.
- Cleanliness: Keep the alternator free from excessive dirt, oil, and debris, which can impede cooling and affect performance.
6. Troubleshooting
If you experience issues with your vehicle's charging system, consult the table below for common symptoms and potential solutions. If problems persist, seek professional assistance.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Battery Warning Light On | Failing alternator, loose or corroded connections, worn serpentine belt. | Check belt tension and condition. Inspect and clean all electrical connections. Test alternator output. Replace if faulty. |
| Dim Headlights / Electrical Malfunctions | Low voltage output from alternator, weak battery. | Test battery and alternator. Ensure proper belt tension. |
| Dead Battery | Alternator not charging, parasitic drain, old battery. | Charge battery. Test charging system. Check for electrical shorts. |
| Grinding or Whining Noise | Worn alternator bearings, loose pulley, worn belt. | Inspect alternator pulley and belt. If noise persists, alternator likely needs replacement. |
7. Specifications
Key technical specifications for the URQS Alternator:
- Brand: URQS
- Model Numbers: 3E7772, 0R9437, 101211-7920
- Voltage: 24V
- Compatibility: Caterpillar 914G, Perkins 3054 engines
- Item Weight: 15 pounds
- Package Dimensions: 8 x 8 x 8 inches

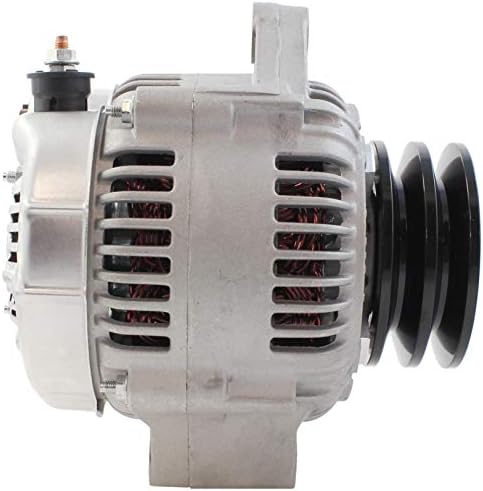

Figure 7.1: Side view of the URQS Alternator, illustrating its compact design and mounting points.
8. Warranty and Support
For warranty information or technical support regarding your URQS Alternator, please contact the seller or manufacturer directly. Keep your purchase receipt and product model numbers handy for faster service.
Seller: EPartsGlobal
For general inquiries, you may visit the URQS brand page on Amazon: URQS Brand Page
