1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your AKORD K80 Commode. Please read all instructions carefully before beginning assembly and retain this manual for future reference. The AKORD K80 Commode is a versatile furniture piece designed with two doors and one drawer, offering practical storage solutions for various rooms.

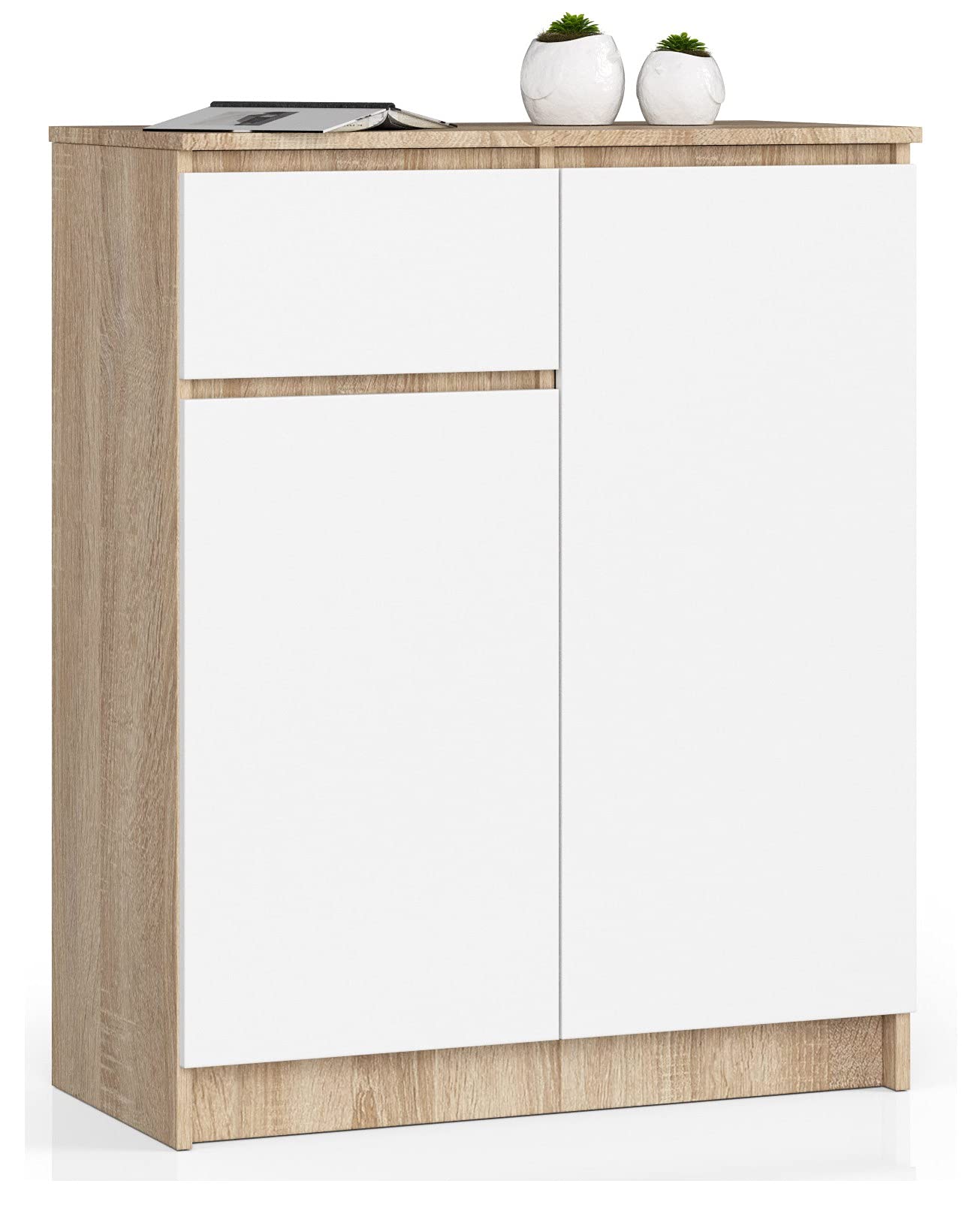

Image 1.1: The AKORD K80 Commode in Sonoma Oak/White, featuring two doors and one drawer.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in injury or damage to the product.
- Be careful when handling heavy parts during assembly. It is recommended to have two people for assembly.
- Ensure the furniture is correctly assembled according to the provided instructions to prevent instability and potential injury.
- Do not allow children to climb on or play with the commode.
- Place the commode on a flat, stable surface.
- If wall anchoring hardware is provided, it is strongly recommended to secure the commode to a wall to prevent tipping.
3. Package Contents
Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Assembly kit (screws, dowels, hinges, drawer slides, etc.)
- Assembly manual (this document)
- All furniture panels for the commode (sides, top, bottom, back, doors, drawer components, shelves)
4. Specifications
| Brand | AKORD |
| Model Number | OP0LKOMDABBIA006 |
| Color | Sonoma Oak/White |
| Material | Composite wood |
| Overall Dimensions (W x H x D) | 80 cm x 99 cm x 40 cm |
| Weight | 36 kg |
| Number of Doors | 2 |
| Number of Drawers | 1 |
| Number of Shelves | 4 |
| Assembly Required | Yes |
| Care Instructions | Wipe clean with a damp cloth |
Image 4.1: Technical drawing showing the dimensions of the AKORD K80 Commode and its drawer.
5. Setup and Assembly
The AKORD K80 Commode requires assembly. Please follow the step-by-step instructions provided in the separate assembly manual included in your package. Ensure you have adequate space and the necessary tools (typically a screwdriver and hammer) before starting.
- Unpack Components: Carefully unpack all parts and lay them out on a clean, soft surface to prevent scratches. Verify all parts against the parts list in the assembly manual.
- Assemble Frame: Begin by assembling the main frame of the commode, connecting the side panels to the top and bottom panels using the provided hardware.
- Install Drawer Slides: Attach the drawer slides to the interior side panels as indicated in the manual.
- Assemble Drawer: Construct the drawer box, ensuring all connections are secure. Install the remaining drawer slides onto the drawer box.
- Install Shelves: Insert the shelf supports into the pre-drilled holes and place the shelves into position.
- Attach Doors: Mount the hinges to the doors and the commode frame, then attach the doors. Adjust hinges for proper alignment.
- Insert Drawer: Carefully slide the assembled drawer into its designated compartment.
- Attach Back Panel: Secure the back panel to the commode frame using small nails or screws.
- Final Checks: Ensure all screws are tightened and the commode is stable. If wall anchoring hardware is included, install it now.
Image 5.1: Internal view of the commode, illustrating the shelf placement and drawer compartment.
6. Operating Instructions
The AKORD K80 Commode is designed for straightforward use.
- Doors: The two doors open outwards to reveal storage compartments with adjustable shelves. Gently pull the door handles to open and push to close.
- Drawer: The single drawer operates on smooth slides. Pull the drawer handle to open and push firmly to close. Avoid overloading the drawer to ensure smooth operation and prevent damage.
- Storage: Utilize the shelves and drawer for organizing clothing, linens, office supplies, or other household items. Distribute weight evenly across shelves and within the drawer.
Image 6.1: The commode with its doors open, showcasing the internal storage layout.
7. Maintenance
Proper care will ensure the longevity and appearance of your AKORD K80 Commode.
- Cleaning: Wipe the surfaces with a soft, damp cloth. For stronger contaminants, use a mild furniture cleaning agent. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Spills: Immediately wipe up any spills to prevent staining or moisture damage to the composite wood.
- Hardware: Periodically check all screws and fittings to ensure they remain tight. Retighten if necessary to maintain stability.
- Sunlight: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration of the finish.
Image 7.1: Close-up detail of the commode's surface and drawer, highlighting the finish.
8. Troubleshooting
If you encounter any issues with your commode, refer to the following common solutions:
- Wobbly Commode: Ensure the commode is placed on a level surface. Check and tighten all assembly screws. If applicable, adjust the leveling feet.
- Drawer Not Sliding Smoothly: Check that the drawer slides are correctly installed and free from obstructions. Ensure the drawer is not overloaded.
- Doors Not Aligning: Adjust the hinges on the doors. Most hinges allow for minor adjustments to align the doors properly. Refer to the assembly manual for specific hinge adjustment instructions.
- Missing Parts: If you discover missing parts during assembly, do not proceed. Contact AKORD customer support for assistance.
9. Warranty
AKORD products are manufactured to high-quality standards. For specific warranty details regarding your K80 Commode, please refer to the warranty information provided with your purchase documentation or contact AKORD customer service. Keep your proof of purchase for any warranty claims.
10. Support
For further assistance, technical support, or to order replacement parts, please contact AKORD customer service. Contact information can typically be found on the manufacturer's website or on your purchase receipt.
