1. Introduction and Overview
The Aihand Cordless Pressure Washer is designed for convenient and efficient outdoor cleaning. This portable power cleaner features a high-performance 986 PSI motor and a water flow rate of up to 215 liters per hour, making it suitable for various tasks such as cleaning patios, vehicles, garden tools, fences, and more. Its cordless design, powered by a 21V 4.0Ah battery, offers superior mobility and ease of use without the need for a constant power outlet.
Equipped with a 16.5 ft hose and a built-in filter basket, the unit can efficiently draw water from any source, including buckets, rivers, or lakes, while filtering out impurities. The triple watering system includes a versatile 6-in-1 spray nozzle (0°, 15°, 25°, 40°, Fan-Shaped Mode, and Shower Mode), a high/low pressure nozzle, and a 400ml mixture container for effective cleaning with detergents.

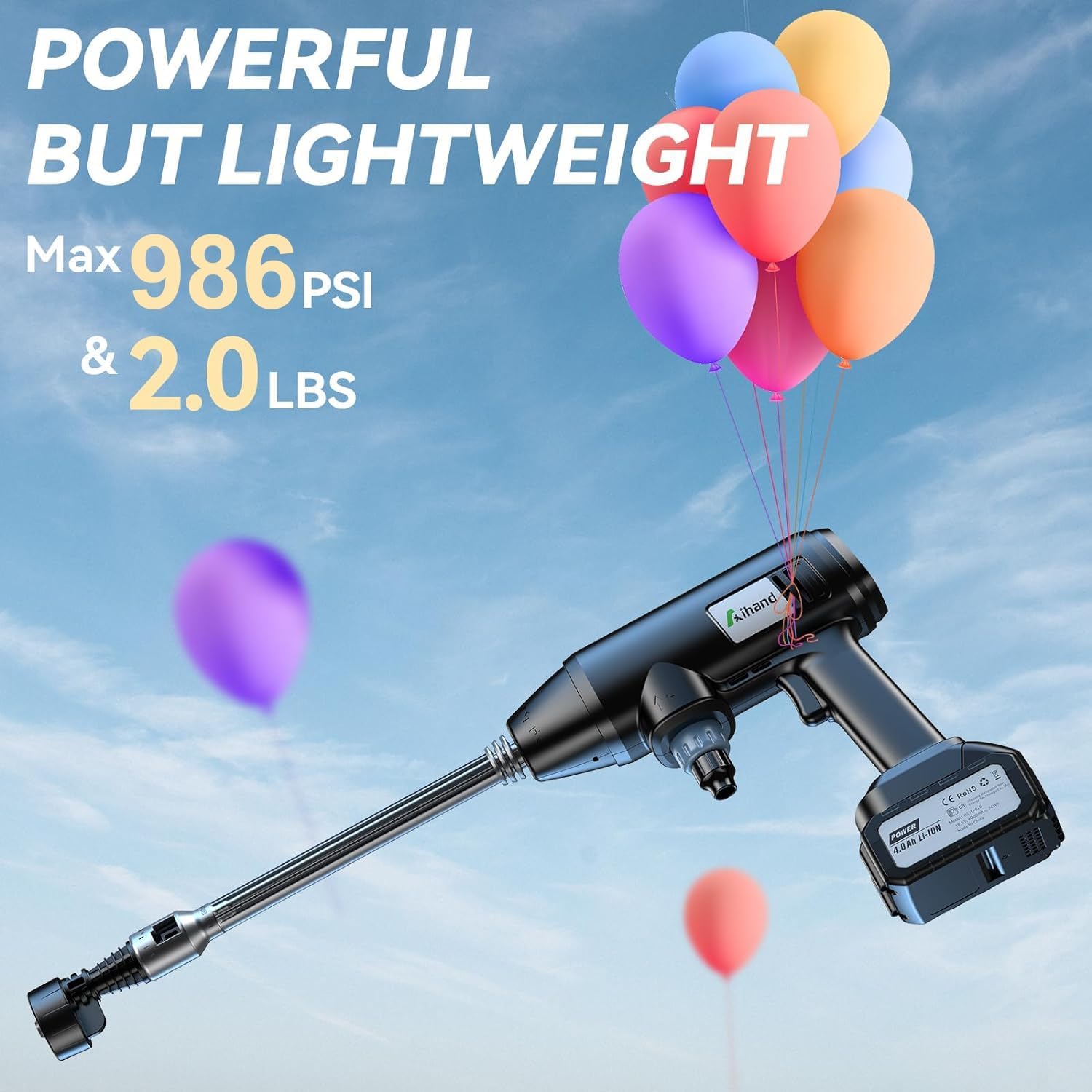

Figure 1: The Aihand Cordless Pressure Washer, emphasizing its powerful 986 PSI and lightweight 2.0 lbs design.
2. What's in the Box
Your Aihand Cordless Pressure Washer package includes the following components:
- Aihand Cordless Pressure Washer Unit
- 21V 4.0Ah Lithium-Ion Battery
- Battery Charger
- 16.5 ft Water Hose with Filter Basket
- 6-in-1 Multi-Function Spray Nozzle
- High/Low Pressure Nozzle
- 400ml Foam Cannon (Mixture Container)
- 3 Faucet Adapters (for 3/4" and 1/2" hose threads and other faucet types)
- Extension Pole
- Cola Bottle Adapter
- Storage Case
- User Manual
- Spare Rubber Rings
Figure 2: Contents of the Aihand Cordless Pressure Washer package, neatly organized in the storage case.
Video 1: An unboxing video demonstrating the contents of the Aihand Cordless Pressure Washer package, showing each component as it is removed from the carrying case.
3. Safety Instructions
Always read and understand all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.
- Personal Safety: Always wear appropriate eye protection (safety glasses) and protective clothing when operating the pressure washer. Do not point the spray nozzle at people, pets, or electrical equipment. Keep children and bystanders away while operating.
- Electrical Safety: Ensure the battery is fully charged before use. Disconnect the battery pack from the pressure washer before making any adjustments, changing accessories, or storing the tool. Do not expose the battery or charger to water or wet conditions.
- Water Source Safety: Use only clean water as a water source. Do not use corrosive or flammable liquids. Ensure the water filter is properly installed to prevent debris from entering the pump.
- Operation Safety: Hold the pressure washer firmly with both hands during operation. Do not overreach or stand on unstable surfaces. Be aware of the recoil force when starting the unit.
- Maintenance Safety: Before performing any maintenance, ensure the pressure washer is turned off and the battery is removed. Use only manufacturer-recommended replacement parts and accessories.
4. Setup
Follow these steps to set up your Aihand Cordless Pressure Washer for operation:
- Install the Battery: Ensure the 21V 4.0Ah battery is fully charged. Align the battery with the slot at the base of the pressure washer handle and slide it in until it clicks securely into place.
- Connect the Water Hose: Attach the 16.5 ft water hose to the water inlet on the pressure washer unit. Ensure the connection is tight to prevent leaks. Place the filter basket end of the hose into your chosen water source (e.g., bucket of water, lake).
- Attach Nozzle/Accessory: Choose the appropriate nozzle or accessory for your task.
- For 6-in-1 or High/Low Pressure Nozzle: Press and rotate the nozzle onto the end of the pressure washer or extension pole until it locks.
- For Foam Cannon: Attach the foam cannon to the end of the pressure washer or extension pole. Fill the 400ml container with your desired cleaning solution.
- For Extension Pole: If extra reach is needed, connect the extension pole to the pressure washer unit, then attach your chosen nozzle/accessory to the end of the extension pole.
- For Cola Bottle Adapter: Screw the cola bottle adapter onto a standard plastic bottle filled with water, then press the adapter into the water inlet of the pressure washer.
- Priming the Pump (Important for first use or if water is not spraying): If the unit is not spraying water, remove the water inlet pipe. Press and hold the power button while continuously filling water into the inlet until water sprays from the nozzle. Please avoid letting water enter the pressure washer's internal components.
Video 2: A detailed installation guide for the Aihand Cordless Pressure Washer, demonstrating how to attach various nozzles, the extension pole, and the water hose.
Video 3: Instructions on how to prime the Aihand Cordless Pressure Washer if it is not absorbing water, showing the process of manually filling the inlet while holding the power button.
Figure 3: Diverse water supply alternatives for the Aihand Cordless Pressure Washer, including bucket, faucet, and soda bottle connections.
5. Operating Instructions
Once your pressure washer is set up, follow these guidelines for effective and safe operation:
- Start the Unit: Press the power button on the handle to start the pressure washer. The unit will begin drawing water and spraying.
- Select Spray Pattern (6-in-1 Nozzle): Rotate the head of the 6-in-1 nozzle to select your desired spray pattern: 0° (pencil jet), 15°, 25°, 40° (fan spray), Fan-Shaped Mode, or Shower Mode. Choose a pattern appropriate for the cleaning task and surface.
- Apply Detergent (with Foam Cannon): If using the foam cannon, ensure it is filled with detergent. The foam cannon allows you to adjust the amount of foam dispensed. Spray the detergent onto the surface, allowing it to soak for a few minutes before rinsing.
- Cleaning Technique: Hold the nozzle a safe distance from the surface to avoid damage. Start with a wider spray pattern and lower pressure on delicate surfaces, gradually increasing as needed. Move the nozzle in a sweeping motion to ensure even cleaning.
- Stop the Unit: Release the power button to stop the water flow. For prolonged breaks or when finished, remove the battery.
Figure 4: The Aihand Cordless Pressure Washer in action, demonstrating its versatility for cleaning various outdoor items and surfaces.
Figure 5: Detailed view of the 6-in-1 nozzle, illustrating its multiple spray settings for various cleaning needs.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your Aihand Cordless Pressure Washer:
- Clean the Water Filter: Regularly inspect and clean the filter basket on the water hose to remove any accumulated debris. A clogged filter can reduce water flow and pressure.
- Rinse After Use: After using detergents or cleaning solutions, run clean water through the pressure washer for a few minutes to flush out any residue from the pump and nozzles.
- Store Properly: Store the pressure washer, battery, and accessories in the provided storage case in a dry, cool place, away from direct sunlight and extreme temperatures.
- Battery Care: Store the battery in a charged state. If storing for extended periods, charge the battery every 3-6 months to maintain its health.
- Winterization: In cold climates, ensure all water is drained from the unit and hose before storing to prevent freezing and damage.

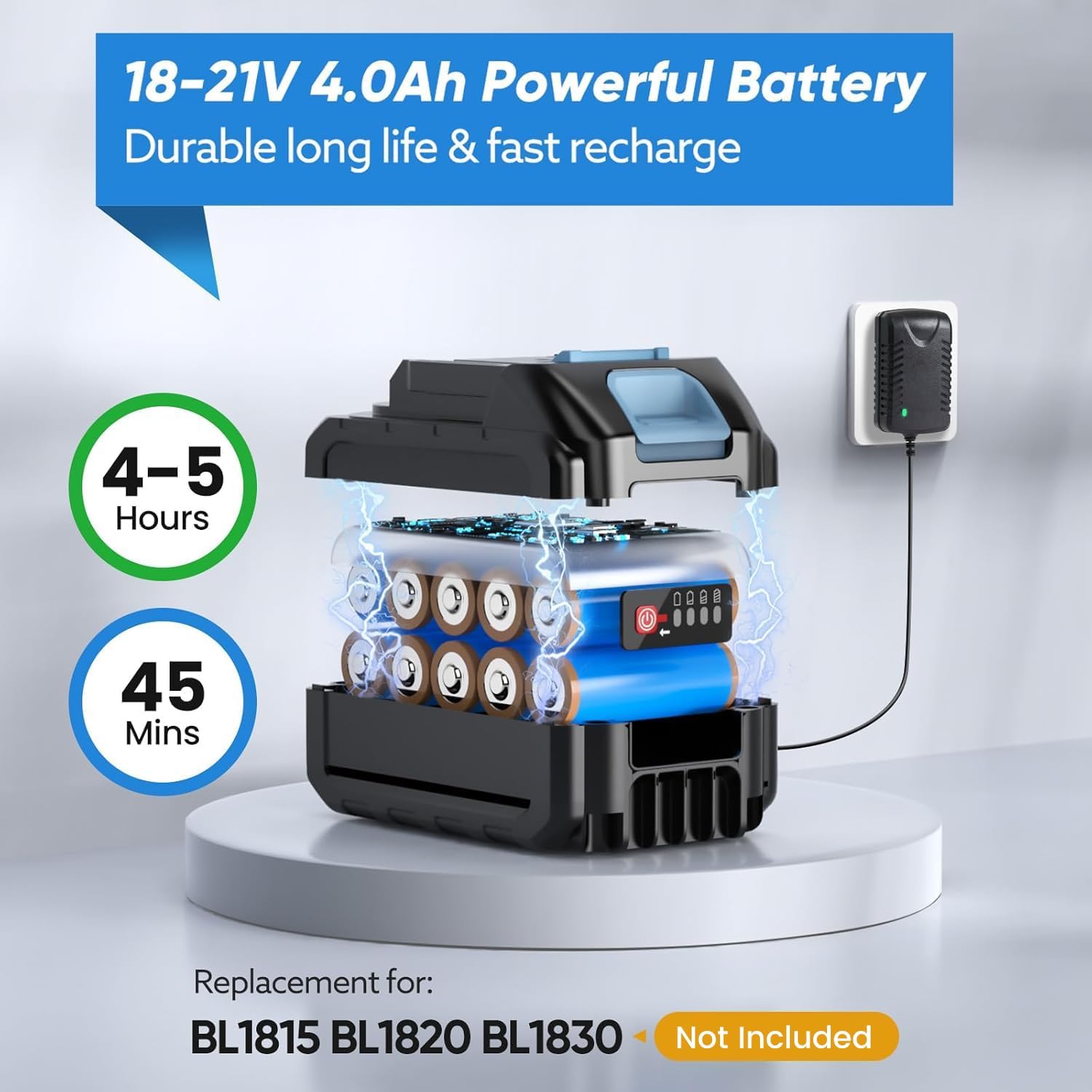

Figure 6: The 21V 4.0Ah battery, highlighting its power and recharge time.
7. Troubleshooting
If you encounter issues with your Aihand Cordless Pressure Washer, refer to the following troubleshooting tips:
| Problem | Possible Cause | Solution |
|---|---|---|
| No water spraying / Low pressure | Air in the pump; Clogged water filter; Insufficient water source; Loose hose connection. | Prime the pump (see Setup section); Clean the water filter; Ensure adequate water supply; Tighten all hose connections. |
| Unit not starting | Battery not charged; Battery not properly installed; Faulty battery or unit. | Charge the battery; Reinstall the battery securely; Contact customer support if issue persists. |
| Water leaking from connections | Loose connections; Damaged O-rings. | Tighten all connections; Replace damaged O-rings with spare parts. |
8. Specifications
- Brand: Aihand
- Model: PW101
- Power Source: Battery Powered (21V 4.0Ah Lithium-Ion)
- Maximum Pressure: 986 PSI
- Maximum Flow Rate: 215 L/H (2 Gallons Per Minute)
- Item Weight: 2.5 Pounds
- Product Dimensions: 10.24"L x 8.46"W x 1.18"H
- Hose Length: 16.5 Feet
- Foam Cannon Volume: 400 Milliliters
- Certification: CE
9. Warranty and Support
Aihand provides a 12-month warranty for your cordless pressure washer, ensuring peace of mind and reliable performance. If you encounter any problems or have questions, please contact our customer support team.
Customer Service Email: cs@aihandstore.com
Please provide your model number (PW101) and purchase details when contacting support for faster assistance.
