1. Introduction
Welcome to the instruction manual for your Solarhome TA3107 465778-5018S Turbocharger. This document provides essential information for the proper installation, operation, and maintenance of your turbocharger.
This turbocharger is designed for compatibility with various Caterpillar Backhoe models (416B, 416C, 426, 426B, 426C, 428, 428B, 428C) and JCB Engine C4.236.
Please read this manual thoroughly before installation and operation to ensure safe and efficient performance.
2. Safety Information
General Safety Guidelines
- Installation should be performed by qualified personnel with experience in engine and turbocharger systems.
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation and maintenance.
- Engine components, especially the turbocharger, can reach high temperatures. Allow the engine to cool completely before servicing.
- Be aware of rotating parts within the turbocharger. Never operate the engine with protective covers removed.
- Handle engine fluids (oil, coolant) responsibly and dispose of them according to local regulations.
- Ensure the engine is turned off and the battery is disconnected before beginning any work on the turbocharger.
3. Setup and Installation
Pre-Installation Checks
- Inspect the new turbocharger for any signs of shipping damage.
- Verify that the part numbers on the new turbocharger match the required specifications for your equipment.
- Ensure all connecting pipes, hoses, and gaskets are clean and free from debris.
- Check the engine's oil supply and drain lines for obstructions or damage.
Installation Procedure
- Disconnect the vehicle's battery to prevent accidental starting.
- Carefully remove the old turbocharger, noting the position of all connections.
- Clean all mounting surfaces on the engine and exhaust manifold thoroughly. Remove any old gasket material.
- Install new gaskets for all connections (oil inlet, oil drain, exhaust inlet, exhaust outlet).
- Mount the new Solarhome TA3107 465778-5018S Turbocharger, ensuring all bolts are tightened to the manufacturer's specified torque settings.
- Connect the oil supply line, ensuring it is properly primed with clean engine oil before final connection.
- Connect the oil drain line, air intake, and exhaust outlet.
- Reconnect the battery.
- Perform a visual inspection for any loose connections or potential leaks.

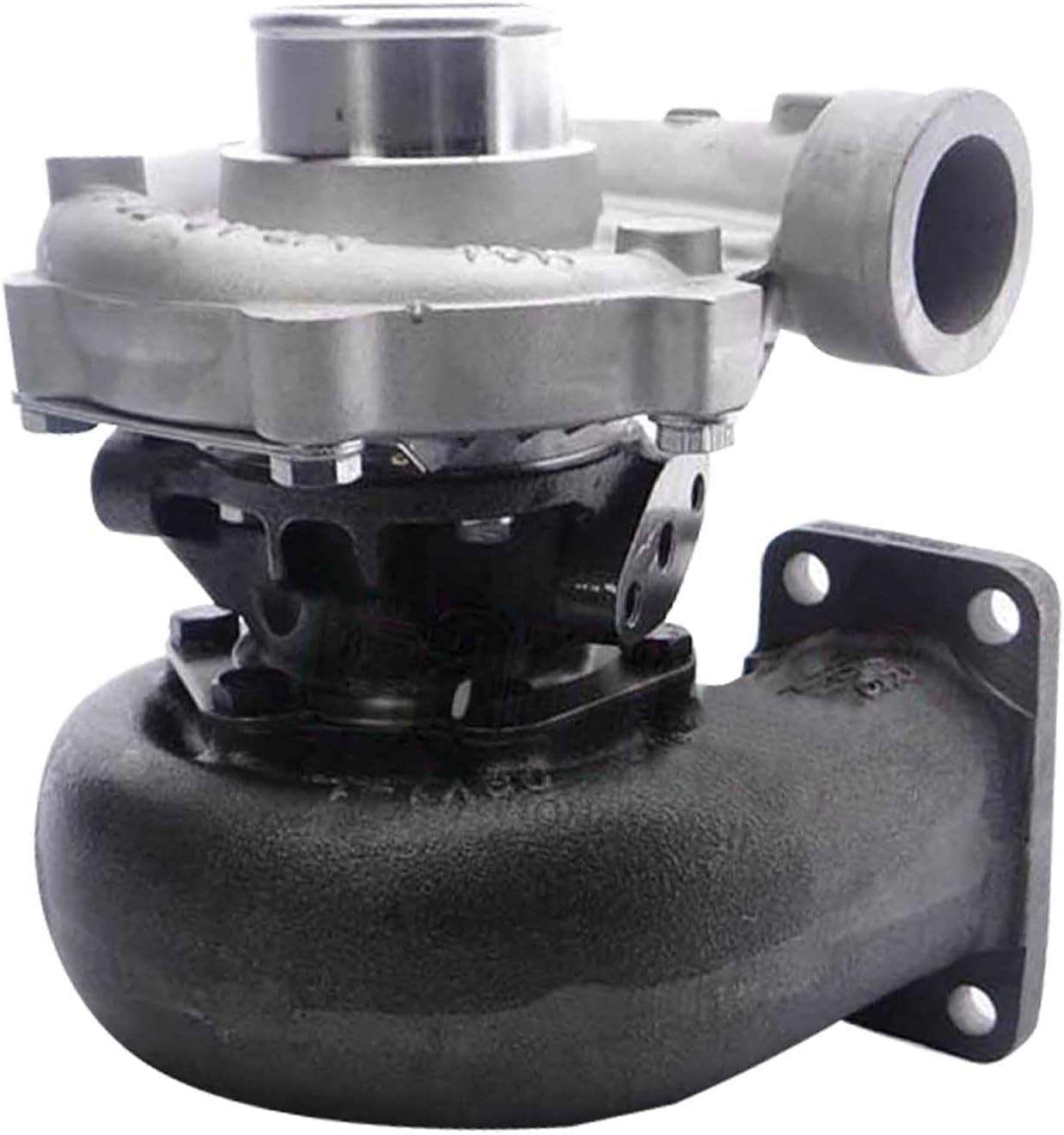

This image displays the Solarhome TA3107 465778-5018S Turbocharger, showing its compressor housing, turbine housing, and mounting flanges. The unit is designed for robust performance in heavy-duty applications.
4. Operating Instructions
Initial Start-up
- After installation, crank the engine without allowing it to start (e.g., by disabling fuel injection) for 10-15 seconds to allow the oil system to prime the turbocharger bearings.
- Start the engine and allow it to idle for several minutes. Check for any unusual noises, vibrations, or leaks.
- Monitor engine oil pressure and temperature gauges to ensure they are within normal operating ranges.
Normal Operation
- Always allow the engine to reach operating temperature before applying full load or high RPMs.
- Avoid sudden acceleration or deceleration, especially when the engine is cold.
- Before shutting down the engine after heavy operation, allow it to idle for 2-5 minutes. This allows the turbocharger to cool down and prevents oil coking in the bearing housing.
5. Maintenance
Routine Maintenance Schedule
| Maintenance Item | Frequency | Action |
|---|---|---|
| Engine Oil and Filter Change | As per engine manufacturer's recommendations | Use high-quality oil and filters to ensure proper lubrication of the turbocharger. |
| Air Filter Inspection/Replacement | Every 250-500 hours or as needed | Ensure air filter is clean and free of obstructions to prevent foreign object damage to the compressor wheel. |
| Oil Lines and Connections | Every 500 hours or during oil changes | Inspect for leaks, kinks, or blockages. Ensure proper oil flow to and from the turbocharger. |
| Exhaust System Inspection | Annually or as needed | Check for cracks, leaks, or loose connections that could affect turbocharger performance. |
Cleaning and Inspection
Regularly inspect the turbocharger for external damage, oil leaks, or unusual wear. Pay close attention to the compressor and turbine wheels for any signs of impact or rubbing. If any issues are detected, consult a qualified technician.
6. Troubleshooting
Common Issues and Solutions
| Symptom | Possible Cause | Solution |
|---|---|---|
| Low Engine Power / Low Boost | Boost leak, clogged air filter, wastegate malfunction, damaged compressor wheel. | Check all air hoses and connections for leaks. Inspect and replace air filter. Check wastegate operation. Inspect compressor wheel for damage. |
| Excessive Exhaust Smoke | Oil leak into turbine housing, worn turbocharger seals, engine issues. | Check oil drain line for blockages. Inspect turbocharger for oil leaks. Consult engine diagnostics. |
| Unusual Noise (Whining, Grinding) | Bearing wear, foreign object damage, impeller rubbing housing. | Immediately shut down the engine. Inspect turbocharger for damage. Professional inspection and repair required. |
| Oil Leak from Turbocharger | Blocked oil drain, worn seals, excessive crankcase pressure. | Clear oil drain line. Check PCV system. Inspect turbocharger seals. |
For persistent issues or symptoms not listed, it is recommended to consult a qualified mechanic or engine specialist.
7. Specifications
Product Specifications
- Model: TA3107
- Part Numbers: 465778-5018S, 2674398, 465778-0018, 465778-0017, 0R4543
- Brand: Solarhome
- Compatibility: Caterpillar Backhoe 416B, 416C, 426, 426B, 426C, 428, 428B, 428C; JCB Engine C4.236
8. Warranty and Support
Warranty Information
For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your seller directly. Keep your proof of purchase for any warranty claims.
Customer Support
If you have any questions regarding the installation, operation, or maintenance of your Solarhome TA3107 465778-5018S Turbocharger, please contact the seller or manufacturer's customer support for assistance.
