Seesii 4-in-1 Portable Gas Detector User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of your Seesii 4-in-1 Portable Gas Detector. This device is designed to accurately detect and monitor concentrations of four specific gases: combustible gases (EX), oxygen (O2), hydrogen sulfide (H2S), and carbon monoxide (CO). Please read this manual thoroughly before operating the device and retain it for future reference.

Image 1.1: Front and back view of the Seesii 4-in-1 Portable Gas Detector. The front features an LCD screen and control buttons, while the back shows a sturdy clip for attachment.

2. Product Overview

2.1 Key Features

• 4-in-1 Gas Detection: Simultaneously monitors combustible gases (EX), oxygen (O2), hydrogen sulfide (H2S), and carbon monoxide (CO).
• High Sensitivity and Precision: Detection error better than ≤ ± 5% F.S. with a rapid response time (T<30s).
• Multiple Alarm Methods: Features audio, light, vibration, and display alarms to alert users to hazardous gas levels.
• Rechargeable Battery: Equipped with an 1800mAh lithium battery for approximately 12 hours of continuous operation.
• Durable Construction: Made from high-strength ABS engineering plastic, offering waterproof, dustproof, and explosion-proof properties.
• Portable Design: Compact size with a rear clip for easy carrying and hands-free operation.

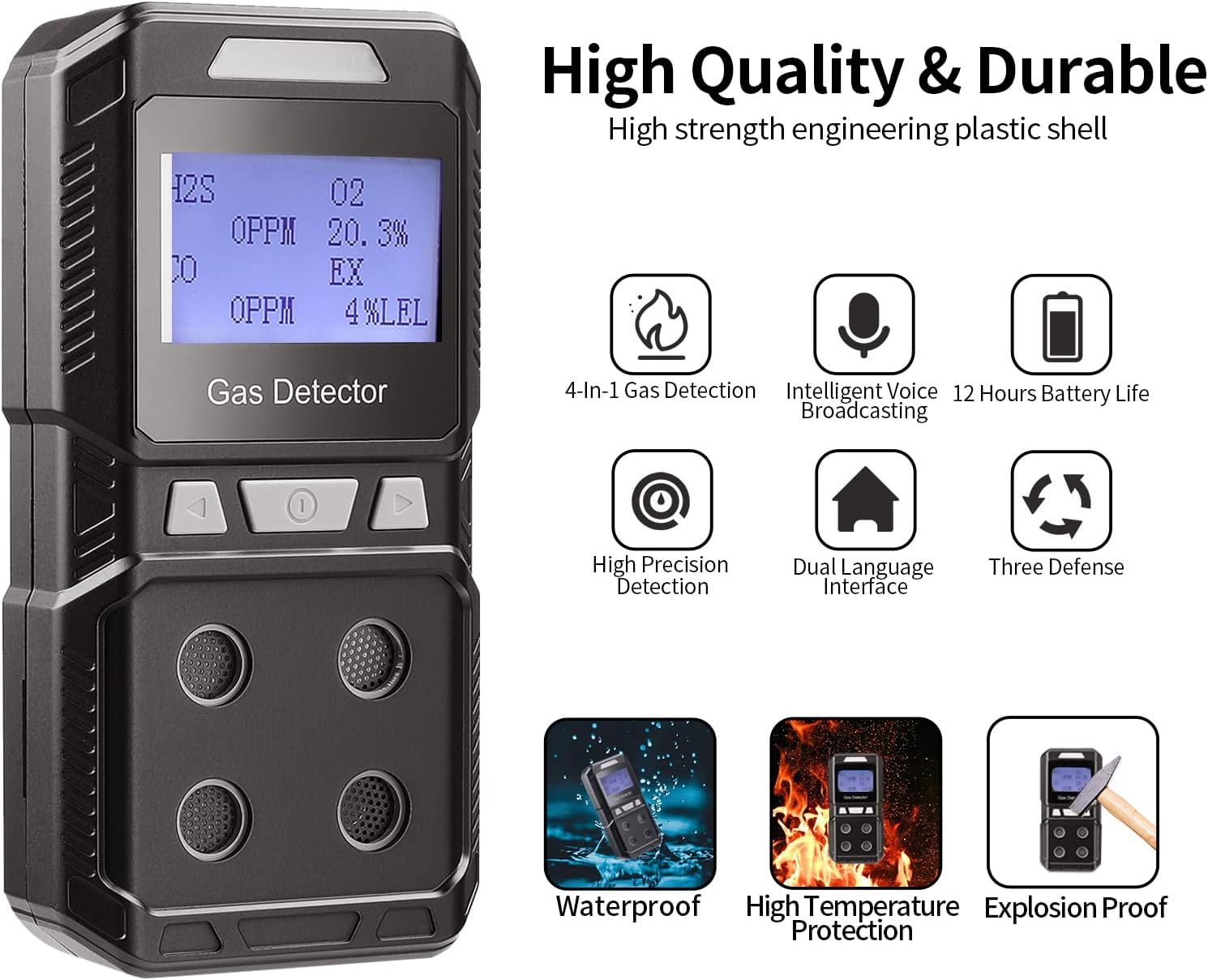

Image 2.1: The gas detector showcasing its high quality and durable features, including 4-in-1 gas detection, intelligent voice broadcasting, 12 hours battery life, high precision detection, dual language interface, and three defense (waterproof, high temperature protection, explosion proof).

Image 2.2: Visual representation of the detector's durability, highlighting its resistance to high temperatures, waterproof design, dustproof capabilities, and explosion-proof construction.

2.2 Components

Image 2.3: Labeled diagram of the gas detector. Key components include the USB Charging Port, Alarm Light, LCD Screen, Press Keys, and individual sensors for H2S, O2, CO, and EX gases.

• USB Charging Port: For recharging the internal battery.
• Alarm Light: Visual indicator for alarms.
• LCD Screen: Displays real-time gas concentrations and device status.
• Press Keys: Used for navigation, settings adjustment, and power control.
• Gas Sensors: Dedicated sensors for Hydrogen Sulfide (H2S), Oxygen (O2), Carbon Monoxide (CO), and Combustible Gases (EX).

3. Setup

3.1 Package Contents

Upon unpacking, ensure all items are present:

• Seesii 4-in-1 Portable Gas Detector
• USB Charging Cable
• Power Adapter
• Carrying Bag
• User Manual (this document)
• Sensor Mask (if included)

Image 3.1: The complete package contents, including the gas detector, carrying bag, user manual, USB cable, adapter, and sensor mask.

3.2 Charging the Device

Before first use, fully charge the device. Connect the USB charging cable to the detector's charging port and the power adapter, then plug into a standard electrical outlet. The charging indicator on the screen will show charging status. A full charge typically takes 4-6 hours and provides approximately 10-12 hours of working time.

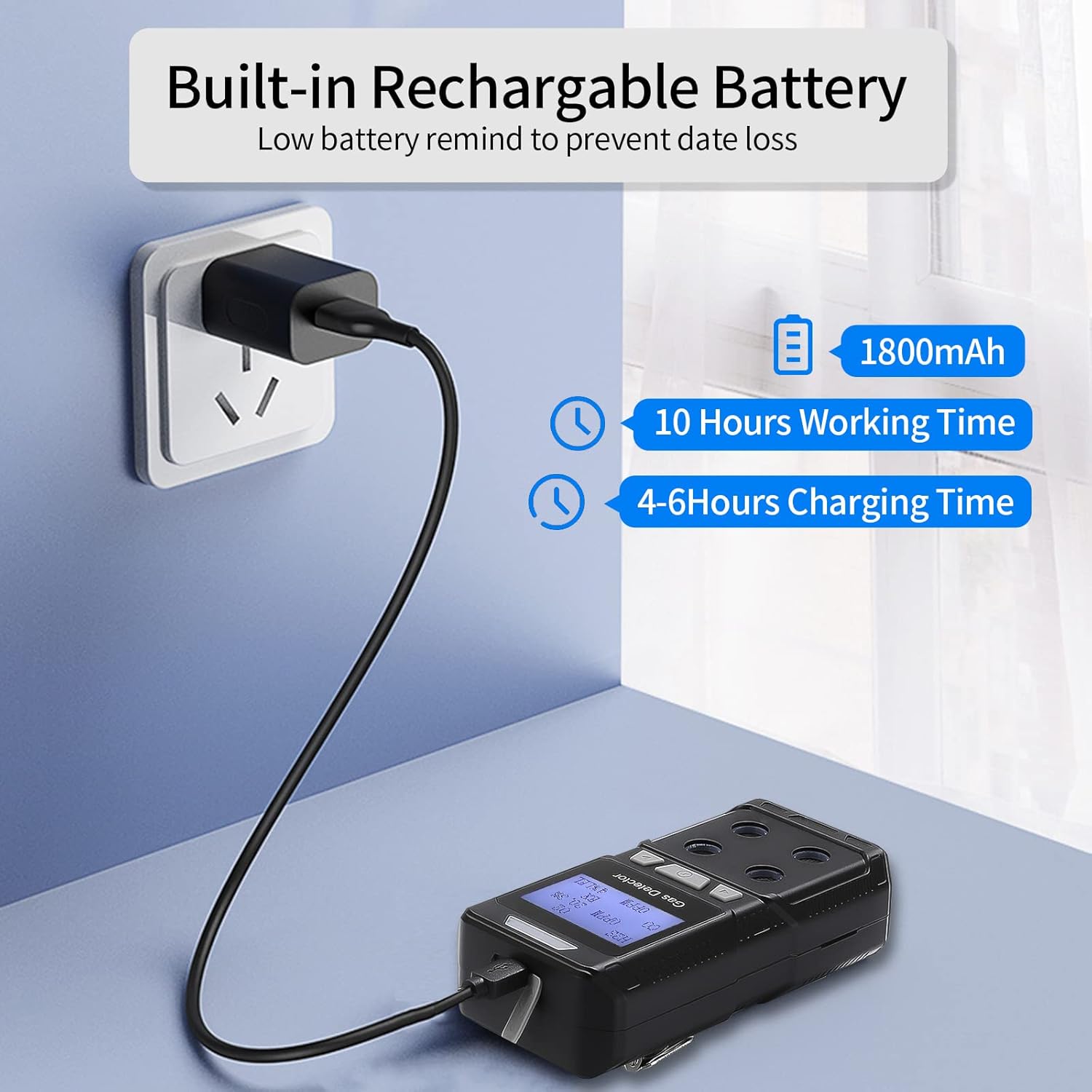

Image 3.2: The gas detector being charged via its USB port, illustrating the built-in rechargeable battery feature.

3.3 Powering On/Off

• To Power On: Press and hold the power button (usually the middle button) for a few seconds until the LCD screen illuminates and the device performs a self-test.
• To Power Off: Press and hold the power button again until the device powers down.

3.4 Initial Calibration

The Seesii 4-in-1 Portable Gas Detector is factory-calibrated and ready for immediate use upon powering on. Regular calibration checks are recommended to ensure continued accuracy, especially for professional applications. Refer to the maintenance section for more details on calibration.

4. Operation

4.1 Understanding the Display

The LCD screen displays real-time concentrations of the four gases:

• EX: 0-100% LEL (Lower Explosive Limit)
• O2: 0-30% VOL (Volume)
• H2S: 0-100 PPM (Parts Per Million)
• CO: 0-1000 PPM (Parts Per Million)

The display also shows battery status, alarm indicators, and other operational information.

Image 4.1: The detector's ability to detect Hydrogen Sulfide (H2S), Oxygen (O2), Carbon Monoxide (CO), and Combustible Gas (EX), with examples of their typical detection scenarios.

4.2 Alarm Functions

The device employs four distinct alarm methods to ensure user awareness:

• Audio Alarm: A loud audible alert.
• Visual Alarm: Flashing LED lights.
• Vibration Alarm: Tactile feedback for noisy environments.
• Display Alarm: On-screen warnings and concentration readings.

Alarms are triggered when gas concentrations exceed pre-set high or low thresholds. The device provides real-time feedback on gas concentration levels.

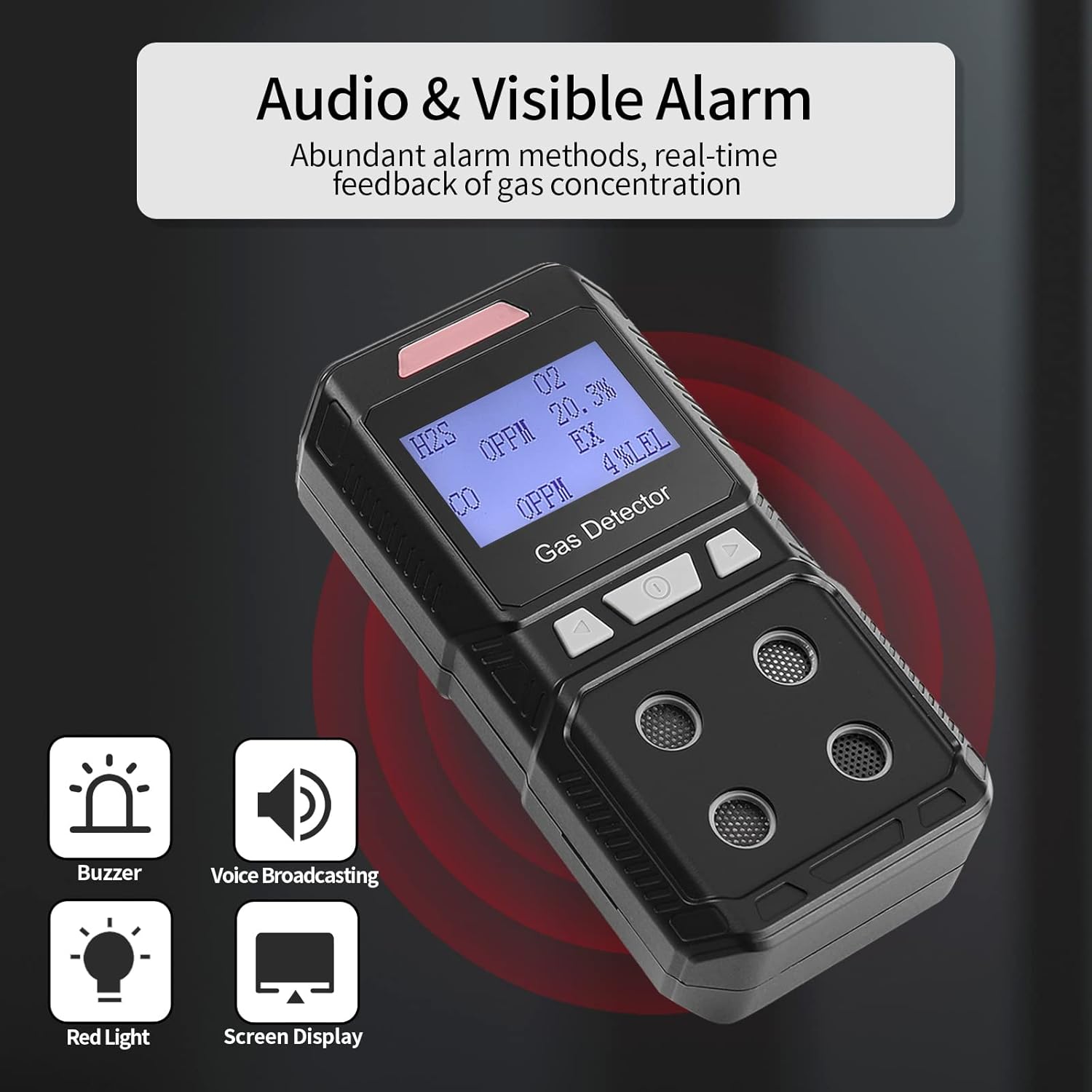

Image 4.2: The gas detector illustrating its audio and visible alarm capabilities, including buzzer, voice broadcasting, red light, and screen display.

4.3 Adjusting Alarm Thresholds

The high and low alarm values for each gas can be adjusted according to specific safety requirements. Refer to the device's menu system (accessed via the press keys) for instructions on how to modify these settings. It is crucial to set appropriate alarm thresholds based on local safety regulations and the specific environment of use.

5. Maintenance

5.1 Battery Care

• Recharge the battery when the low battery indicator appears on the screen.
• Avoid fully discharging the battery frequently to prolong its lifespan.
• Store the device in a cool, dry place if not in use for extended periods, and recharge periodically.

5.2 Cleaning

Wipe the exterior of the device with a soft, damp cloth. Do not use abrasive cleaners, solvents, or immerse the device in water. Ensure the sensor openings are clear of dust and debris.

5.3 Sensor Care and Calibration

The gas sensors are critical for accurate readings. Avoid exposing them to harsh chemicals or extreme temperatures. While factory calibrated, periodic professional calibration is recommended to maintain accuracy, especially for critical safety applications. Consult a qualified technician for calibration services.

6. Troubleshooting

• Device not powering on: Ensure the battery is charged. Connect to the charger and attempt to power on again.
• Inaccurate readings: Ensure sensors are clean and unobstructed. Consider professional recalibration if issues persist.
• Alarm sounds frequently: Check the environment for gas sources. If no gas is present, verify alarm threshold settings. If the issue persists, the sensor may require service.
• Screen not displaying: Check battery level. If charged, try restarting the device.
• No response from buttons: Restart the device. If unresponsive, contact customer support.

For issues not covered here, please refer to the contact information in the Warranty and Support section.

7. Specifications

8. Safety Information

Always adhere to the following safety guidelines when using the Seesii 4-in-1 Portable Gas Detector:

• This device is a detection tool and should not replace proper safety procedures or personal protective equipment.
• Do not operate the device in environments exceeding its specified operating conditions (temperature, humidity).
• Regularly check the device for physical damage before use. Do not use if damaged.
• Ensure the sensors are not blocked or covered during operation.
• If an alarm sounds, immediately follow your workplace's safety protocols for gas leaks or hazardous atmospheres. Evacuate the area if necessary.
• Do not attempt to repair or modify the device yourself. Refer all servicing to qualified personnel.
• Keep the device away from strong electromagnetic fields.
• Store the device in a safe place, out of reach of children.

9. Warranty and Support

The Seesii 4-in-1 Portable Gas Detector is designed for reliability and durability. For warranty information, technical support, or service inquiries, please contact your retailer or the manufacturer directly. Please have your model number (UK54LS-FBADYL0002) and purchase date available when contacting support.
