Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your NIFER replacement belt for the MX-210V Variable Speed Lathe. This belt is designed as a direct aftermarket replacement to ensure optimal performance of your equipment. Please read this manual thoroughly before attempting any installation or maintenance procedures.
Product Overview

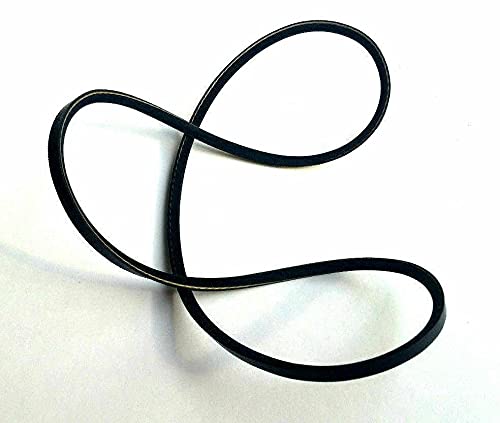

This image displays the black replacement belt, coiled on a white background, highlighting its flexible and durable construction, ready for installation.
The NIFER replacement belt is a high-quality, aftermarket component specifically manufactured for the MX-210V Variable Speed Lathe. It is designed to transmit power efficiently from the motor to the spindle, maintaining the variable speed capabilities of the lathe. This belt is a brand new, unused part, ensuring reliable performance.
Setup and Installation
Proper installation is crucial for the longevity and performance of the replacement belt. Always ensure the lathe is powered off and unplugged before beginning any installation or maintenance.
- Safety First: Disconnect the lathe from its power source. Ensure all moving parts have come to a complete stop.
- Access the Belt Compartment: Refer to your MX-210V Lathe's original manual for instructions on how to safely open the belt compartment or access the drive system. This typically involves removing a cover or panel.
- Remove the Old Belt: Carefully remove the worn or broken belt. Note its routing path if it's complex. You may need to loosen a tensioning mechanism or motor mount to create slack.
- Inspect Pulleys: Before installing the new belt, inspect the pulleys for any damage, wear, or debris. Clean them thoroughly if necessary to ensure proper grip and prevent premature wear on the new belt.
- Install the New Belt: Route the new NIFER belt around the pulleys. Ensure it sits correctly in the grooves. Avoid forcing the belt, as this can damage it. If there's a tensioning mechanism, ensure it's in a relaxed position during installation.
- Adjust Belt Tension: Once the belt is in place, adjust the tension according to the MX-210V Lathe's specifications. The belt should be taut enough to prevent slipping but not so tight that it puts excessive strain on the motor bearings or pulleys. A common test is to twist the belt; it should twist about 90 degrees with moderate thumb pressure.
- Secure and Test: Re-secure any covers or panels. Plug in the lathe and perform a brief test run at a low speed to ensure the belt operates smoothly without unusual noise or vibration.
Operating Considerations
While the belt itself does not have operational controls, its proper function is integral to the lathe's operation. Ensure the belt is always correctly tensioned and free from obstructions. Avoid overloading the lathe, as this can cause the belt to slip or wear prematurely. Regularly check for any signs of slipping, unusual noise, or excessive heat during operation, which may indicate a tension issue or other problem.
Maintenance
Regular maintenance extends the life of your replacement belt and ensures consistent lathe performance.
- Periodic Inspection: Visually inspect the belt every 50-100 hours of operation, or at least monthly, for signs of wear, cracking, fraying, glazing, or oil contamination.
- Tension Check: Verify belt tension periodically. A loose belt can slip, causing power loss and heat, while an overly tight belt can strain bearings.
- Cleaning: Keep the belt and pulleys free from dust, chips, oil, and grease. Use a clean, dry cloth to wipe down surfaces. Do not use solvents that could degrade the belt material.
- Environmental Conditions: Store spare belts in a cool, dry place away from direct sunlight and extreme temperatures.
- Replacement: Replace the belt at the first sign of significant wear or damage. Proactive replacement prevents unexpected downtime and potential damage to other lathe components.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Belt Slipping | Insufficient tension; Oil/grease on belt/pulleys; Worn belt/pulleys; Overload | Adjust tension; Clean belt/pulleys; Replace belt/pulleys; Reduce load |
| Excessive Noise (Squealing/Chirping) | Loose belt; Misaligned pulleys; Worn belt; Contamination | Adjust tension; Check pulley alignment; Replace belt; Clean belt/pulleys |
| Belt Overheating | Belt too tight; Misaligned pulleys; Overload; Insufficient ventilation | Adjust tension; Check pulley alignment; Reduce load; Ensure proper ventilation |
| Premature Belt Wear/Breakage | Improper tension; Misaligned pulleys; Damaged pulleys; Foreign objects; Incorrect belt type | Adjust tension; Check pulley alignment; Inspect/replace pulleys; Remove obstructions; Ensure correct belt for MX-210V |
Specifications
- Product Type: Replacement V-Belt
- Compatibility: NO Name MX-210V Variable Speed Lathe
- Bore Size (Lathe Spindle): 38mm (1 1/2 inch) - Note: This refers to the lathe's bore, not the belt's dimension. The belt is designed to fit the MX-210V's drive system.
- Condition: Brand New - Unused Aftermarket Part
- Manufacturer: NIFER
- ASIN: B09P6HN9M6
Warranty and Support
For specific warranty information regarding this NIFER replacement belt, please refer to the product listing on the retailer's website or contact the manufacturer directly. General return policies may apply as per the point of purchase. For technical support related to the installation or performance of this belt, please contact NIFER customer service or the seller.
