1. Safety Information
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be fatal or cause serious damage.
- Always disconnect power at the main circuit breaker before installation or maintenance.
- Consult a qualified electrician if you are unsure about the installation process.
- Ensure all electrical connections are made in accordance with local codes and ordinances.
- Do not exceed the maximum wattage specified for the bulbs.
- This fixture is designed for indoor use only.
2. Package Contents
Verify that all components are present before proceeding with installation:
- Mounting hardware
- Shade (wood and metal cage)
- Lighting fixture body
- Adjustable chain
- Instruction manual
3. Specifications
| Feature | Detail |
|---|---|
| Brand | LamQee |
| Model Name | 06FTL0203 |
| Product Dimensions | 18.9"L x 18.9"W x 9.06"H |
| Number of Light Sources | 5 |
| Bulb Base | E26 |
| Maximum Compatible Wattage | 60 Watts per bulb |
| Voltage | 110 Volts |
| Material | Black metal, Wood |
| Adjustable Chain Length | 47.24 inches (adjustable from 21 to 68.24 inches) |
| Installation Type | Chandelier (suitable for flat, sloped, and arched ceilings) |
| Indoor/Outdoor Usage | Indoor use only |
| Assembly Required | Yes |

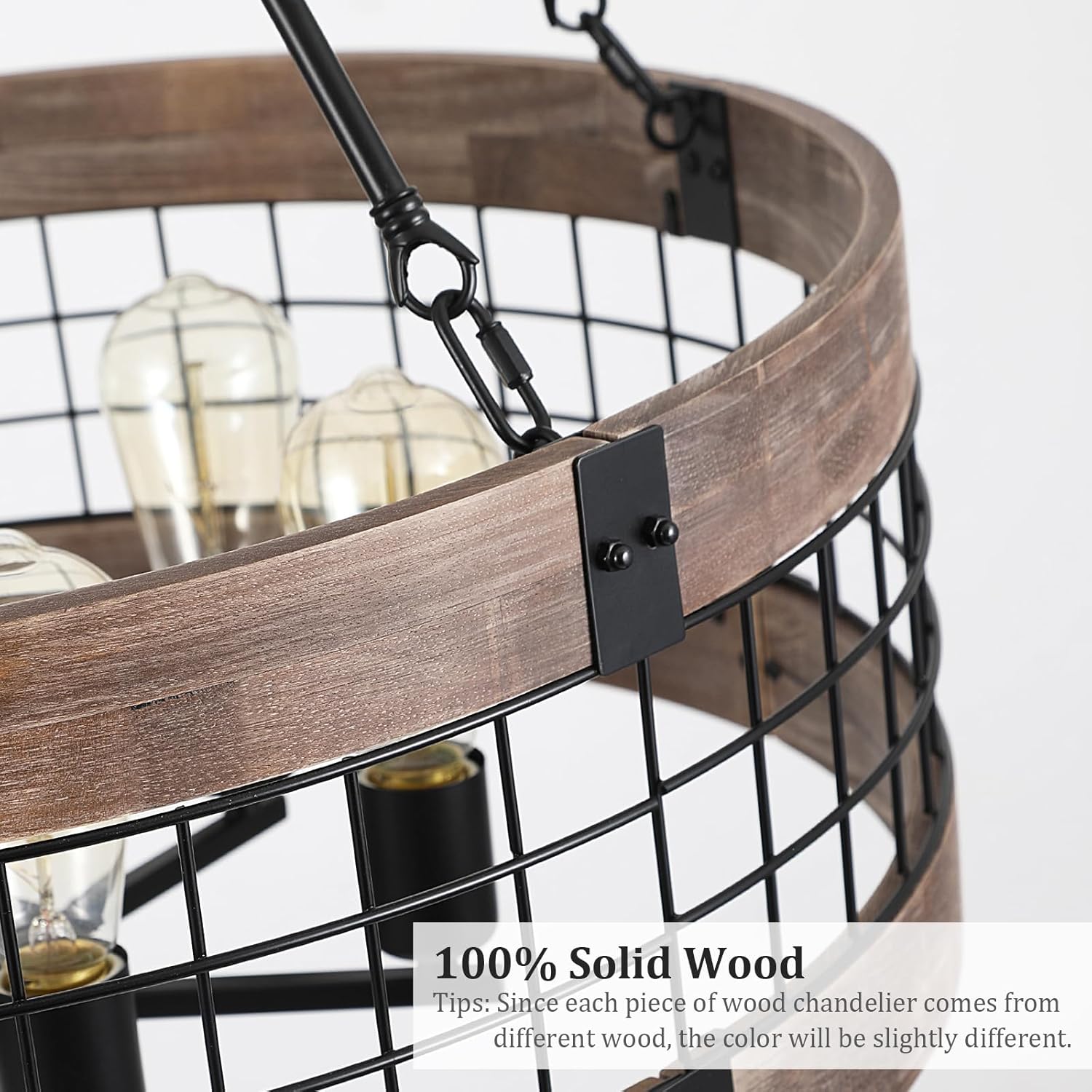

The natural wood components may exhibit slight variations in color and grain, adding to the unique character of each fixture.
4. Setup and Installation
Follow these steps for proper installation. It is recommended to have two people for installation.
- Prepare for Installation: Turn off power at the circuit breaker. Clear the work area.
- Mounting Bracket Installation: Secure the mounting bracket to the junction box in the ceiling using the provided screws. Ensure it is firmly attached.
- Adjust Chain Length: The chain length is adjustable up to 47.24 inches. Determine the desired hanging height and remove excess chain links if necessary. The minimum hanging height is 21 inches, and the maximum is 68.24 inches.
- Wiring Connections: Connect the fixture's wires to the household electrical wires according to standard electrical codes (usually black to black, white to white, and ground to ground). Use wire nuts to secure connections.
- Canopy Installation: Carefully push the canopy up to the ceiling, covering the junction box, and secure it with the provided screws or nuts.
- Attach Fixture Body: Connect the chandelier body to the chain and canopy assembly.
- Install Bulbs: Screw five E26 base bulbs (not included, max 60W each) into the sockets.
For a visual guide, please refer to the installation video provided by LamQee on the product page.
5. Operating Instructions
Once installed, operate the chandelier using a standard wall switch. This fixture requires five E26 base bulbs (not included).
- Bulb Compatibility: Compatible with incandescent, halogen, CFL, and LED bulbs.
- Dimmable Feature: The chandelier is dimmable when paired with dimmable E26 bulbs and a compatible dimmer switch (both not included). This allows for adjustable brightness to suit your preference.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your chandelier.
- Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Bulb Replacement: Always turn off the power before replacing bulbs. Allow bulbs to cool completely before handling.
- Inspection: Periodically check all connections and mounting hardware to ensure they remain secure.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | 1. Power is off 2. Loose wiring connection 3. Faulty bulb | 1. Check circuit breaker and wall switch 2. Verify all wiring connections are secure (ensure power is off) 3. Replace bulb(s) |
| Flickering lights | 1. Loose bulb 2. Incompatible dimmer switch/bulbs 3. Loose wiring | 1. Tighten bulbs 2. Ensure dimmer and bulbs are compatible 3. Check wiring connections (ensure power is off) |
| Fixture is unstable | Loose mounting hardware | Tighten mounting screws and canopy nuts (ensure power is off) |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact LamQee customer support.
8. Product Showcase

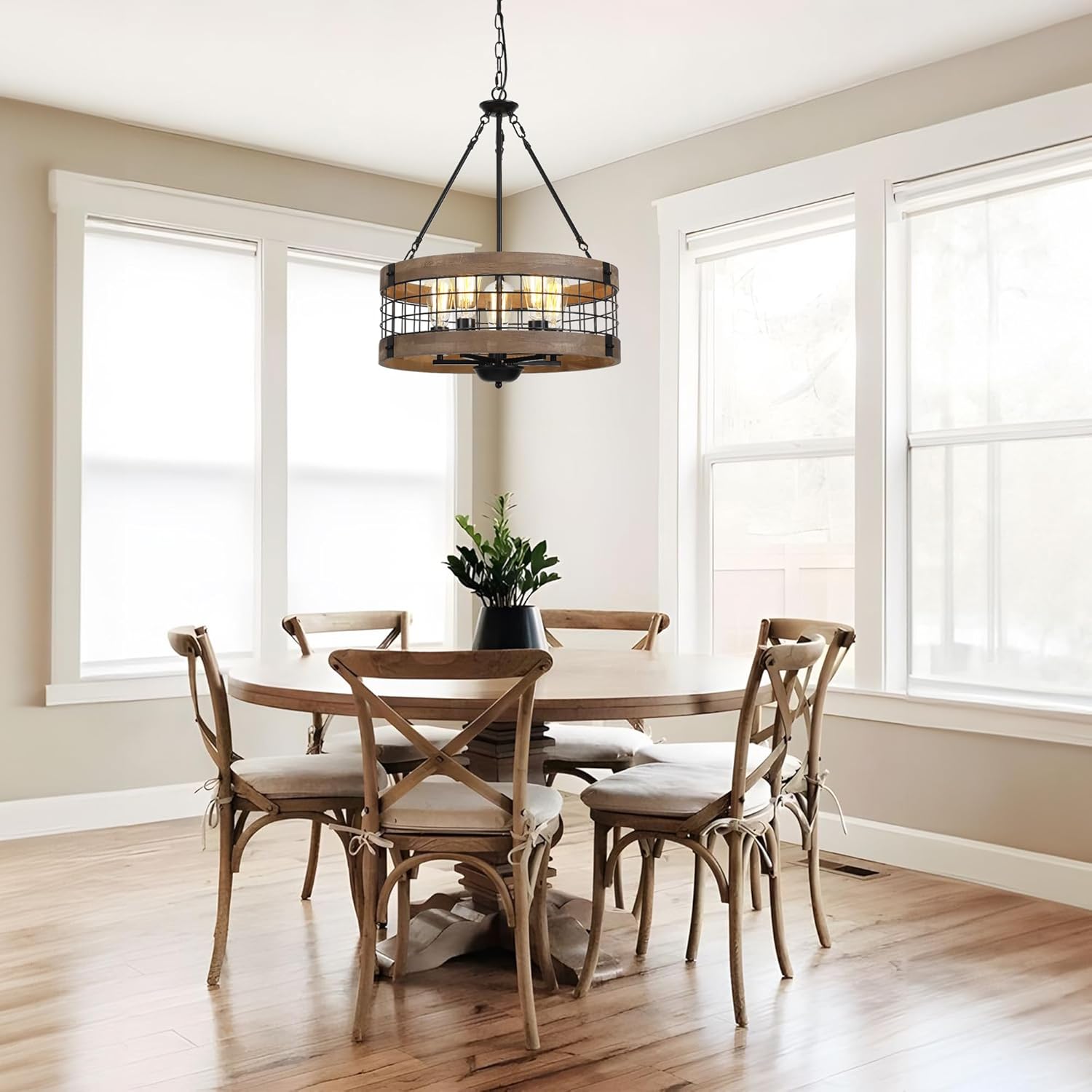

View the LamQee 19-inch 5-light farmhouse chandelier in various settings and see its features up close.
Product Videos
9. Warranty and Support
LamQee provides a limited warranty for this product. For specific warranty details, please refer to the documentation included with your purchase or contact LamQee customer service.
If you require assistance with installation, troubleshooting, or have any questions about your LamQee chandelier, please contact our support team:
- Manufacturer: LamQee
- Website: Visit the LamQee Store on Amazon
