Captiva Designs 22-inch Kettle Charcoal BBQ Grill

1. Product Overview

The Captiva Designs 22-inch Kettle Charcoal BBQ Grill is designed for outdoor cooking, offering a generous cooking area and features for convenient use and cleanup. Its porcelain-enameled lid and fire bowl are engineered for heat retention and durability, resisting rust and peeling.

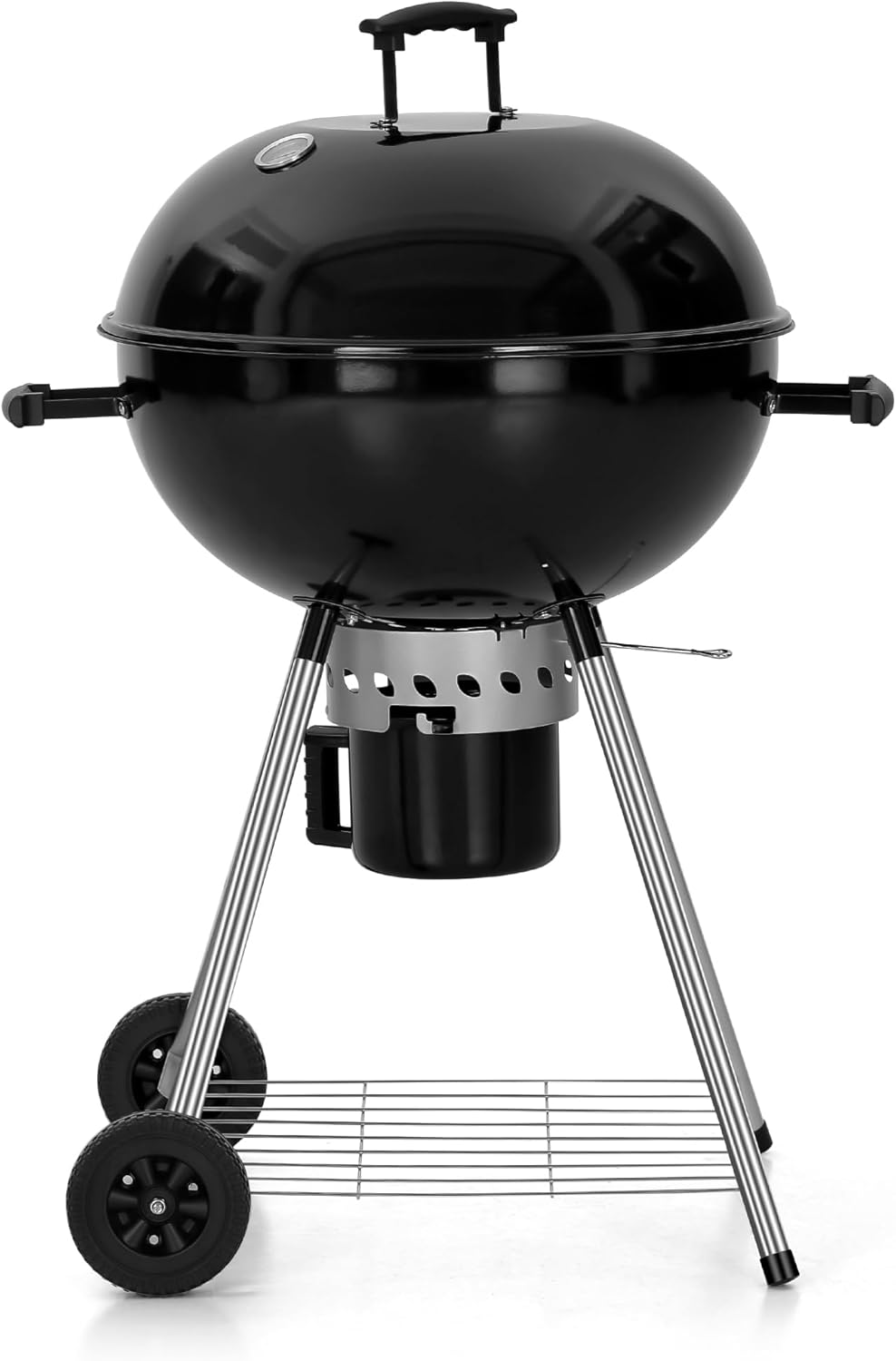

Figure 1.1: Front view of the Captiva Designs 22-inch Kettle Charcoal BBQ Grill.

Key Features:

• Porcelain-Enameled Lid and Fire Bowl: Designed to retain heat and resist rust or peeling.
• 22-inch Cooking Area: Features an extra-thick chromplated grate providing 379 square inches of cooking space, capable of grilling approximately 10-13 burger patties simultaneously.
• Mess-Free Cleanup: Equipped with a slide-out ash catcher that collects charred embers and is easily removable for quick cleaning.
• Easy Charcoal Addition: The top grill rack can be folded open to allow quick and convenient addition of charcoal during grilling, minimizing heat loss.
• Integrated Thermometer: Built into the lid for monitoring internal temperatures.
• Hangable Lid: Features a hook for convenient lid placement during grilling.

Figure 1.2: Components of the grill including the enamel lid, fire bowl, and aluminum ash catcher holder. The lid height is approximately 6.9 inches.

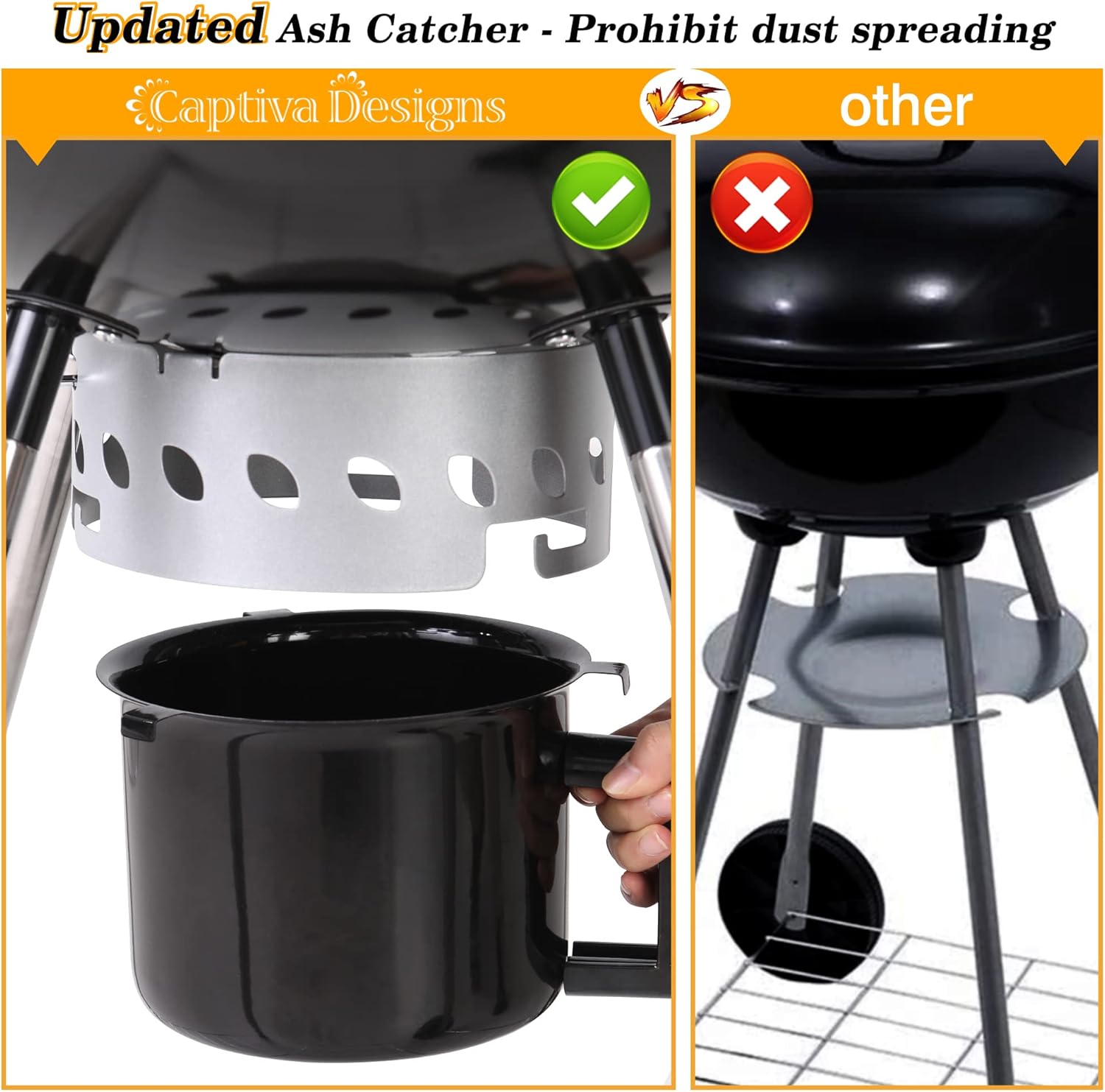

Figure 1.3: The updated slide-out ash catcher design, which prevents dust spreading, compared to older designs.

Figure 1.4: The extra thick chromplated cooking grate, designed to fold up on both sides for easy charcoal access.

Figure 1.5: Detail of the hangable lid feature, allowing the lid to be conveniently placed on the side of the grill.

Figure 1.6: Overall product dimensions: 22.2"D x 29"W x 40.5"H. Cooking surface diameter is 22.2 inches.

2. Setup and Assembly

Assembly of the Captiva Designs Kettle Charcoal BBQ Grill is required. For detailed, step-by-step instructions, please refer to the official User Guide PDF provided by the manufacturer. This guide contains diagrams and specific instructions for each component.

Important: Before beginning assembly, ensure all parts listed in the User Guide are present and undamaged. Assemble the grill on a flat, stable surface. It is recommended to have two people for assembly to ensure stability and ease of handling larger components.

You can access the User Guide PDF here.

3. Operating Instructions

3.1 Fueling the Grill

• This grill uses charcoal as its fuel source. Use high-quality charcoal for optimal performance.
• Place charcoal directly into the fire bowl. Do not overfill.
• To add charcoal during grilling, carefully lift the cooking grate or utilize the hinged sections of the grate for convenient access, minimizing heat loss.

3.2 Lighting the Charcoal

• Use a charcoal chimney starter or appropriate fire starters to ignite the charcoal. Avoid using lighter fluid directly on hot coals.
• Allow charcoal to ash over before placing food on the grate for even heat distribution.

3.3 Temperature Control

• The grill features adjustable air vents on the lid and fire bowl to control airflow and thus, temperature.
• Opening the vents increases airflow, leading to higher temperatures. Closing them reduces airflow and lowers the temperature.
• Monitor the built-in lid thermometer to maintain desired cooking temperatures.

Figure 3.1: The grill in use during an outdoor cooking session.

Figure 3.2: A user operating the grill, demonstrating the cooking surface capacity.

4. Maintenance

4.1 Cleaning the Grill

• Ash Catcher: After each use, allow the grill to cool completely. The slide-out ash catcher can be easily removed by pulling it out from beneath the fire bowl. Dispose of ashes safely.
• Cooking Grate: Clean the chromplated cooking grate with a grill brush after each use, preferably while it is still warm but not hot. For stubborn residue, soak the grate in warm, soapy water.
• Lid and Fire Bowl: The porcelain-enameled surfaces can be wiped clean with a damp cloth and mild detergent once the grill has cooled. Avoid abrasive cleaners that could damage the enamel.

Figure 4.1: The removable ash catcher facilitates easy and mess-free cleanup.

4.2 Storage

• Store the grill in a dry, covered area when not in use, especially during inclement weather or off-season.
• Consider using a grill cover to protect it from dust, moisture, and UV exposure.

5. Troubleshooting

This section addresses common issues you might encounter with your charcoal grill.

• Difficulty Lighting Charcoal: Ensure charcoal is dry. Use sufficient fire starters or a charcoal chimney. Check that bottom air vents are fully open to provide adequate oxygen.
• Temperature Too Low: Verify that both top and bottom air vents are open. Add more charcoal if necessary. Ensure the lid is properly seated to prevent heat escape.
• Temperature Too High: Partially close the top and/or bottom air vents to reduce airflow. Avoid opening the lid too frequently, as this introduces oxygen and increases temperature.
• Excessive Smoke: This can occur if charcoal is not fully ashed over before cooking, or if there is too much fat dripping onto the coals. Ensure proper charcoal preparation and manage fat drippings.
• Ash Spreading: Ensure the ash catcher is correctly installed and securely attached to the fire bowl. Empty the ash catcher regularly to prevent overflow.

If you encounter issues not covered here, please refer to the official User Guide or contact customer service.

6. Specifications

7. Warranty and Support

Captiva Designs provides a one-year warranty for this product. We are committed to offering professional customer service throughout your experience with our grill.

If you encounter any problems or have questions after receiving your item, please do not hesitate to contact us. Our customer service team aims to resolve your issues within 24 hours to ensure your satisfaction.

For further assistance or to explore other products, you can visit the official Captiva Designs Store on Amazon: Captiva Designs Store.

A comprehensive User Guide is also available in PDF format for download: Download User Guide (PDF).
