LAVOR LVR4 PLUS 160 WPS High-Pressure Washer User Manual

1. Introduction

Thank you for choosing the LAVOR LVR4 PLUS 160 WPS high-pressure washer. This cold water high-pressure washer is designed for efficient and versatile cleaning tasks around your home and garden. It features the innovative WPS (Washing Program System) which allows you to select the most suitable cleaning program for various surfaces.

This manual provides essential information for the safe and effective use, assembly, operation, and maintenance of your LVR4 PLUS 160 WPS. Please read it thoroughly before operating the appliance and keep it for future reference.

2. Safety Information

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Read all instructions: Familiarize yourself with the controls and proper use of the pressure washer.
• Wear appropriate protective gear: Always wear safety glasses or goggles, and protective clothing to prevent injury from high-pressure spray.
• Electrical Safety: Ensure the power supply matches the specifications on the rating plate. Do not operate the machine with damaged cords or plugs. Always use a residual current device (RCD) with a tripping current not exceeding 30 mA.
• Water Connection: Connect the pressure washer to a cold water supply only. Ensure the water inlet filter is clean and properly installed.
• Keep children and pets away: Never allow children or untrained personnel to operate the pressure washer.
• Avoid spraying people or animals: The high-pressure jet can be dangerous if misused. Never direct the jet at people, pets, or electrical equipment.
• Secure the gun: Always engage the trigger lock when the pressure washer is not in use to prevent accidental discharge.
• Stability: Operate the pressure washer on a stable, level surface to prevent tipping.
• Chemicals: Use only detergents recommended for pressure washers. Follow detergent manufacturer's instructions for use and disposal.

3. Package Contents

The LAVOR LVR4 PLUS 160 WPS high-pressure washer typically includes the following components:

• High-pressure washer unit
• Gun
• 8-meter high-pressure hose with quick connectors for pump and gun inlet
• VarioJet nozzle
• Turbo nozzle
• Eco nozzle
• Adjustable foam system
• Floor cleaning accessory

Figure 1: Main unit of the LAVOR LVR4 PLUS 160 WPS High-Pressure Washer.

4. Setup Instructions

Follow these steps to set up your pressure washer before first use:

1. Unpack: Carefully remove all components from the packaging.
2. Handle Assembly: Extend the ergonomic handle for comfortable transport and use.

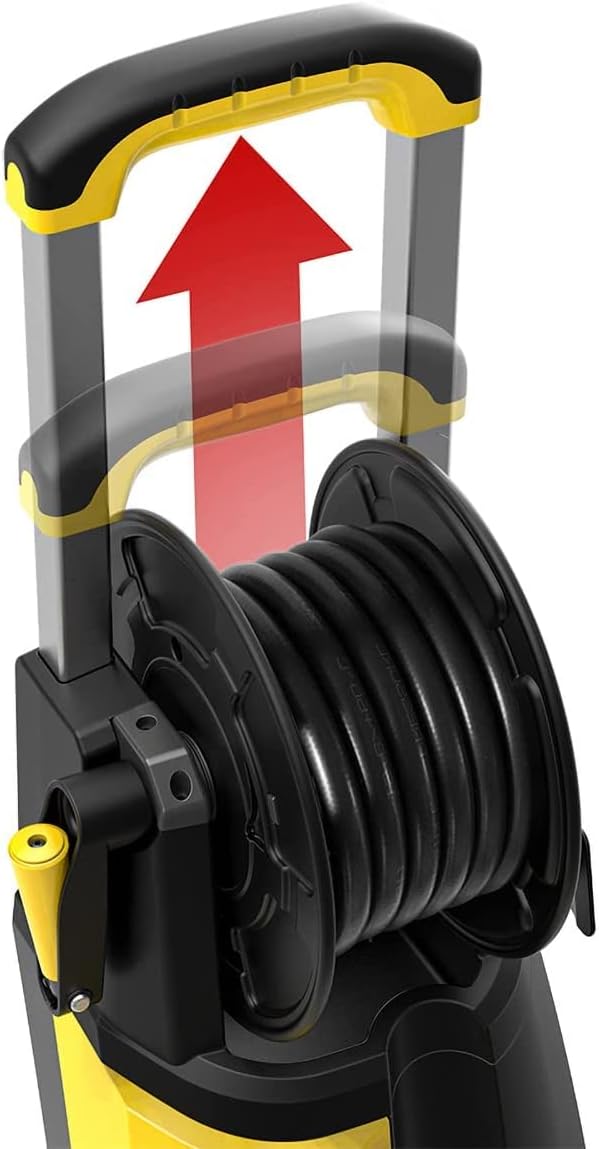

Figure 2: Illustration of the extendable handle and integrated hose reel.
3. Water Connection: Connect a garden hose (not supplied) to the water inlet on the pressure washer. Ensure the water inlet filter is clean and properly seated.

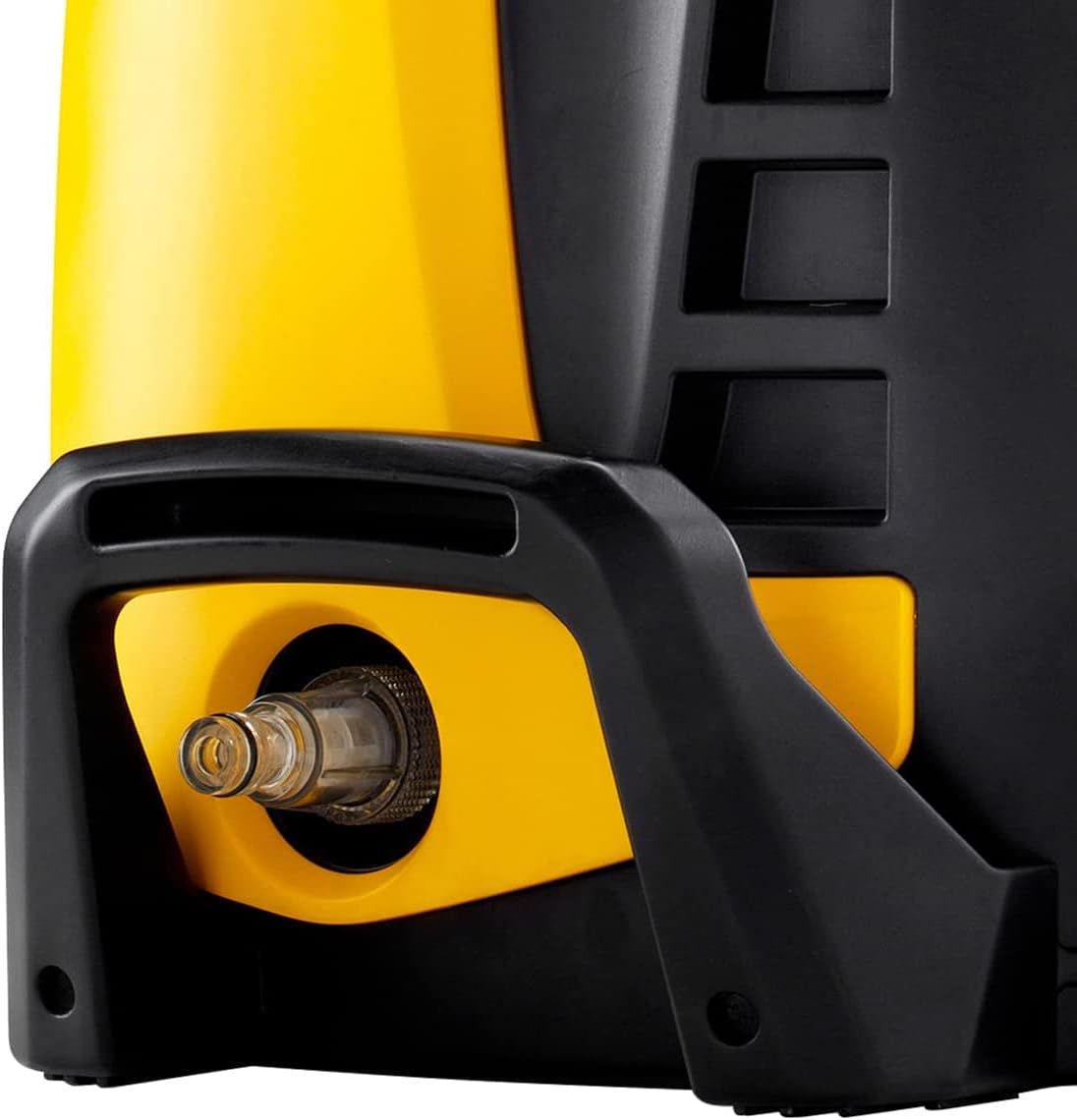

Figure 3: Close-up of the water inlet connection point.

4. High-Pressure Hose: Connect one end of the 8-meter high-pressure hose to the pressure washer's outlet and the other end to the gun. Use the quick connectors to ensure a secure fit.
5. Nozzle Attachment: Select the desired nozzle (VarioJet, Turbo, or Eco) and attach it to the gun.
6. Power Connection: Plug the power cord into a suitable grounded electrical outlet. Ensure the power cord is fully uncoiled to prevent overheating.


Figure 4: Detail of the power cord connection and integrated wheel.

5. Operating Instructions

The LVR4 PLUS 160 WPS features a Washing Program System (WPS) dial to select the appropriate pressure setting for your cleaning task.

Figure 5: The WPS dial for selecting cleaning programs.

5.1 Starting the Pressure Washer

1. Ensure all connections are secure.
2. Turn on the water supply completely.
3. Squeeze the trigger on the gun to purge air from the system until a steady stream of water emerges.
4. Turn the main power switch to the 'ON' position. The motor will start when the trigger is squeezed and stop when released (Automatic Stop System).

5.2 WPS Cleaning Programs

Rotate the WPS dial to select one of the following programs:

• Delicate Program (Soft): Ideal for cleaning sensitive surfaces such as garden furniture, wooden outdoor surfaces and furniture, parasols, and bicycles. This setting provides lower pressure to prevent damage.
• Intermediate Program (Medium): Suitable for general cleaning tasks including cars, ATVs, motorcycles, caravans, plastic furniture, rendered walls, and brick surfaces. This offers a balanced pressure for effective cleaning without excessive force.
• Intensive Program (Hard): Designed for heavy-duty cleaning of durable surfaces like stone or concrete slabs, railings, metal fences and gates, and gardening tools. This program delivers maximum pressure for stubborn dirt.

Figure 6: Using the pressure washer for vehicle cleaning (Intermediate Program).

Figure 7: The pressure washer's wheels and ergonomic handle facilitate easy transport.

5.3 Using the Adjustable Foam System

The adjustable foam system allows you to apply detergent effectively:

1. Fill the detergent tank with a suitable pressure washer detergent.
2. Attach the foam system to the gun.
3. Adjust the dial on the foam system to control the amount of detergent dispensed and the width of the foam jet.
4. Apply foam to the surface, allowing it to dwell as per detergent instructions, then rinse with clean water using a suitable WPS program.

5.4 Using the Floor Cleaning Accessory

The included floor cleaning accessory is designed for efficient cleaning of patios, driveways, and other large flat surfaces.

1. Attach the floor cleaning accessory to the gun.
2. Move the accessory evenly over the surface to be cleaned.
3. For best results, use with the Intermediate or Intensive WPS program depending on the surface and dirt level.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your pressure washer.

• After Each Use:
• Turn off the pressure washer and water supply.
• Squeeze the trigger to release any remaining pressure in the system.
• Disconnect the water hose and high-pressure hose.
• Drain any remaining water from the pump and hoses, especially before storing in freezing temperatures.
• Clean the exterior of the machine with a damp cloth.
• Water Inlet Filter: Regularly check and clean the water inlet filter to prevent debris from entering the pump.
• Nozzle Cleaning: If the nozzle becomes clogged, use the provided nozzle cleaning tool (if applicable) or a thin wire to clear any obstructions.
• Storage: Store the pressure washer in a dry, frost-free location. Wind the high-pressure hose onto the integrated reel and secure the gun and accessories.

7. Troubleshooting

Here are some common issues and their solutions:

If you encounter problems not listed here or if solutions do not resolve the issue, please contact customer support.

8. Technical Specifications

The following are the technical specifications for the LAVOR LVR4 PLUS 160 WPS high-pressure washer:

Figure 8: Repairability Index for the product, indicating ease of repair.

9. Warranty Information

Lavor products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region. Please refer to the warranty card included with your product or contact Lavor customer support for detailed information.

Availability of spare parts in the EU is guaranteed for 10 years.

10. Customer Support

For technical assistance, spare parts, or warranty claims, please contact Lavor customer support. You can find contact information on the Lavor official website or on the product packaging.

When contacting support, please have your product model number (LVR4 PLUS 160 WPS) and serial number (if applicable) ready.
