1. Introduction
Thank you for choosing the KINGYES Outdoor Hanging Patio Swing Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new swing chair. Please read these instructions thoroughly before assembly and retain them for future reference.
Image: The KINGYES Outdoor Hanging Patio Swing Chair, designed for comfort and durability in various outdoor settings.
2. Important Safety Information
WARNING: Failure to follow these safety instructions could result in serious injury or property damage.
- Ensure all hardware is securely tightened before each use.
- Do not exceed the maximum weight capacity of 660 LBS. This swing is designed for two adults.
- Keep children and pets away from the swing during assembly.
- Regularly inspect chains, hooks, and all structural components for wear, damage, or corrosion. Replace damaged parts immediately.
- Install the swing on a stable, level surface.
- Avoid swinging excessively high or performing acrobatic maneuvers.
- Do not stand on the swing.
- Keep hands and fingers clear of moving parts during operation.
3. Package Contents
Verify that all parts are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

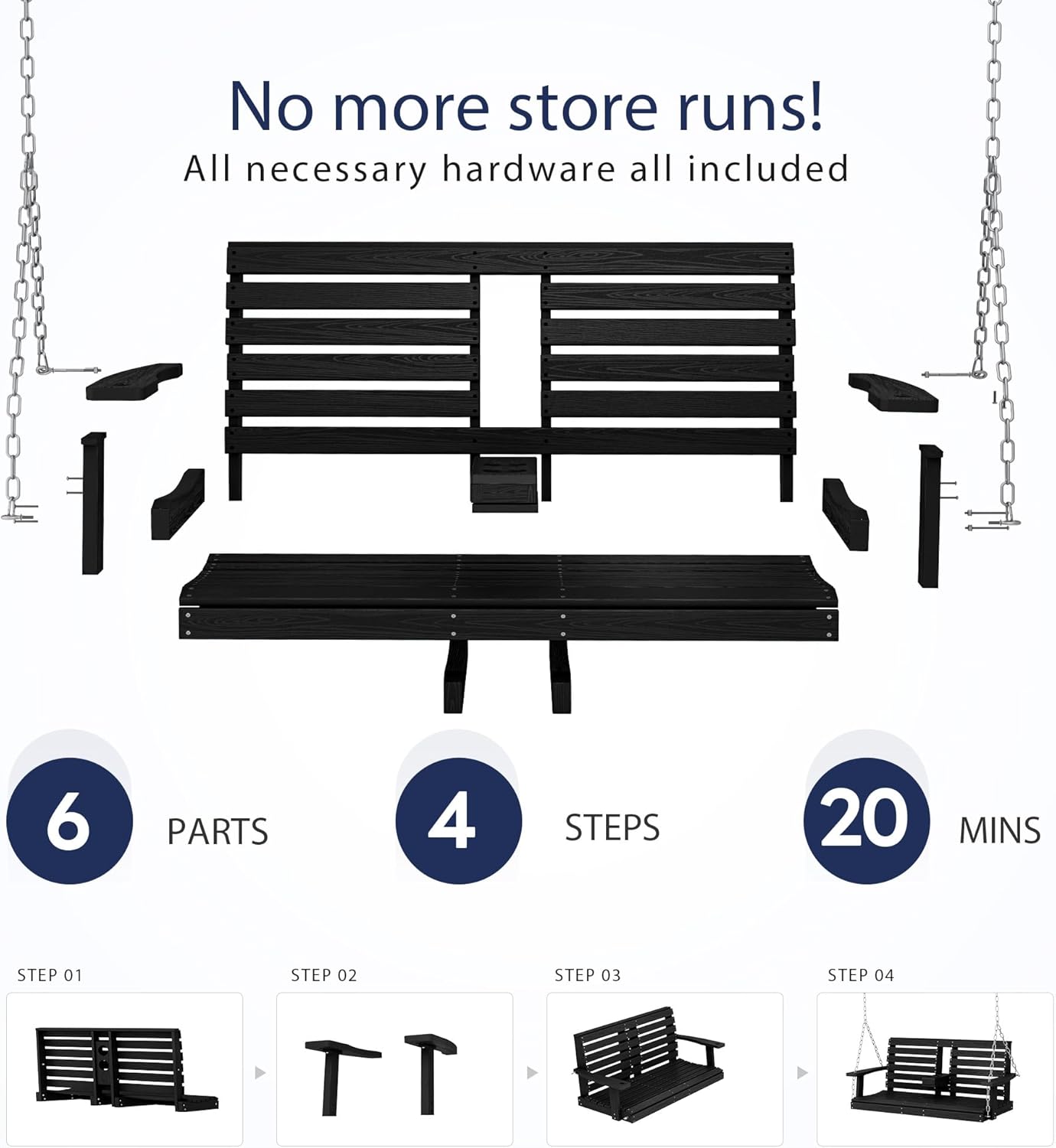

Image: All components included in the KINGYES Outdoor Hanging Patio Swing Chair package.
Parts List:
- Swing Seat (pre-assembled slats)
- Backrest (pre-assembled slats)
- Left Armrest
- Right Armrest
- Hanging Chains (304 Stainless Steel)
- Hardware Pack (bolts, nuts, washers)
4. Product Specifications
| Feature | Specification |
|---|---|
| Brand | KINGYES |
| Model Number | B09N7BFTJL |
| Color | Black |
| Material | High-Density Polyethylene (HDPE), Stainless Steel |
| Product Dimensions (D x W x H) | 48"D x 28"W x 6"H (Overall: 53.9" W x 23.6" D x 25.6" H) |
| Seat Depth | 19.3 inches |
| Item Weight | 60.6 Pounds |
| Maximum Weight Capacity | 660 Pounds |
| Seating Capacity | 2-seater |
| Cup Holder Diameter | 3.1 inches |
| Assembly Required | Yes |
Image: Key dimensions and features of the swing chair.
5. Setup and Assembly
The KINGYES Outdoor Hanging Patio Swing Chair is designed for quick assembly, typically within 30 minutes. All necessary hardware is included, and slats are pre-assembled. Follow these steps for proper installation:
- Attach Armrests: Secure the left and right armrests to the main seat frame using the provided bolts. Initially fasten hardware loosely.
- Connect Backrest: Attach the backrest to the seat frame, ensuring proper alignment.
- Insert Cup Holder Mechanism: Position the flip-down cup holder in the designated slot between the backrest sections.
- Final Tightening: Once all components are in place, fully tighten all hardware to ensure lasting stability.
- Attach Hanging Chains: Securely attach the 304 stainless steel hanging chains to the designated points on the swing chair.
- Hang the Swing: Hang the assembled swing from a sturdy, appropriate structure capable of supporting the swing's weight plus the maximum user weight (660 LBS).
Pro Tip: Initially fasten hardware loosely, then fully tighten after complete assembly to ensure lasting stability in all weather conditions.
Image: Visual guide for the initial assembly steps.
Image: Attaching the armrests to the swing chair frame.
Image: Securing the backrest and seat components during assembly.
Image: Attaching the hanging chains to the completed swing chair.
Assembly Video:
Video: Official KINGYES assembly guide for the outdoor porch swing, demonstrating step-by-step installation.
6. Operating Instructions
Your KINGYES Outdoor Hanging Patio Swing Chair is designed for comfortable and relaxing use. Here's how to make the most of its features:
Using the Flip-Down Cup Holder:
- The swing features a center-mounted flip-down cup holder.
- To use, gently pull the cup holder section forward and down until it locks into place.
- To store, push the cup holder section back up until it is flush with the backrest. This allows for seating more than two people or simply creating more space.
Image: The convenient flip-down cup holders for beverages.
General Use:
- Sit gently on the swing, distributing weight evenly.
- Enjoy a gentle swinging motion. Avoid aggressive swinging.
- The contoured slatted design provides ergonomic back support for optimal comfort.
Operation Video:
Video: Official KINGYES video demonstrating the features and use of the hanging porch swing, including the cup holders.
7. Maintenance
The KINGYES Outdoor Hanging Patio Swing Chair is crafted from premium HDPE (High-Density Polyethylene) for low maintenance and all-weather durability.
Cleaning:
- Simply wipe the swing occasionally with a mild soap solution and a soft cloth.
- Rinse with water.
- No sealing or repainting is required.
Durability:
- The HDPE material is waterproof, UV-resistant, and fade-proof, maintaining its appearance season after season.
- The alloy steel-reinforced seating components and rust-resistant 304 stainless steel suspension chains ensure long-lasting outdoor comfort.
Image: Demonstrating the waterproof nature of the swing's HDPE material.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Swing feels unstable or wobbly. | Loose hardware or uneven hanging surface. | Check and tighten all bolts and connections. Ensure the hanging structure is level and secure. |
| Chains show signs of wear or rust. | Normal wear over time or exposure to harsh conditions. | Inspect chains regularly. If significant wear or rust is present, replace the chains immediately. Contact customer support for replacement parts. |
| Cup holder mechanism is stiff. | Accumulation of dirt or debris. | Clean the mechanism with a damp cloth and mild soap. Ensure no debris is obstructing movement. |
9. Warranty and Support
Every KINGYES patio swing includes a 36-month protection against manufacturing defects. This includes a guaranteed replacement service for your peace of mind.
For warranty claims, missing parts, or any product-related inquiries, please contact KINGYES customer support through the retailer where the product was purchased or visit the official KINGYES store online.
KINGYES Store: Visit the KINGYES Store on Amazon
