IELEK Wire Cup Brushes
IELEK 23-Piece Wire Wheel Brush and Cup Brush Set Instruction Manual
Model: Wire Cup Brushes (23-Pack)
1. Product Overview
The IELEK 23-piece wire wheel brush and cup brush set is designed for various surface preparation tasks. This comprehensive kit includes different shapes and sizes of brass-coated carbon crimped steel wire brushes, suitable for use with 1/4-inch shank drills. The brushes are intended for applications such as polishing, deburring, degreasing, and corrosion removal on various metal surfaces.
The set is engineered for durability and effective performance in light to medium applications, offering a more efficient alternative to manual wire brushing.
Image 1.1: Overview of the IELEK 23-piece wire brush set, including various wheel, cup, and end brushes, along with the product packaging.
2. Safety Information
Always prioritize safety when using power tools and wire brushes. Failure to follow these safety guidelines may result in injury.
- Eye Protection: Always wear ANSI-approved safety glasses or goggles to protect against flying debris and bristles.
- Hand Protection: Wear heavy-duty work gloves to protect hands from sharp wires and potential abrasions.
- Respiratory Protection: Use a dust mask or respirator, especially when working with materials that may produce fine particles or dust.
- Work Area: Ensure your work area is well-ventilated and clear of bystanders. Secure the workpiece to prevent movement during operation.
- Tool Compatibility: Only use these brushes with drills that have a 1/4-inch chuck. Ensure the drill is in good working condition.
- Speed Control: Begin operation at a low drill speed and gradually increase as needed. Avoid exceeding the maximum recommended RPM for the brush.
- Inspection: Before each use, inspect the brush for any damaged, loose, or missing wires. Do not use damaged brushes.
- Direction of Rotation: Ensure the brush rotates away from your body and in a direction that directs debris away from you.
- Pressure: Apply light, consistent pressure. Excessive force can cause bristles to break off or damage the workpiece.
3. Setup and Installation
This wire brush set is designed for use with any standard electric or pneumatic drill featuring a 1/4-inch chuck.
- Select the Appropriate Brush: Choose the brush type (cup, wheel, or end) and size suitable for your specific task.
- Ensure Drill is Off: Always ensure your drill is unplugged or its battery is removed before attaching or detaching any accessories.
- Insert Shank: Insert the 1/4-inch shank of the chosen wire brush into the drill chuck.
- Tighten Chuck: Securely tighten the drill chuck around the brush shank. Ensure the brush is firmly seated and centered to prevent wobbling during operation.
- Verify Attachment: Give the brush a gentle tug to confirm it is securely fastened in the chuck.
Image 3.1: Demonstrates the correct method for clamping a 1/4-inch wire brush shank into an electric drill.
4. Operating Instructions
The IELEK wire brush set is versatile for various cleaning and surface preparation tasks. Always refer to the safety information before operation.
4.1 Brush Types and Applications
- Cup Brushes: Recommended for flat surfaces. Ideal for removing paint, rust, and scale from larger, open areas.
- Wheel Brushes: Recommended for sides or curved surfaces. Effective for cleaning edges, contours, and general surface conditioning.
- End Brushes: Recommended for holes, corners, or grooves. Suitable for reaching into confined spaces, internal diameters, and intricate details.

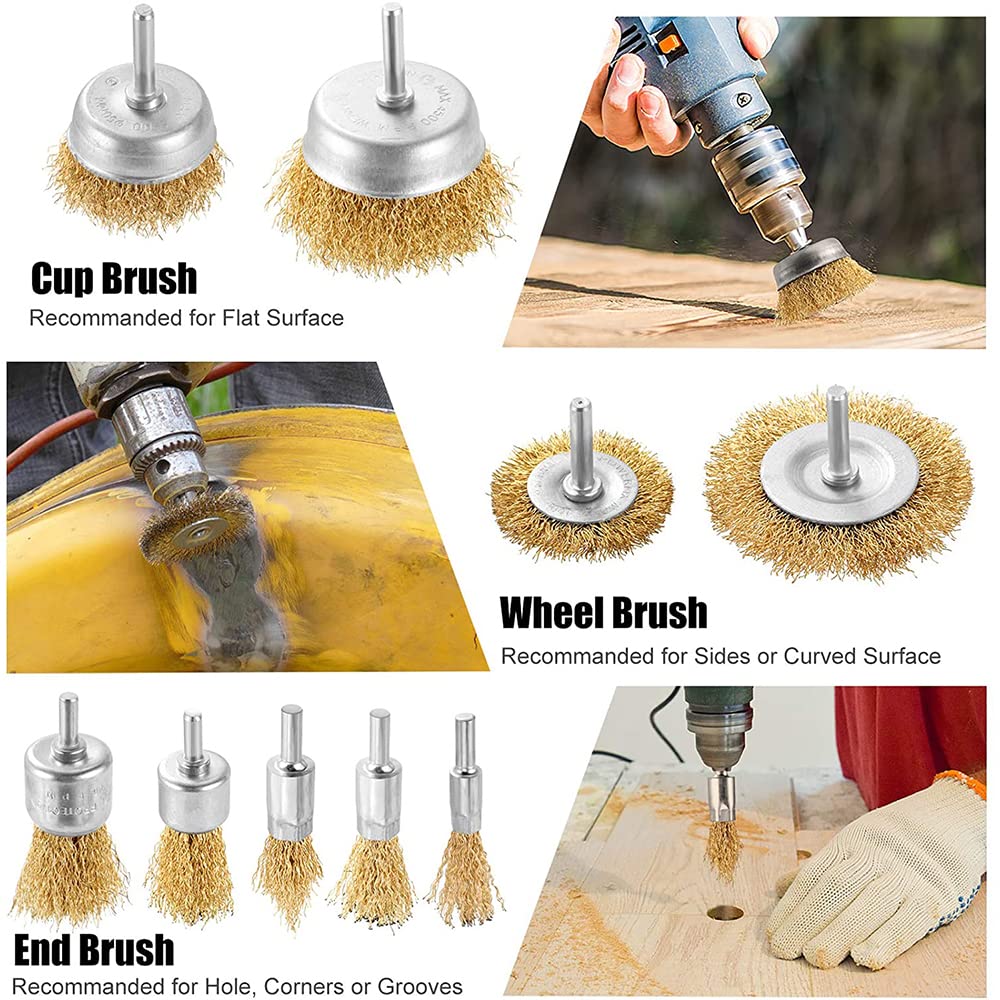

Image 4.1: Illustrates the various brush types (cup, wheel, end) and their suggested uses for different surface geometries.
4.2 General Usage Guidelines
- Start Slow: Begin with the drill at a low speed to gain control and prevent excessive bristle shedding. Gradually increase speed as comfortable and necessary for the task.
- Light Pressure: Apply minimal pressure. The wire tips do the work; excessive pressure can bend or break bristles and reduce effectiveness.
- Consistent Movement: Move the brush across the surface in a consistent, controlled manner. Avoid dwelling in one spot, which can cause uneven wear or damage to the workpiece.
- Observe Results: Monitor the surface being worked on to achieve the desired finish. Adjust speed and pressure as needed.
Image 4.2: Demonstrates various applications including wood polishing, metal polishing, rust removal, and cleaning.
5. Maintenance and Storage
Proper maintenance and storage will extend the life of your wire brushes and ensure continued performance.
- Cleaning: After each use, remove any accumulated debris or material from the brush wires. A stiff brush or compressed air can be used.
- Inspection: Regularly inspect brushes for wear, damage, or excessive bristle loss. Replace brushes that show significant wear or damage.
- Storage: Store brushes in a dry environment to prevent rust. Keep them organized to prevent bristles from bending or becoming tangled. The original packaging can be used for storage.
- Avoid Moisture: Do not expose brushes to excessive moisture, which can lead to corrosion of the steel wires.
Image 5.1: Detailed view of the brush bristles, emphasizing their construction for durability and corrosion resistance.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Excessive bristle shedding | High drill speed, excessive pressure, worn brush, incorrect angle. | Reduce drill speed. Apply lighter pressure. Replace worn brushes. Adjust working angle. |
| Brush wobbles during operation | Brush not securely tightened in chuck, bent shank, unbalanced brush. | Ensure chuck is tightly secured. Inspect shank for bends; replace if bent. Replace unbalanced brushes. |
| Ineffective cleaning/polishing | Insufficient speed, incorrect brush type for task, worn bristles. | Increase drill speed (within safe limits). Select appropriate brush type. Replace brush if bristles are worn. |
| Brush heats up quickly | Excessive friction, prolonged use without cooling. | Reduce pressure. Allow brush to cool periodically. Ensure proper ventilation. |
7. Specifications
- Model: Wire Cup Brushes (23-Pack)
- Shank Size: 1/4-inch
- Bristle Material: Brass Coated Carbon Crimped Steel
- Material: Alloy Steel (base/shank)
- Package Dimensions: 7.05 x 4.65 x 3.7 inches
- Item Weight: Approximately 2.45 Pounds
- Manufacturer: Ielek Official
8. Warranty and Support
IELEK is committed to providing quality products and customer satisfaction. If you encounter any issues with the product regarding its size, functions, or any other concerns, please contact IELEK customer support. The manufacturer aims to resolve any problems to ensure your satisfaction.
For support, please refer to the contact information provided with your purchase or visit the official IELEK website.
