Furgle Electric Adjustable Bed Base User Manual

1. Important Safety Information

Please read all instructions carefully before using this electric bed base. Failure to follow these instructions may result in injury or damage to the product.

• Do not place objects between the mattress and the bed frame to avoid entrapment hazards.
• Do not place blankets, pillows, or other objects between the headboard and the wall to avoid suffocation risks.
• This electric bed base is designed for adults and can support a maximum weight of 500 kg (1102 lbs). Do not exceed the recommended load capacity to prevent damage or injury.
• Keep children and pets away from the moving parts of the bed base.
• Ensure the power cord is not pinched or damaged.

2. Product Overview

The Furgle Electric Adjustable Bed Base is designed to provide superior comfort and support, allowing you to customize your sleeping and resting positions. Its ergonomic design helps alleviate back pain, improve circulation, and can even assist with snoring issues. The robust construction ensures long-lasting durability.

Figure 2.1: Furgle Electric Adjustable Bed Base in use, showing adjustable head and foot sections.

Key Features:

• Ergonomic Adjustable Frame: Relieves back pain, improves air circulation, and aids digestion. Beneficial for various comfort needs, including pregnancy discomfort.
• Customized Inclination: Independent head inclination from 0 to 60 degrees and foot inclination from 0 to 45 degrees for personalized comfort.
• Wireless Remote Control: Easily adjust positions without leaving the bed. Features preset buttons for flat, zero gravity, and memory positions.
• OKIN Dual Motors: Equipped with German OKIN dual motors (one for back, one for legs) ensuring smooth and quiet operation (below 45 decibels). Provides strong thrust exceeding 6000N.
• Durable and Robust Construction: Made with 26 aerospace-grade fiberglass slats and sturdy steel legs. Designed to support up to 500 kg (1102 lbs).

3. Setup and Assembly

The Furgle Electric Adjustable Bed Base is designed for quick and easy assembly, typically taking around 5 minutes.

Assembly Steps:

1. Unpack all components from the packaging. Verify all parts are present according to the packing list (not provided in this manual, refer to product packaging).
2. Carefully unfold the bed frame.
3. Attach the legs securely to the designated points on the frame. Ensure they are tightened to prevent wobbling.
4. Place the mattress on top of the bed base. The integrated retention bars will help keep the mattress in place.
5. Connect the power cord to a suitable power outlet.
6. Test the remote control functions to ensure proper operation of the head and foot adjustments.

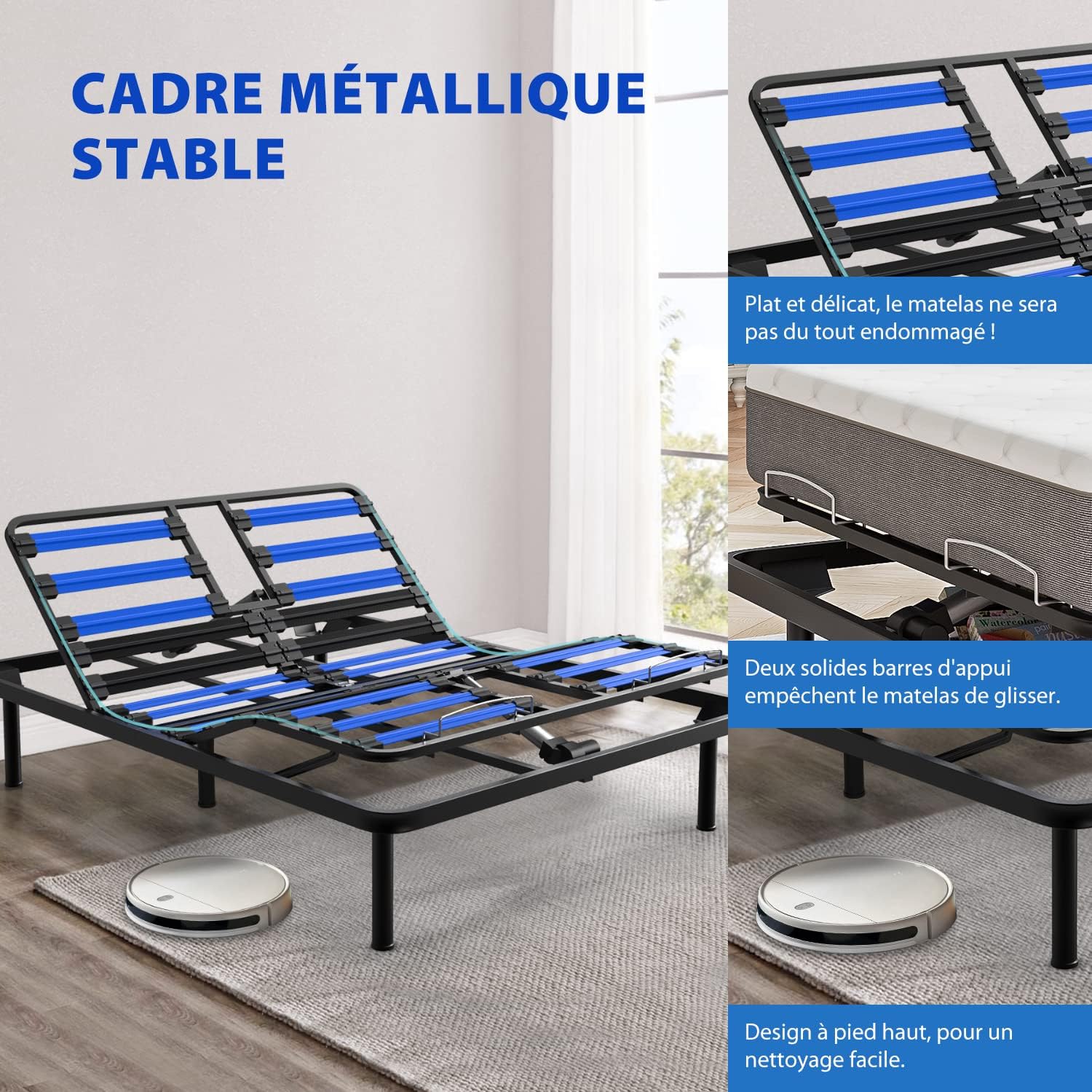

Figure 3.1: Stable metal frame with high feet for easy cleaning and mattress retention bars.

Figure 3.2: Key components for setup and operation: wireless remote, mattress retention bar, and durable fiberglass slats.

4. Operating Instructions

Your Furgle Electric Adjustable Bed Base offers various positions for enhanced comfort and well-being, controlled by a convenient wireless remote.

4.1 Wireless Remote Control

The wireless remote allows you to effortlessly adjust the bed's position. It includes dedicated buttons for common settings and memory functions.

• Head Adjustment: Use the designated buttons to raise or lower the head section from 0 to 60 degrees.
• Foot Adjustment: Use the designated buttons to raise or lower the foot section from 0 to 45 degrees.
• Flat Position: Press the 'Flat' button to return the bed to a completely flat position.
• Zero Gravity Mode: Activate the 'Zero Gravity' button for a position that promotes metabolism and relieves fatigue by elevating the head and feet to reduce pressure on the spine.
• Anti-Snoring Mode: Engage the 'Anti-Snoring' button to gently raise the head by 10 degrees, which can help open airways and reduce snoring.
• Memory Presets: Save your favorite positions using the memory function buttons for quick recall.

Figure 4.1: Illustration of the Zero Gravity mode, designed to promote metabolism and relieve fatigue.

Figure 4.2: Illustration of the Anti-Snoring mode, gently elevating the head to improve breathing.

Figure 4.3: The bed's versatility allows for comfortable positions for reading, watching TV, or working on a laptop.

5. Maintenance and Care

Proper maintenance will ensure the longevity and optimal performance of your Furgle Electric Adjustable Bed Base.

5.1 Cleaning

• Wipe the metal frame and legs with a damp cloth and mild detergent. Avoid abrasive cleaners.
• The high-foot design allows for easy cleaning underneath the bed, including robotic vacuum access.
• For the fiberglass slats, a dry cloth is usually sufficient to remove dust.

5.2 Durability and Longevity

The bed base is constructed with high-quality materials for maximum durability:

• Aerospace-Grade Fiberglass Slats: The 26 fiberglass slats are designed for superior durability, ergonomics, and integration, with a guaranteed breaking strength for 20 years.
• Robust Steel Legs: The 6 sturdy steel legs provide stable support for the bed base.
• High Load Capacity: The bed is engineered to support a maximum weight of 500 kg (1102 lbs).

Figure 5.1: Detail of the aerospace-grade fiberglass slats, highlighting their strength and flexibility.

Figure 5.2: The bed's robust design supports up to 500kg, powered by quiet and strong OKIN German motors.

6. Troubleshooting

If you encounter any issues with your Furgle Electric Adjustable Bed Base, please refer to the following common troubleshooting tips. If the problem persists, contact customer support.

• Bed Not Responding to Remote:
  • Check if the bed base is properly plugged into a working power outlet.
  • Ensure the remote control has fresh batteries and is within range.
  • Verify there are no obstructions preventing the bed's movement.
• Unusual Noises During Operation:
  • While the OKIN motors are designed for quiet operation, check for any loose bolts or components that might be causing rattling.
  • Ensure the bed is on a flat, stable surface.
• Mattress Slipping:
  • Ensure the mattress retention bars are correctly installed and positioned.
  • Verify the mattress size is compatible with the bed base dimensions.

7. Specifications

8. Warranty and Support

Furgle is committed to providing high-quality products and excellent customer service.

• Warranty: This product comes with a 5-year warranty.
• Returns: Free returns are available for quality issues within 30 days of purchase.
• Customer Service: If you have any questions or require assistance, please contact our 24/7 online customer service. We are dedicated to providing prompt solutions to your satisfaction.

For further assistance, please refer to the contact information provided with your purchase or visit the official Furgle website.
