1. Safety Instructions
Read all instructions carefully before assembly and use. Failure to follow these instructions may result in injury or product damage.
- Wall Mounting: The Murphy bed must be securely anchored to a structural wall stud or solid masonry using appropriate fasteners. Do not mount to drywall alone.
- Weight Capacity: Do not exceed the maximum weight recommendation of 250 pounds for the mattress and user combined.
- Mattress Size: Use only a standard Queen mattress (80"x60"). An incorrect mattress size may affect the bed's operation and safety.
- Children and Pets: Keep children and pets away from the bed during operation to prevent injury.
- Clearance: Ensure adequate clearance around the bed when opening and closing.
- Gas Springs: The gas springs are under high pressure. Do not attempt to disassemble or puncture them. Handle with care during installation.
- Professional Installation: If you are unsure about any step, consult a qualified professional.
2. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact TooCust customer support.
Image: Complete hardware kit for the TooCust Murphy Bed, including gas springs, mounting plates, support brackets, and various fasteners.
The package includes a full hardware kit necessary for building the wall bed. This typically comprises:
- Bidirectional Gas Springs (2 units)
- Mounting Plates and Brackets
- L-Shape Support Brackets
- Fasteners (screws, bolts, washers, nuts)
- Straps for mattress retention
- Assembly Instructions Manual
- USB Flash Drive with step-by-step video instructions
3. Setup and Assembly
Assembly requires two people. Follow the detailed instructions provided in the user manual and on the USB flash drive for a smooth installation process.
Image: The included detailed assembly guidebooks and a USB flash drive containing step-by-step video instructions for the Murphy bed.
3.1. Preparation
- Clear the assembly area.
- Unpack all components and verify against the parts list.
- Gather necessary tools (e.g., drill, screwdriver, level, measuring tape).
3.2. Frame Assembly
Assemble the bed frame components according to the provided diagrams. Ensure all connections are secure.
Image: Detailed view of the Murphy bed frame components, highlighting the sturdy alloy steel construction.
3.3. Wall Cabinet Construction (if applicable)
Construct the wall cabinet enclosure that will house the Murphy bed. Pay close attention to measurements and alignment.
Image: Technical diagram illustrating the dimensions of the vertical Queen Murphy bed and its cabinet enclosure, with measurements in millimeters.
3.4. Wall Mounting
Securely attach the cabinet to the wall studs. This step is critical for safety and stability. Use a stud finder to locate wall studs and ensure the cabinet is level.
3.5. Gas Spring Installation
Install the bidirectional gas springs as per the instructions. These springs assist in the smooth operation of the bed.

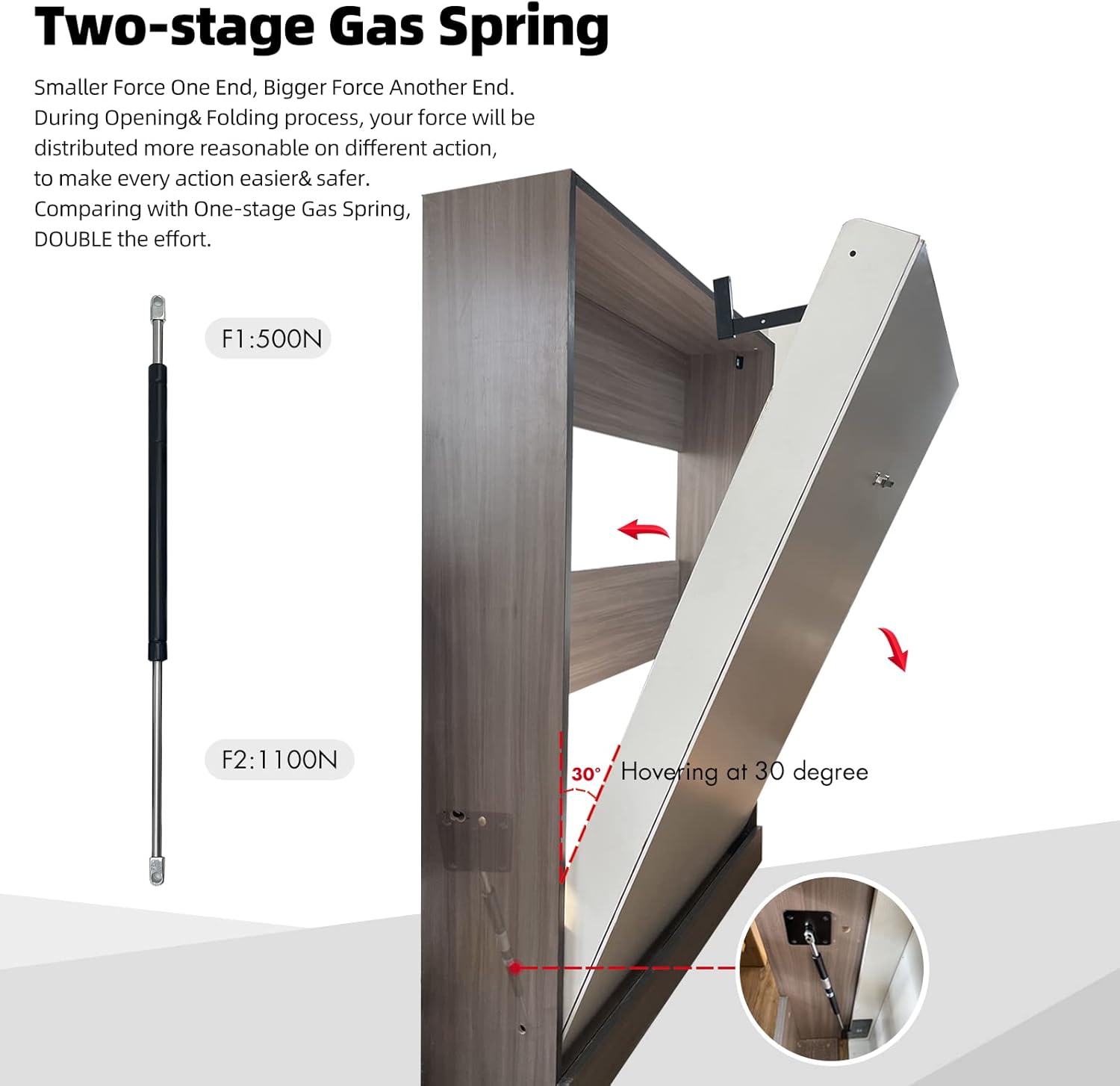

Image: Diagram illustrating the two-stage gas spring mechanism, showing different force levels (F1: 500N, F2: 1100N) for easier opening and closing, and the bed hovering at a 30-degree angle.
3.6. Final Adjustments
Attach the L-shape support brackets and make any necessary adjustments to ensure the bed operates smoothly and is stable.
Image: Close-up view of the L-shape support bracket, highlighting its 6mm thickness for discreet placement between the bed and mattress, and a rubber sleeve for increased friction and load-bearing capacity.
4. Operating Instructions
The TooCust Murphy Bed is designed for easy operation with its bidirectional gas springs.
Image: A TooCust Queen Vertical Murphy Bed in the open position, integrated into a modern living space, demonstrating its space-saving design.
4.1. Opening the Bed
- Ensure the area in front of the bed is clear of obstructions.
- Grasp the handle firmly.
- Gently pull the bed downwards. The gas springs will assist in a controlled descent.
- Lower the bed completely until the support legs are fully extended and resting on the floor.
4.2. Closing the Bed
- Remove any bedding or pillows that might obstruct the closing mechanism.
- Lift the bed frame upwards using the handle. The gas springs will assist in lifting the bed.
- Guide the bed smoothly into its vertical cabinet position until it is fully closed and secured.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your Murphy bed.
- Hardware Check: Periodically inspect all screws, bolts, and connections to ensure they are tight. Tighten any loose fasteners.
- Gas Springs: Check the gas springs for any signs of wear, damage, or leakage. If a spring appears damaged, contact customer support for replacement. Do not attempt to repair.
- Cleaning: Clean the metal frame and cabinet surfaces with a soft, damp cloth. Avoid abrasive cleaners.
- Lubrication: Moving parts may benefit from occasional lubrication with a silicone-based spray to ensure smooth operation.
6. Troubleshooting
If you encounter issues with your TooCust Murphy Bed, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed is difficult to open or close. | Incorrect mattress weight; worn gas springs; obstruction. | Ensure mattress is correct size/weight. Check gas springs for damage. Remove any obstructions. |
| Bed feels unstable when open. | Loose wall anchors; uneven floor; loose frame connections. | Verify wall anchors are secure. Ensure floor is level or use shims. Tighten all frame connections. |
| Squeaking or grinding noises. | Lack of lubrication; loose fasteners. | Apply silicone lubricant to moving parts. Tighten all fasteners. |
If the problem persists, contact TooCust customer support for further assistance.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | TooCust |
| Model | Queen Vertical Murphy Bed |
| Product Dimensions (Closed) | 203.2 x 152.4 x 50.8 cm (approx. 80 x 60 x 20 inches) |
| Item Weight | 6.76 Kilograms (hardware kit) |
| Material | Alloy Steel, Carbon Steel (Frame) |
| Mattress Compatibility | Standard Queen (80"x60") |
| Maximum Weight Recommendation | 250 Pounds |
| Assembly Required | Yes |
| Form Factor | Murphy Bed |
8. Warranty and Support
For information regarding warranty coverage, please refer to the purchase documentation or contact TooCust customer support directly. Keep your proof of purchase for any warranty claims.
Customer Support: If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact TooCust customer service through the retailer where the product was purchased or via the official TooCust website.
