Important Safety Information
Please read all instructions carefully before using the Toshiba RC-DR10LSG Rice Cooker. Retain this manual for future reference.
- Always ensure the power supply matches the voltage specified on the appliance.
- Do not immerse the main unit in water or other liquids.
- Keep out of reach of children.
- Do not operate the appliance with a damaged cord or plug.
- Unplug the rice cooker when not in use and before cleaning.
- Use only the inner pot provided with the appliance.
- Avoid touching hot surfaces. Use handles or knobs.
- Ensure proper ventilation during operation.
Product Components and Features
Familiarize yourself with the parts and key features of your Toshiba RC-DR10LSG Rice Cooker.
Image: The inner pot of the Toshiba RC-DR10LSG Rice Cooker, featuring a copper-colored exterior and a non-stick interior. This pot is designed for optimal heat distribution.
Image: Diagram illustrating the inner pot's design. It highlights the 5mm thick non-stick inner pot and the 60-degree angled pot-bottom wave feature, which promotes intensive thermal convection for even cooking.

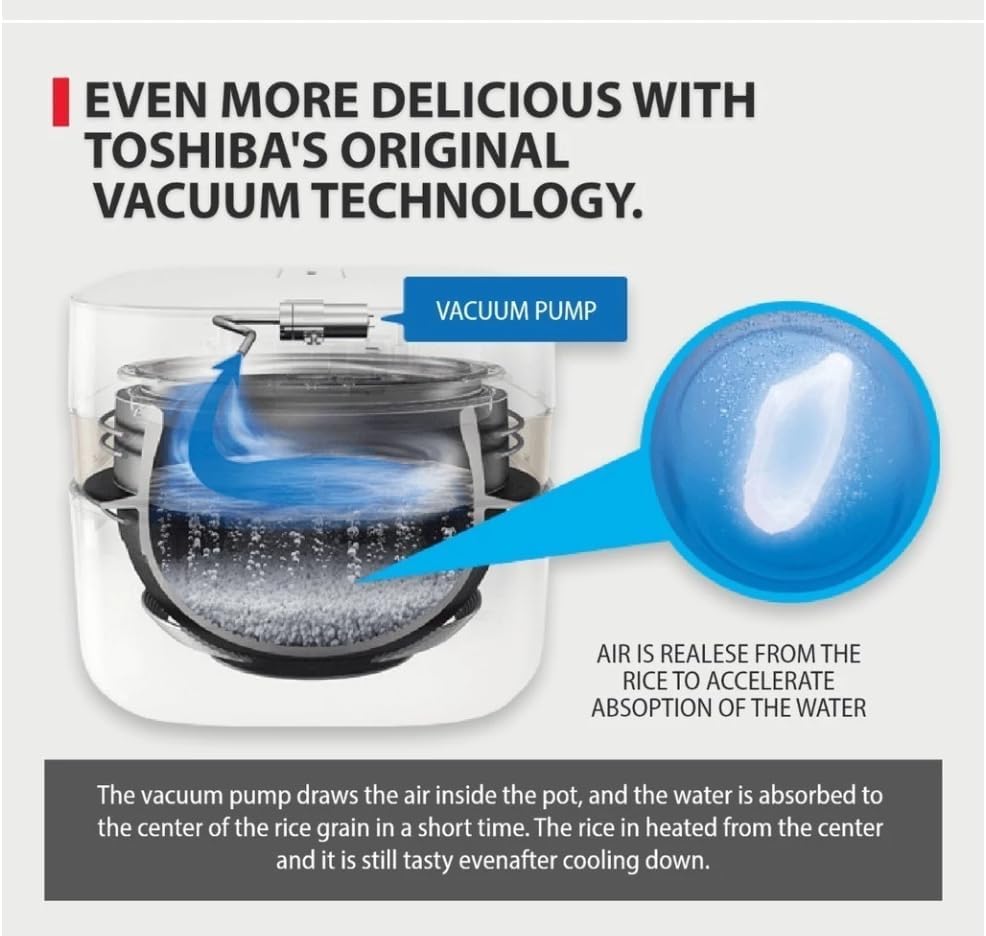

Image: Diagram explaining Toshiba's vacuum technology. A vacuum pump draws air from the pot, allowing water to be absorbed more effectively into the rice grains, which helps maintain taste even after cooling.
The rice cooker includes a 5mm thick non-stick inner pot with diamond and titanium coating on the inside and copper coating on the outside. It also features a Bincho charcoal far-infrared inner frame, contributing to efficient heating.
Setup and First Use
- Unpacking: Carefully remove the rice cooker and all accessories from the packaging.
- Initial Cleaning: Wash the inner pot, measuring cup, and rice paddle with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp cloth.
- Placement: Place the rice cooker on a stable, level, heat-resistant surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
- Power Connection: Plug the power cord into a grounded electrical outlet.
Operating Instructions
Cooking Rice
- Measure Rice: Use the provided measuring cup to measure the desired amount of rice.
- Wash Rice: Rinse the rice thoroughly until the water runs clear.
- Add to Inner Pot: Place the washed rice into the inner pot.
- Add Water: Add the appropriate amount of water according to the rice type and desired consistency. Refer to the water level markings inside the inner pot.
- Insert Inner Pot: Place the inner pot into the main body of the rice cooker, ensuring it is seated correctly.
- Close Lid: Close the lid securely.
- Select Menu: Choose your desired rice course (e.g., DELICIOUS, HARD, STICKY, REGULAR, QUICK, MIXED) and hardness setting using the control panel.
- Start Cooking: Press the "Start" button. The cooking indicator light will illuminate.
- Keep Warm: Once cooking is complete, the rice cooker will automatically switch to "Keep Warm" mode.
- Serve: Open the lid carefully, stir the rice with the paddle, and serve.
Using Binchotan Charcoal (Optional)
Image: Binchotan charcoal sticks placed directly into rice during cooking. Binchotan can help purify water and release minerals, potentially improving the taste of rice.
For enhanced water purification and taste improvement, you may add a clean, food-grade piece of Binchotan charcoal to the inner pot with the rice and water before cooking. Ensure the Binchotan is removed before serving.
Cooking Other Dishes (Soup/Steam)
The rice cooker also offers dedicated cooking courses for Soup and Steam. Refer to the control panel for selecting these functions and follow specific recipes for ingredient quantities and cooking times.
Care and Maintenance
Proper cleaning and maintenance will ensure the longevity and optimal performance of your rice cooker.
- Unplug: Always unplug the rice cooker from the power outlet and allow it to cool completely before cleaning.
- Inner Pot: The inner pot should be hand washed with warm, soapy water. Use a soft sponge or cloth to avoid damaging the non-stick coating. Do not use abrasive cleaners or metal scouring pads.
- Lid and Steam Vent: Remove the inner lid and steam vent cap. Wash them with warm, soapy water, rinse, and dry thoroughly.
- Main Unit Exterior: Wipe the exterior of the rice cooker with a soft, damp cloth. Do not use harsh chemicals or immerse the main unit in water.
- Storage: Store the rice cooker in a dry place when not in use.
Troubleshooting Guide
If you encounter issues with your rice cooker, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Rice is undercooked or too hard. | Insufficient water, incorrect rice-to-water ratio, lid not closed properly. | Add more water next time, ensure lid is sealed, select appropriate cooking course. |
| Rice is overcooked or too soft. | Too much water, incorrect rice-to-water ratio. | Reduce water next time, ensure correct water level. |
| Rice cooker does not turn on. | Not plugged in, power outage, faulty power cord. | Check power connection, test outlet, inspect power cord for damage. |
| Steam leaking from lid. | Lid not closed properly, steam vent clogged, lid seal damaged. | Ensure lid is securely closed, clean steam vent, check lid seal for damage. |
If the problem persists after trying these solutions, please contact customer support.
Product Specifications
| Model Number | RC-DR10LSG |
| Brand | Toshiba |
| Capacity | 1.0 Liters |
| Power Source | Corded Electric |
| Power Supply | 220-240V~50Hz |
| Power Consumption | 1100W |
| Color | White |
| Material (Inner Pot) | Aluminium with Diamond, Titanium, and Copper Coating |
| Inner Pot Thickness | 5mm |
| Net Weight | 4.7 KG |
| Dimensions (L x H x W) | 326mm x 232mm x 264mm |
| Special Features | Non-Stick Inner Pot, IH Heating, Vacuum Technology, Bincho Charcoal Far-Infrared Inner Frame |
| Cooking Menus | Selectable Hardness & Rice Courses (Delicious, Hard, Sticky, Regular, Quick, Mixed), Cooking Courses (Soup, Steam) |
| Product Care Instructions | Hand Wash (Inner Pot) |
| Country of Origin | Japan |
Image: A visual summary of key product specifications, including inner pan thickness, capacity, net weight, power supply, dimensions, and available cooking menus.
Warranty and Support
This Toshiba RC-DR10LSG Rice Cooker comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.
For technical assistance, service, or to inquire about replacement parts, please contact Toshiba customer support in your region. Contact information can typically be found on the Toshiba official website or on the warranty card.
Online Resources: For additional information, FAQs, or to register your product, visit the official Toshiba website: www.toshiba.com
