KoolerThings Handheld Back Massager with Heat User Manual

1. Introduction

Thank you for choosing the KoolerThings Handheld Back Massager with Heat. This device is designed to provide targeted percussion massage and heat therapy for various body parts, including the back, neck, shoulders, legs, and feet. Please read this manual thoroughly before use to ensure safe and effective operation. Keep this manual for future reference.

2. Important Safety Instructions

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons:

• Always unplug the massager from the power source immediately after charging and before cleaning.
• Do not use while bathing or in a shower.
• Do not place or store the massager where it can fall or be pulled into a tub or sink.
• Do not immerse in water or other liquid.
• Never use pins or other metallic fasteners with this appliance.
• Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons.
• Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
• Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.
• Keep the cord away from heated surfaces.
• Never use while sleeping or drowsy.
• Never drop or insert any object into any opening.
• Do not use where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use on sensitive skin areas or where circulation is poor.
• The use of the massager should be pleasant and comfortable. Should pain or discomfort result, discontinue use and consult your physician.
• Do not use on open wounds, discolored areas, or any area of the body that is swollen, burned, inflamed, or where skin eruptions are present.
• This product is not a medical device. Consult your doctor before using if you have any medical conditions.

3. Package Contents

• 1 x KoolerThings Handheld Back Massager
• 7 x Interchangeable Massage Nodes
• 1 x Charging Cable (Power adapter not included)
• 1 x User Manual

4. Product Overview

The KoolerThings Handheld Back Massager is a cordless, electric percussion massager designed for full body pain relief and muscle relaxation. It features an ergonomic design with a non-slip grip for comfortable use.

Image 1: The KoolerThings Handheld Back Massager with its various interchangeable massage nodes.

Control Panel and Features

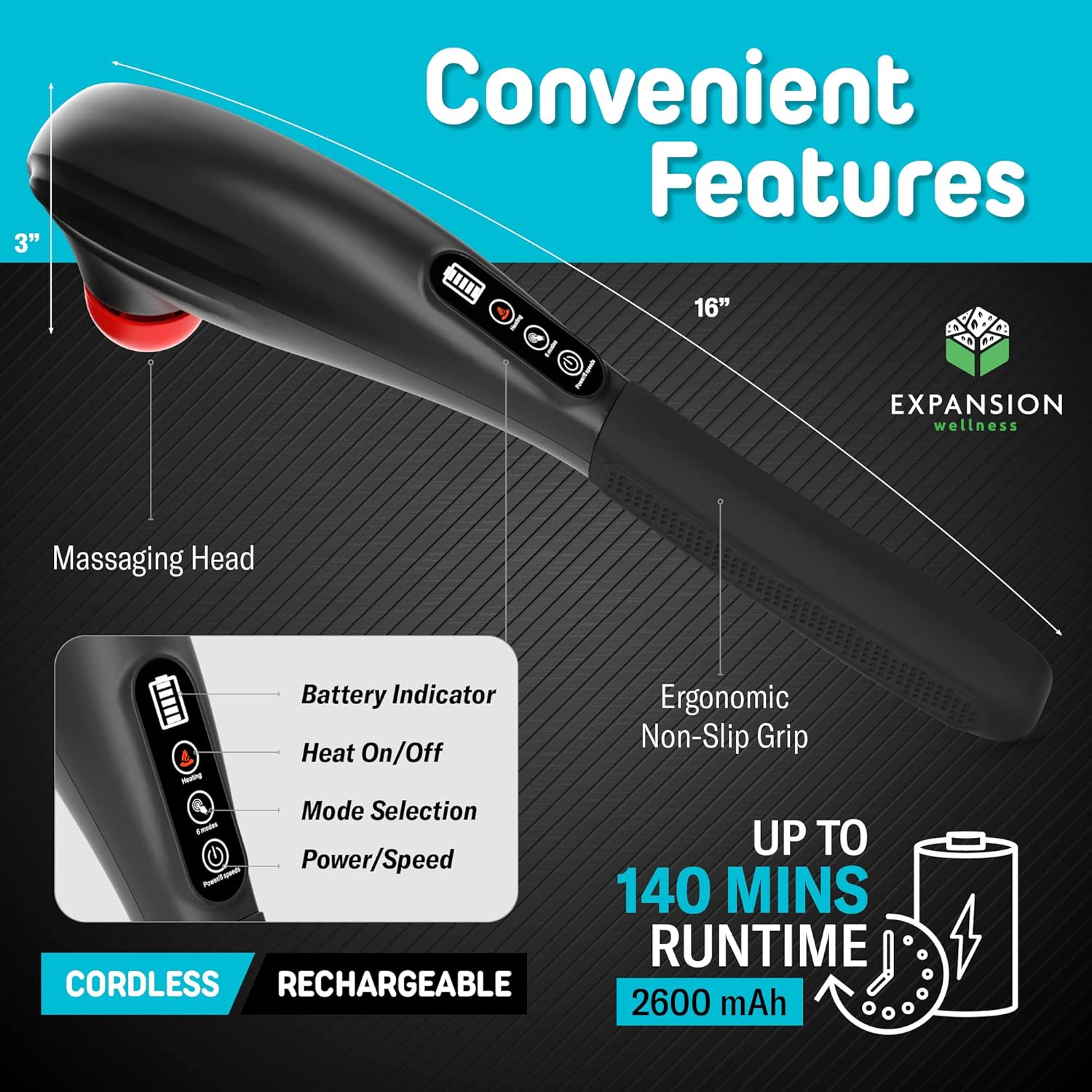

Image 2: Detailed view of the massager's control panel, showing the battery indicator, heat function, mode selection, and power/speed buttons. The ergonomic non-slip grip is also visible.

• Massage Head: The primary area where massage nodes attach.
• Control Panel: An intuitive LCD touch screen for managing settings.
• Battery Indicator: Displays the current battery level.
• Heat On/Off Button: Activates or deactivates the heating function.
• Mode Selection Button: Cycles through different massage modes.
• Power/Speed Button: Turns the device on/off and adjusts massage intensity.
• Ergonomic Non-Slip Grip: Provides a secure and comfortable hold during use.

5. Setup

Attaching Massage Nodes

1. Ensure the massager is turned off before attaching or detaching any nodes.
2. Select the desired massage node.
3. Align the notch on the base of the massage node with the groove on the massager's head.
4. Gently push and twist the node until it is securely in place. Do not force the attachment.
5. To remove, twist the node counter-clockwise and pull it off.

6. Charging the Device

The massager is equipped with a rechargeable 2600mAh battery. For optimal performance, fully charge the device before its first use.

Image 3: The battery life indicator on the massager's control panel, showing a full charge.

1. Locate the charging port on the massager.
2. Connect the provided charging cable to the massager and plug the other end into a compatible USB power adapter (not included).
3. The battery indicator on the LCD screen will show charging status.
4. A full charge typically takes approximately 2 hours and provides up to 140 minutes of runtime, depending on the speed and heat settings used.
5. Unplug the massager once fully charged.

7. Operating Instructions

The massager features an easy-to-use one-touch control panel for quick adjustments.

Image 4: The control panel highlighting the variable speed intensity and one-touch controls for mode, speed, and heat.

1. Power On/Off and Speed Adjustment: Press the Power/Speed button to turn the massager on. Continue pressing to cycle through 6 different speed levels. Press and hold the Power/Speed button to turn the device off.
2. Mode Selection: Press the Mode Selection button to switch between various massage patterns.
3. Heat Function: Press the Heat On/Off button to activate the heating function. The self-heating head will warm up, providing soothing heat therapy. Press again to turn off the heat.

Apply the massager to the desired body area. Move the massager slowly and gently over muscles. Adjust speed and mode as needed for your comfort.

Image 5: The massager being used on various body parts, including the foot, leg, lower back, and neck, demonstrating its versatility.

8. Interchangeable Massage Nodes

The KoolerThings massager comes with 7 unique massage nodes, each designed for specific massage experiences and target areas.

Image 6: A display of the seven interchangeable massage nodes, each with a distinct shape and texture for varied massage experiences.

• Self-Heating Head: Provides soothing heat therapy in conjunction with percussion massage. Ideal for warming up muscles.
• Cup Head: Designed for gentle, broad-area massage, suitable for larger muscle groups.
• 1-Point Head: For targeted deep tissue massage, ideal for trigger points and knots.
• Flat Head: Versatile for general full-body relaxation and muscle toning.
• Spiked Head: Offers a stimulating massage, good for increasing circulation and relieving tension.
• 6-Point Head: Provides a broader, multi-point massage, effective for larger muscle areas like the back.
• Round Head: A general-purpose head for a comfortable, all-around massage experience.

9. Maintenance and Care

Cleaning

• Ensure the massager is turned off and unplugged before cleaning.
• Wipe the massager's surface with a soft, slightly damp cloth.
• Do not use abrasive cleaners, solvents, or harsh detergents.
• Do not immerse the massager in water or any other liquid.
• Clean massage nodes separately with mild soap and water, then dry thoroughly before reattaching.

Storage

• Store the massager in a cool, dry place, away from direct sunlight and extreme temperatures.
• Keep out of reach of children.
• Do not wrap the power cord around the appliance.

10. Troubleshooting

11. Specifications

• Model: B09MJPTW9G
• Brand: KoolerThings
• Power Source: Battery Powered
• Battery Capacity: 2600mAh
• Runtime: Up to 140 minutes (varies with speed and heat usage)
• Massage Speeds: 6
• Massage Nodes: 7 Interchangeable
• Special Feature: Heat Function
• Material: Silicone
• Package Dimensions: 17.25 x 6 x 4 inches
• Weight: 2.55 Pounds
• Manufacturer: KoolerThings

12. Warranty and Support

KoolerThings is committed to providing high-quality products. For warranty information, technical support, or any questions regarding your Handheld Back Massager, please contact KoolerThings customer service through the retailer's platform or the official brand website. Please have your model number (B09MJPTW9G) and purchase details ready when contacting support.
