Bosch WQG233D0FR Series 6 Heat Pump Tumble Dryer User Manual
Model: WQG233D0FR
1. Introduction
This manual provides essential information for the safe and efficient operation of your Bosch WQG233D0FR Series 6 Heat Pump Tumble Dryer. Please read these instructions carefully before first use and keep them for future reference.
Key Features:
- Heat Pump Technology: Energy-efficient drying with eco-friendly R290 refrigerant.
- AutoDry Sensors: Continuously monitor temperature and humidity to prevent overheating and ensure perfect drying results.
- SensitiveDrying System: Gentle drying with warm air penetrating the drum, protecting delicate fabrics.
- AntiVibration Design: Enhanced stability and reduced noise levels during operation.
- EasyClean Filter: Conveniently located in front of the condenser for simple maintenance.
Safety Information:
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. Ensure the appliance is properly installed and grounded. Do not allow children to play with or operate the dryer. Keep flammable materials away from the appliance.
Image 1.1: Front view of the Bosch WQG233D0FR Series 6 Heat Pump Tumble Dryer, showcasing its white finish and control panel.
2. Setup and Installation
Proper installation is crucial for the performance and longevity of your tumble dryer. Ensure the appliance is placed on a stable, level surface.
Dimensions and Weight:
- Height: 84.2 cm
- Width: 59.8 cm
- Depth (excluding door): 61.3 cm
- Depth (including door): 65.4 cm
- Weight: 52.4 kg
The AntiVibration Design of the side walls provides greater stability and reduces vibrations during operation. Ensure adequate ventilation around the appliance.
Image 2.1: Dimensional diagram of the tumble dryer, indicating width, depth, and height measurements for installation planning.

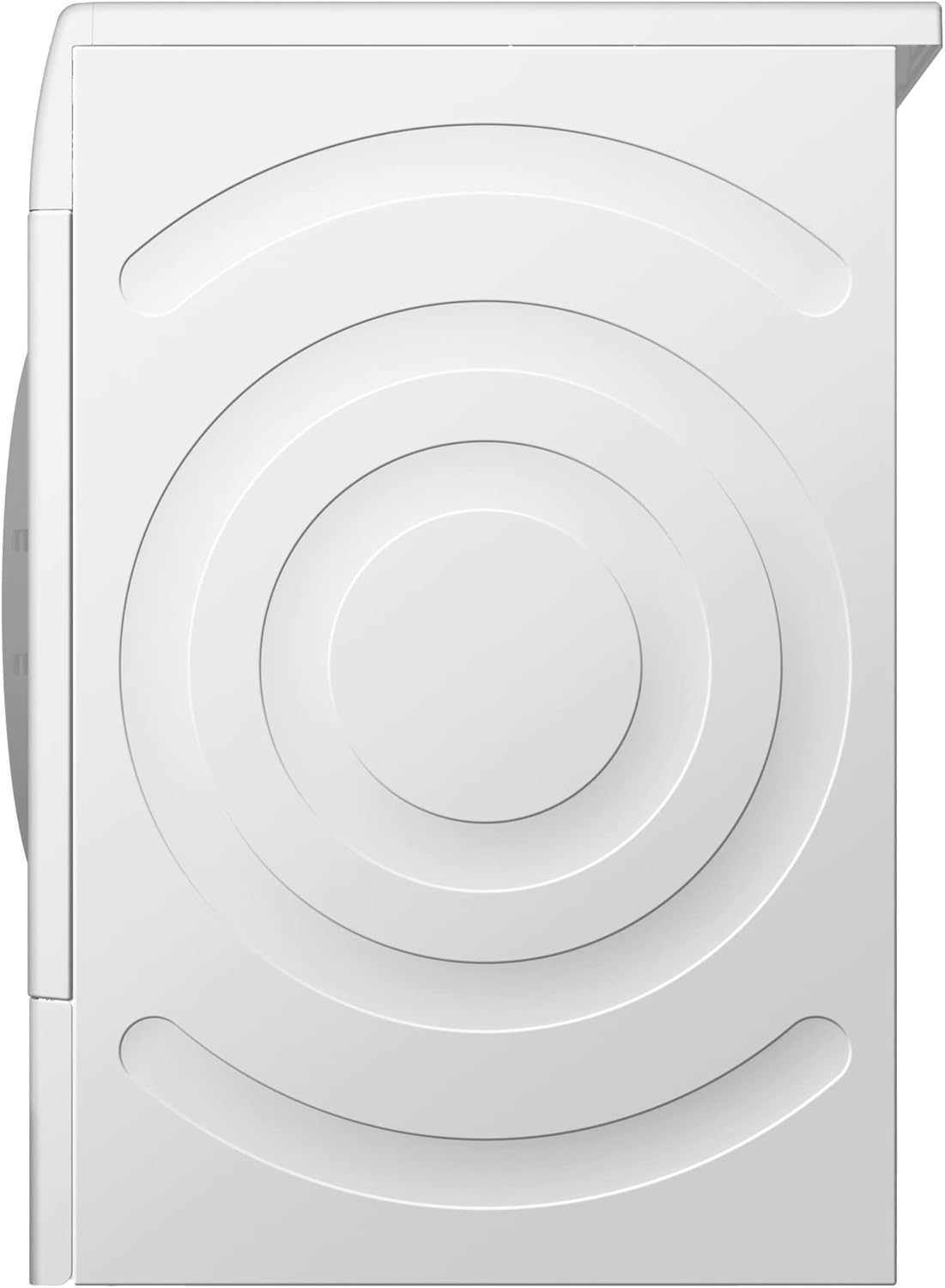

Image 2.2: Side view of the appliance, illustrating the unique AntiVibration side panel design for enhanced stability.
3. Operating Instructions
Your Bosch WQG233D0FR tumble dryer offers a variety of programs and features to ensure optimal drying results for different fabric types.
Control Panel Overview:
The control panel features a program selector dial, a digital display for remaining time and special functions, and touch buttons for additional settings.
Image 3.1: Detailed view of the control panel, showing the program selection dial, digital display, and function buttons.
Drying Programs:
Select the appropriate program based on the fabric type and desired dryness level. The AutoDry technology automatically detects the dryness level and stops the program when complete, preventing over-drying.
- Cotton: For robust cotton items.
- Synthetics: For synthetic or blended fabrics.
- Delicate: For heat-sensitive textiles.
- Bed Linen: Features alternating drum rotation for even drying of large items.
- Mix: For mixed loads of cotton and synthetic fabrics.
- Express 40 min: Quick drying for small loads.
- Hygiene Plus: For items requiring extra hygiene.
- Wool Finish: For gentle drying of wool items.
Loading the Dryer:
The dryer has an 8 kg capacity. Do not overload the drum to ensure efficient drying and prevent damage to garments. The SensitiveDrying System's unique drum structure ensures gentle treatment of your laundry.
Image 3.2: Interior of the stainless steel drum, highlighting the honeycomb structure designed for gentle drying.
4. Maintenance and Care
Regular maintenance ensures optimal performance and extends the lifespan of your tumble dryer.
Cleaning the Lint Filter:
Clean the lint filter after every drying cycle. The EasyClean filter is located in front of the condenser and is designed for easy access and cleaning. A clogged filter can reduce drying efficiency and increase energy consumption.
Emptying the Condensate Container:
Empty the condensate container after each drying cycle. If connected to a drain, this step is not necessary.
Cleaning the Appliance:
Wipe the exterior of the dryer with a soft, damp cloth. Do not use abrasive cleaners or solvents. Periodically clean the moisture sensors inside the drum with a soft cloth and vinegar solution to ensure accurate drying results.
5. Troubleshooting
Before contacting customer service, please refer to the following common issues and their solutions:
- Dryer does not start: Check if the power plug is inserted correctly, the door is fully closed, and a program has been selected.
- Laundry is not dry: Ensure the lint filter is clean, the condensate container is empty, and the correct program for the load size and fabric type has been selected. Avoid overloading the dryer.
- Unusual noises: Check for foreign objects in the drum or filter. Ensure the dryer is level and stable.
- Error codes on display: Refer to the full user manual for specific error code interpretations and solutions.
6. Technical Specifications
| Specification | Value |
|---|---|
| Model Number | WQG233D0FR |
| Capacity | 8 kg |
| Energy Efficiency Class | A+++ |
| Annual Energy Consumption | 176 kWh/year |
| Noise Level | 64 dB (A) re 1 pW |
| Dimensions (H x W x D) | 84.2 cm x 59.8 cm x 61.3 cm |
| Weight | 52.4 kg |
| Drum Volume | 112 L |
| Condensation Efficiency Class | A (91%) |
| Refrigerant | R290 (eco-friendly) |
| Power Supply | 220-240 V, 50 Hz, 10 A |
| Standard Program Duration | 165 min (full load cotton) |
Image 6.1: Technical data sheet providing detailed specifications and energy information.
Image 6.2: Product card displaying energy efficiency class, annual energy consumption, and program durations.
7. Warranty and Support
Your Bosch WQG233D0FR Series 6 Heat Pump Tumble Dryer comes with a manufacturer's warranty. Please refer to the warranty card provided with your appliance for specific terms and conditions.
Spare Parts Availability:
Spare parts for this model are available for a period of 11 years from the date of purchase.
Customer Service:
For technical assistance, repairs, or to order spare parts, please contact Bosch customer service. You can find contact information on the Bosch website or in your warranty documentation.
